02 Database Concept, Architecture, and Components

Outline

Today, you will learn:

• Basic concept for data object declaration
• Database system and its environment
• Database architecture
• Database components
• Three Schema Architecture

Database Concept

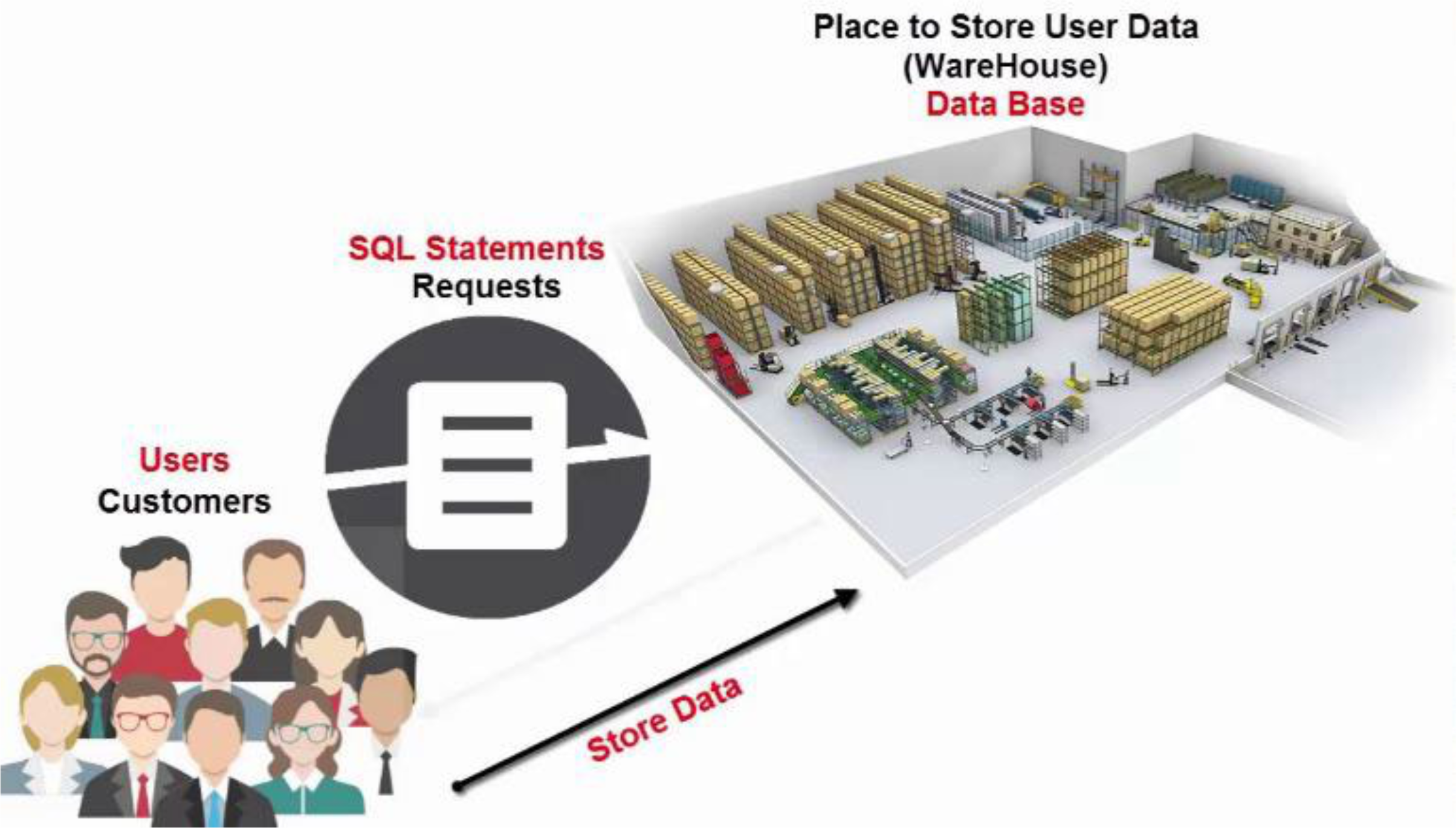

From End-User to Database Implementation

• Database Management System (DBMS) serves as the interface between users and the database
• Multiple users can access the same database through different applications
• Structure includes:
  • User 1, User 2 (end users)
  • Application 1, Application 2 (software interfaces)
  • Database Repository (containing Table1, Table2, Table3, Table4)

Database System Environment & Capabilities

• Core Components:
  • Software to Process Queries/Programs
  • Software to Access Stored Data
  • Stored Database Definition (Meta-Data)
  • Stored Instance Data
• Key Capabilities:
  • Support multiple views of the data
  • Self-describing nature using Metadata (system catalog or data dictionary)
  • Sharing data and multiuser transaction processing with concurrency control system
  • Controlling redundancy
  • Restricting unauthorized access
  • Representing complex relationships among data
  • Providing multiple user interfaces
  • Providing backup and recovery system
  • Enforcing integrity constraints
• DBMS & Database Interfaces:
  • Menu-based interfaces
  • Graphical interfaces
  • Form-based interfaces
  • Natural language interfaces
  • Database Design interfaces
  • Programmer interfaces
  • DBA interfaces

Nature of Data Object

Data Object Components

• Data Schema:
  • Skeleton or structure of data
  • Properties or Characteristics of data
  • Defined as Attribute of data
  • Example: Student_Name, Student_ID, Gender
  • Also called: Data Definition or METADATA
• Data Instance:
  • Raw fact or Raw data
  • Structural or Un-structural data
  • Defined as Data Record
  • Example: Mr.Somboon, 6288000, Male
  • Also called: Data Instance or Data Record

Data Object Example

Person Table:

• Attributes (or Columns): Name, Born, Twitter
• Records (or Tuples):
  • Alice, 4 August 1989, @Alice
  • Bob, 1 June 1988, @Bob

Glossary: MetaData is data about data defined the database structure (or database schema).

Metadata: Key Component in DBMS Success

Self-Describing Nature

Metadata or Data Dictionary Management:

• DBMS stores definitions of data elements and relationships (metadata) in a data dictionary
• DBMS looks up required data component structures and relationships
• Changes automatically recorded in the dictionary
• DBMS provides data abstraction and removes structural and data dependency which provide Data-Program Independency Nature

Definition: Metadata is data about the structure of data, their relationships, their constraints, etc.

Example of Metadata (MS SQL Server):

• [Image showing metadata structure - text not extractable]

Database Management System (DBMS)

Definition:

• Collection of programs to:
  • Manage the database structure (or schema)
  • Store the actual data (or physical data) in the database repository
  • Secure and control access to database system

DBMS Functions

Core Function Categories

1. Structure Management:

• Data Dictionary Management
• Data Transformation and Presentation
• Data Integrity Management

2. Storage Management:

• Data Storage Management
• Backup and Recovery Management

3. Security & Access Control:

• Security Management
• Multiuser Access Control

4. Communication:

• Database Access Languages
• Database Communication Interface

Detailed Function Descriptions

Data Dictionary Management:

• Manages metadata (data dictionary)
• Handles data transformation (e.g., date formats: 25/01/2023 ↔ 01/25/23)
• Enforces data integrity (e.g., IDs must be unique)

Data Storage Management:

• Performance tuning (space & speed)
• Manages physical data files
• Handles complex structures

Backup and Recovery Management:

• Creates backup copies of data
• Manages recovery processes
• Uses transaction logs

Security Management:

• Controls unauthorized access
• Implements concurrency control mechanisms
• Manages multiuser access

Communication Interface:

• SQL (Structured Query Language) - de facto query language
• ODBC (Open Database Connectivity) - standard API for accessing DBMS

Glossary: ODBC (Open Database Connectivity) is a standard application programming interface (API) for accessing DBMS representing the independent of OS and DBMS software.

Comprehensive DBMS Functions

Database Access Languages and Application Programming Interfaces:

• DBMS provides access through a query language
• Query language is a nonprocedural language
• Structured Query Language (SQL) is the de facto query language
• Standard supported by majority of DBMS vendors

Data Integrity Management:

• DBMS promotes and enforces integrity rules
• Minimizes redundancy
• Maximizes consistency
• Data relationships stored in data dictionary used to enforce data integrity
• Integrity is especially important in transaction-oriented database systems

Data Storage Management:

• DBMS creates and manages complex structures required for data storage
• Also stores related data entry forms, screen definitions, report definitions, etc.
• Performance tuning: activities that make the database perform more efficiently
• DBMS stores the database in multiple physical data files

Data Transformation and Presentation:

• DBMS transforms data entered to conform to required data structures
• DBMS transforms physically retrieved data to conform to user's logical expectations
• Example: date format in different countries

Security Management:

• DBMS creates a security system that enforces user security and data privacy
• Security rules determine which users can access the database, which items can be accessed, etc.

Backup and Recovery Management:

• DBMS provides backup and data recovery to ensure data safety and integrity
• Recovery management deals with recovery of database after a failure
• Critical to preserving database's integrity

Multiuser Access Control:

• DBMS uses sophisticated algorithms to ensure concurrent access does not affect integrity
• Transaction Management and Concurrency Control

Database Communication Interfaces:

• Current DBMSs accept end-user requests via multiple different network environments
• Communications accomplished in several ways:
  • End users generate answers to queries by filling in screen forms through Web browser
  • DBMS automatically publishes predefined reports on a Web site
  • DBMS connects to third-party systems to distribute information via e-mail

System Catalog vs Data Dictionary

System Catalog:

• Store information about database schema and constraints
• Accessed by DBMS software

Data Dictionary:

• Store design decisions, usage standard, application program descriptions and users information
• Active data dictionary: can be accessed by both users and DBMS software
• Passive data dictionary: accessed by users & DBA but not the DBMS

Example 1: Data Dictionary for Company Relational Schema

Example 2: Data Dictionary for Employee Schema

[Image showing employee schema - text not extractable]

Language Module for Data Object

Two Main Language Categories

Data Definition Language (DDL):

• Define data schema
• Execute at "Schema Level"
• Example: Create data schema (Student_Name, Student_ID) for student table

Data Manipulation Language (DML) and Query Language (QL):

• Manipulate data instance
• Execute at "Instance Level"
• Example: Insert data record (Mr.Somboon Sae-tae, 6288000) into student table

Data Definition Language (DDL)

Purpose:

• A high-level language that is used to create and modify the structure of the database from the conceptual database which is defined by the "data model"

Key Points:

• DDL statements are compiled as a set of tables and stored in a special file called "data dictionary" in System Catalog Module
• Common DDL Commands:
  • CREATE TABLE
  • DROP TABLE
  • ALTER TABLE

In a True Three-Schema Architecture:

• SDL = Storage Definition Language
• VDL = View Definition Language
• SQL is a language that combines DDL, VDL, DML & SDL

DDL Users:

• DBA (Database Administrator)
• DB Designer
• DB Programmer

Data Manipulation Language (DML)

Purpose:

• A high-level language that is used to access or manipulate data organized by the appropriate data model

Nonprocedural DMLs (High Level DML):

• Users need to specify only WHAT data
• It generates codes to perform the operations and produces the result
• It defines a set-at-a-time or set-oriented DMLs
• Operations include: retrieval, insertion, deletion, and modification

Example DML Operations:

U1: INSERT Statement

INSERT INTO EMPLOYEE
VALUES ('Richard', 'K', 'Marini',
'653298653', '30-dec-52',
'98 Oak Forest, Katy, TX',
'M', 37000,'987654321', 4)

U2: DELETE Statement

DELETE FROM EMPLOYEE
WHERE SSN= '123456789'

U3: UPDATE Statement

UPDATE EMPLOYEE
SET SALARY = SALARY *1.1
WHERE DNO IN
( SELECT DNUMBER
  FROM DEPARTMENT
  WHERE DNAME='Research')

Query Language (QL)

Definition:

• A high level DMLs with interactive manner calls Query Language
• A query language is a portion of DML for information retrieval
• When DMLs are embedded in a programming Language (Host Language) they are called "embedded SQL"

Query Language Example:

Query: Retrieve the name and address of all employees who work for the 'Research' department.

SELECT FNAME, LNAME, ADDRESS
FROM EMPLOYEE, DEPARTMENT
WHERE DNAME = 'Research' AND DNUMBER = DNO

Query Output as a SET of Data:

Database Three-Schema Architecture

From End-User to Database Implementation

Three Schema Architecture Concept:

• Schema Mapping between three levels
• Three Schema levels (1, 2, 3)
• Progression from Human Understandable to Machine Processable
• External Schema at the top level

Detailed Three-Schema Architecture

Architecture Components:

External Level:

• External View A → External Schema A → External/conceptual mapping A
• External View B → External Schema B → External/conceptual mapping B
• Users: user A1, user A2, user B1, user B2, user B3
• Host Language + DSL for each user group

Conceptual Level:

• Conceptual View → Conceptual Schema
• Conceptual/internal mapping
• Managed by Database Administrator (DBA)

Internal Level:

• Storage structure definition (internal schema)
• Stored Database/Internal View

Key Definitions:

• The external schema is the view for users
• The conceptual schema is the view for conceptual database design
• The internal or physical schema is the view for physical database in data storage

Important Notes:

• Mappings are processes of transforming requests and results between levels
• Host Language is a programming language
• DSL (Data Sublanguage) or DDL, DML, QL

1. External View or External Schema

Characteristics:

• A highest level of abstraction describes a part of the entire database of the specific user's interest
• VDL (view definition language) is a facility for declaring views for the users
• VML (view manipulation language) is a facility for expressing queries and operations on the views
• Most DBMS has VDL & VML as a part of its SQL

Purpose: What are actually seen by the users

2. Conceptual Schema

Definition:

• A conceptual schema is a representation of informational needs underlying the design of a database

Characteristics:

• It describes the structure of the whole database
• Conceptual schema hides the details of physical storage structures and emphasizes on describing entities, data type, relationship & operations

Purpose: What data are actually conceptualized

3. Internal/Physical Schema

Components:

• Storage media: Cache, Main Memory, Disk, Tape
• Access methods: Direct access & Sequential access

Definition:

• Physical schema is a term used in data management to describe how data is to be represented and stored (files, indices, etc.) in secondary storage using a particular database management system (DBMS)

Purpose: How the data are stored

Terms Summary

Data and Information:

• Data are raw facts
• Information is the result of processing data to reveal its meaning
• Consistency with accurate, relevant, and timely information is the key to good decision making

Database Basics:

• Data are usually stored in a database
• DBMS implements a database and manages its contents
• Metadata is data about data
• Database design defines the database structure

Database Design Impact:

• Well-designed database facilitates data management and generates valuable information
• Poorly designed database leads to bad decision making and organizational failure

Database Evolution:

• Databases evolved from manual and computerized file systems
• In file system, data stored in independent files
• Each requires its own management program

File System Limitations:

• Requires extensive programming
• System administration is complex and difficult
• Changing existing structures is difficult
• Security features are likely inadequate
• Independent files tend to contain redundant data
• Structural and data dependency problems

DBMS Advantages:

• DBMS is developed to address file system's inherent weaknesses
• DBMS present database to end user as single repository
• Promotes data sharing
• Eliminates islands of information
• DBMS enforces data integrity, eliminates redundancy, and promotes security
