Data Ingestion = Handle a large volume of data, to organize to make it manageable, finally stored in the Hadoop

Typical Enterprise Data Architecture

• Data Sources → Ingestion → Batch / Speed Processing → Service Layer
• Common stack: Kafka + Hadoop + Spark + NoSQL + SQL
• Ingestion tools: Apache Kafka, Akka, Hadoop
• Batch: Spark, Hadoop (MapReduce)
• Speed: Spark Streaming, Apache Storm
• Service: Cassandra, HBase, MongoDB, Splunk, Oracle, Teradata, Hive

Motivation: Why Actor Model?

• Writing concurrent and parallel programs is tough
• Programming with threads, locks, atomic transactions, etc. is:
  • Error-prone
  • Leads to spaghetti code that is difficult to read, test, and maintain
• Two common outcomes:
  • Outcome 1: Panic and write messy multithreaded programs
  • Outcome 2: Use single-threaded applications that rely on external services (DBs, file systems) to handle concurrency for them
• Solution: The Actor Model!

We can support parallelism, ถ้าแต่ละ code ไม่ dependent

Model of Data Flow

Three main dataflow patterns between processes:

Model	Characteristics
Dataflow through Databases	Information storage and retrieval
Dataflow through Services	Service calls with responses
Message-Passing Dataflow	Asynchronous messages

Comparison

Analogy: Think of Databases like a shared whiteboard (anyone reads/writes), Services like a phone call (you wait for an answer), and Message-Passing like sending a text (fire and forget — you don't wait).

Asynchronous (ไม่พร้อมกัน)

• ผู้ส่งข้อความ ไม่ต้องรอ ให้ผู้รับประมวลผลเสร็จก่อนจึงจะทำอย่างอื่นต่อได้
• ส่งแล้วก็เดินหน้าต่อได้เลย (fire-and-forget)
• ตรงข้ามกับ Synchronous ที่ต้องหยุดรอ

เหมือนส่ง LINE แล้วไปทำอย่างอื่นต่อได้เลย ไม่ต้องยืนรอให้คนอีกฝั่งอ่านและตอบก่อน

Blocking / Non-blocking

• Blocking — Thread/process ถูก "หยุด" ไว้จนกว่าจะได้ผลลัพธ์กลับมา ทำอย่างอื่นไม่ได้ระหว่างรอ
• Non-blocking — ยิงคำขอออกไปแล้ว ไม่ถูกหยุด สามารถทำงานอื่นต่อได้ระหว่างรอ แล้วค่อยรับผลลัพธ์ทีหลัง

Blocking เหมือนยืนต่อแถวซื้อกาแฟแล้วทำอะไรไม่ได้เลยจนกว่าจะได้แก้ว — Non-blocking เหมือนกดสั่งผ่านแอปแล้วไปนั่งทำงานก่อน พอกาแฟพร้อมค่อยไปรับ

Addressing Recipient (การระบุผู้รับ)

• การที่ผู้ส่งต้อง ระบุปลายทางชัดเจน ว่าจะส่งข้อความไปหาใคร (เช่น Actor Address, Service Endpoint)
• ตรงข้ามกับ Databases ที่ "ทิ้ง" ข้อมูลไว้กลาง ๆ โดยไม่ได้ระบุว่าใครจะมาอ่าน

เหมือนความต่างระหว่างส่งพัสดุระบุชื่อ-ที่อยู่ผู้รับ (Addressing) กับวางของไว้บนโต๊ะกลางออฟฟิศแล้วให้ใครก็ได้มาหยิบ (No Addressing)

Actor Model

What is it?

• Provides a higher level of abstraction for writing concurrent and distributed systems
• Alleviates the developer from explicit locking and thread management
• Originally defined in 1973 paper by Carl Hewitt
• Popularized by Erlang — used at Ericsson to build highly concurrent and reliable telecom systems

Core Concepts

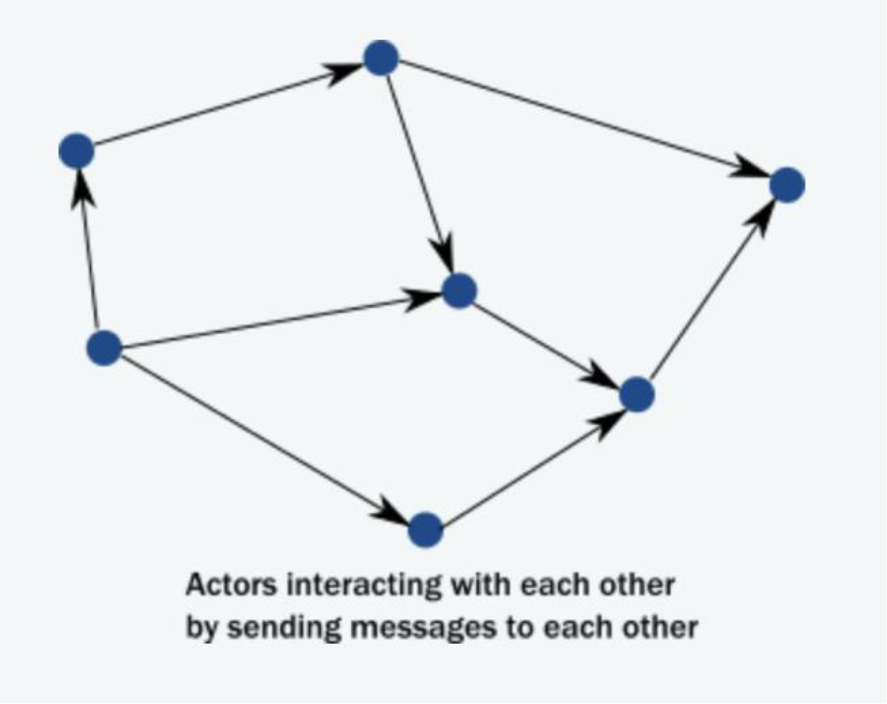

• Actor = a stricter message-passing model that treats actors as the universal primitives of concurrent computation
• Each actor:
  • Is a computational entity with private state/behavior
  • Owns exactly one mailbox (cannot subscribe to more or less queues)
  • Reacts on messages one at a time

Actor Reactions (What an actor can do when it receives a message)

• Send a finite number of messages to other actors (no-blocking)
• Create a finite number of new actors (มันสามารถ spawn new actor ได้)
• Modify its own internal behavior (state) for the next message

Key Properties

• Messages are always sent asynchronously
• No requirement on order of message arrival
• Queuing and dequeuing of messages in an actor mailbox are atomic operations → no race conditions!

Analogy: Actors are like post office boxes. You drop a letter in (send a message), the person checks their box when they're ready (non-blocking), and they respond on their own time. No one is standing at the door waiting.

When to Use the Actor Model?

• When the problem can be decomposed into independent tasks
• When the problem can be decomposed into a series of tasks linked by a clear flow
• In short: when the problem can be parallelized
  • Remember Amdahl's Law: speedup is limited by the sequential portion of the program

Advantages over pure RPC

• Fault-tolerance:
  • "Let it crash!" philosophy to heal from unexpected errors
  • Automatic restart of failed actors; resend/re-route of failed messages
• Deadlock/starvation prevention:
  • Asynchronous messaging and private state actors prevent many parallelization issues
• Parallelization:
  • Actors process one message at a time but different actors operate independently
  • Actors may spawn new actors if needed (dynamic parallelization)
  • ก็มี multiple actor จะได้ parallel ได้ดีขึ้น (more worker ไงงง)

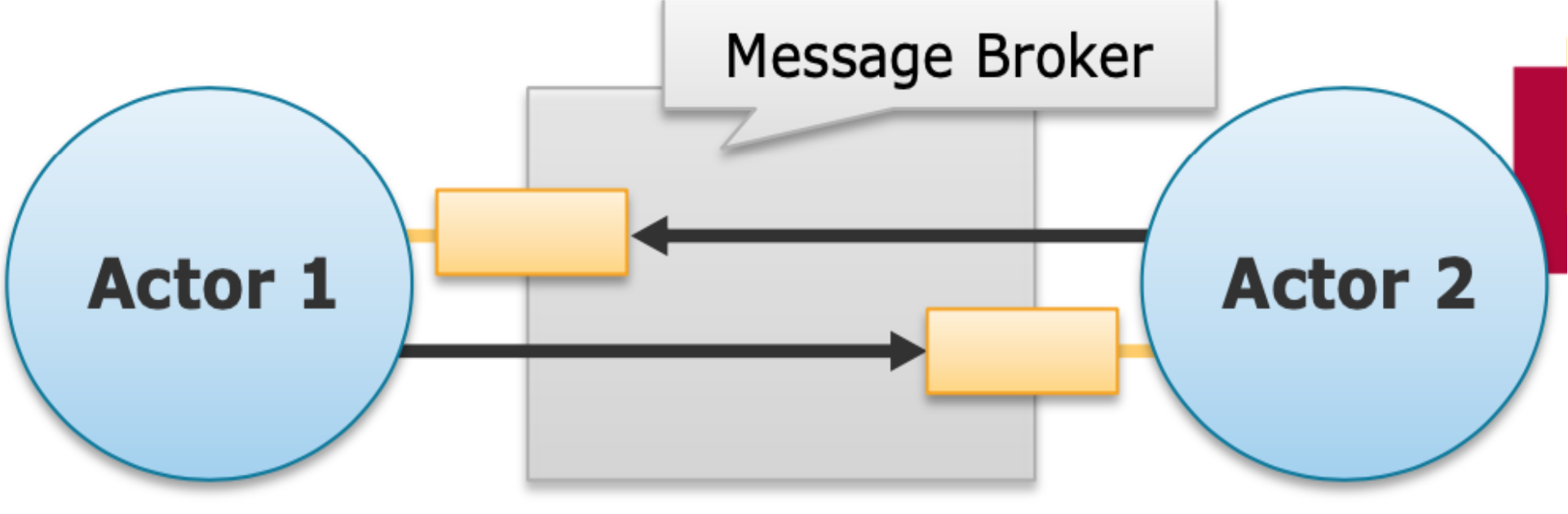

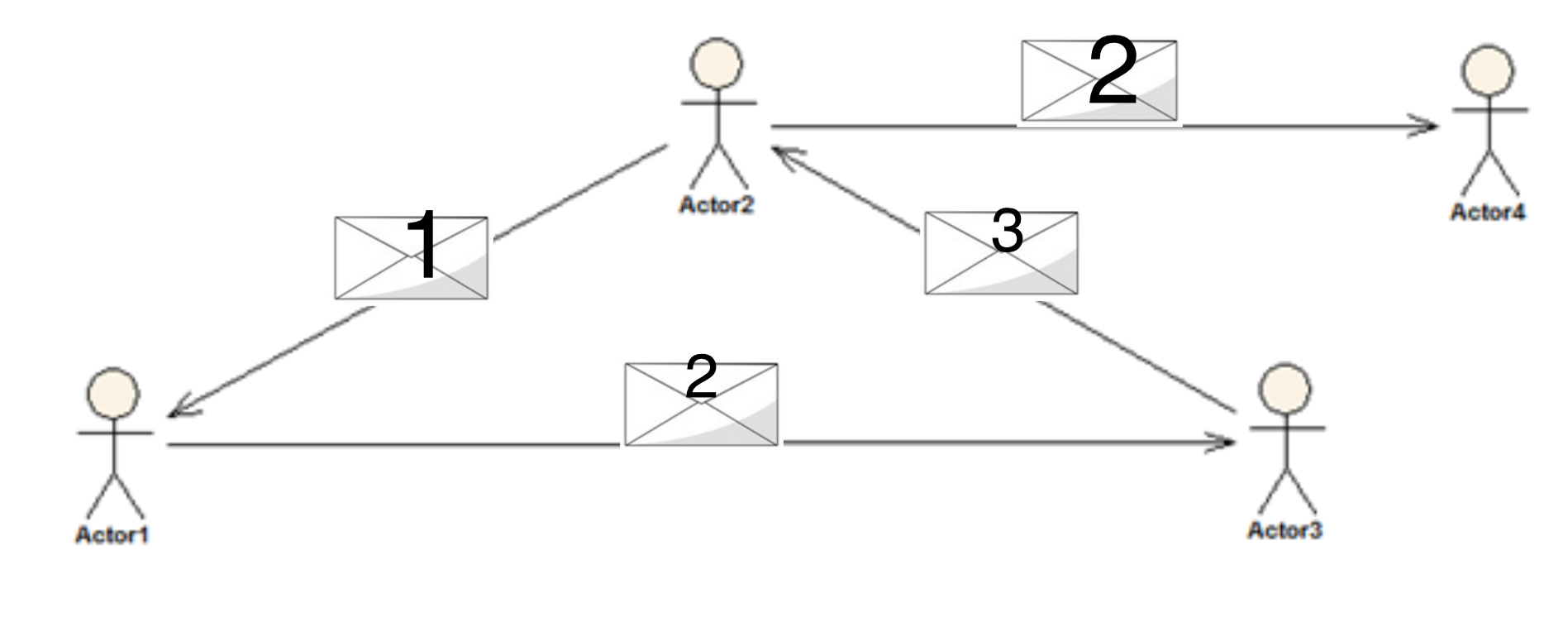

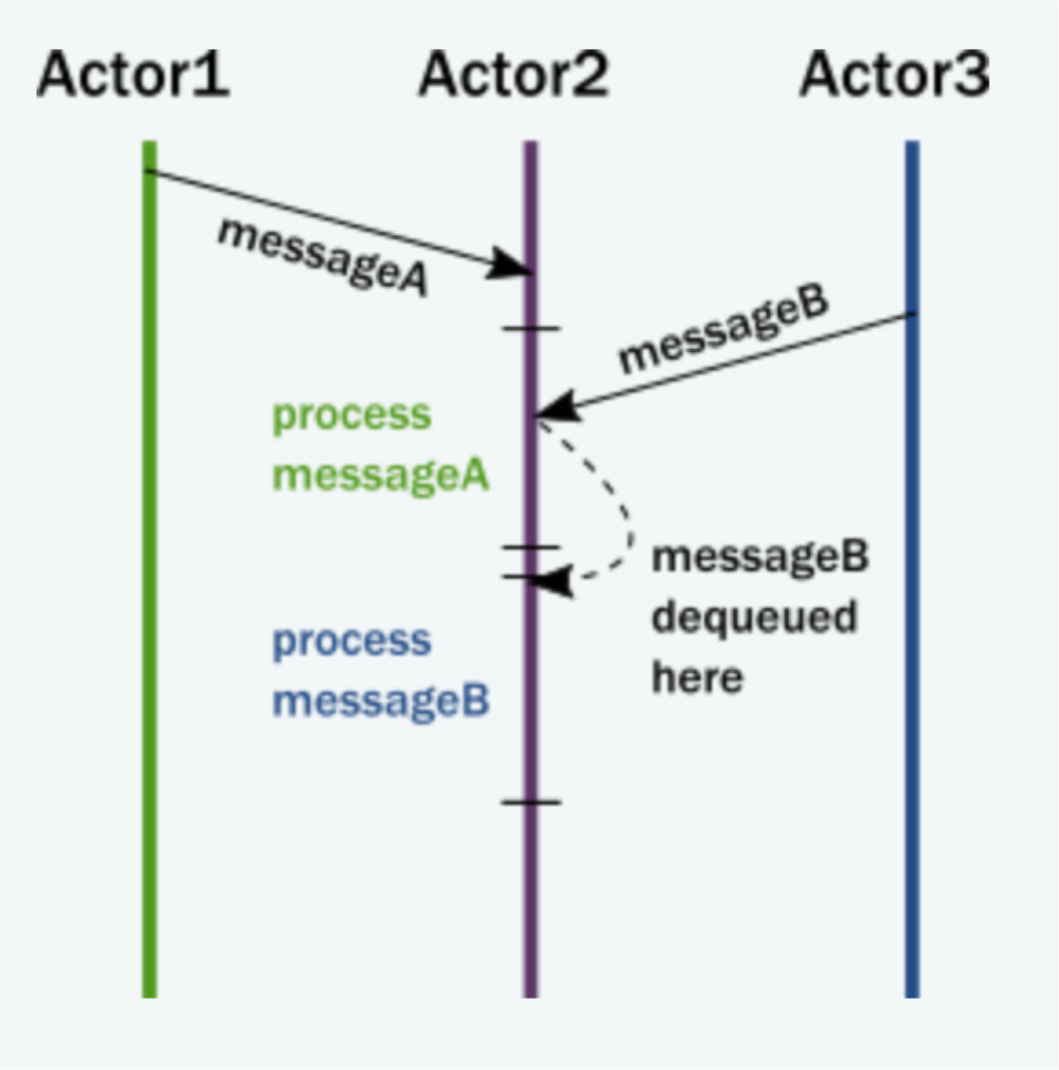

How Communication Works (Step by Step)

1. The actor adds the message to the end of a queue
2. If not scheduled, it is marked as ready to execute
3. A hidden scheduler entity takes the actor and starts executing it
4. Actor picks the message from the front of the queue
5. Actor modifies internal state, sends messages to other actors
6. The actor is unscheduled

Actor Components

Actor Programming Paradigms Comparison

Advantages and Drawbacks of Actor Model

Advantages ✅

• Extends OOP benefits by splitting control flow and business logic
• Allows decomposition into interactive, autonomous, and independent components that work asynchronously

Drawbacks ❌

• Creating actors may dramatically affect responsiveness
• Deciding where to store and run new actors requires archiving records → can cause performance penalties in highly distributed systems
• No. of actor to be active = computation (latency) + storage cost

Popular Actor Frameworks

Akka

What is Akka?

• Open-source framework for Java and Scala on the JVM
• ==Aimed to solve concurrent/parallel problems using the actor model==
• Written in Scala, included in the Scala standard library
• Inspired by Erlang
• Invented by Jonas Bonér; maintained by Lightbend
• Website: https://akka.io/

Key Features

• Simple, high-level abstractions for concurrency and parallelism
  • High-level abstractions = easy to understand, syntax, blah blah
• High-performance: event-driven, asynchronous, non-blocking
• Actors communicate via asynchronous messages (sender doesn't wait)
• Supports hierarchical actor networks → ideal for fault-tolerant apps
  • How can the hierarchical networks support fault-tolerant, one actor die, send task to another to do! (ถามใน Quiz)
  • Actor can self heal, restart, spawn a new child in order to the the task.
• Can deploy actors across different JVMs in distributed environments
• Purely designed for distributed environments

Akka Modules

• Persistence ≠ Ephemeral (Temporary)

Akka Actor Internals

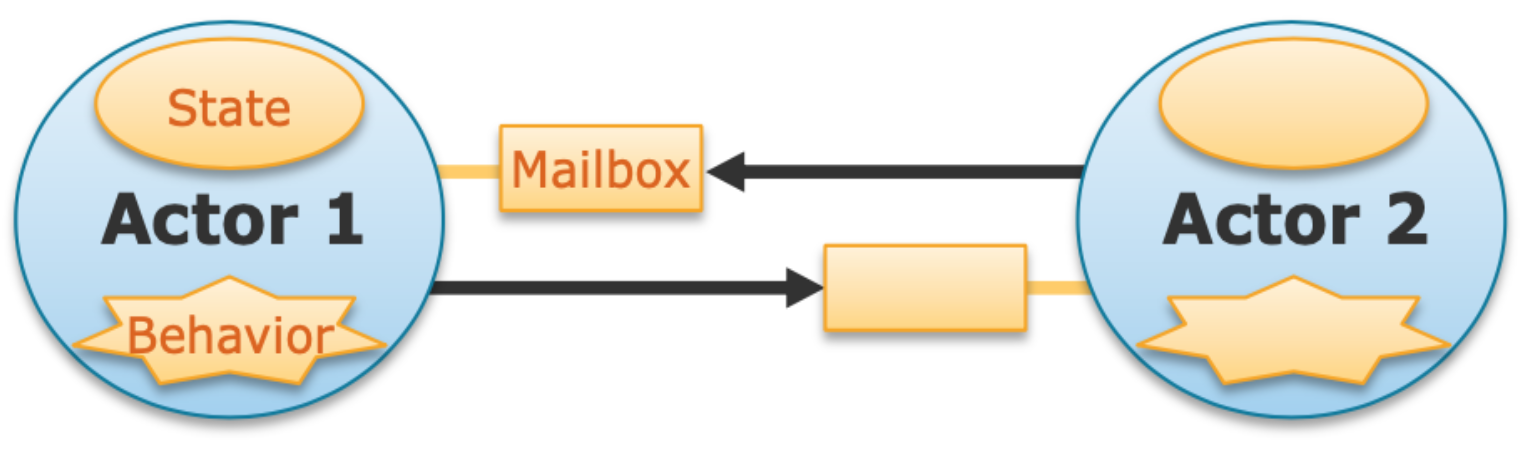

$\text{Actor} = \text{State} + \text{Behavior} + \text{Mailbox}$

This is the fundamental formula for an Akka Actor.

Communication

• Send messages to mailboxes → unblocking, fire-and-forget
• Messages are immutable, serializable objects
  • Mutable messages are possible, but DON'T use them!
• Object classes known to both sender and receiver
• Receiver interprets a message via pattern matching

Java Code Structure

public class Worker extends AbstractActor {
    @Override
    public Receive createReceive() {
        return receiveBuilder()
            .match(String.class, this::respondTo)
            .matchAny(object -> System.out.println("Could not understand received message"))
            .build();
    }

    private void respondTo(String message) {
        System.out.println(message);
        this.sender().tell("Received your message, thank you!", this.self());
    }
}

• AbstractActor → Inherit default actor behavior, state, and mailbox
• Receive class → Performs pattern matching and de-serialization
• .build() → Builder pattern for constructing a Receive object
• this.sender().tell(...) → Send async, non-blocking response to sender

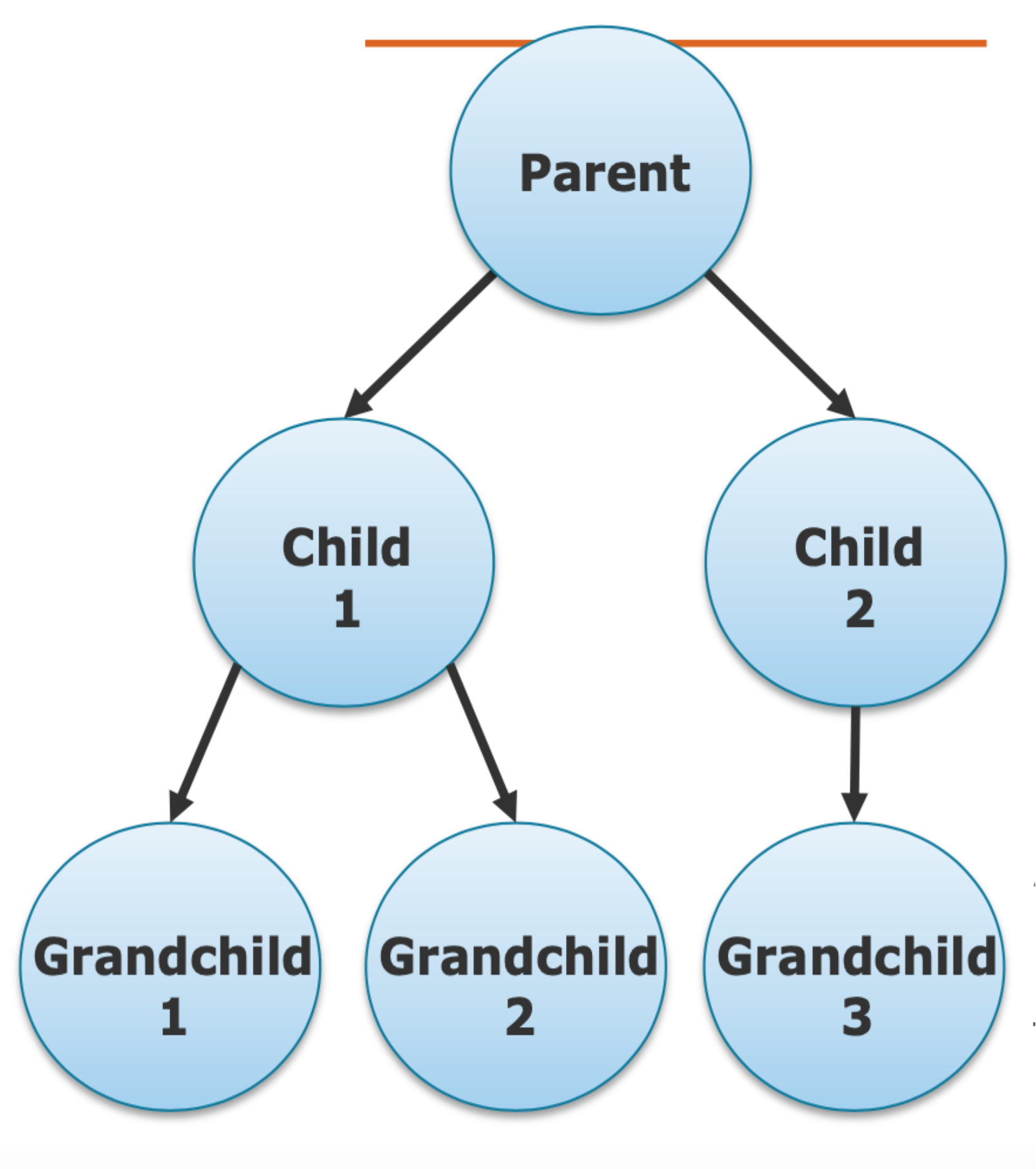

Actor Hierarchies

• Actors can dynamically create new actors (delegate work!)
• Supervision hierarchy: creating actor (parent) supervises created actor (child)
• Structure: Parent → Children → Grandchildren (tree structure)

Fault-Tolerance Options When Child Fails

• If parents fail → system crash (we don’t have standby parent)

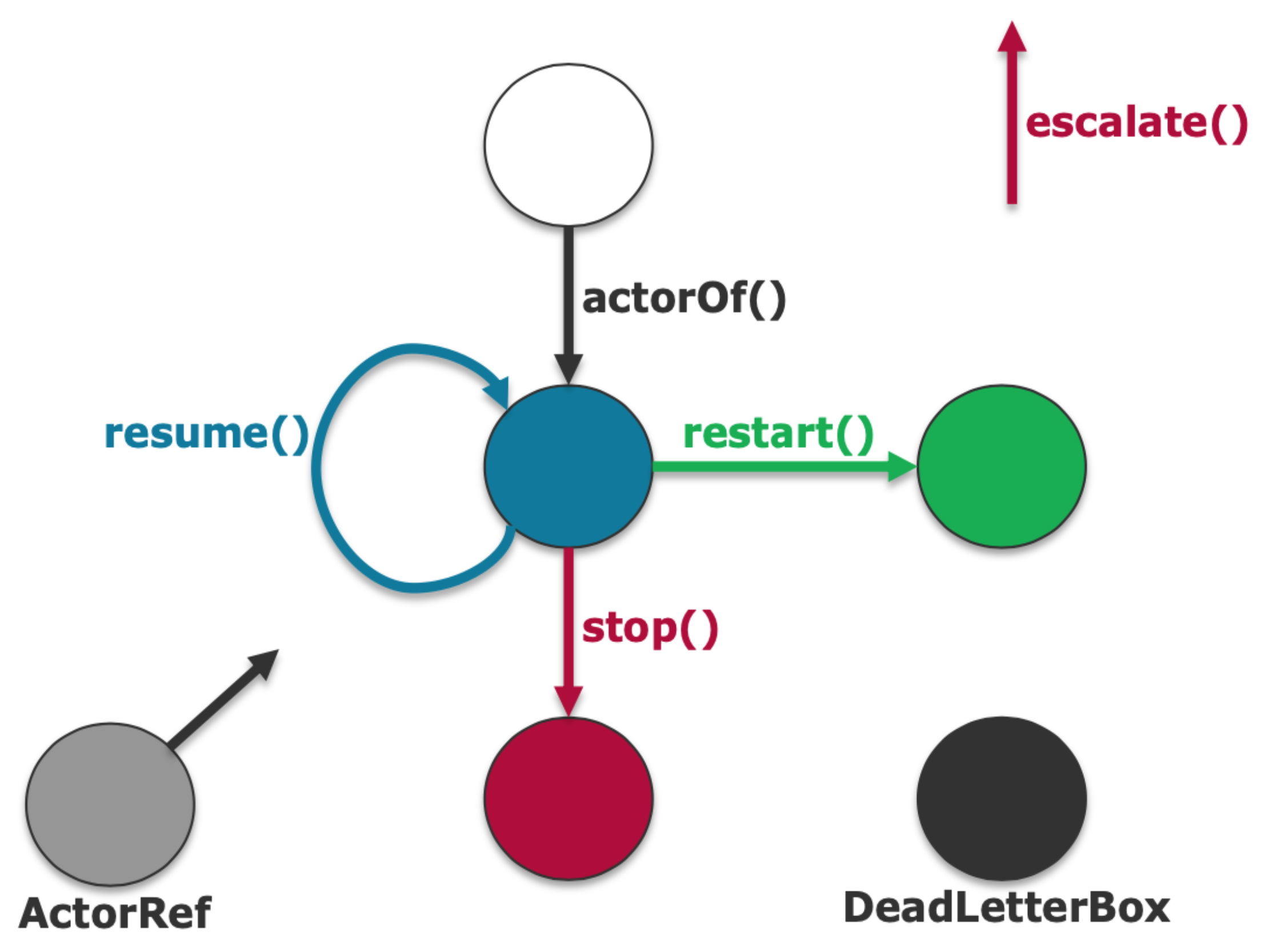

Actor Lifecycle

• actorOf() → Creates and starts the actor
• resume() → Continue after failure (keep state)
• restart() → Fresh restart after failure
• stop() → Permanently stop the actor
• escalate() → Escalate failure to parent
• ActorRef remains even after actor stops (grey = dead reference)
• DeadLetterBox → receives messages sent to stopped actors

Message Delivery Guarantees

Three Types

Note: With TCP, Akka basically guarantees exactly-once, but failures can still cause message loss!
You can implement at-least-once and exactly-once with at-most-once!

Analogy: at-most-once = sending a letter with no tracking. at-least-once = certified mail (may resend if unconfirmed). exactly-once = notarized delivery with deduplication check.

Push vs. Pull Propagation

Work Propagation

• Producer actors generate work for consumer actors

Apache Kafka

What is Kafka?

• A distributed streaming platform
  • High Scalable via partitioning
  • Fault Tolerant via replication
  • Allows high level of parallelism and decoupling between data producers and consumers
• De facto standard for near real-time store, access and process data streams
• Critical component of most Big Data Platforms and the Hadoop ecosystem

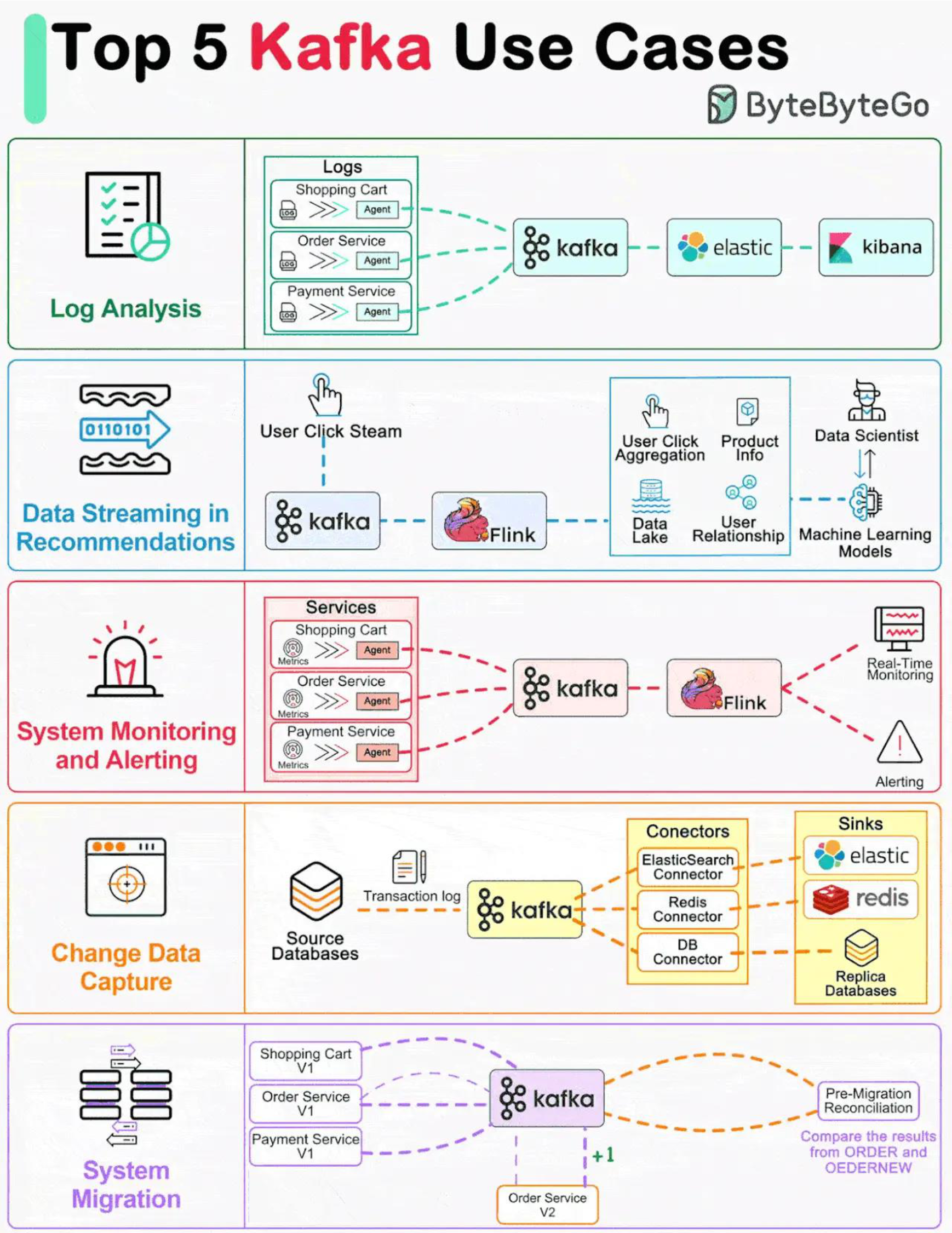

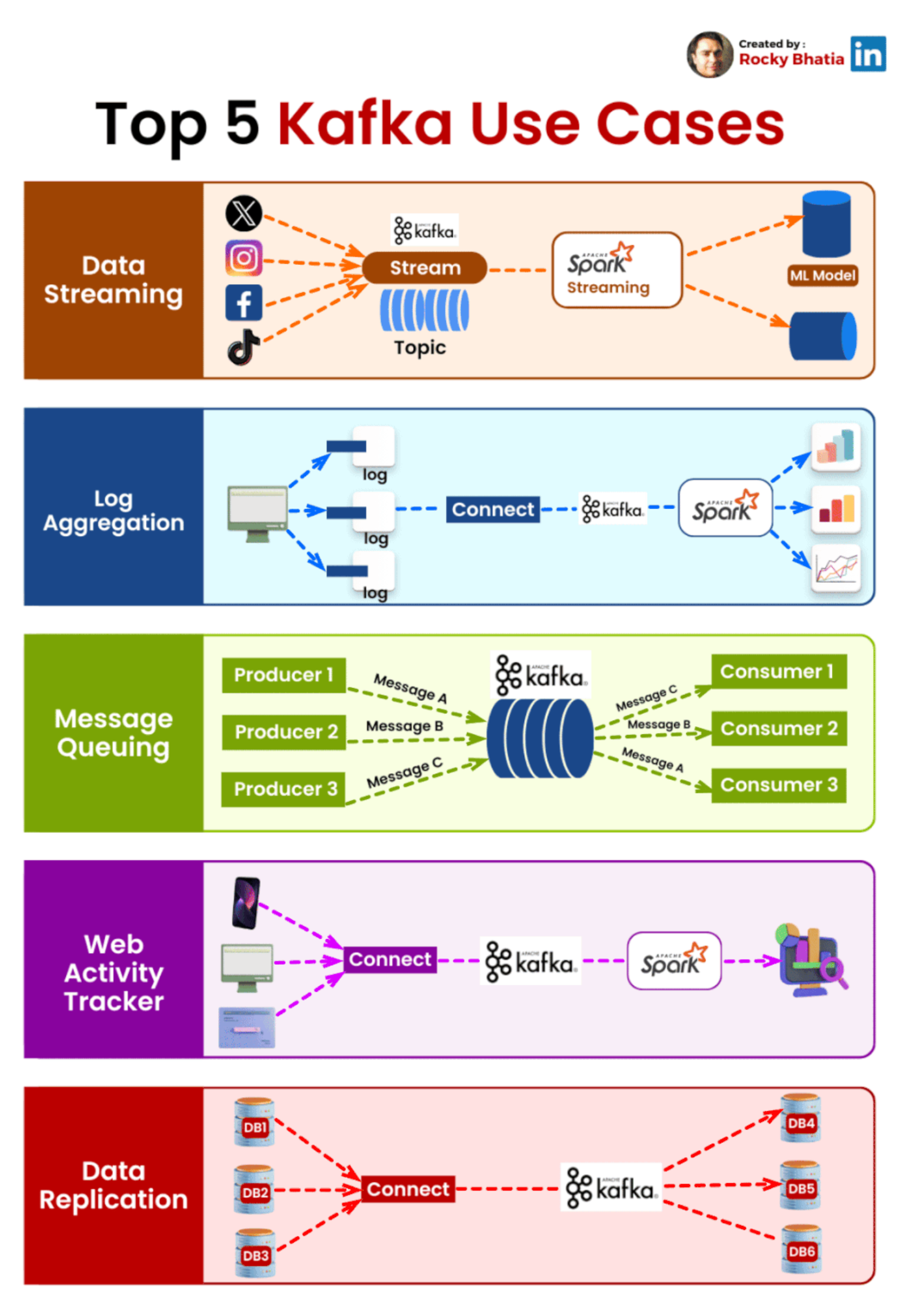

Kafka Adoption & Use Cases

• LinkedIn: activity streams, operational metrics, 400 nodes, 18k topics, 220B msg/day (peak 3.2M msg/s)
• Netflix: real-time monitoring and event processing
• Twitter: part of Storm real-time data pipelines
• Spotify: log delivery (reduced from 4h down to 10s), Hadoop

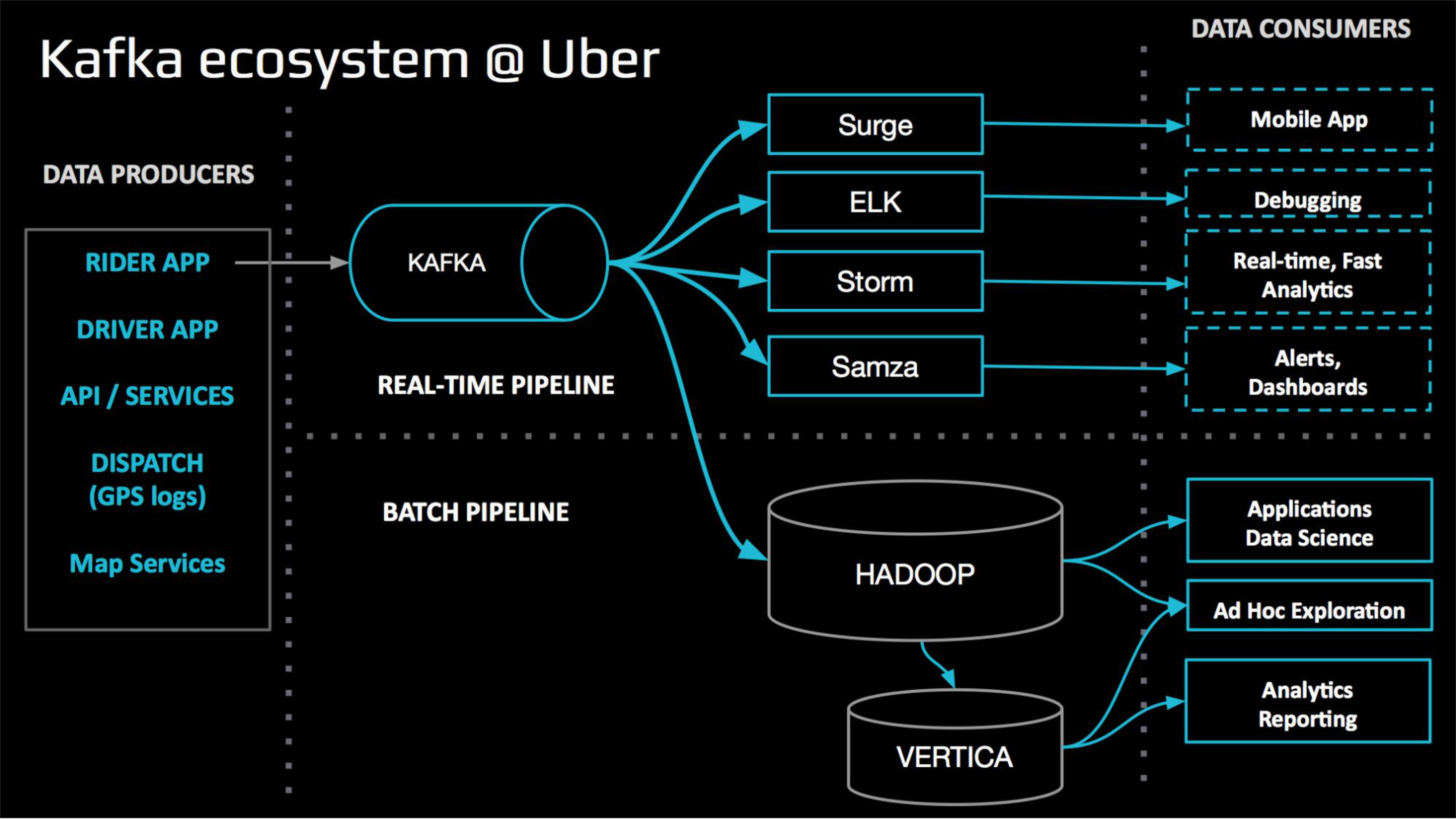

• Uber, Airbnb, Cisco, Mozilla, Square, and many more

Kafka Basic Concepts

Analogy: Think of a Kafka Topic like a YouTube channel. Producers are content creators uploading videos. Consumers are subscribers. Kafka Broker is the YouTube server. Partitions are like separate video queues per category.

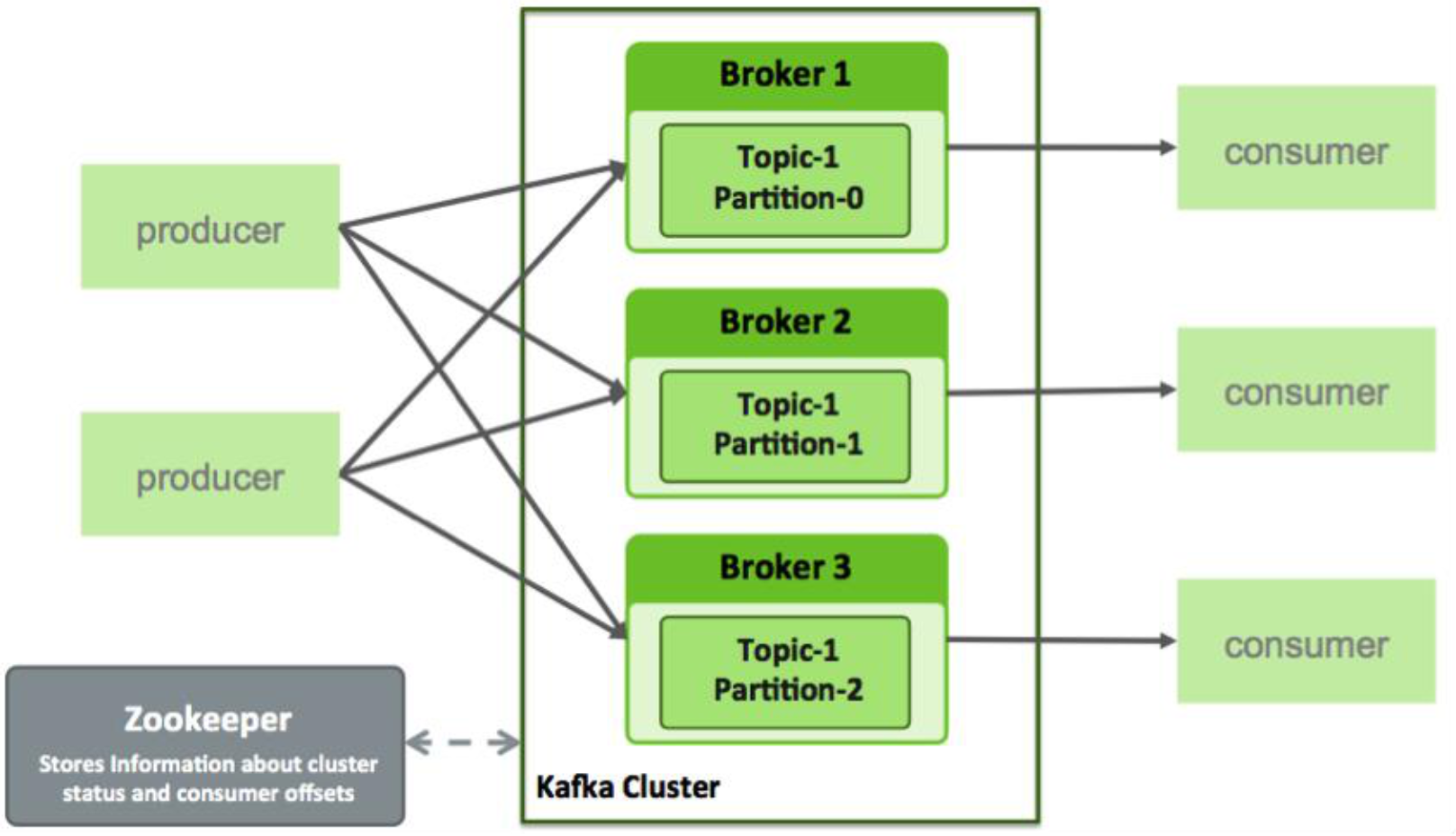

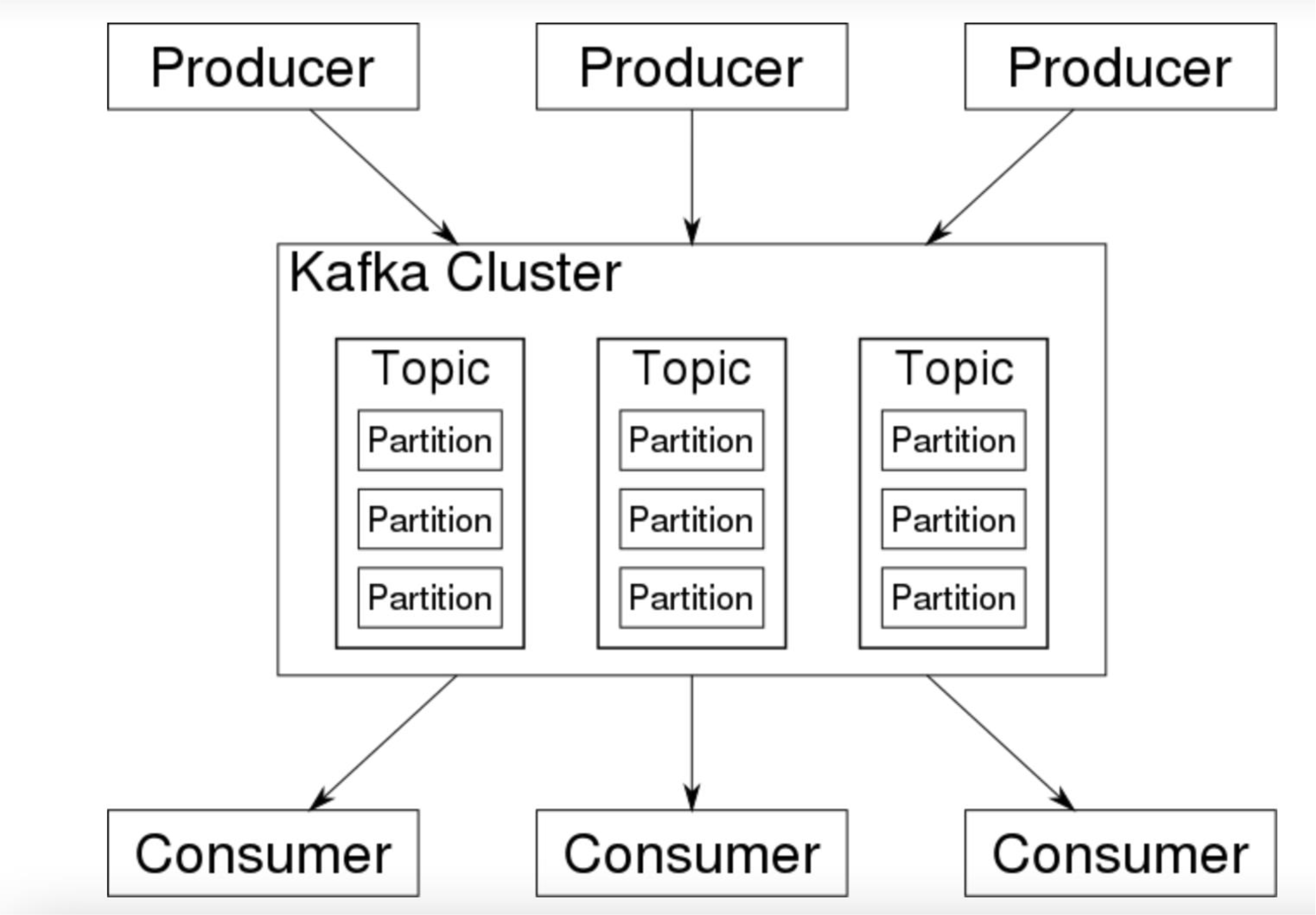

Kafka High-Level Model

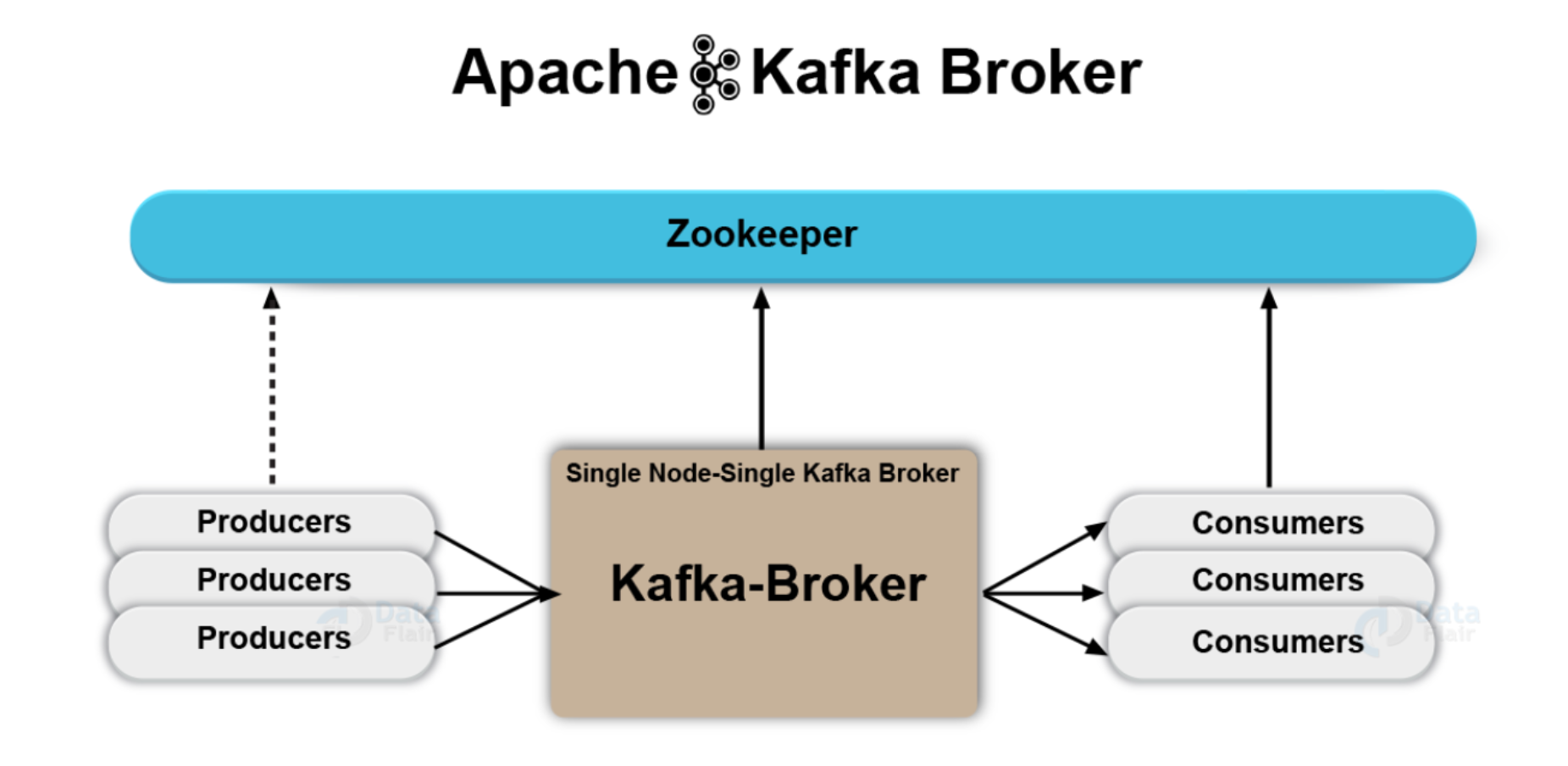

Kafka Broker

• A Kafka broker arranges transactions between producers and consumers
• Brokers handle all requests from clients to write and read events
• A Kafka cluster = collection of one or more Kafka brokers
• Architecture: Producers → Kafka-Broker → Consumers (all coordinated via Zookeeper)

Topics

• Topic = feed name to which messages are published (e.g., "zerg.hydra")
• Producers always append to "tail" (think: append-only file)
• Kafka prunes the "head" based on age or max size or "key"
• Consumers use an offset pointer to track/control their read progress
  • เหมือนกับ index นั่นแหละ

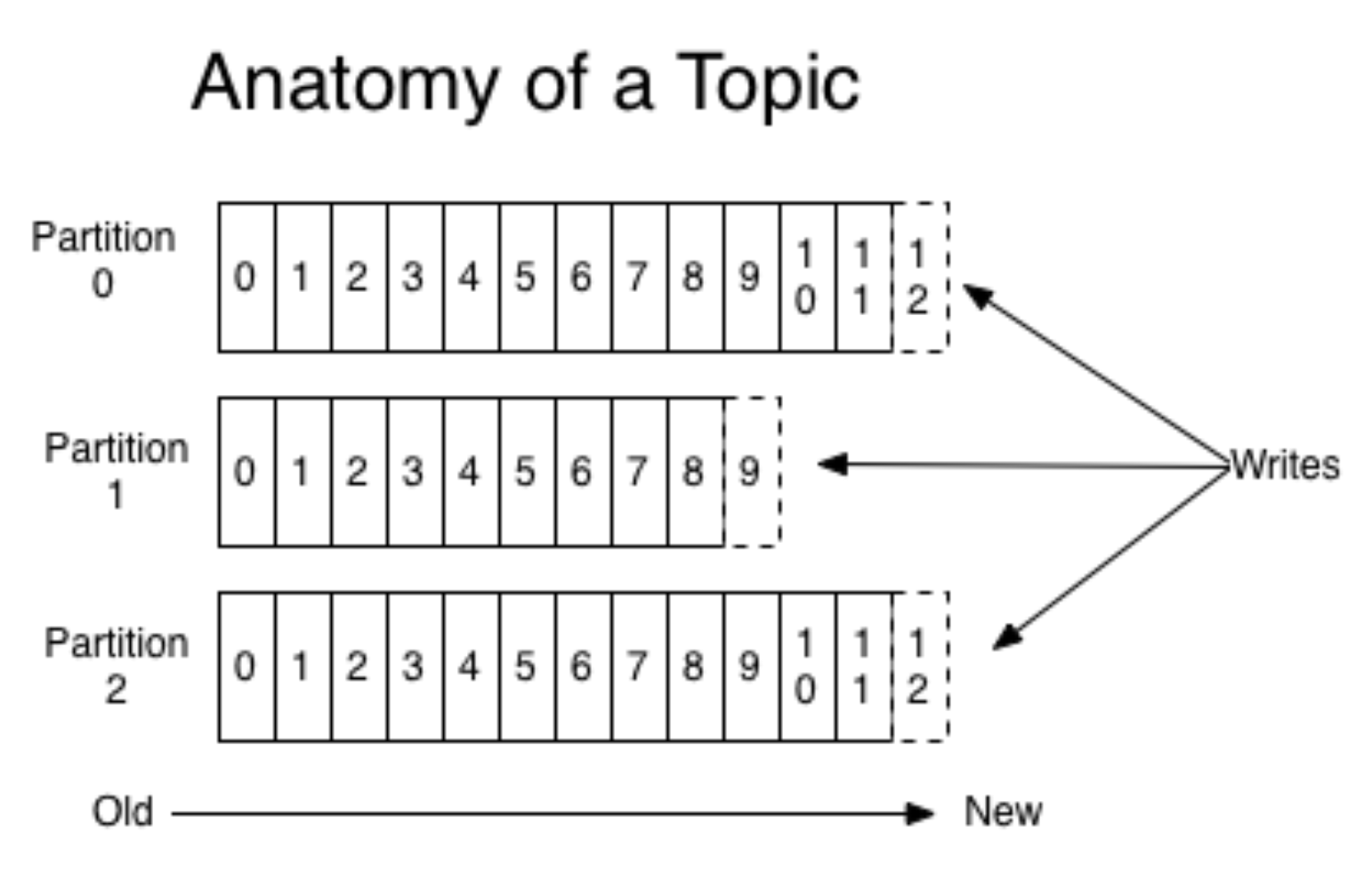

Partitions

• A topic consists of partitions
• Partition = ordered + immutable sequence of messages that is continually appended to

• Number of partitions is configurable
• #partitions determines max consumer (group) parallelism

Analogy: A topic is like a highway; partitions are individual lanes. More lanes = more cars (consumers) can travel simultaneously.

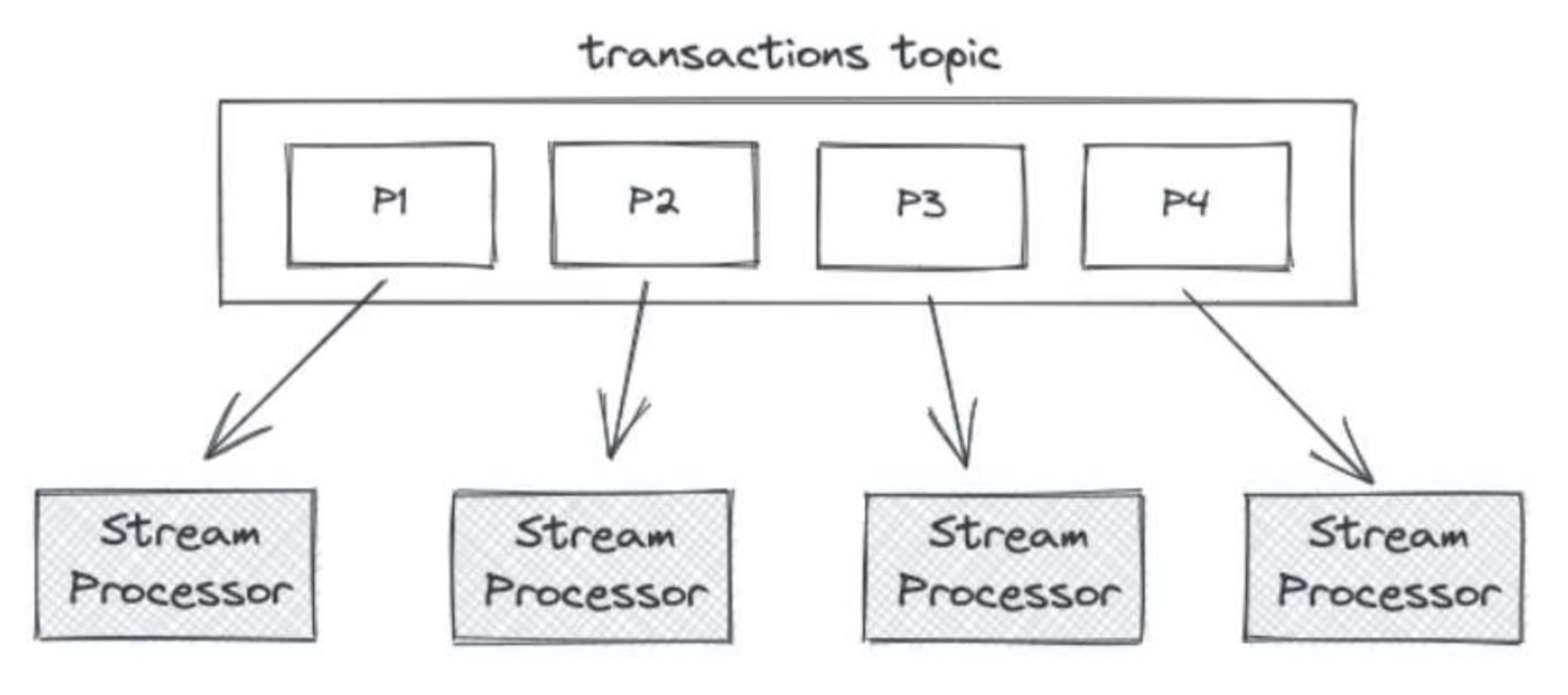

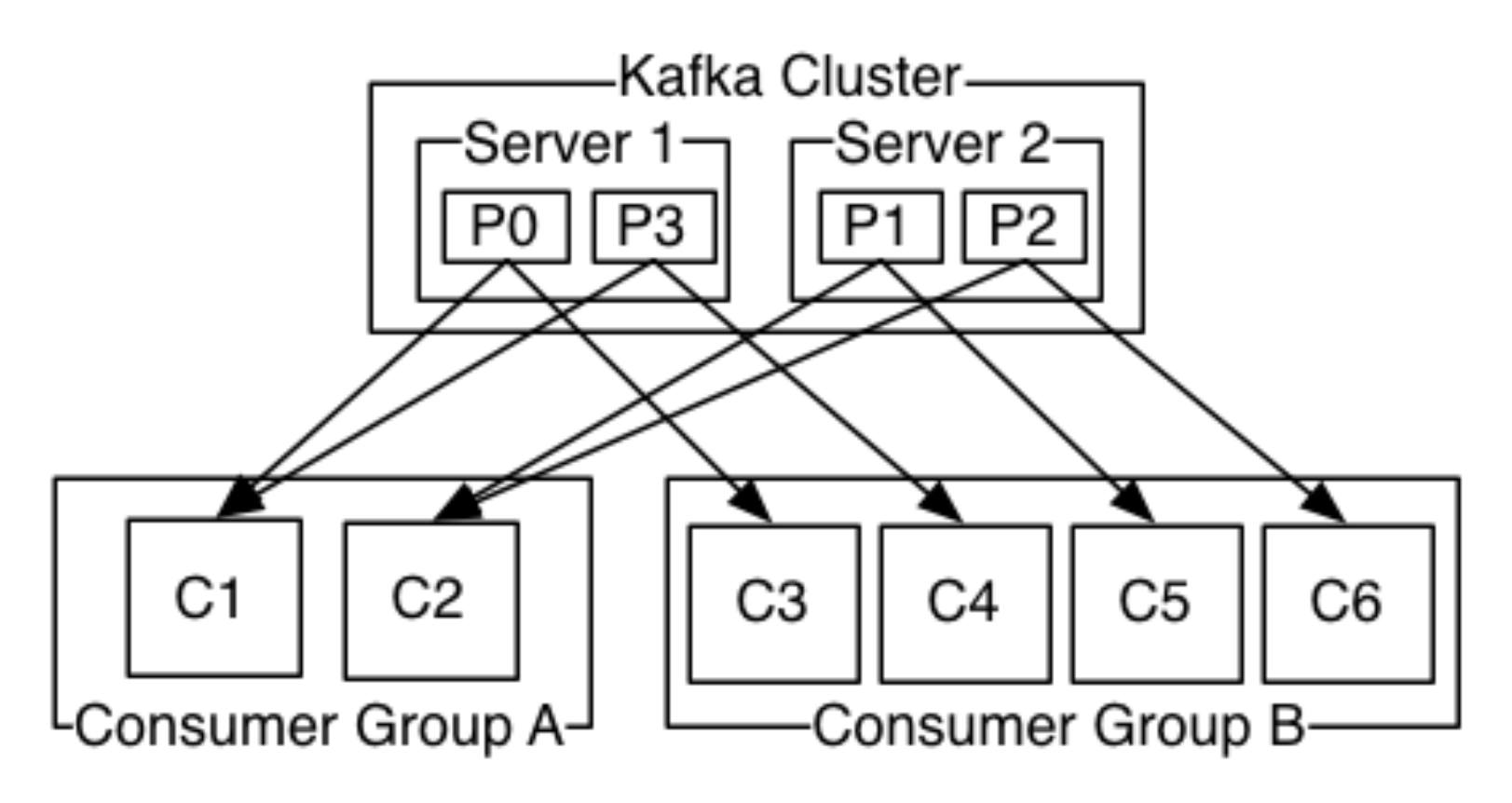

Consumer Groups Example

• Consumer Group A (2 consumers) reads from a 4-partition topic → each consumer handles 2 partitions
• Consumer Group B (4 consumers) reads from the same topic → each consumer handles 1 partition
• If you have more consumers than partitions, some consumers are idle

Partition Offsets

• Offset = unique (per partition), sequential ID assigned to each message
• Consumers track their position via tuples: $\boxed{(\text{offset},\ \text{partition},\ \text{topic})}$
• This allows each consumer group to read independently at its own pace
• Consumers can rewind or skip ahead by changing their offset pointer
• ==Offset = Message ID==

Replicas

• Replicas = "backups" of a partition
• They exist solely to prevent data loss
• Replicas are never read from, never written to directly
• They do NOT help to increase producer/consumer parallelism!
• Kafka tolerates $\boxed{(\text{numReplicas} - 1)}$ dead brokers before losing data
• LinkedIn uses numReplicas = 2 → can tolerate 1 broker dying

Kafka Entry Points

• Custom producer/consumer using Kafka Client API (Java, Scala, C++, Python)
• Kafka Connectors: LogFile, HDFS, JDBC, ElasticSearch…
• Logstash: source and sink
• Apache Flume: can use Kafka as source, channel, or sink
• Other tools: Apache Spark, LinkedIn Gobblin, Apache Storm…

Kafka for Data Integration

Stream Sources → [Events] → Kafka (Central Data Buffer)
                                ↓               ↓
                         Flush periodically   Flush immediately
                                ↓               ↓
                              HDFS           HBase (Indexed)
                         (Batch Processing) (Fast Data Access)
                                             ↑
                                       Real-time Spark

• No data lost during downtime (scheduled and unscheduled) of a Hadoop cluster
• Kafka buffers protect recent data from being lost before daily HDFS snapshots

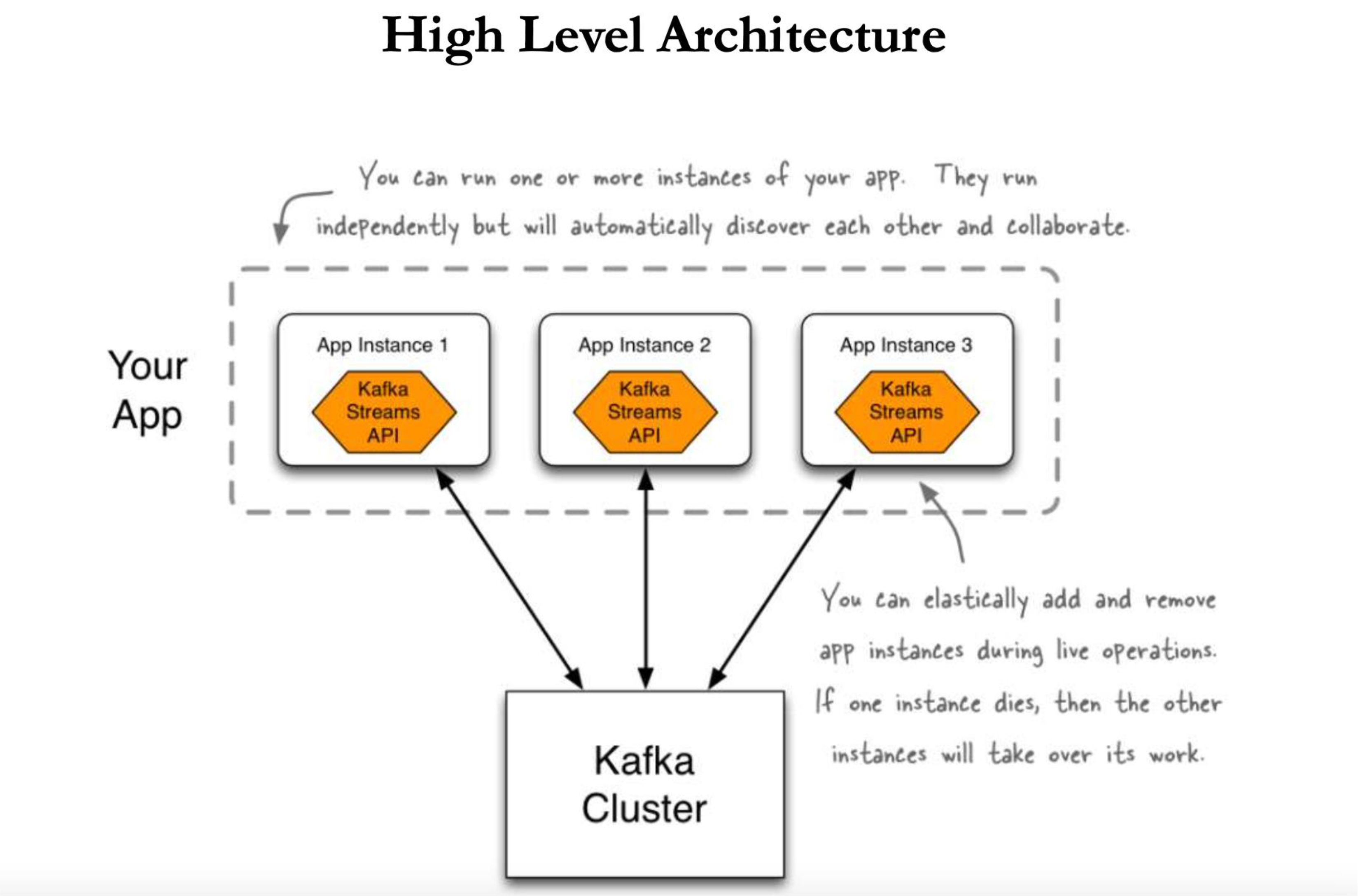

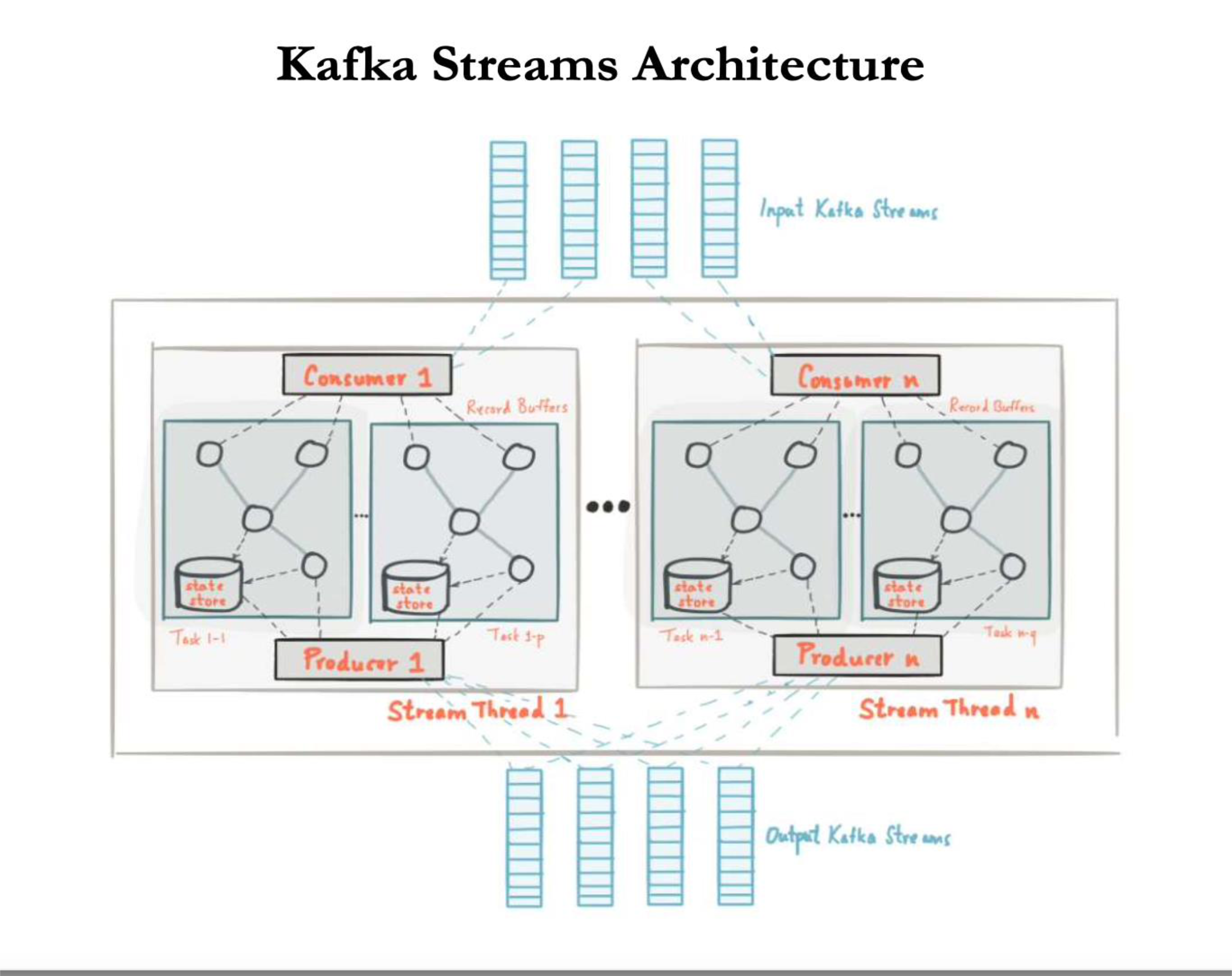

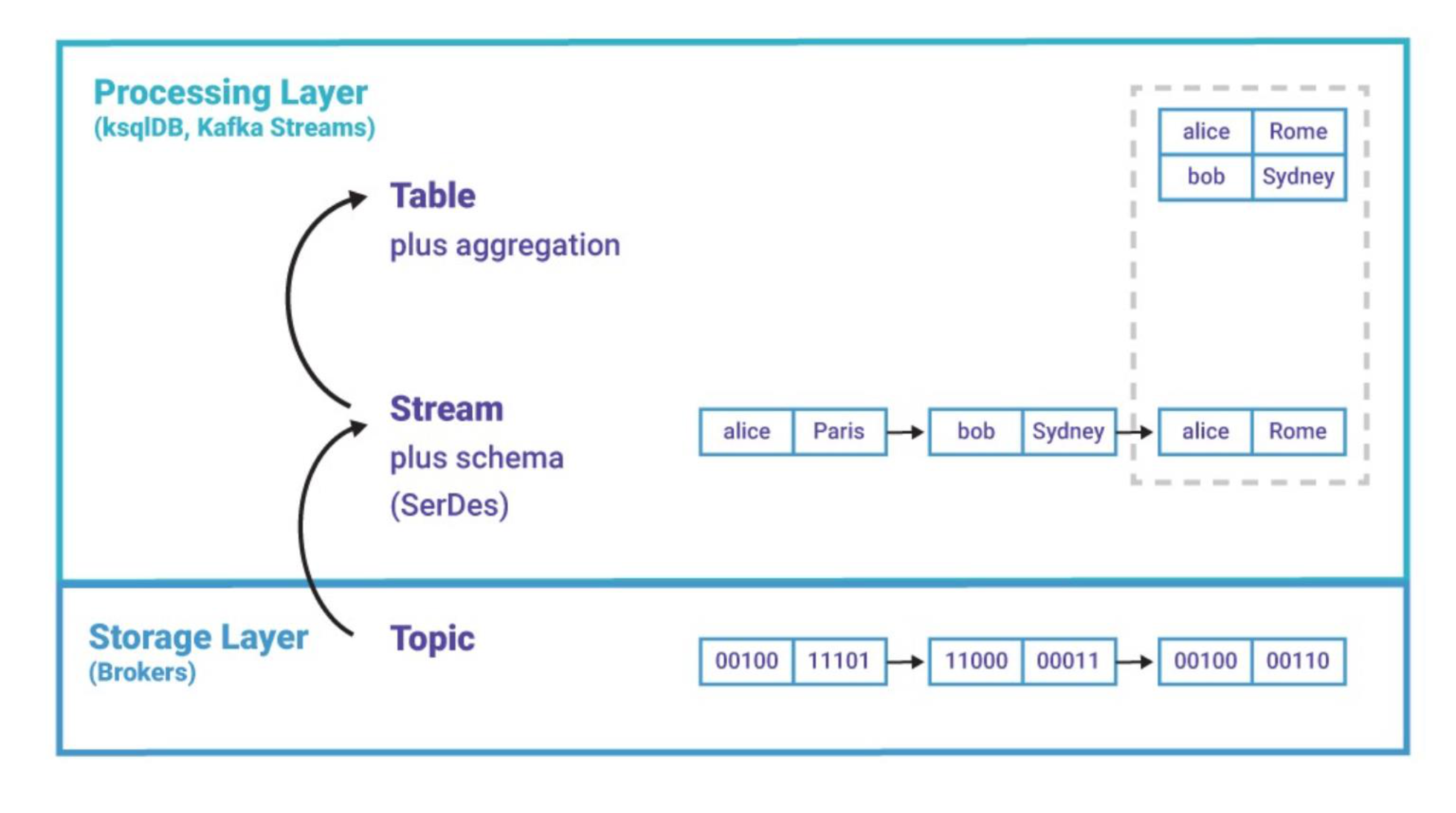

KStream and KTable

KStream

• Represents an unbounded sequence of immutable events
• Each record = event (append-only)
• Events are NOT updated or deleted
• Order matters (time-based processing)
• Supports windowing (e.g., last 5 minutes)
• Example — IoT Sensor data:

  (sensor1, 30°C)
  (sensor1, 32°C)
  (sensor1, 31°C)


KTable

• Represents the latest value per key (state)
• Each key has only one current value (new records overwrite old ones)
• Represents a table (like a database view)
• Example:

  (sensor1, 30°C)
  (sensor1, 32°C)
  (sensor1, 31°C)
  → KTable stores: sensor1 → 31°C  (latest value only)


KStream vs KTable

Analogy: KStream is like your bank statement (every transaction ever). KTable is like your current account balance (just the latest state).

Relationship Between KStream and KTable

• KStream → KTable : by grouping and aggregating the stream
• KTable → KStream : by emitting changes (changelog stream)

Actual data located → KStream

IoT Device Monitoring Example

KStream Input

(dev1, 30°C, ON, 90%)
(dev2, 28°C, ON, 80%)
(dev1, 32°C, ON, 88%)
(dev2, 29°C, OFF, 78%)

Convert to KTable (Device State)

KTable<String, DeviceState> deviceTable =
    stream
    .groupByKey()
    .reduce((oldValue, newValue) -> newValue);

Resulting KTable

• KTable keeps the latest value!

dev1 → (32°C, ON, 88%)
dev2 → (29°C, OFF, 78%)

How Kafka Handles This in Reality

Device events → Kafka topic (full log) → KStream
                                              └→ derived KTable (latest state)

1. All device events are written to a normal Kafka topic
2. The topic keeps event history according to retention policy
3. Kafka Streams reads that topic as a KStream
4. The application builds a KTable from that stream for current-state queries

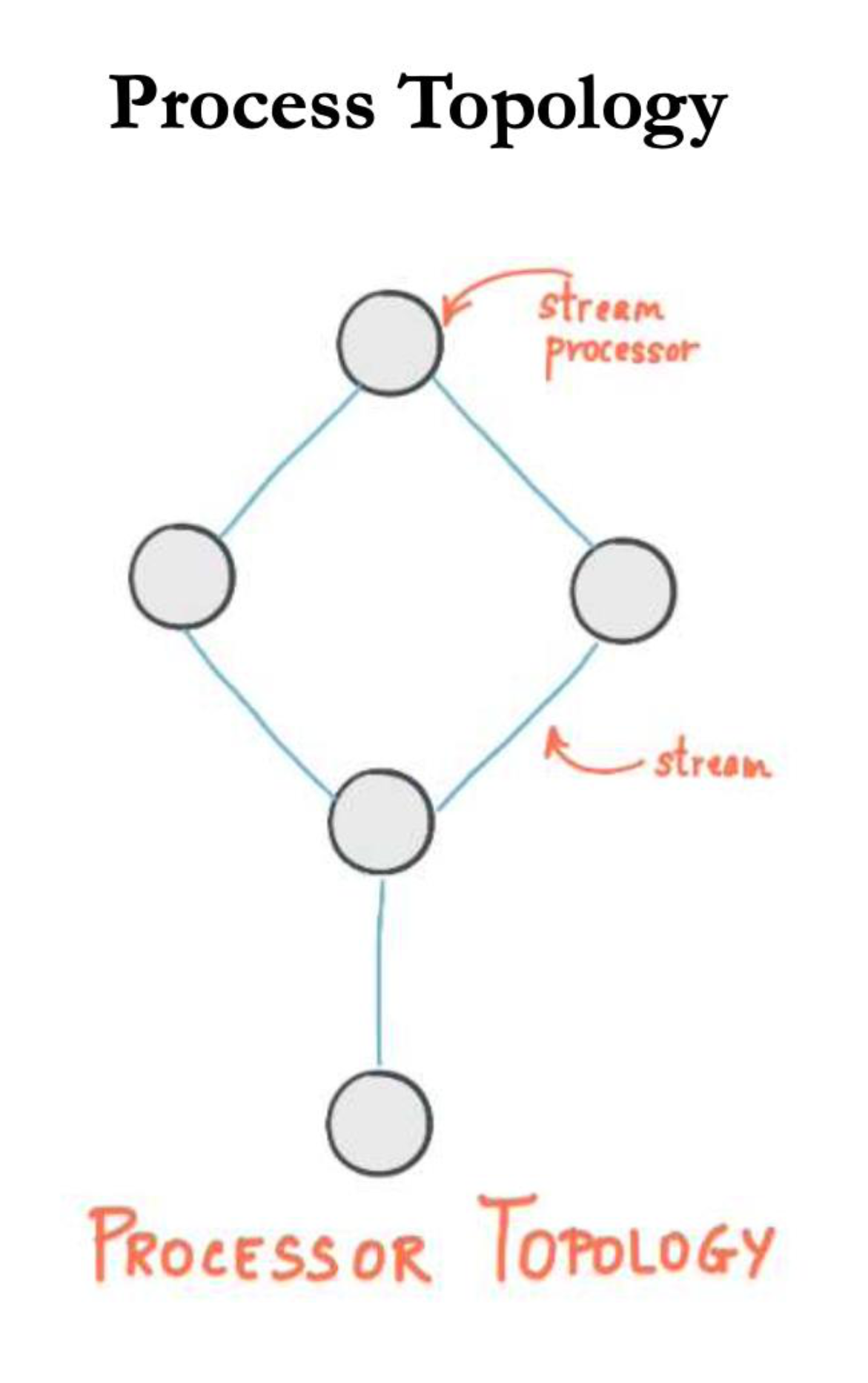

Process Topology

• A processor topology = graph of stream processors (nodes) connected by streams (edges)
• Stream = unbounded, continuously updating dataset; ordered and fault-tolerant sequence of immutable key-value pairs
• Source Processor = produces an input stream from a Kafka topic; consumes records and forwards to downstream processors
• Sink Processor = sends records from upstream processors to a Kafka topic

Processing Data in Kafka Streams

Stateless Transformation Operations

Stateful Transformation Operations

Analogy (Swift parallel): These are just like Swift's higher-order functions! filter = .filter {}, map = .map {}, flatMap = .flatMap {}. The difference is Kafka does it on a live, infinite stream of data rather than a fixed array.

Can We Compute Aggregates on KStream?

YES, but only after grouping (ก่อนเป็นอย่างแรก) (and usually windowing), and the result becomes a KTable (stateful view).

Example

Input stream:

(dev1, 30), (dev2, 25), (dev1, 32), (dev2, 28)

After groupByKey:

dev1 → [30, 32]
dev2 → [25, 28]

Now you can compute: sum, avg, max, min, count

Kafka Streams & Fault Tolerance

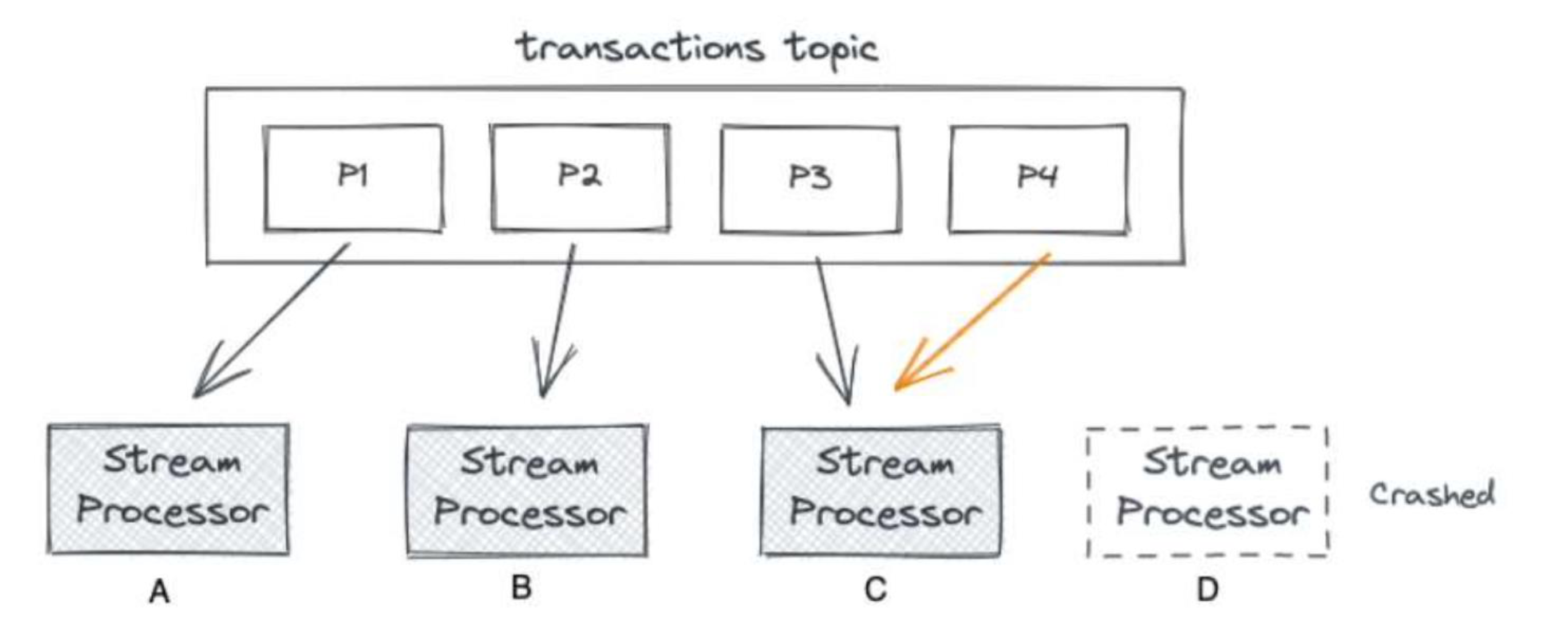

• If a Stream Processor crashes (e.g., D crashes), its partition (P4) is reassigned to another processor (C handles both P3 and P4)

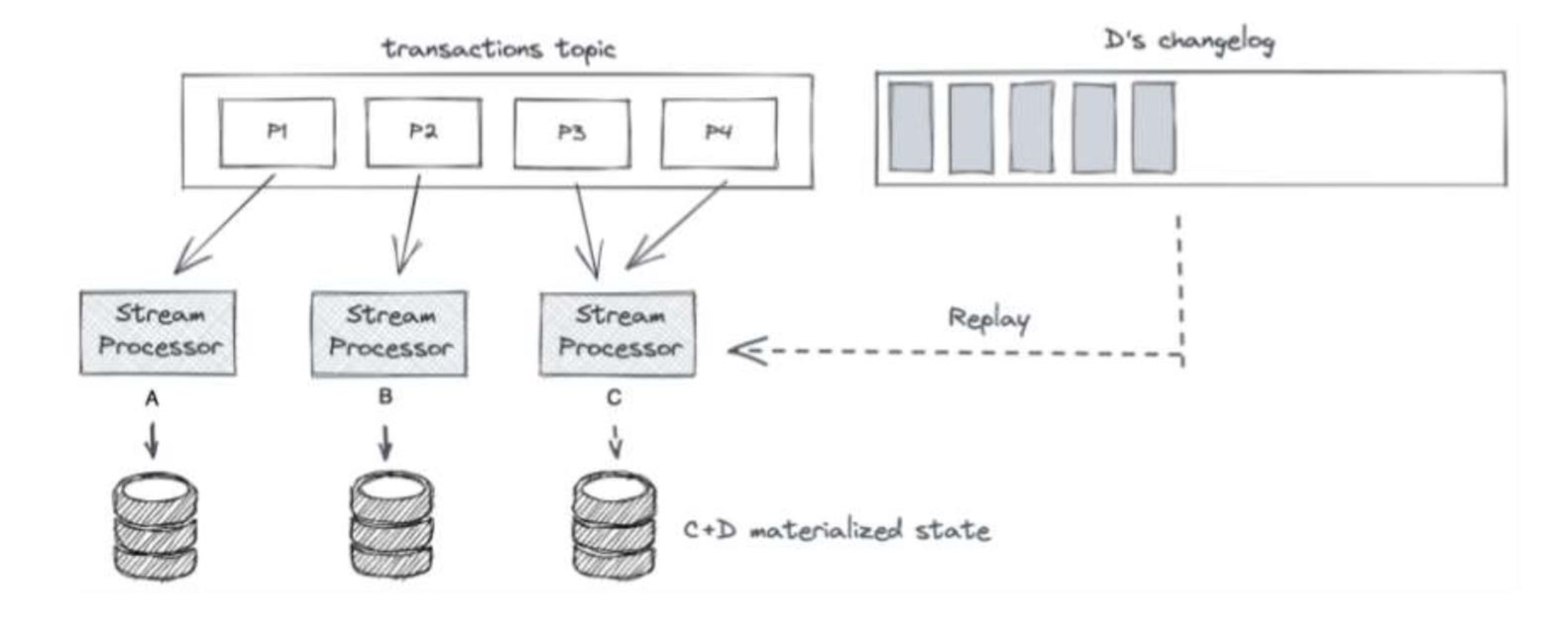

• The crashed processor's changelog (state changes) is stored as a separate Kafka topic

• When a new processor takes over, it replays the changelog to restore the materialized state

• This means: no data is lost, state is fully recoverable!

Kafka vs. Spark Streaming

IoT EHR Pipeline Example

IoT Device (Producer)
    ↓
Kafka Topic (patient-vitals)
    ↓
KStream (event processing)
    ↓
┌──────────────────┬─────────────────┐
↓                  ↓                 ↓
Alert Stream      KTable           Archive
(filter HR>100)  (latest state)   (history DB)
↓                  ↓
Alert System    Dashboard (Consumer ไง comsume data)

Top 5 Kafka Use Cases

1. Log Analysis — Services → Kafka → Elastic → Kibana
2. Data Streaming in Recommendations — User clicks → Kafka → Flink → ML Models
3. System Monitoring and Alerting — Metrics → Kafka → Flink → Real-time Monitoring / Alerts
4. Change Data Capture — Source DBs → transaction log → Kafka → connectors → replica DBs
5. System Migration — Old services → Kafka → new services (reconciliation)

Kafka Ecosystem at Uber (Real World)

Data Producers:
  Rider App, Driver App, API/Services, Dispatch (GPS logs), Map Services
      ↓
  KAFKA (Real-time Pipeline)
      ↓ ↓ ↓ ↓
  Surge    ELK    Storm    Samza    → Mobile App, Debugging, Real-time Analytics, Alerts

      ↓ (Batch Pipeline)
  HADOOP
      ↓
  VERTICA → Analytics Reporting, Ad Hoc Exploration

Logstash

• Acquired by Elastic, integrated in the ELK stack (Elasticsearch, Logstash, Kibana)
• Ingests, transforms, and pushes for any types of events

Pipeline Architecture

beats → Kafka → logstash → elasticsearch

Three Core Concepts

Logstash Filters Can

• Derive structure from unstructured data with grok
• Decipher geo coordinates from IP addresses
• Anonymize PII data, exclude sensitive fields
• Ease overall processing, independent of data source, format, or schema

CDN Pipeline Example (from slides)

• Split Traffic Server key/value logs (kv filter)
• Calculate approximate profile bitrate for a linear stream
  • Based on bytes transferred and knowledge about segment duration
• Raw Ruby code + GROK (extract and filter log strings)
• Remove unnecessary fields/tags
• HTTP Header extractions

References

• Baeldung: Kafka Streams vs Kafka Consumer
• Confluent Kafka Streams Docs
• Kafka DSL API Guide
• [Kafka Streams Hands-on Session — Matteo Nardelli]
