Chapter 9 - Access Control (Authorization)

Today we’ll focus about Authorization

Access Control Principles

• RFC 4949 defines computer security as:
  • RFC = Request for Comment
  • "Measures that implement and assure security services in a computer system, particularly those that assure access control service."

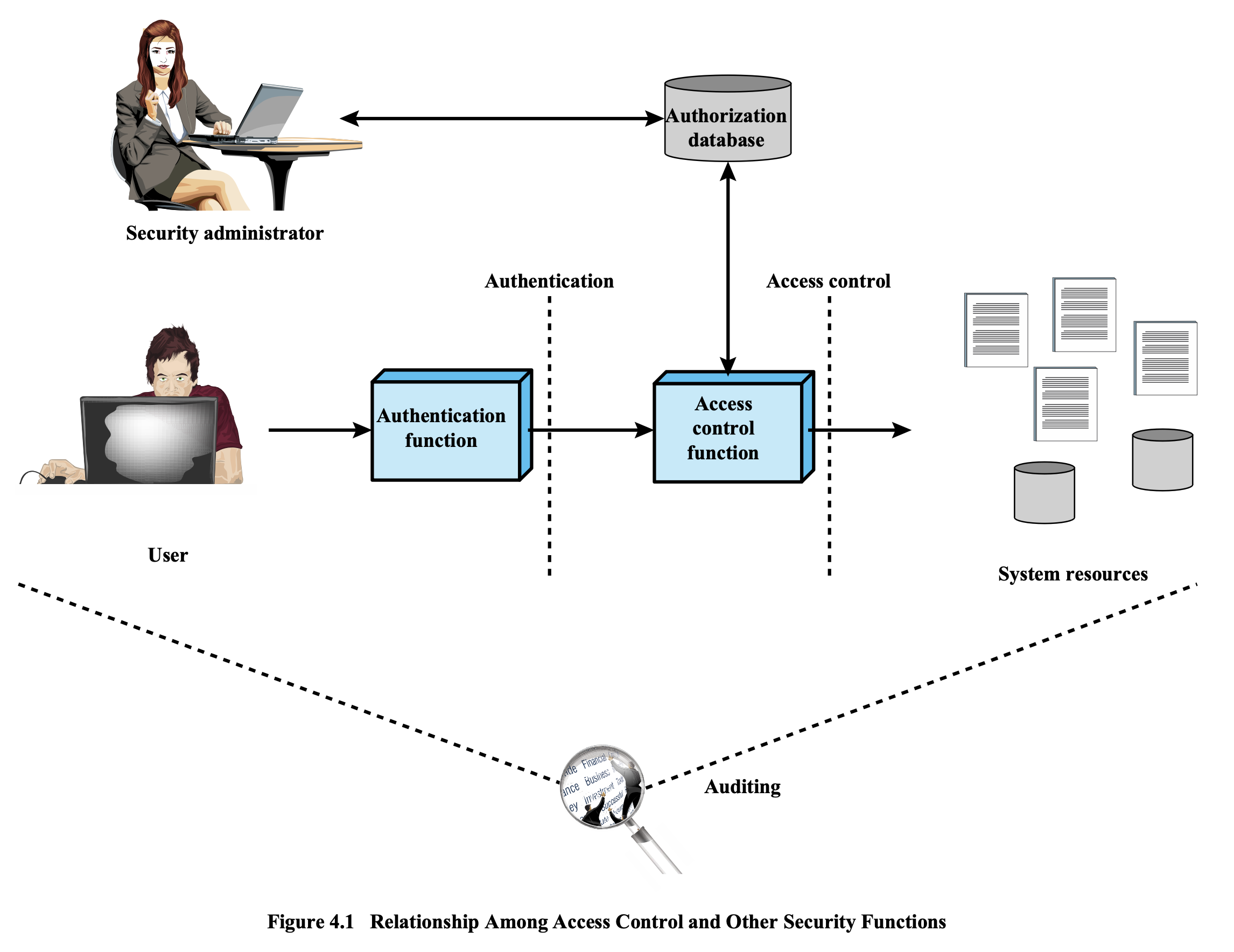

Relationship Among Access Control and Other Security Functions

• The flow of access control involves:
  • User → Authentication Function → Access Control Function → System Resources
  • Security Administrator ↔ Authorization Database ↔ Access Control Function
  • Auditing monitors all interactions

Access Control Policies

Discretionary Access Control (DAC)

• Controls access based on the identity of the requestor and on access rules (authorizations)
• States what requestors are (or are not) allowed to do

Mandatory Access Control (MAC)

• Controls access based on comparing security labels with security clearances

Role-Based Access Control (RBAC)**

• Controls access based on the roles that users have within the system
• Uses rules stating what accesses are allowed to users in given roles

Attribute-Based Access Control (ABAC)**

• Controls access based on attributes of the user, the resource to be accessed, and current environmental conditions

Subjects, Objects, and Access Rights

• Subject
  • An entity capable of accessing objects
  • Three classes:
    • Owner
    • Group
    • World
• Object
  • A resource to which access is controlled
  • Entity used to contain and/or receive information
• Access Right (Privilege, Permission)
  • Describes the way in which a subject may access an object
  • Could include:
    • Read
    • Write
    • Execute
    • Delete
    • Create
    • Search

Discretionary Access Control (DAC)

• Scheme in which an entity may enable another entity to access some resource
• The owner of a resource determines access to that resource
  • The owner is often the creator of the resource
• Often provided using an access matrix
  • One dimension = identified subjects (who may attempt data access)
  • Other dimension = objects (that may be accessed)
  • Each entry in the matrix = access rights of a particular subject for a particular object

Analogy: Think of DAC like a Google Drive file — the creator/owner decides who can view or edit the file.

Access Control Structures

• (a) Access Matrix — a table showing subjects vs objects with permissions (Own, Read, Write)

อาจารย์ให้ Access Matrix มา อยากให้วาดเป็น ACL, Cap List ใน #FinalExam

• (b) Access Control Lists (ACL) — each file has a list of users and their permissions
  • e.g., File 1 → A: Own/R/W, B: R, C: R/W

• (c) Capability Lists — each user has a list of files and their permissions
  • e.g., User A → File 1: Own/R/W, File 3: Own/R/W

Authorization Table

Extended Access Control Matrix

• Subjects can also be objects (e.g., $S_1$ has control over $S_2$)
• Includes process operations like wakeup, stop, execute
• Includes disk drive operations like seek
• Copy flag (*) — permission marked with * can be transferred to others

Protection Domains

Component we need to consider, to ensure that access control is ….

• A set of objects together with access rights to those objects
• In terms of the access matrix, a row defines a protection domain
• User can spawn processes with a subset of the access rights of the user
• User mode — certain memory areas are protected, certain instructions cannot be executed
• Kernel mode — privileged instructions (I/O related) may be executed, protected memory may be accessed

Analogy: Protection domains are like different security clearance levels in a building — a regular employee can access the lobby, but only authorized personnel can enter the server room.

UNIX File Access Control

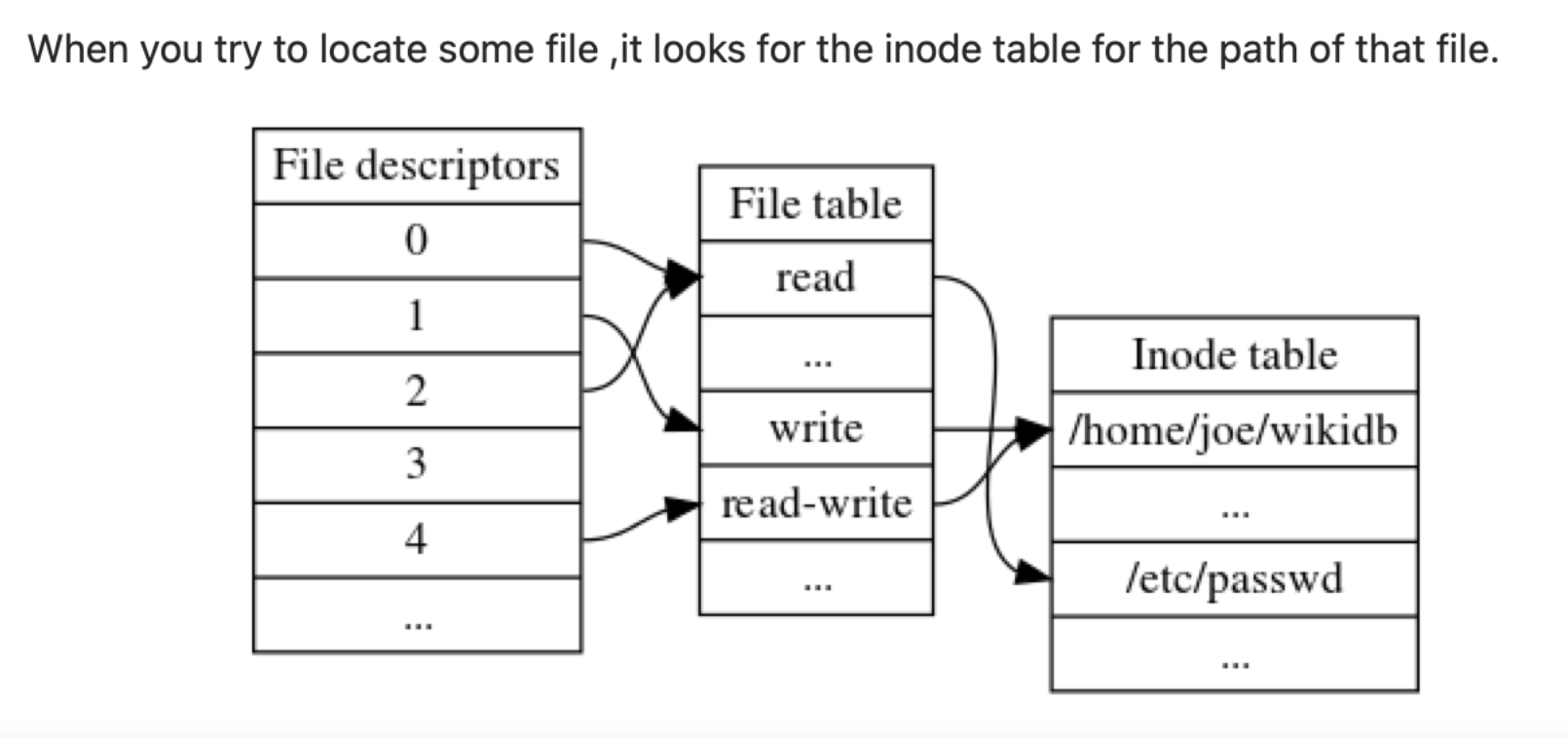

Inodes (Index Nodes)

• UNIX files are administered using inodes
  • Control structures with key information needed for a file
  • Several file names may be associated with a single inode
  • An active inode is associated with exactly one file
  • File attributes, permissions, and control information are stored in the inode
  • On disk: inode table (or inode list) containing inodes of all files → From 09 File System
  • When a file is opened, its inode is brought into main memory (memory-resident inode table)
• Directories are structured in a hierarchical tree
  • May contain files and/or other directories
  • Contains file names plus pointers to associated inodes

UNIX File Permissions

• Each user has a unique user ID and is a member of a primary group ID
• 12 protection bits specify:
  • Read, Write, Execute permission for:
    • Owner class
    • Group class
    • Other class
• The owner ID, group ID, and protection bits are part of the file's inode

Traditional UNIX format:

rw-  r--  ---
[Owner] [Group] [Other]

Analogy: Think of UNIX permissions like a library card system — the owner can borrow and return books, group members can only read in-library, others have no access.

Mandatory Access Control (MAC)

• MAC mechanisms:
  • Assign a security level to all information
  • Assign a security clearance to each user
  • Ensure users only access data for which they have clearance
• Better security than DAC

MAC Principles

$\boxed{\text{Read Down Access: clearance} \geq \text{classification of object}}$
$\boxed{\text{Write Up Access: clearance} \leq \text{classification of object}}$

• Read Down — a user can only read objects with equal or lower classification
• Write Up — a user can only write to objects with equal or higher classification

Analogy: Like military clearances — a "Top Secret" cleared person can read "Secret" docs but cannot write data to a "Classified" file to prevent data leakage downward.

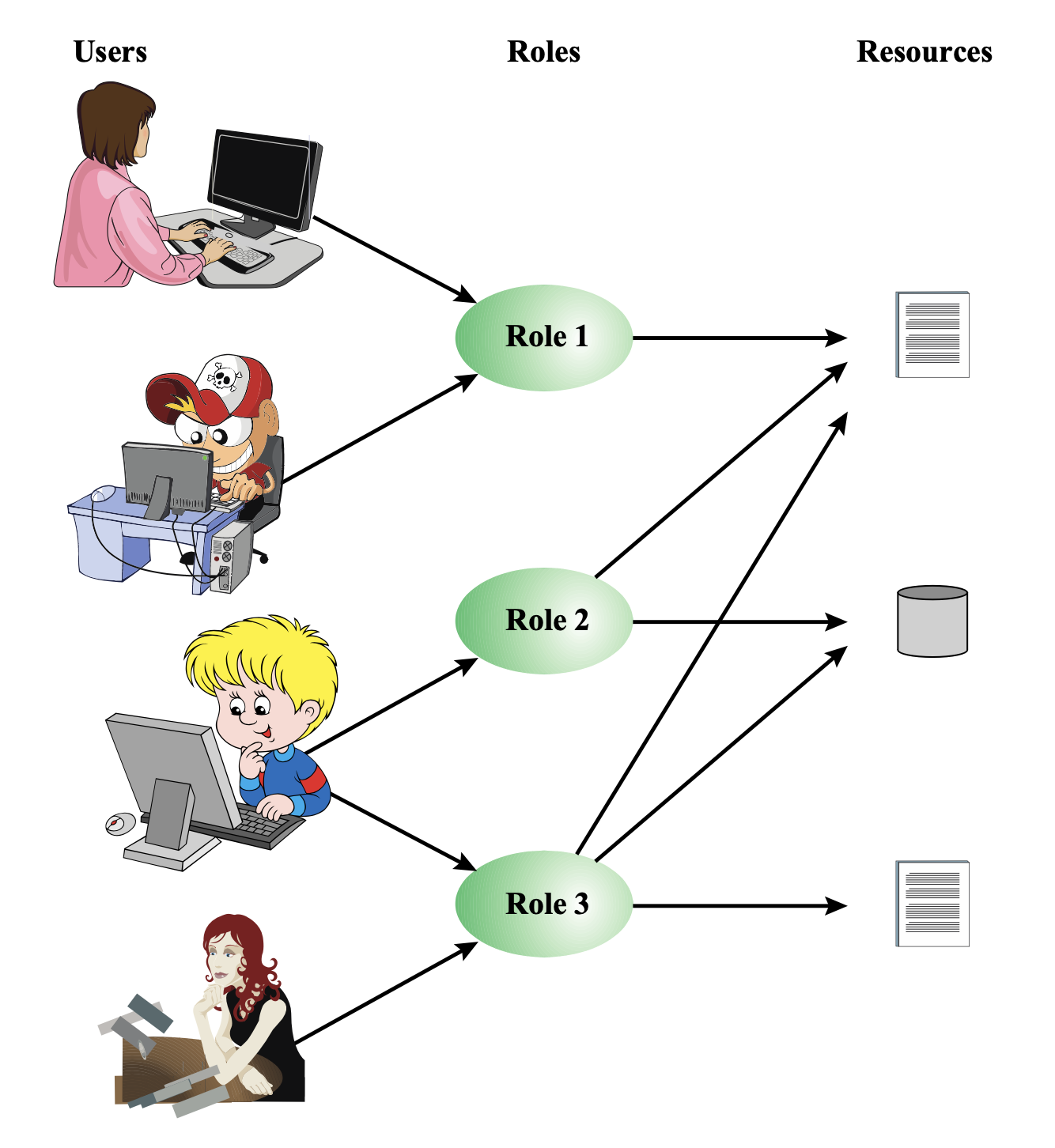

Role-Based Access Control (RBAC)

• A user has access to an object based on the assigned role
• Roles are defined based on job functions
  • e.g., Accountant, IT Support, IT Manager, CFO, CEO, CIO
  • IT Department → Programmer, System Analyst, Tester, Security Admin, System Admin, Network Staff
• Permissions are defined based on job authority and responsibilities
• Operations on an object are invoked based on the permissions
• The object is concerned with the user's role, not the user itself

Analogy: RBAC is like a hospital — a nurse can administer medication, a doctor can prescribe, but a janitor cannot access patient records. When a person leaves a role, they automatically lose those permissions.

Key Advantage

• Users change frequently, Roles don't
• Reduces administrative overhead when people join/leave

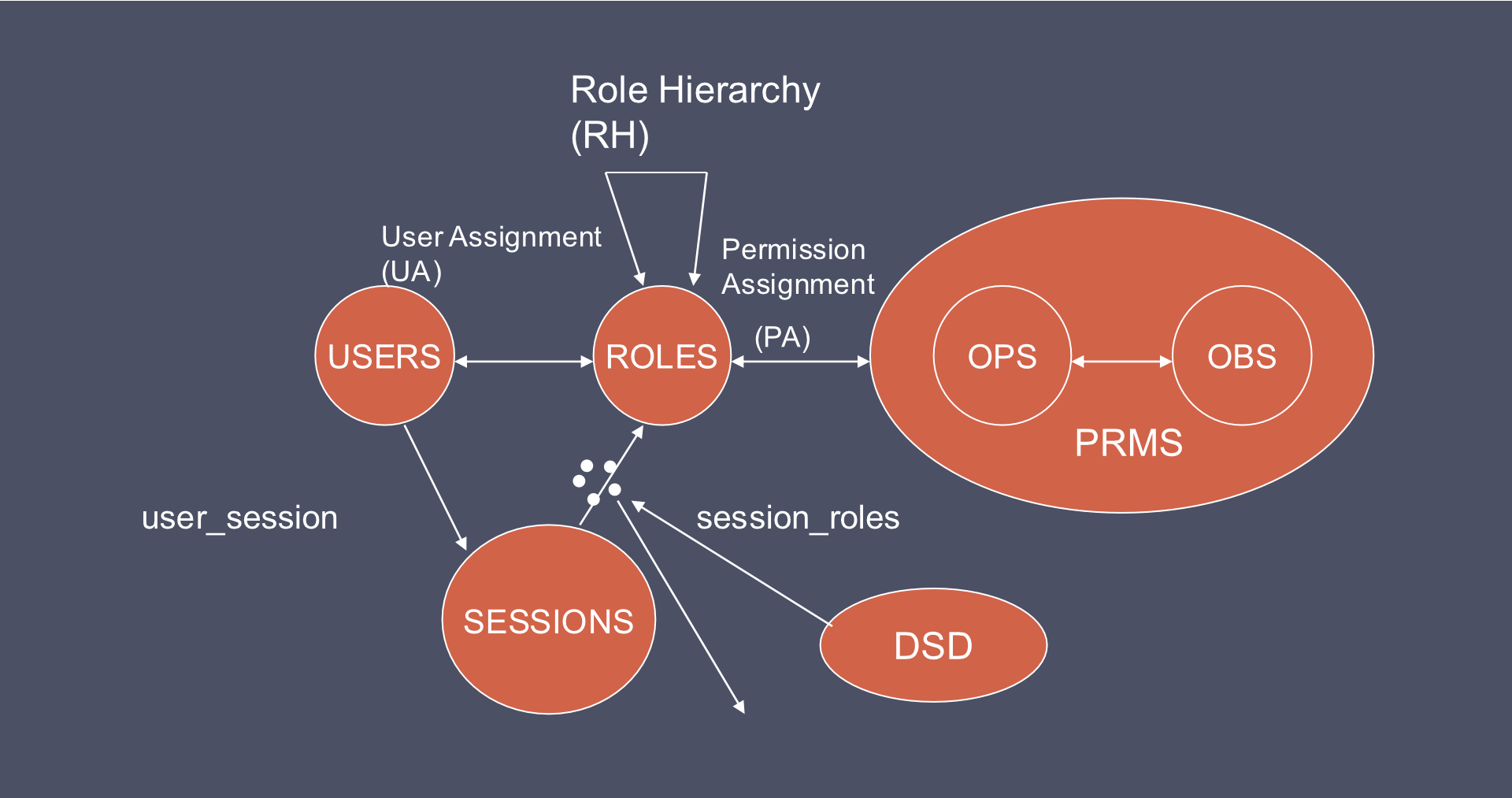

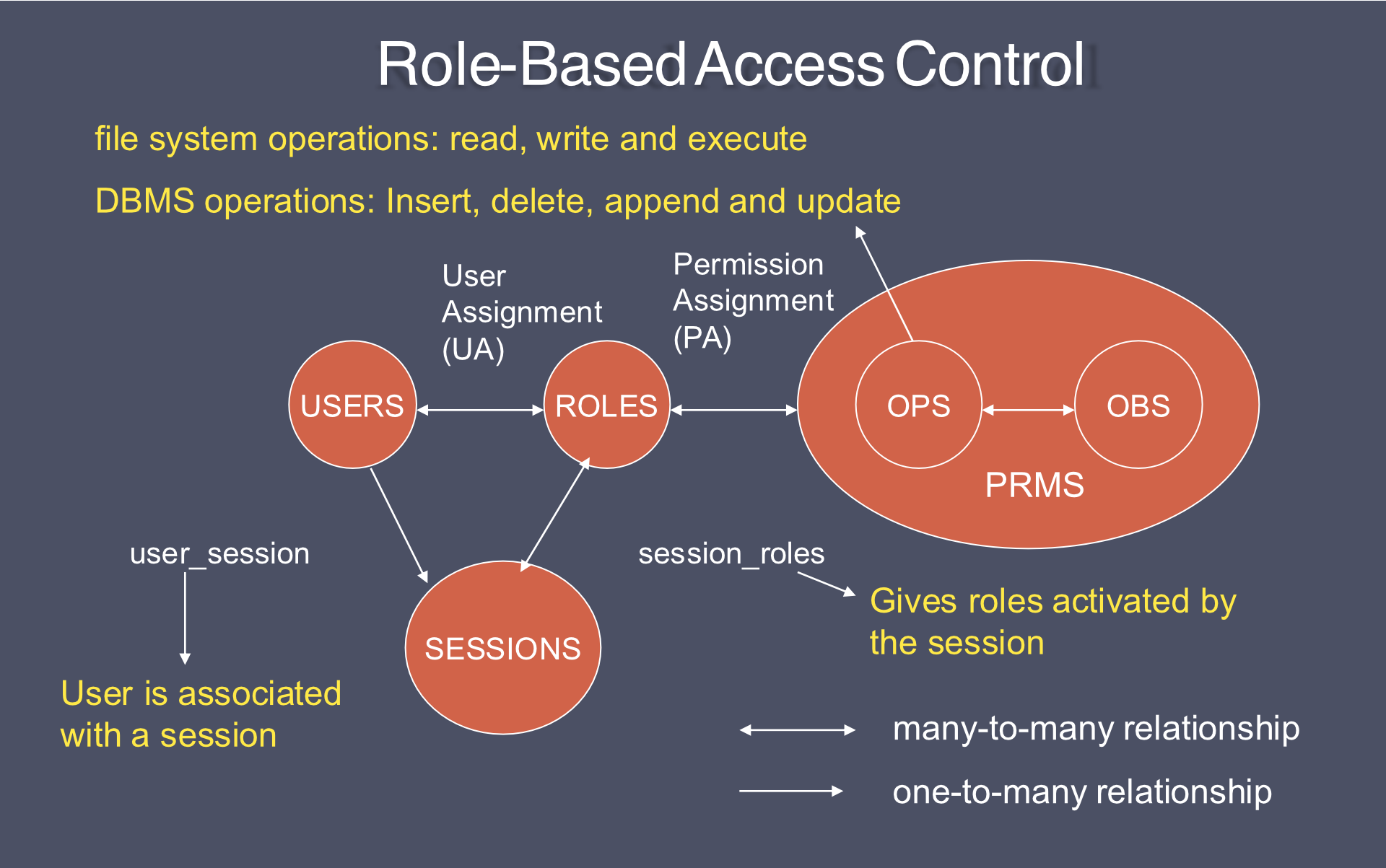

RBAC Framework Model Components

1. Core RBAC ($RBAC_0$)

• Introduces role activation as part of a user's session
• Required in any RBAC system
• Other components are independent and may be implemented separately
• Entities: USERS, ROLES, SESSIONS, OPS (Operations), OBS (Objects), PRMS (Permissions)
  • User Assignment (UA): many-to-many relationship between users and roles
  • Permission Assignment (PA): many-to-many relationship between roles and permissions
  • user_session: user is associated with a session (one-to-many)
  • session_roles: gives roles activated by the session
• File system operations: read, write, execute
• DBMS operations: insert, delete, append, update

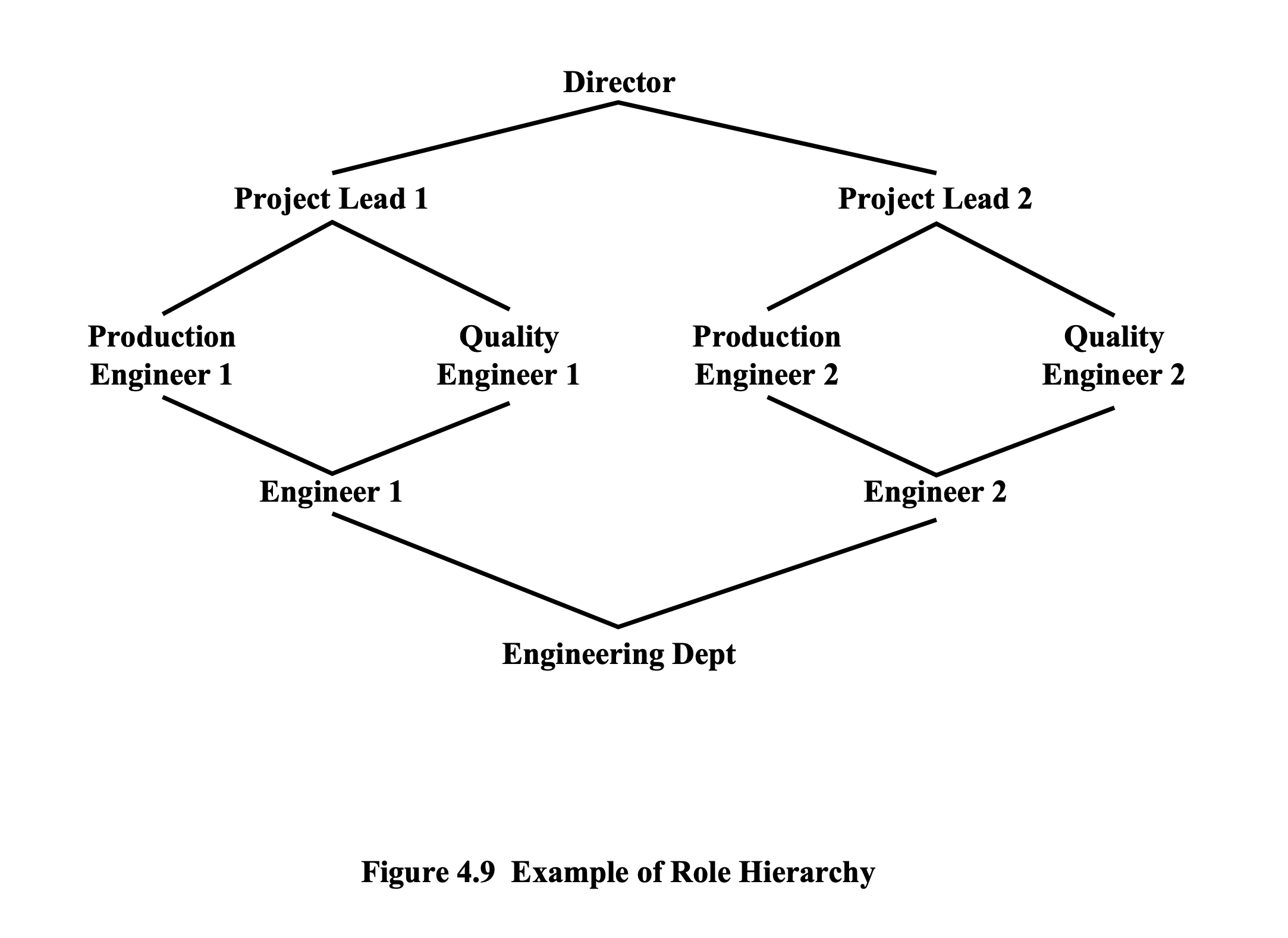

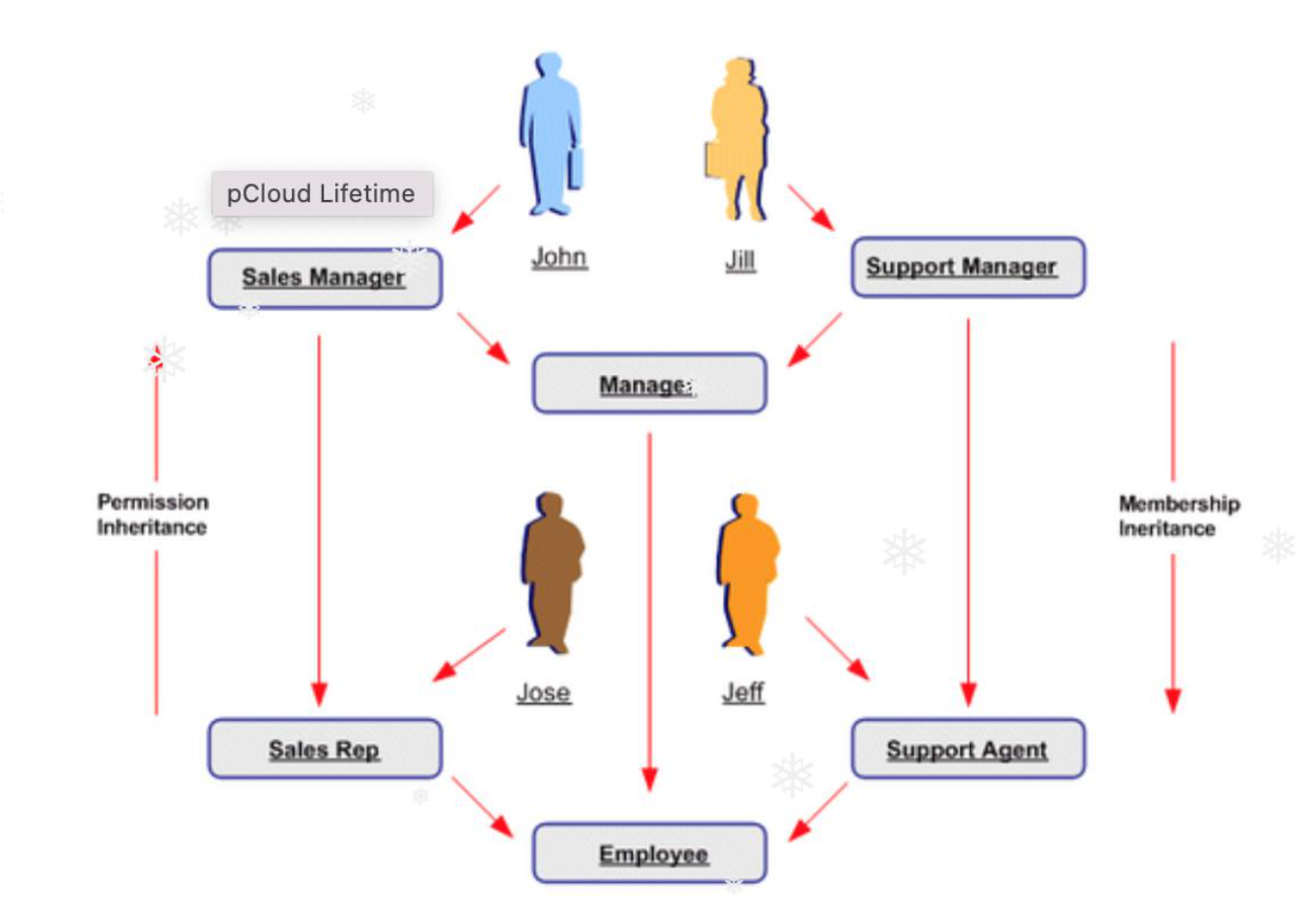

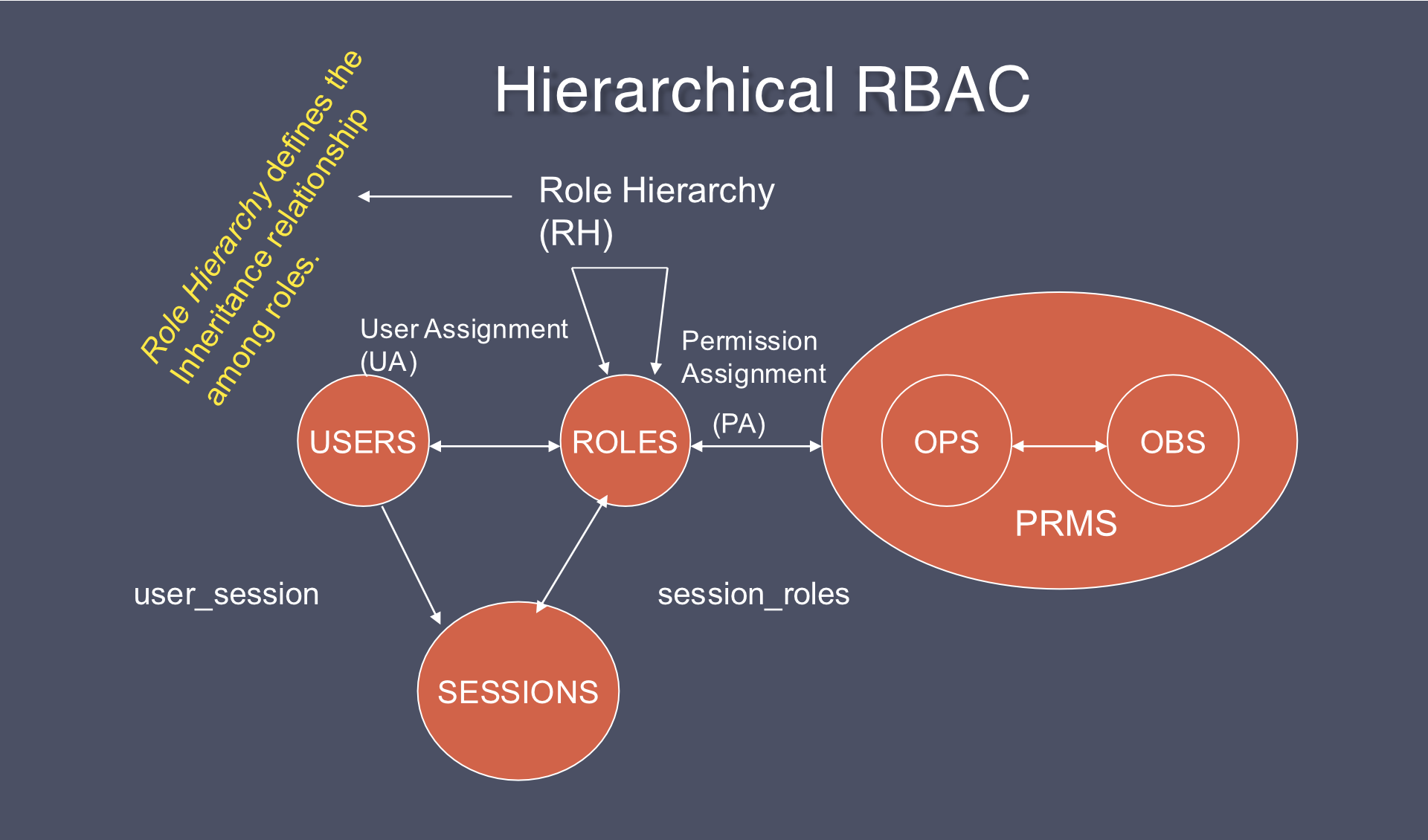

2. Hierarchical RBAC ($RBAC_1$)

• Adds Role Hierarchy (RH) for inheritance among roles
• General role hierarchies — multiple inheritance of permissions and user membership
• Limited role hierarchies — role may have multiple ascendants but only one immediate descendant
• Example:
  • Role Specialist inherits permissions of Doctor and Intern
  • Role Cardiologist inherits from Specialist

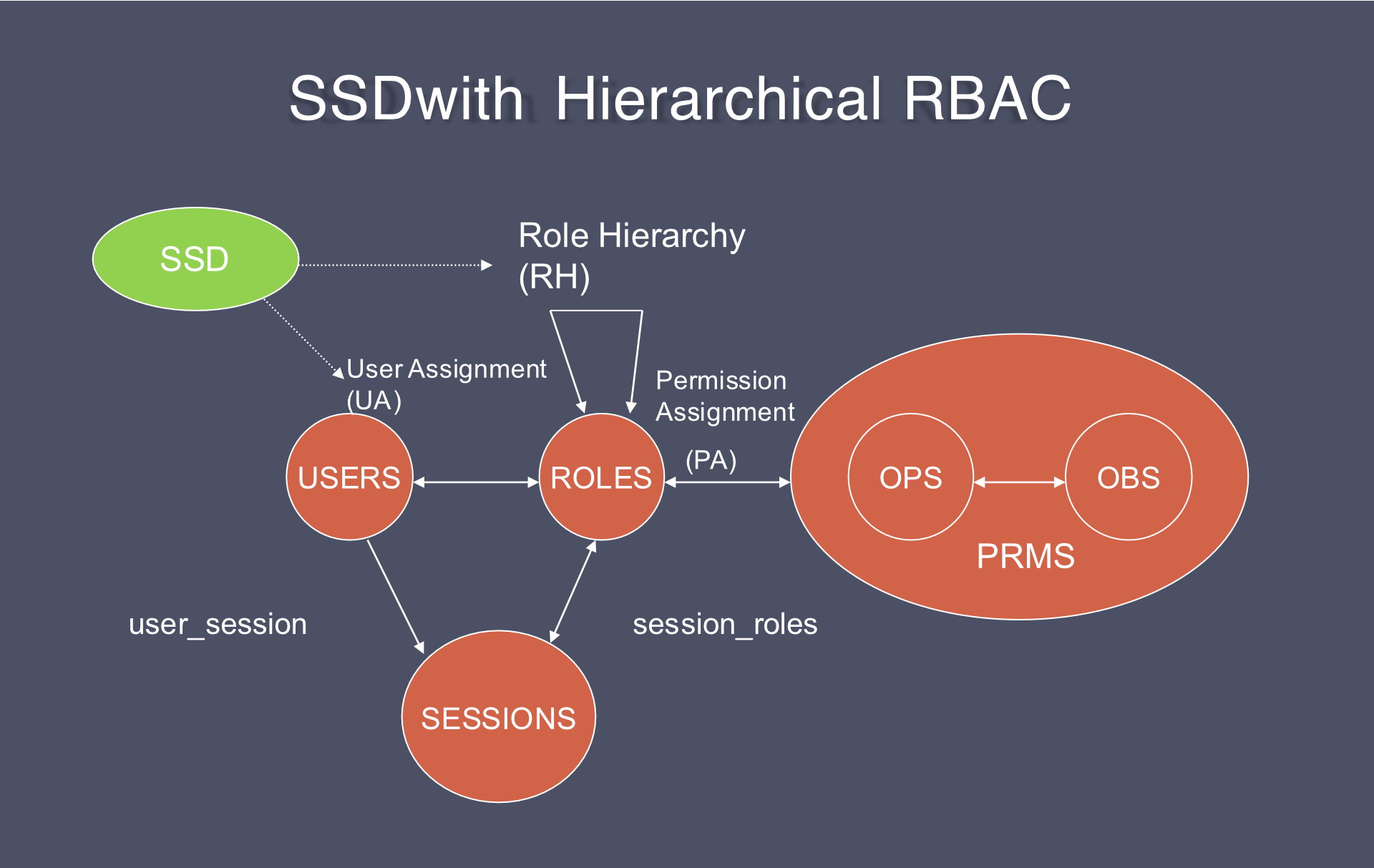

3. Static Separation of Duty (SSD) Relations

• Adds exclusivity constraints among roles w.r.t. user assignments
• Prevents conflict of interests: ==user cannot be authorized for both conflicting roles==
• SSD relations are specified for any pair of roles that conflict
• Example: A bank employee cannot be both Teller and Auditor

4. Dynamic Separation of Duty (DSD) Relations

This constraint is enforced on the session.

• Adds exclusivity w.r.t. roles activated in a user's session
• User cannot act simultaneously in both conflicting roles
• If one role in a DSD relation is activated, the related (conflicting) role cannot be activated in the same session
• Provides greater operational flexibility than SSD

SSD vs DSD

Analogy: SSD = You can never have both a driver's license and a taxi driver permit. DSD = You can have both, but can't use them at the same time.

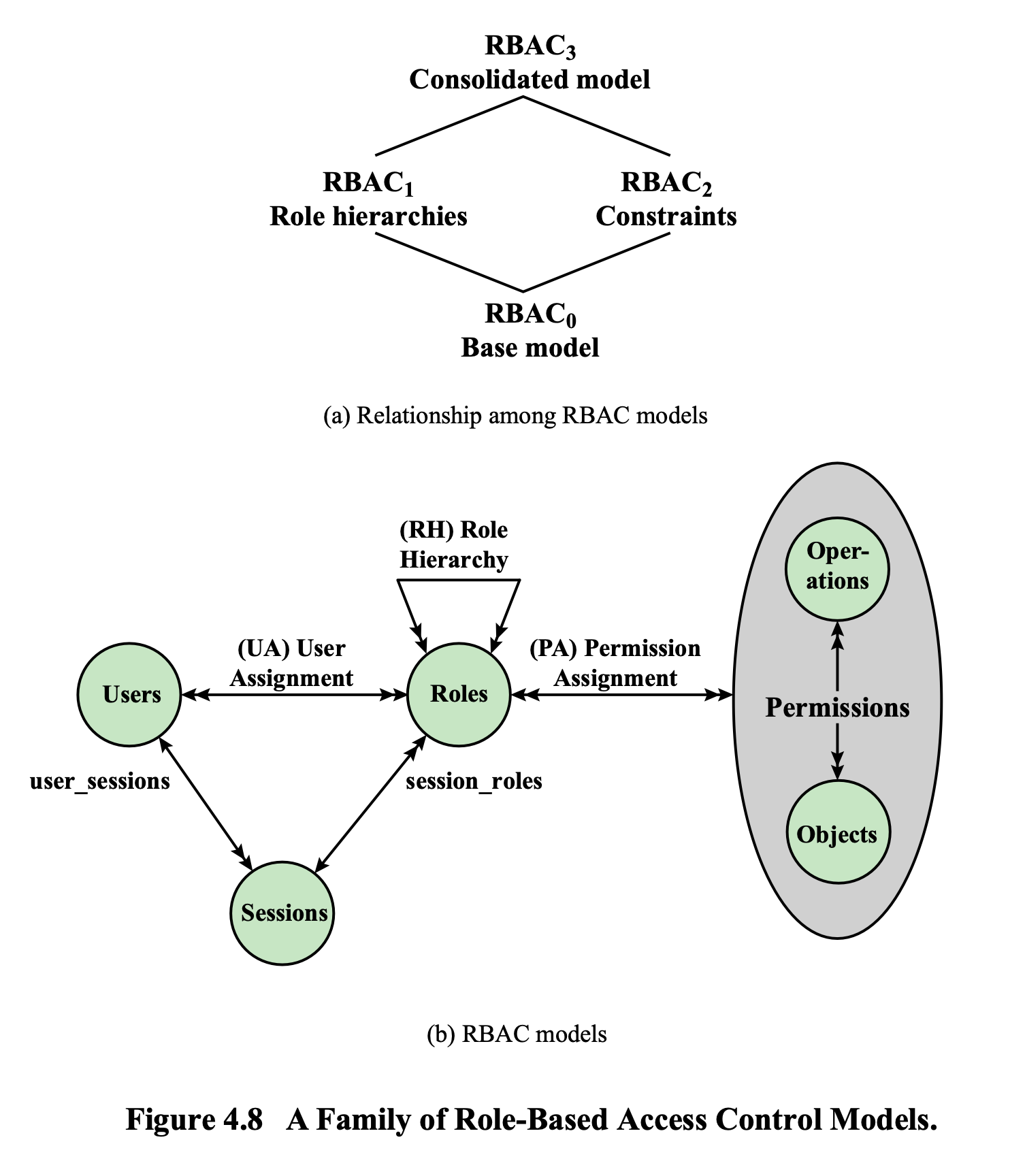

RBAC Models Family

• $RBAC_0$ — Base Model (Core RBAC)
• $RBAC_1$ — Role Hierarchies (Core + Hierarchical)
• $RBAC_2$ — Constraints (Core + SSD/DSD)
• $RBAC_3$ — Consolidated Model (Core + Hierarchical + Constraints)

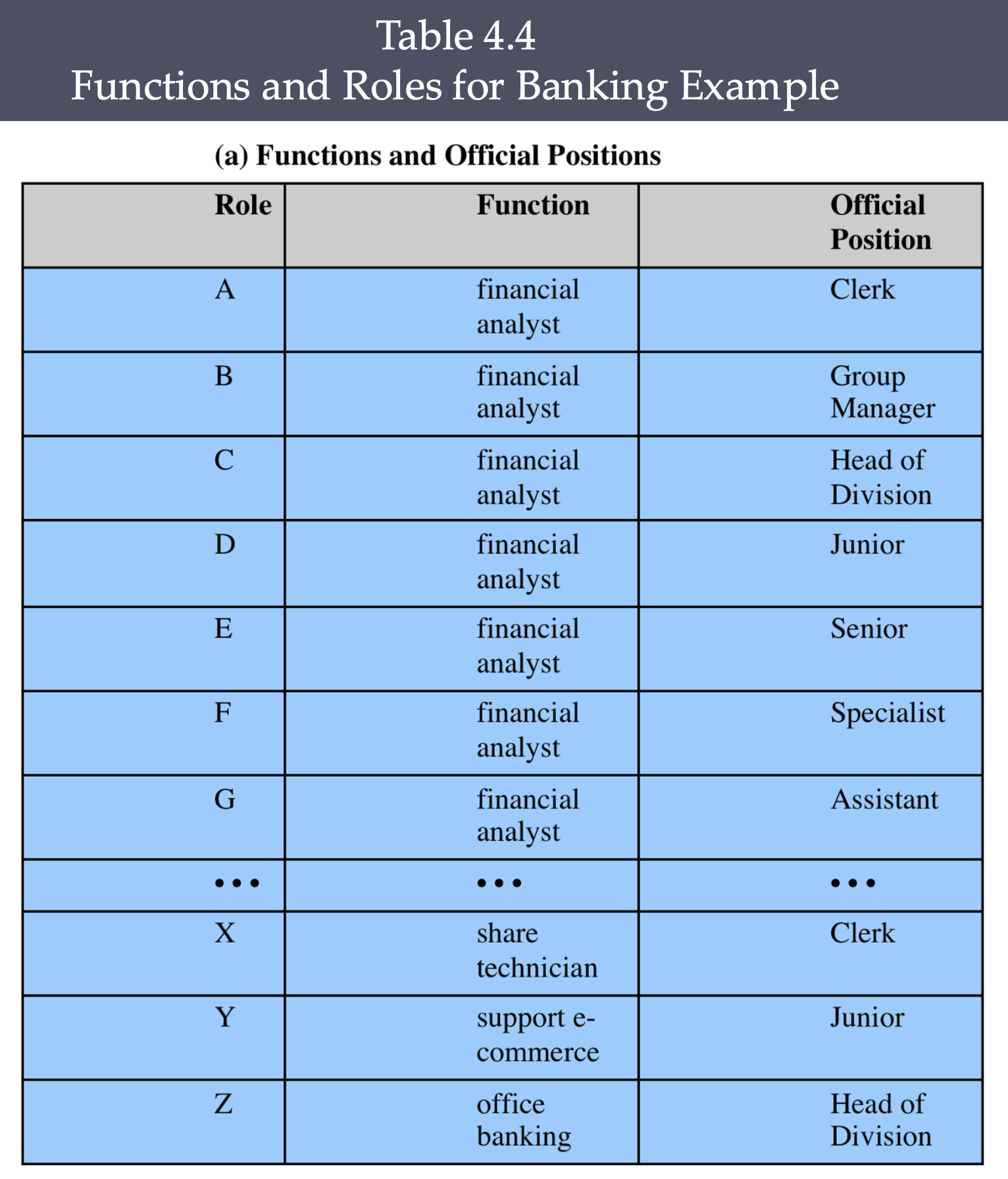

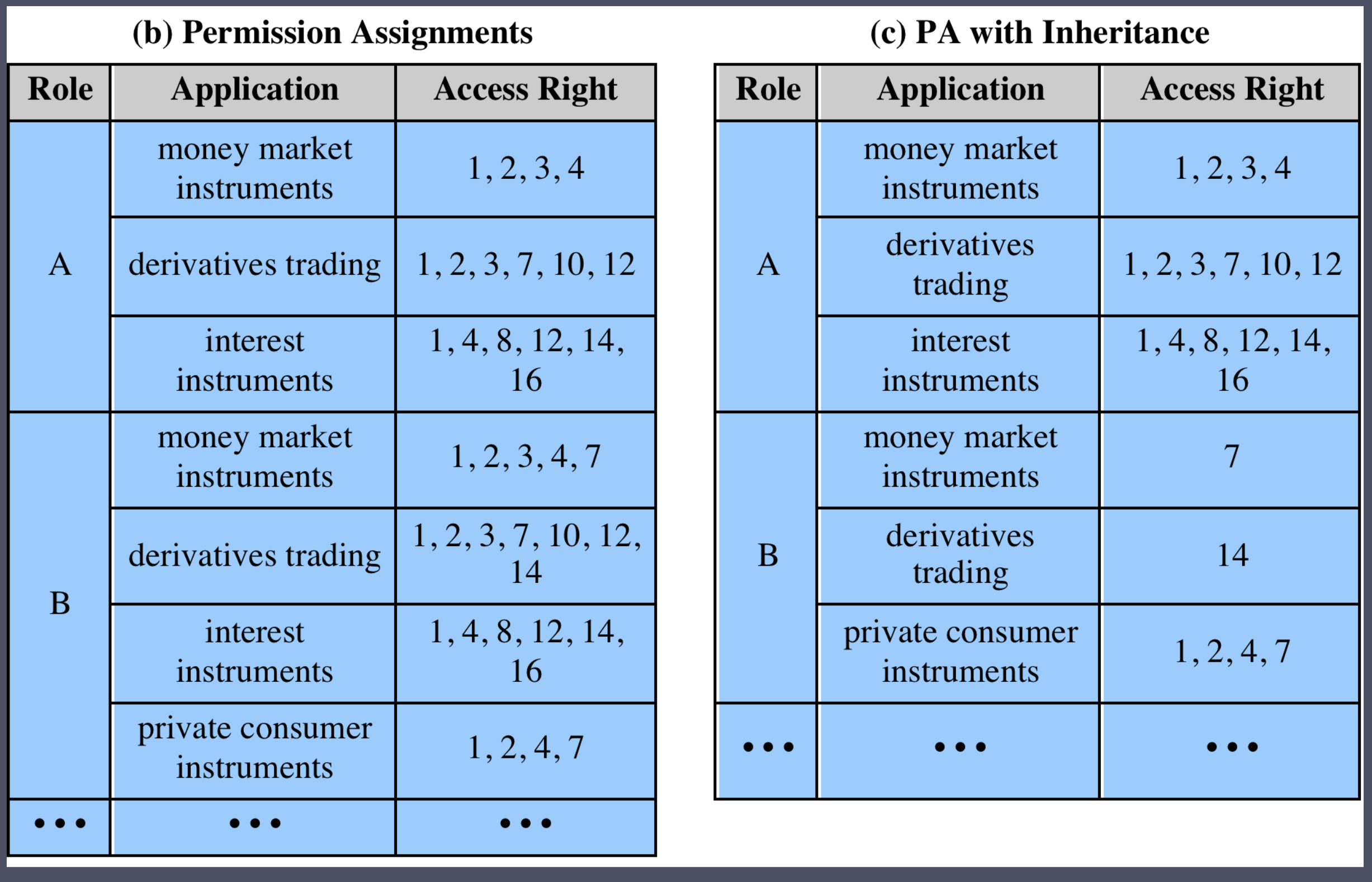

#FinalExam ให้ตารางมาเป็นแบบนี้ แล้วให้แปลงเป็น Code .json อะไรวะ งง / XACML รึเปล่า

Constraints in RBAC

• Provide a means of adapting RBAC to administrative and security policies

Types of Constraints

• Mutually Exclusive Roles
  • A user can only be assigned to one role in the set
  • Any permission can be granted to only one role in the set
• Cardinality
  • Setting a maximum number with respect to roles
  • e.g., Role Approver (max 3), Role Maker (max 10)
• Prerequisite Roles
  • A user can only be assigned to a role if already assigned to some other specified role
  • e.g., TA Role requires the person to already be a graduate student

Privilege (Least Privilege Principle)

• Roles are engineered based on the Principle of Least Privilege (PoLP)
• Least Privilege = minimal privilege to be given to each individual user
• A role contains the minimum amount of permissions to instantiate an object
• A user is assigned to a role that allows only what's required for that role
• No single role is given more permission than the same role for another user

Least Privilege

This concept is very important, maybe in #FinalExam , do not over-privilege assignment

• Users receive only essential permissions for their tasks
• e.g., A database retrieval account should not have admin rights
• e.g., A code developer should not have access to financial data

Zero-Standing Privilege (ZSP)

Very secure!! ออกสอบแน่นอน ไปทำความเข้าใจด้วย!

• Core Goal: Remove all persistent, standing privileged access rights to minimize the attack surface.
• How it Works: Instead of a user having permanent admin rights, they request access for a specific task, which is automatically revoked after a set time.
• Benefits: Reduces cyber risk, aids in regulatory compliance (e.g., GDPR, HIPAA), and mitigates insider threats.
• Implementation: Requires a Privileged Access Management (PAM) solution to manage, monitor, and audit privileged sessions.
• Challenges: Potential for reduced user productivity, complexities in implementation, and the need for robust, automated workflows.

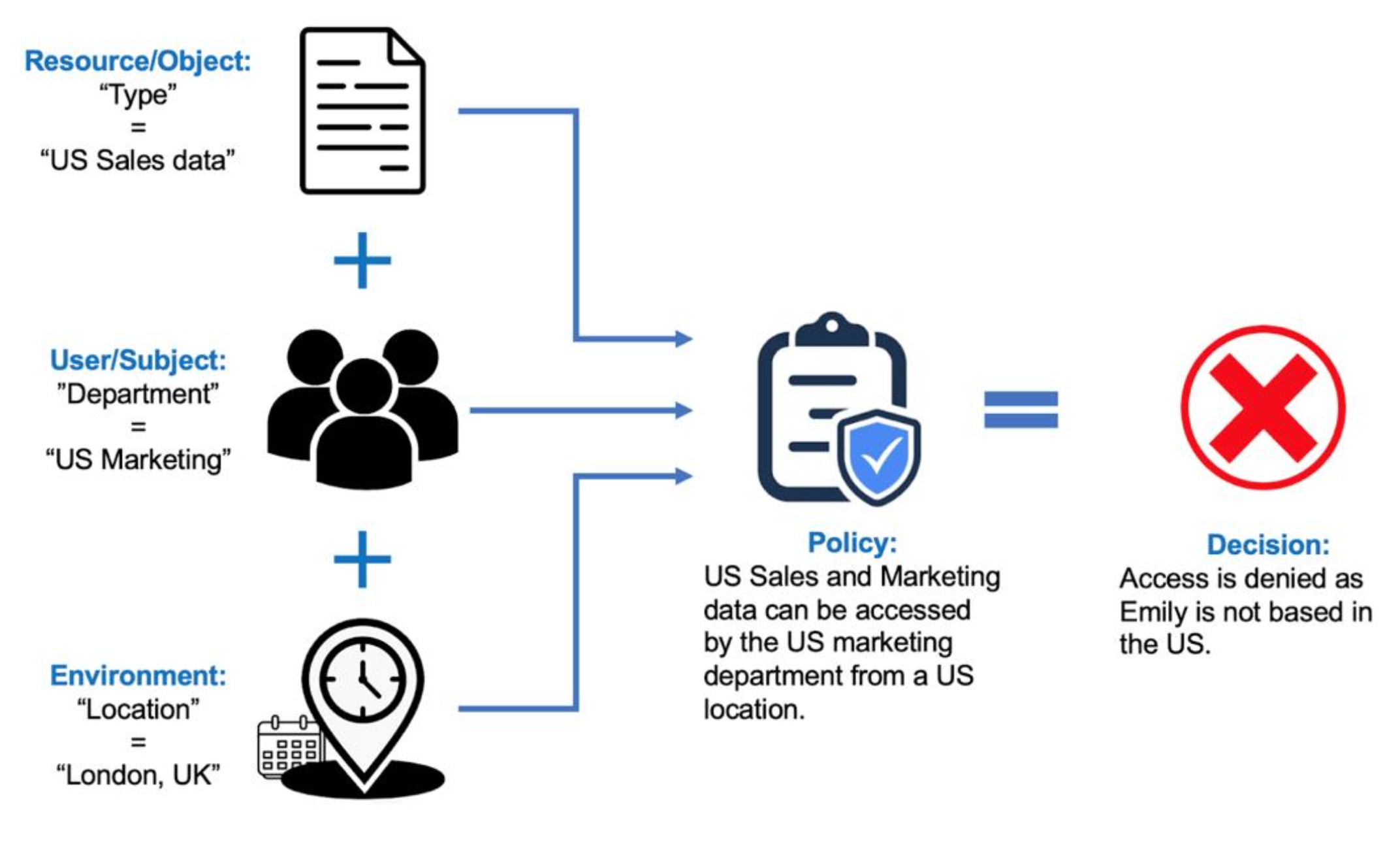

Attribute-Based Access Control (ABAC)

• Can define authorizations that express conditions on properties of both the resource (object) and the subject
• Strength: flexibility and expressive (comprehensive, very detailed) power
  • ABAC → Higher expressiveness (compared to RBAC)
  • It’s called ‘‘Fine-grained AC Policy’ → individual level, while RBAC is Coarse-grained because it’s enforce on role level.
• Main obstacle: performance impact of evaluating predicates on both resource and user properties for each access
• Web services pioneered ABAC through XACML (eXtensible Access Control Markup Language)
• Considerable interest in applying ABAC to cloud services

ABAC Model: Attributes

• Subject Attributes
  • Active entity causing information to flow or changing system state
  • Attributes define identity and characteristics
  • Examples: Username, Employee ID, Job Title, Department, Clearance
• Object Attributes
  • Passive information system entity containing or receiving information
  • Objects have attributes that can be leveraged for access decisions
  • Examples: Type, Author/Owner, Classification, Date Created, Last Updated
• Environment Attributes
  • Context-based
  • Describe operational, technical, and situational context
  • Examples: Location, Time Zone, Current Time, Current Day, Device
  • Often largely ignored in most access control policies
• Action Attributes
  • Examples: Read, Write, View, Transfer, Delete

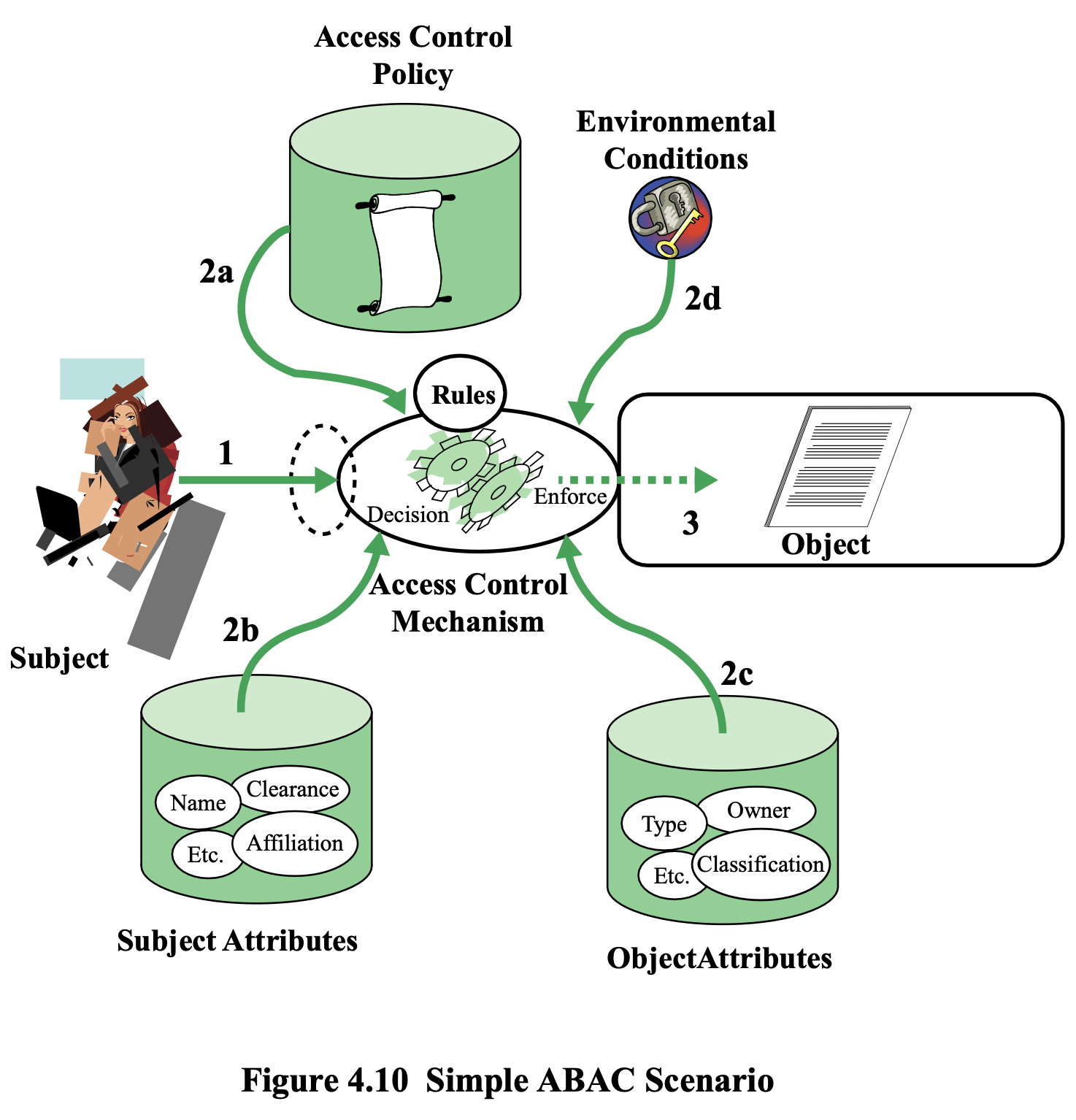

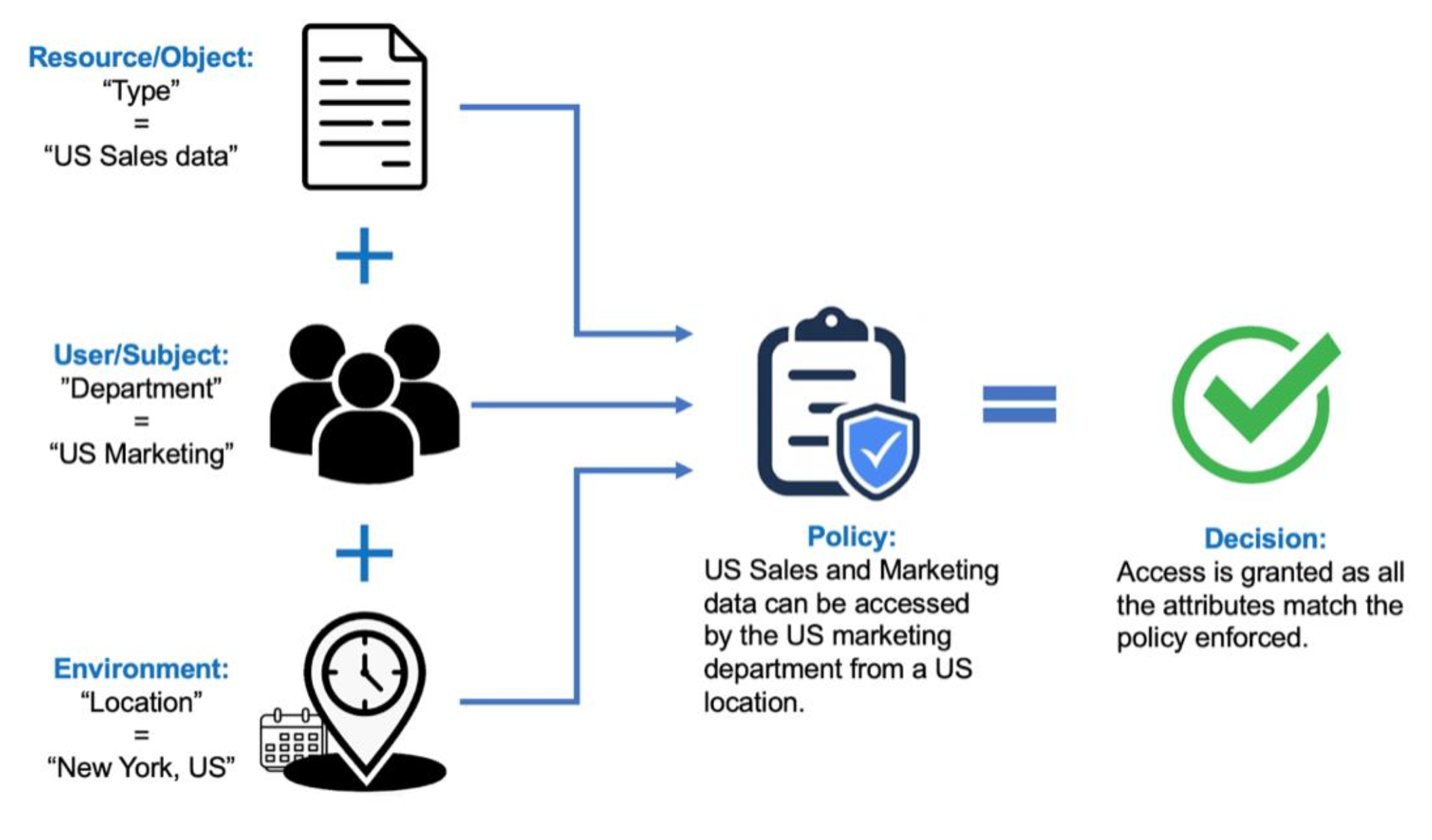

How ABAC Works

1. Subject makes an access request
2. Access Control Mechanism evaluates:
   • 2a. Access Control Policy (rules)
   • 2b. Subject Attributes
   • 2c. Object Attributes
   • 2d. Environmental Conditions
3. Decision is made and enforced on the Object

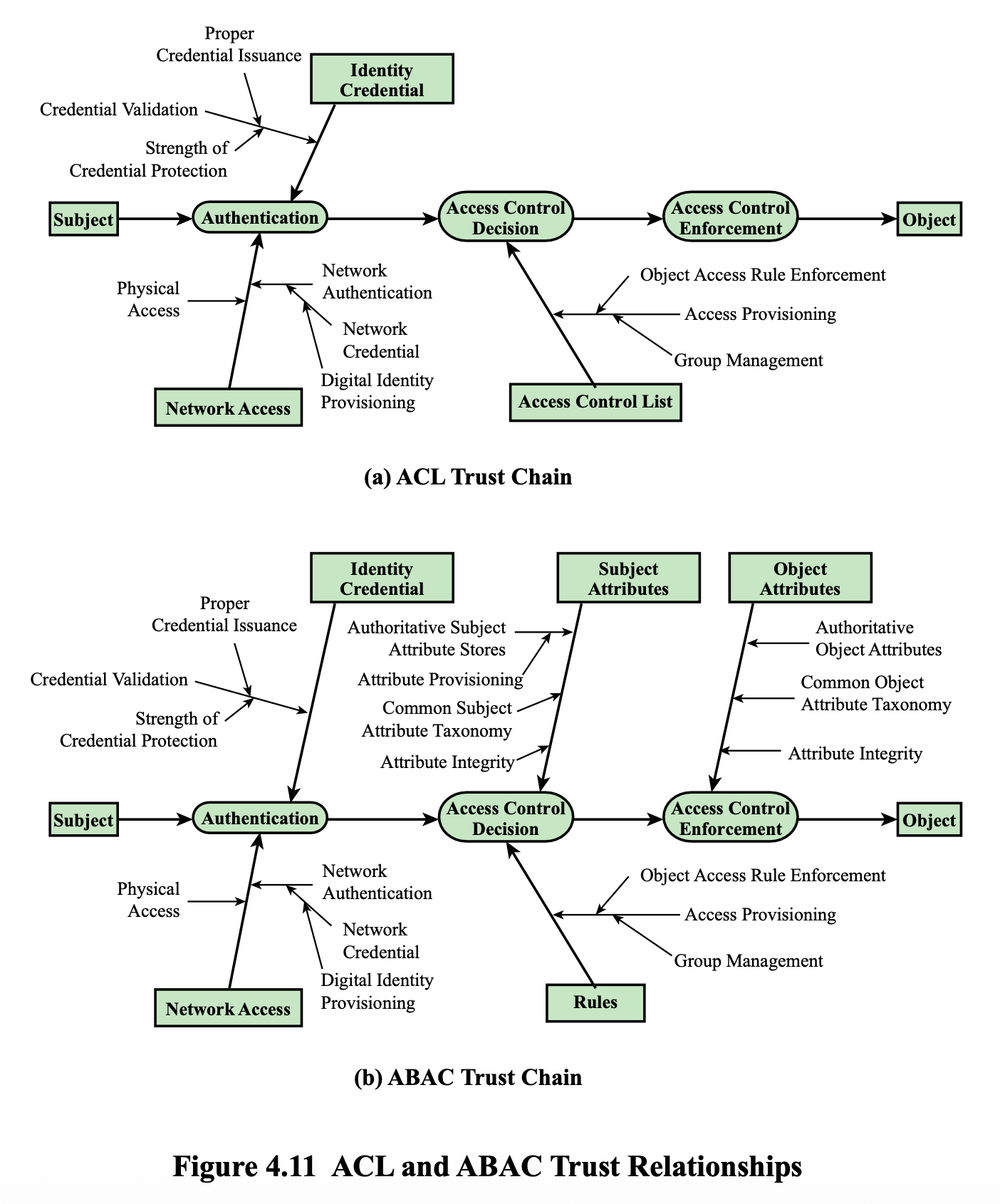

ABAC Characteristics

• Distinguishable because it controls access by evaluating rules against attributes of entities, operations, and the environment
• Relies upon subject attributes, object attributes, and a formal relationship/access control rule
• Systems are capable of enforcing DAC, RBAC, and MAC concepts
• Allows an unlimited number of attributes to be combined to satisfy any access control rule

ABAC Policies

• A policy = a set of rules and relationships governing allowable behavior, based on:
  • Privileges of subjects
  • How resources/objects are to be protected
  • Under which environment conditions
• Typically written from the perspective of the object that needs protecting
• Privileges = authorized behavior of a subject, defined by authority, embodied in policy
  • Other terms: rights, authorizations, entitlements

ABAC Policy Examples

Example 1 — Access Granted:

• Resource/Object: Type = "US Sales data"
• User/Subject: Department = "US Marketing"
• Environment: Location = "New York, US"
• Policy: US Sales and Marketing data can be accessed by the US marketing department from a US location
• Decision: ✅ Access Granted (all attributes match)

Example 2 — Access Denied:

• Resource/Object: Type = "US Sales data"
• User/Subject: Department = "US Marketing"
• Environment: Location = "London, UK"
• Policy: Same as above
• Decision: ❌ Access Denied (Emily is not based in the US)

RBAC vs ABAC

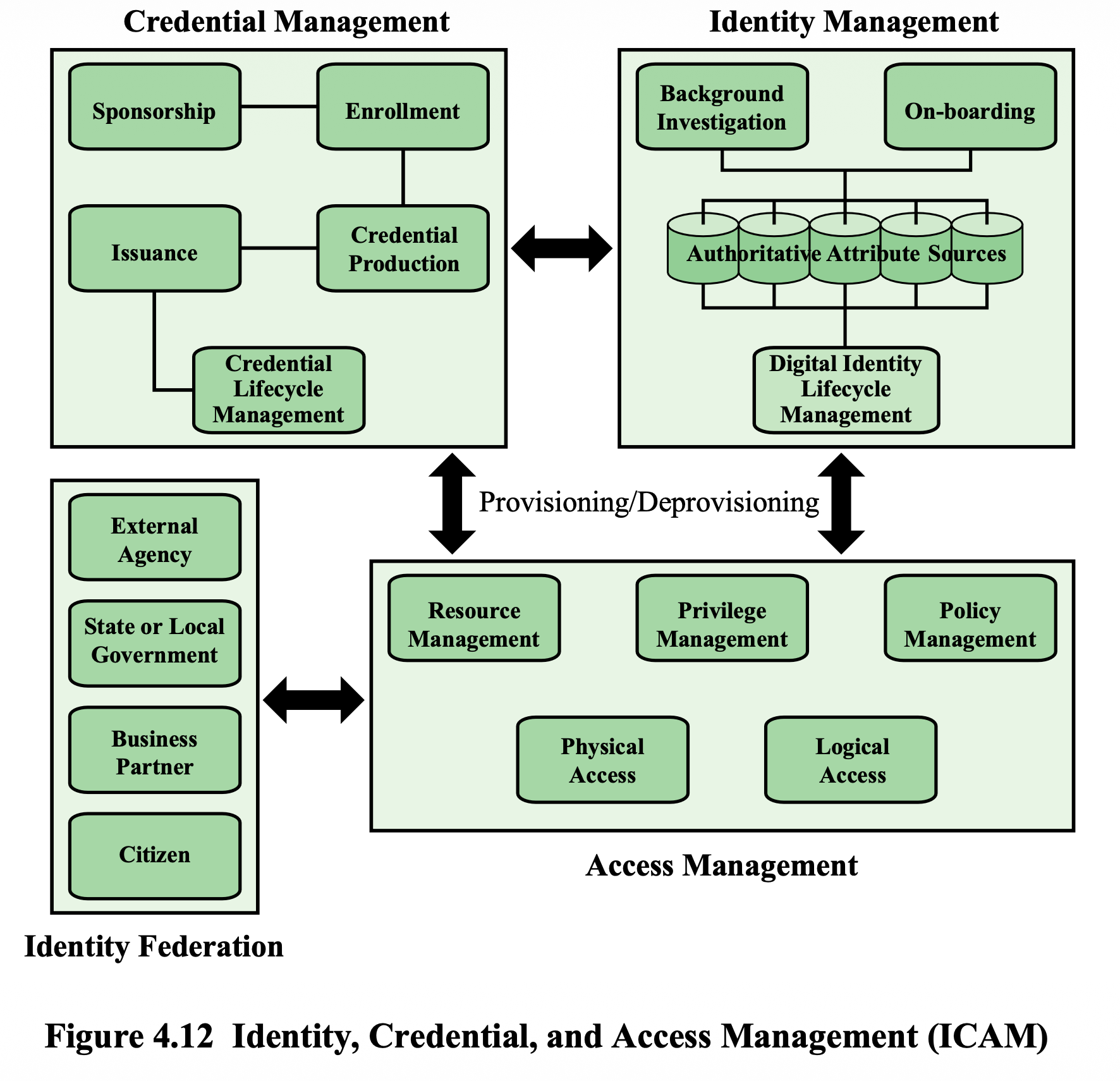

Identity, Credential, and Access Management (ICAM)

• A comprehensive approach to managing and implementing digital identities, credentials, and access control
• Developed by the U.S. government
• Designed to:
  • Create trusted digital identity representations of individuals and nonperson entities (NPEs)
  • Bind those identities to credentials that may serve as a proxy in access transactions
    • A credential = an object/data structure that authoritatively binds an identity to a token
  • Use the credentials to provide authorized access to an agency's resources

Three Core Components

1. Identity Management

• Concerned with assigning attributes to a digital identity and connecting it to an individual/NPE
• Goal: Establish a trustworthy digital identity independent of a specific application or context
• Most common approach: create a digital representation of identity for specific application use
• Lifecycle management includes:
  • Mechanisms, policies, and procedures for protecting personal identity information
  • Controlling access to identity data
  • Techniques for sharing authoritative identity data with applications that need it
  • Revocation of an enterprise identity

2. Credential Management

• Manages the life cycle of the credential
• Examples of credentials: smart cards, private/public cryptographic keys, digital certificates
• Encompasses five logical components:
  1. An authorized individual or entity specifying the need for a credential
  2. Credential Enrollment
  3. Generation of Credential
  4. Credential Issuance
  5. Maintenance

3. Access Management

• Deals with management and control of how entities are granted access to resources
• Covers both logical and physical access
• May be internal to a system or an external element
• Purpose: Ensure proper identity verification when accessing security-sensitive buildings, systems, or data
• Three support elements for enterprise-wide access control:
  • Resource management — defining rules for a resource requiring access control (credential requirements, user/resource/environment conditions)
  • Privilege management — establishing and maintaining entitlement/privilege attributes that form an individual's access profile; privileges are attributes linked to a digital identity
  • Policy management — governs what is allowable and unallowable in an access transaction

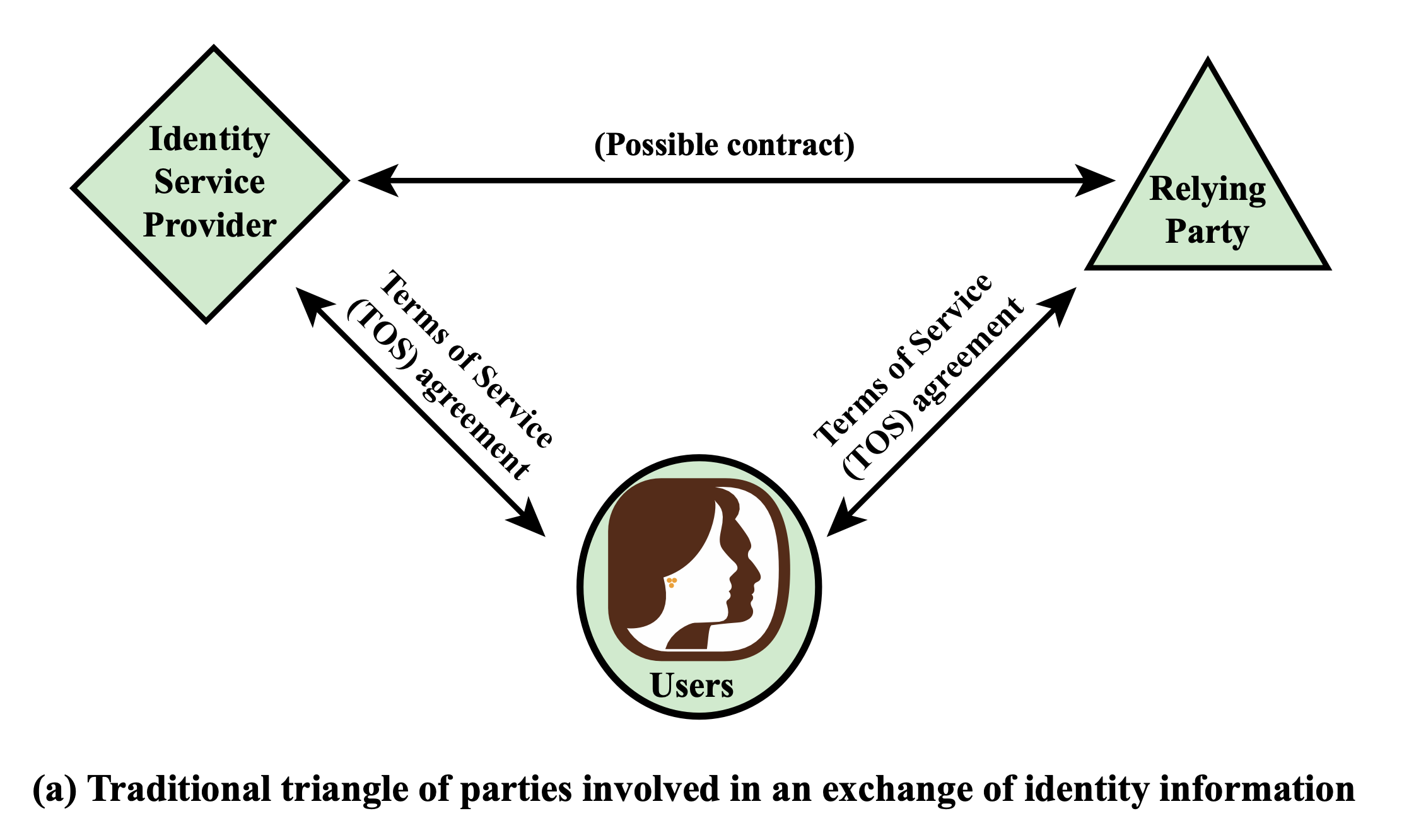

Identity Federation

• Describes the technology, standards, policies, and processes that allow an organization to trust digital identities created by another organization
• Addresses two questions:
  • How do you trust identities of individuals from external organizations who need access to your systems?
  • How do you vouch for identities of your own individuals when they need to collaborate externally?

• ถ้า service เรา host บน cloud, relying party ก็อาจจะเป็น cloud proivder

Analogy: Identity Federation is like a university student ID being accepted at a partner university library — you trust the other institution's verification process.

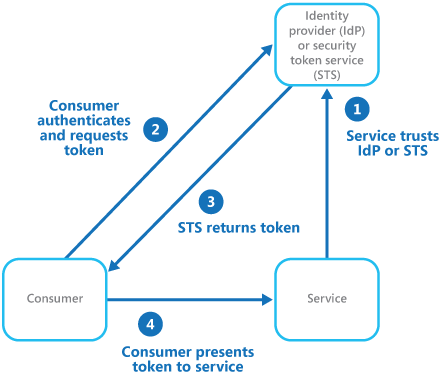

Process
User → Service Provider (SP) → Redirect Authentication → Identity

Azure ID Federation

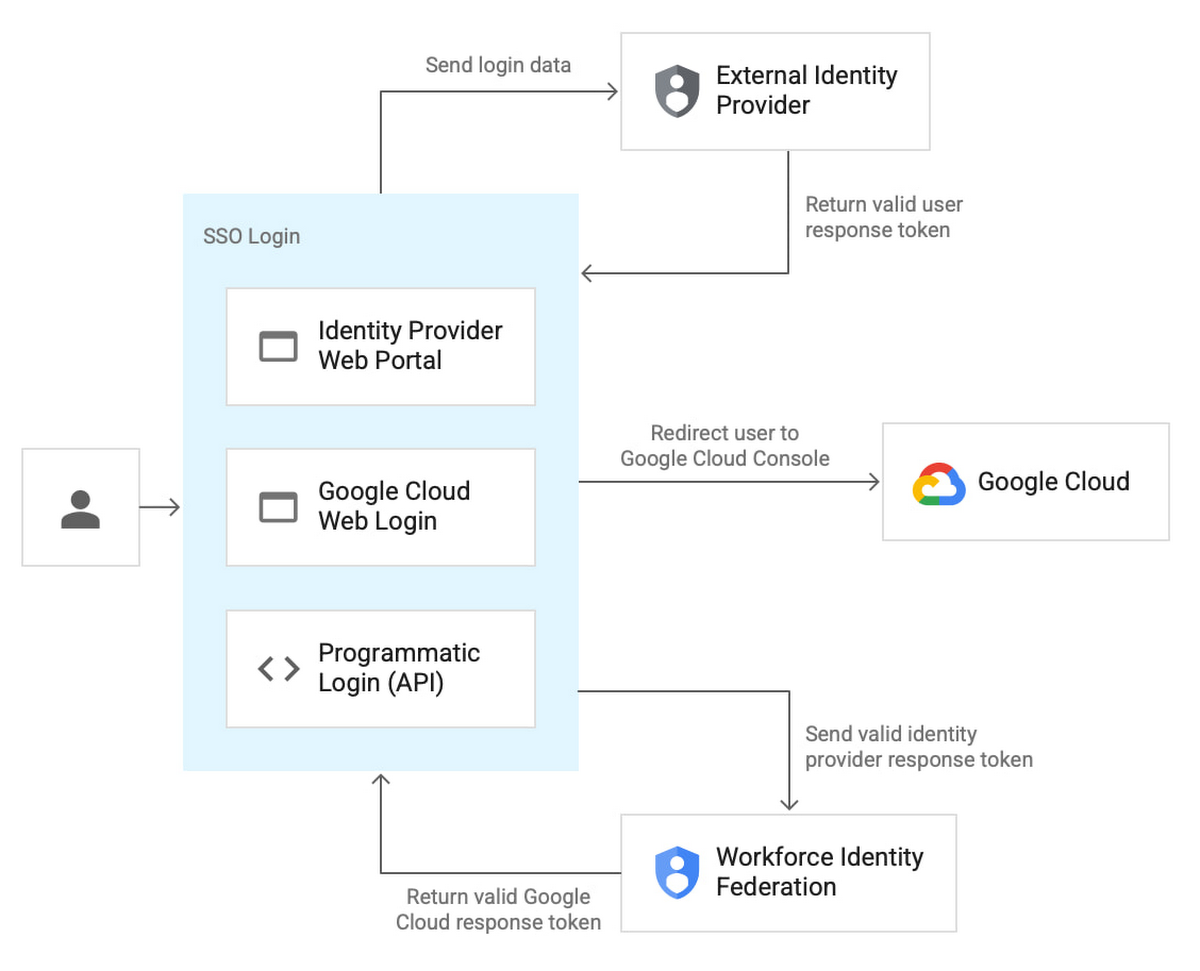

Google Cloud ID Federation

Key: GET ID TOKEN FROM THE ID PROVIDER AND USE THAT TOKEN TO ACCESS MULTIPLE SERVICES

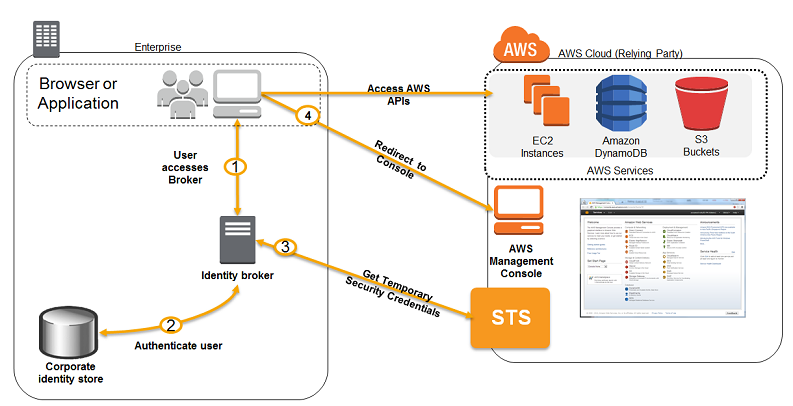

AWS

• Zero Trust Identity (Never trust, always verify!!!) → Access decisions depend on:
  • identity
  • device
  • location
  • behavior
• Identity Federation in Cloud
  • Examples:
    • AWS IAM Federation
    • Azure AD Federation
    • Google Cloud Identity
• Future (Emerging ID Fed) Direction
  • Decentralized Identity (DID)
  • Self-Sovereign Identity (SSI)
  • Blockchain-based identity systems

Federation Attacks and Prevention
Attack

• Token replay attacks
• Man-in-the-middle attacks
• Assertion/Token forgery

Prevention

• Short life-time
• Token binding (to device, certificate, TLS session)
• Use Nonce (prevent reuse)
• Encrypted token payload
• Sign token
• TLS everywhere
• Strict Certificate Validation

Summary

In-class Group Quiz
