Continued from Lecture 3 - Application Layer (Part 1)

DNS: Domain Name System

What is DNS?

People have many identifiers:

• SSN (Social Security Number)
• Name
• Passport number

Internet hosts and routers have:

• IP address (32-bit) - used for addressing datagrams
• Name (e.g., cs.umass.edu) - used by humans

Question: How to map between IP address and name, and vice versa?

DNS Definition

Domain Name System (DNS):

• Distributed database implemented in hierarchy of many name servers
• Application-layer protocol: hosts and DNS servers communicate to resolve names (address/name translation)
  • Core Internet function implemented as application-layer protocol
  • Complexity at network's "edge"

Analogy: DNS is like a phone book for the internet - instead of remembering phone numbers (IP addresses), you can just remember names (domain names).

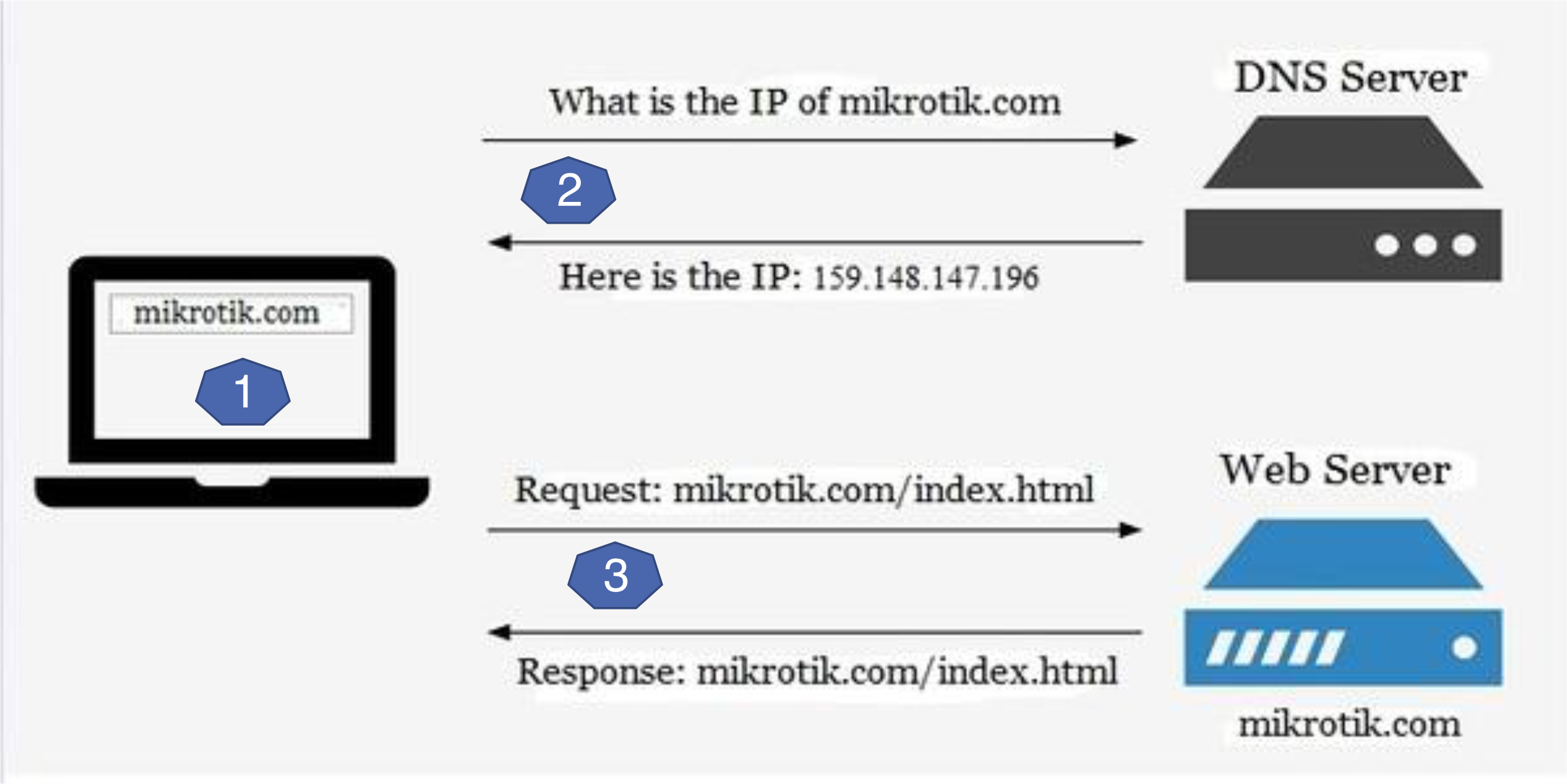

DNS Process Example

DNS Query Process:

1. User types "mikrotik.com" in browser
2. Browser asks DNS server: "What is the IP of mikrotik.com?"
3. DNS server responds: "Here is the IP: 159.148.147.196"
4. Browser requests: "mikrotik.com/index.html" from web server
5. Web server responds with the requested page

Domain Names and URLs

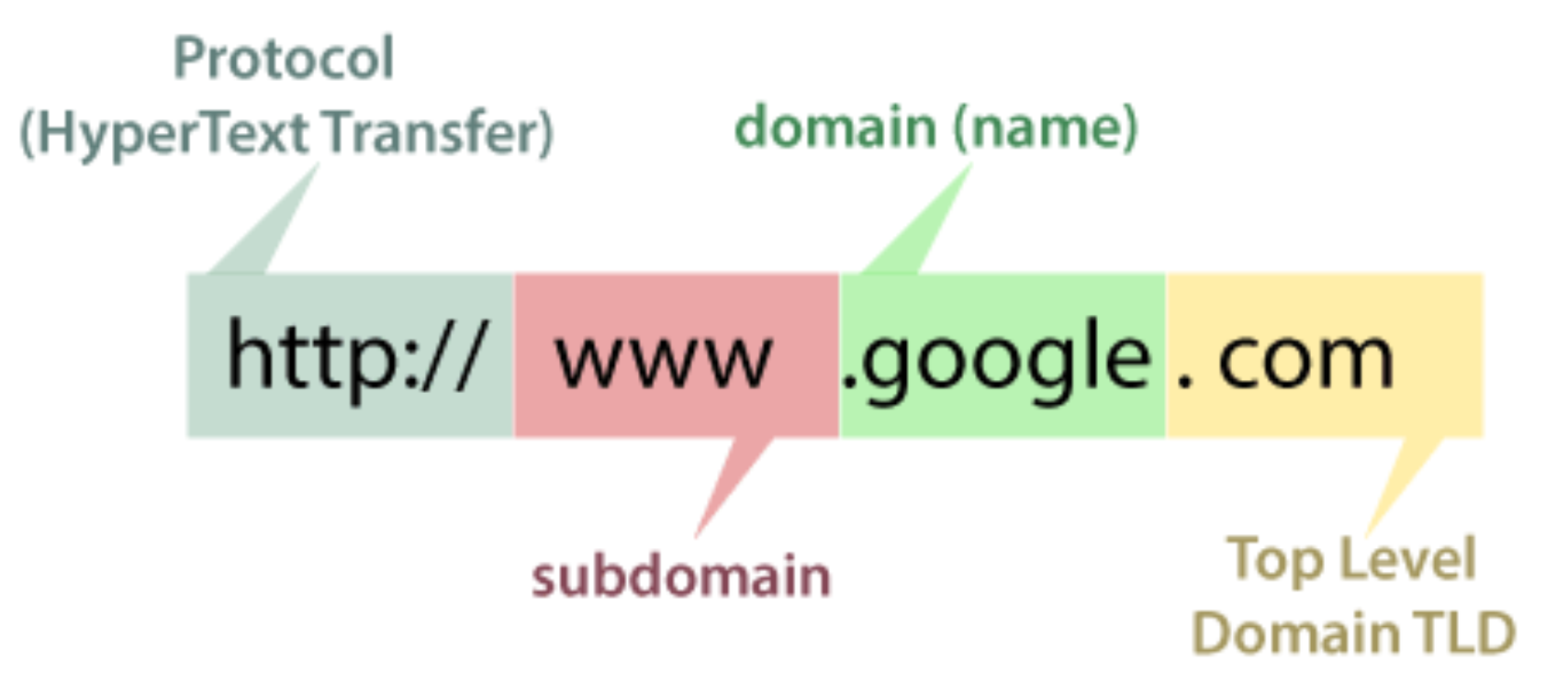

URL Structure

Uniform Resource Locator (URL):

http://www.google.com

Components:

• Protocol: http:// (HyperText Transfer)
• Subdomain: www
• Domain name: google
• Top Level Domain (TLD): .com

Domain Name Costs

• Domain names can be purchased (yearly payment)
• Need to check availability before purchasing
• Registrar (e.g., Network Solutions) handles registration

Getting Your Domain into DNS

Example: New startup "Network Utopia"

Steps:

1. Register domain (e.g., networkutopia.com) at DNS registrar
2. Provide information:
   • Names and IP addresses of authoritative name servers (primary and secondary)
3. Registrar inserts Resource Records (RRs) into .com TLD server:
   • NS Record: (networkutopia.com, dns1.networkutopia.com, NS)
   • A Record: (dns1.networkutopia.com, 212.212.212.1, A)
4. Create authoritative server locally with IP 212.212.212.1:
   • Type A record for www.networkutopia.com (for web)
   • Type MX record for networkutopia.com (for email)

Note: RRs (Resource Records) are DNS data records

Checking Domain Availability

You can check domain availability at registrars like GoDaddy:

• Search for your desired domain name
• System shows if available or taken
• Shows alternative available domains
• Displays pricing for registration

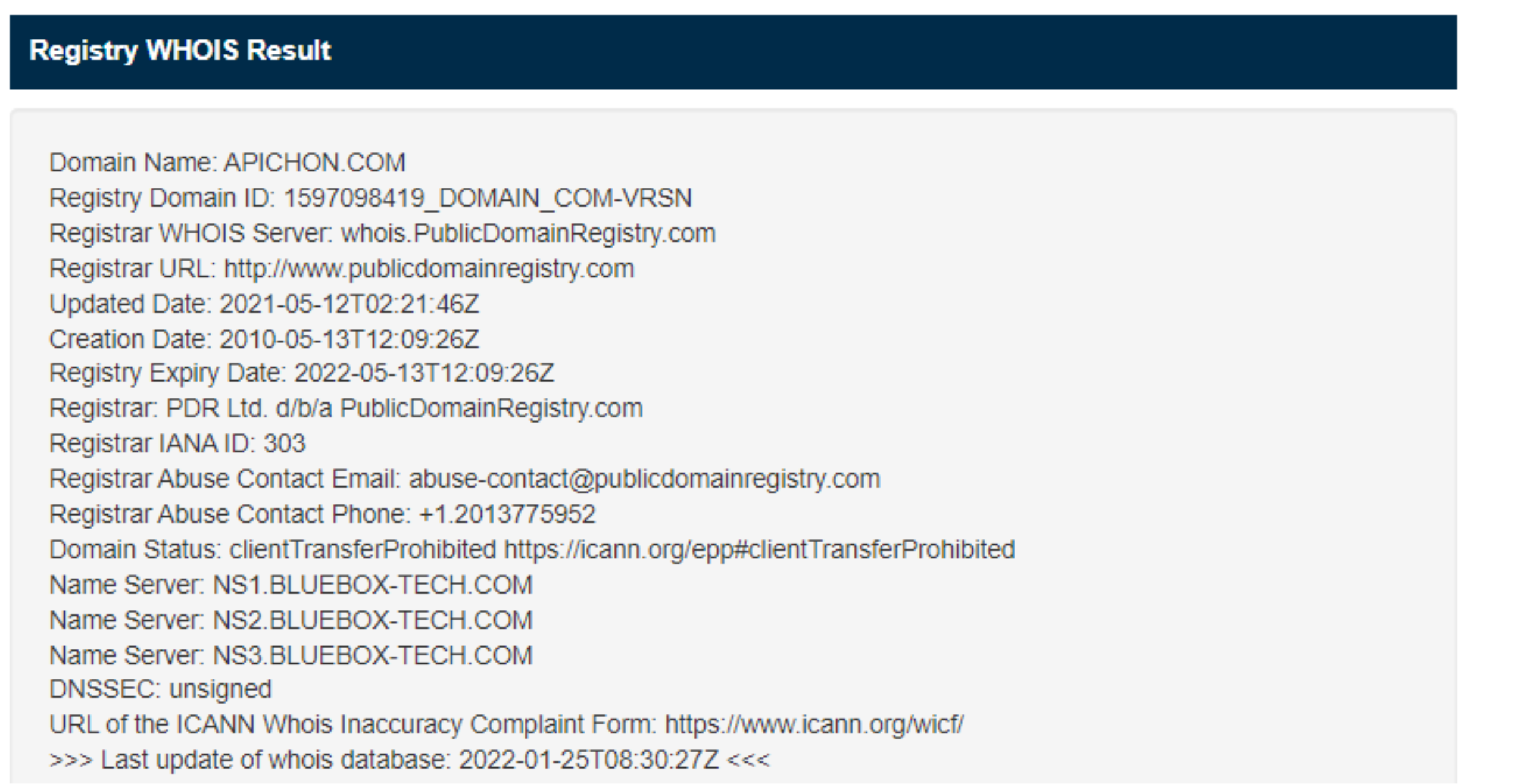

WHOIS - Domain Details

WHOIS Lookup provides:

• Domain registration information
• Registry domain ID
• Registrar information
• Creation and expiration dates
• Name servers (authoritative DNS servers for the domain)

Example WHOIS information for apichon.com:

• Name Server: NS1.BLUEBOX-TECH.COM
• Name Server: NS2.BLUEBOX-TECH.COM
• Name Server: NS3.BLUEBOX-TECH.COM

These name servers are the authoritative servers that store the actual DNS mapping information for this domain.

WHOIS Service: https://who.is

DNS Services and Structure

Why NOT Centralize DNS?

Problems with centralized DNS:

• ❌ Single point of failure
• ❌ Traffic volume overload
• ❌ Distant centralized database (latency)
• ❌ Difficult maintenance

Answer: Doesn't scale!

Reality:

• Comcast DNS servers alone: 600 billion DNS queries/day
• Akamai DNS servers alone: 2.2 trillion DNS queries/day

DNS Services

1. Hostname-to-IP-address translation
2. Host aliasing
   • Canonical and alias names
3. Mail server aliasing
4. Load distribution
   • Many IP addresses can correspond to one name
   • Used for replicated web servers

DNS Characteristics

Extremely large distributed database:

• ~1 billion records, each simple

Handles many trillions of queries/day:

• Many more reads than writes
• Performance matters: Almost every Internet transaction interacts with DNS - milliseconds count!

Organizationally and physically decentralized:

• Millions of different organizations responsible for their records

"Bulletproof" requirements:

• High reliability
• Strong security

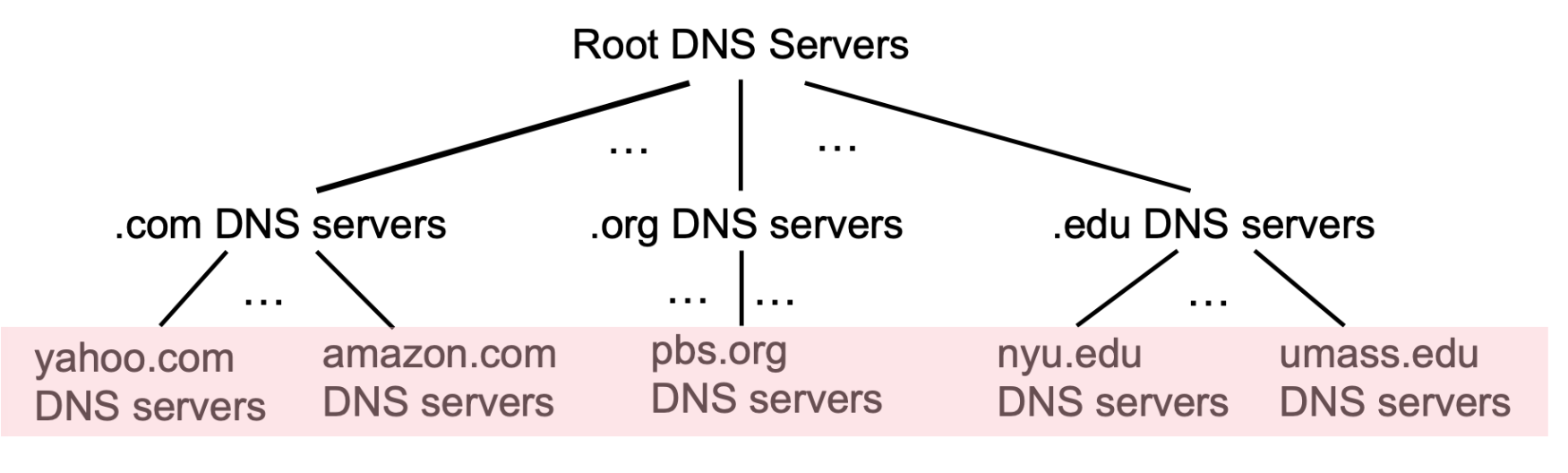

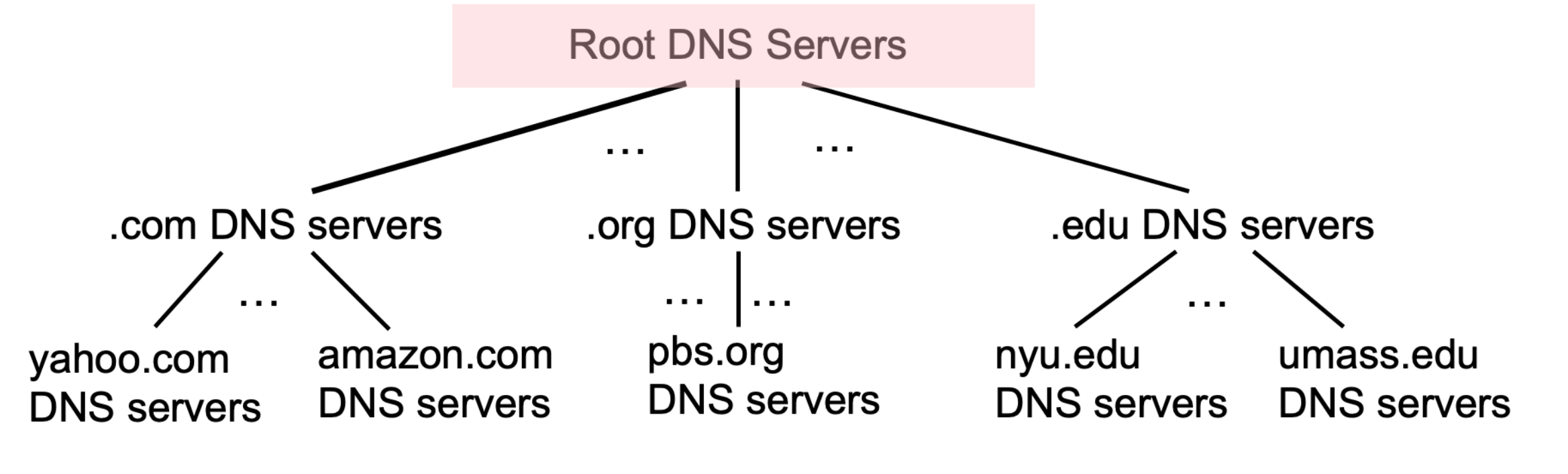

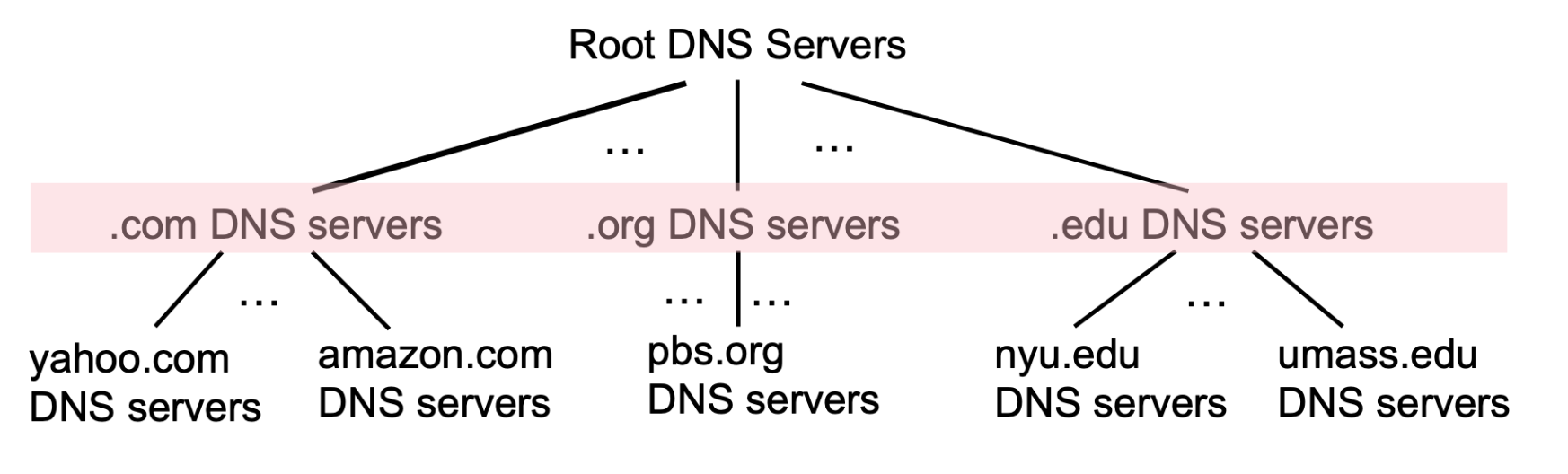

DNS Hierarchy

Distributed, Hierarchical Database

Three-tier structure:

                   Root DNS Servers
                          |
        +-----------------+-----------------+
        |                 |                 |
    .com DNS          .org DNS          .edu DNS
    servers           servers           servers
        |                 |                 |
    +---+---+         +---+---+         +---+---+
    |   |   |         |   |   |         |   |   |
  yahoo amazon      pbs.org           nyu  umass
   .com  .com       DNS                .edu .edu
  servers servers  servers           servers servers

Query Process (1st approximation):

1. Client queries root server to find .com DNS server
2. Client queries .com DNS server to get amazon.com DNS server
3. Client queries amazon.com DNS server to get IP address for www.amazon.com

Root DNS Servers

Role:

• Official contact-of-last-resort by name servers that cannot resolve name
• Incredibly important Internet function
  • Internet couldn't function without it!
• DNSSEC provides security (authentication, message integrity)

Management:

• ICANN (Internet Corporation for Assigned Names and Numbers) manages root DNS domain

Infrastructure:

• 13 logical root name "servers" worldwide
• Each "server" replicated many times (~200 servers in US alone)
• Distributed globally for redundancy and performance


Top-Level Domain (TLD) Servers

TLD Servers responsible for:

• Generic TLDs: .com, .org, .net, .edu, .aero, .jobs, .museums
• Country-code TLDs: .cn, .uk, .fr, .ca, .jp, .th

Management:

• Network Solutions: authoritative registry for .com, .net TLD
• Educause: .edu TLD

Authoritative DNS Servers

Definition:

• Organization's own DNS server(s)
• Provides authoritative hostname-to-IP mappings for organization's named hosts

Maintenance:

• Can be maintained by organization OR service provider

Example servers:

• yahoo.com DNS servers
• amazon.com DNS servers
• umass.edu DNS servers

Local DNS Name Servers

Function:

• When host makes DNS query, sent to local DNS server
• Returns reply by:
  • Using local cache of recent name-to-address translations (possibly out of date!)
  • Forwarding request into DNS hierarchy for resolution

Characteristics:

• Each ISP has local DNS name server
• Doesn't strictly belong to hierarchy
• Acts as proxy, forwarding queries into hierarchy

Finding your local DNS server:

• MacOS: scutil --dns
• Windows: ipconfig /all

Example output from ipconfig /all:

DNS Servers: 115.178.58.26
             115.178.58.10
             192.168.1.1

เวลาเรา set up DNS locally (ถ้าอย่างในบ้านก็เป็น router) เนี่ย พอถามมาก็ forward ไปเลย ไม่ต้อง consume external bandwidth ออกไปถามข้างนอก

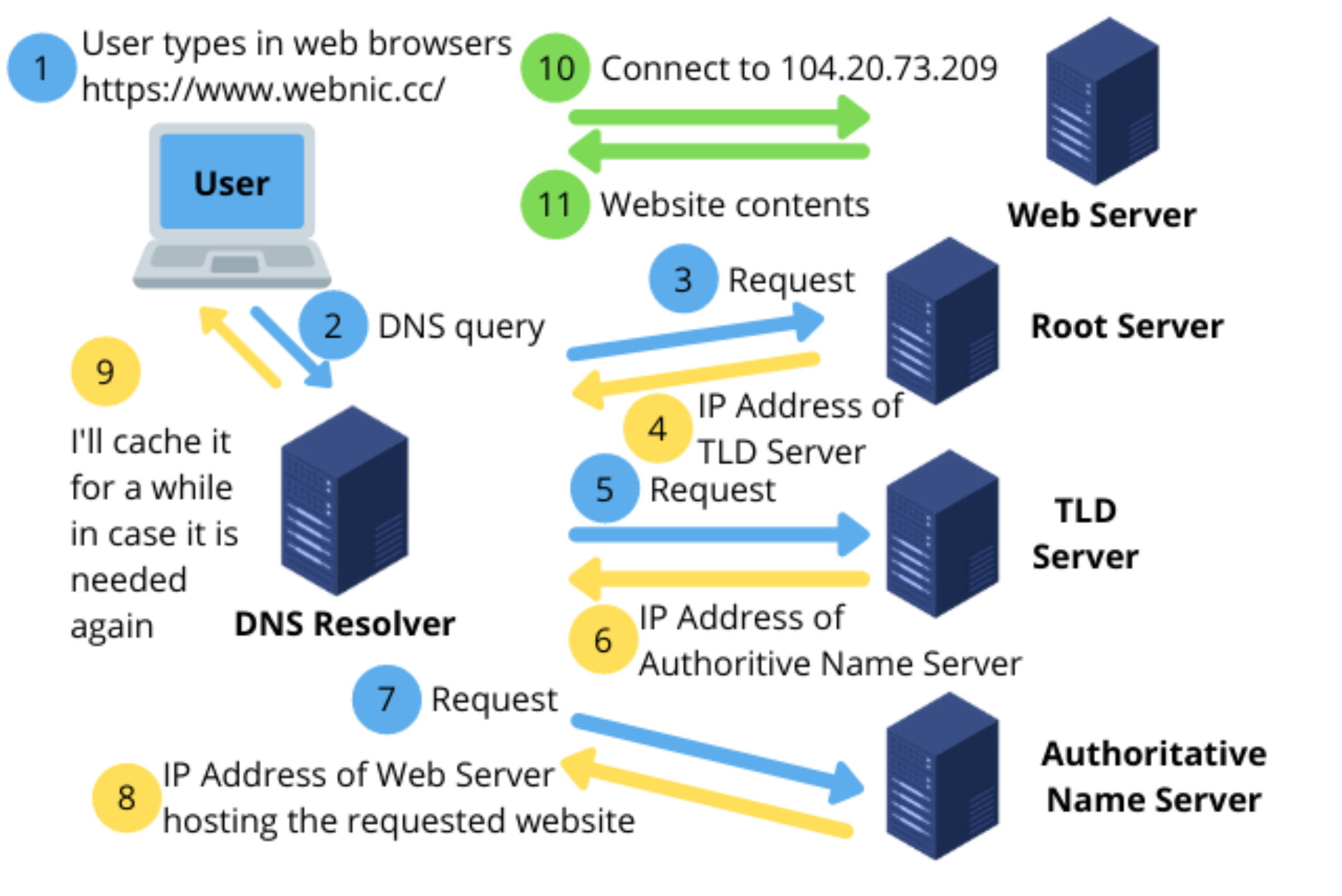

DNS Name Resolution Methods

1. Iterated Query

Process:

• Contacted server replies with name of server to contact
• Response: "I don't know this name, but ask this server"

Example: Host at engineering.nyu.edu wants IP for gaia.cs.umass.edu

Steps:

1. Request goes to local DNS server
2. Local DNS queries root server
3. Root returns TLD server address
4. Local DNS queries TLD server
5. TLD returns authoritative server address 6-7. Local DNS queries authoritative server
6. Response returned to requesting host

2. Recursive Query

Process:

• Puts burden of name resolution on contacted name server
• Each server in chain performs the next query

Concern: Heavy load at upper levels of hierarchy?

DNS Caching

Purpose:

• Improve response time
• Reduce load on DNS servers

How it works:

• Once any name server learns mapping, it caches the mapping
• Immediately returns cached mapping in response to query
• TLD servers typically cached in local name servers
  • Root servers don't need to be visited often

Important considerations:

• Cache entries timeout (disappear) after some time (TTL)
• Cached entries may be out-of-date
  • If named host changes IP address, may not be known Internet-wide until all TTLs expire

DNS TTL (Time To Live):

• Setting that tells DNS resolver how long to cache a query before requesting a new one

DNS Records (Resource Records)

Format: (name, value, type, ttl)

Record Types

Type A (Address)

• name = hostname
• value = IP address
• Example: (cs.umass.edu, 128.119.40.12, A)

Type NS (Name Server)

• name = domain (e.g., foo.com)
• value = hostname of authoritative name server for this domain
• Example: (foo.com, dns.foo.com, NS)

Type CNAME (Canonical Name)

• name = alias name for some "canonical" (real) name
• value = canonical name
• Example: www.ibm.com is really servereast.backup2.ibm.com
• (www.ibm.com, servereast.backup2.ibm.com, CNAME)

Type MX (Mail Exchange)

• value = name of SMTP mail server associated with name
• Example: (example.com, mail.example.com, MX)

DNS Protocol Messages

Format: DNS query and reply messages both have same format

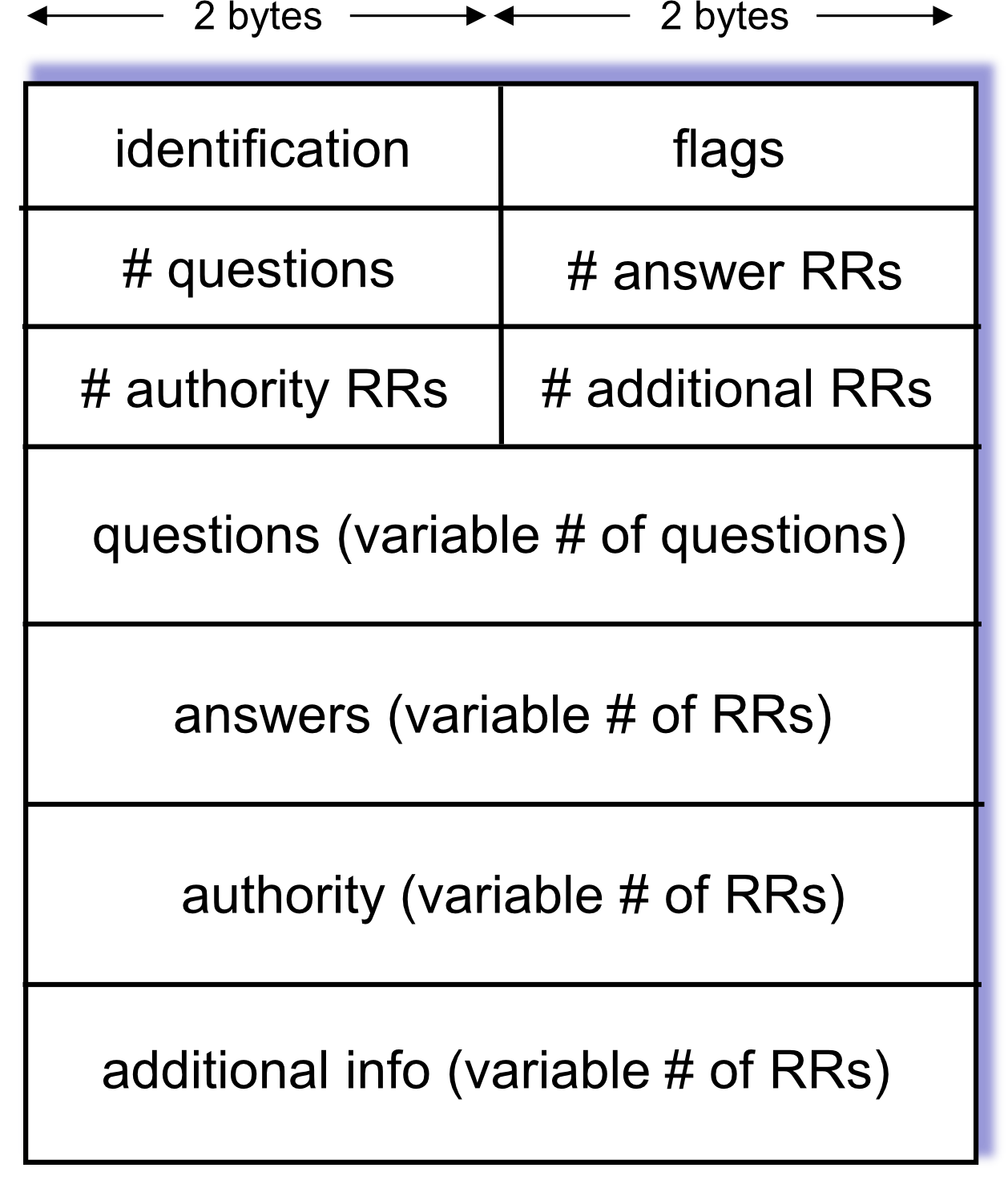

Message Structure

+------------------+------------------+
|  identification  |      flags       |  ← 2 bytes each
+------------------+------------------+
|   # questions    |   # answer RRs   |
+------------------+------------------+
| # authority RRs  | # additional RRs |
+------------------+------------------+
|                                     |
|  questions (variable # of questions)|
|                                     |
+-------------------------------------+
|                                     |
|   answers (variable # of RRs)       |
|                                     |
+-------------------------------------+
|                                     |
|   authority (variable # of RRs)     |
|                                     |
+-------------------------------------+
|                                     |
| additional info (variable # of RRs) |
|                                     |
+-------------------------------------+

Message Header Fields

Identification:

• 16-bit number for query
• Reply to query uses same number

Flags:

• Query or reply
• Recursion desired
• Recursion available
• Reply is authoritative

Message Body Sections

1. Questions: Name and type fields for a query
2. Answers: RRs in response to query
3. Authority: Records for authoritative servers
4. Additional info: "Helpful" information that may be used

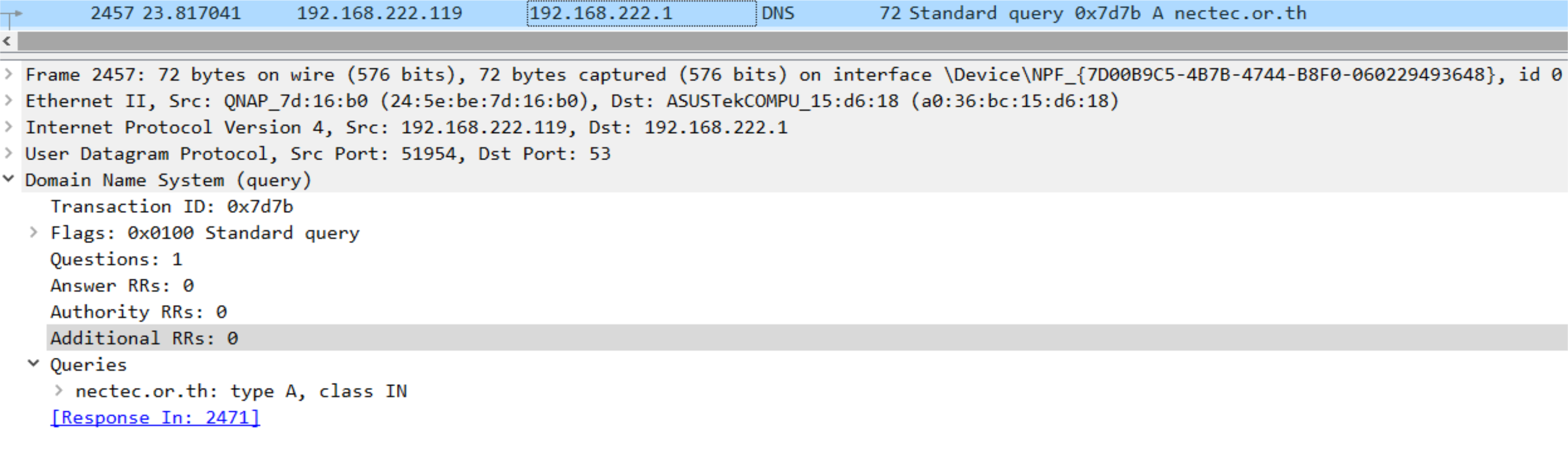

DNS Query Example

Query for nectec.or.th

Transaction ID: 0x7d7b
Flags: 0x0100 Standard query
Questions: 1
Answer RRs: 0
Authority RRs: 0
Additional RRs: 0

Queries:
  nectec.or.th: type A, class IN

Response for nectec.or.th

Transaction ID: 0x7d7b
Flags: 0x8180 Standard query response, No error
Questions: 1
Answer RRs: 1
Authority RRs: 0
Additional RRs: 0

Queries:
  nectec.or.th: type A, class IN

Answers:
  nectec.or.th: type A, class IN, addr 203.185.137.13

[Time: 0.064302000 seconds]

DNS Security

DDoS Attacks

To make the DNS do not work!

Bombard root servers with traffic:

• Not successful to date
• Mitigations:
  • Traffic filtering
  • Local DNS servers cache IPs of TLD servers, allowing root server bypass

Bombard TLD servers:

• Potentially more dangerous
• Harder to bypass with caching

Spoofing Attacks

Attack method:

• Intercept DNS queries
• Return bogus replies

Consequences:

• DNS cache poisoning
• Users redirected to malicious sites

Protection:

• RFC 4033: DNSSEC
  • Authentication services
  • Message integrity
  • Cryptographic verification

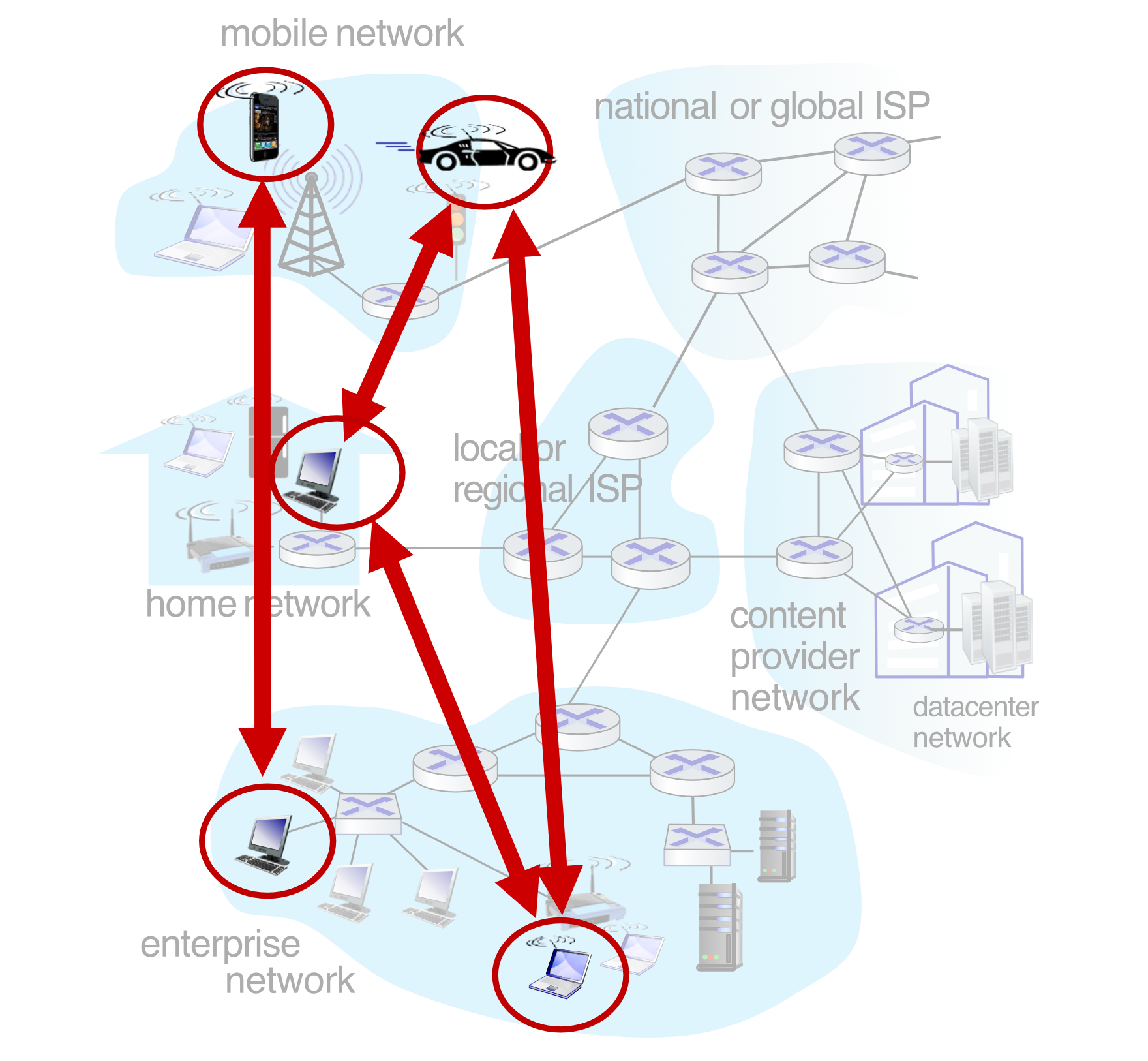

Peer-to-Peer (P2P) Applications

P2P Architecture Characteristics

Key features:

• No always-on server
• Arbitrary end systems directly communicate
• Peers request service from other peers, provide service in return
  • Self-scalability: New peers bring new service capacity AND new service demands
• ⚠️ Peers are intermittently connected and change IP addresses
  • Complex management challenge

Examples:

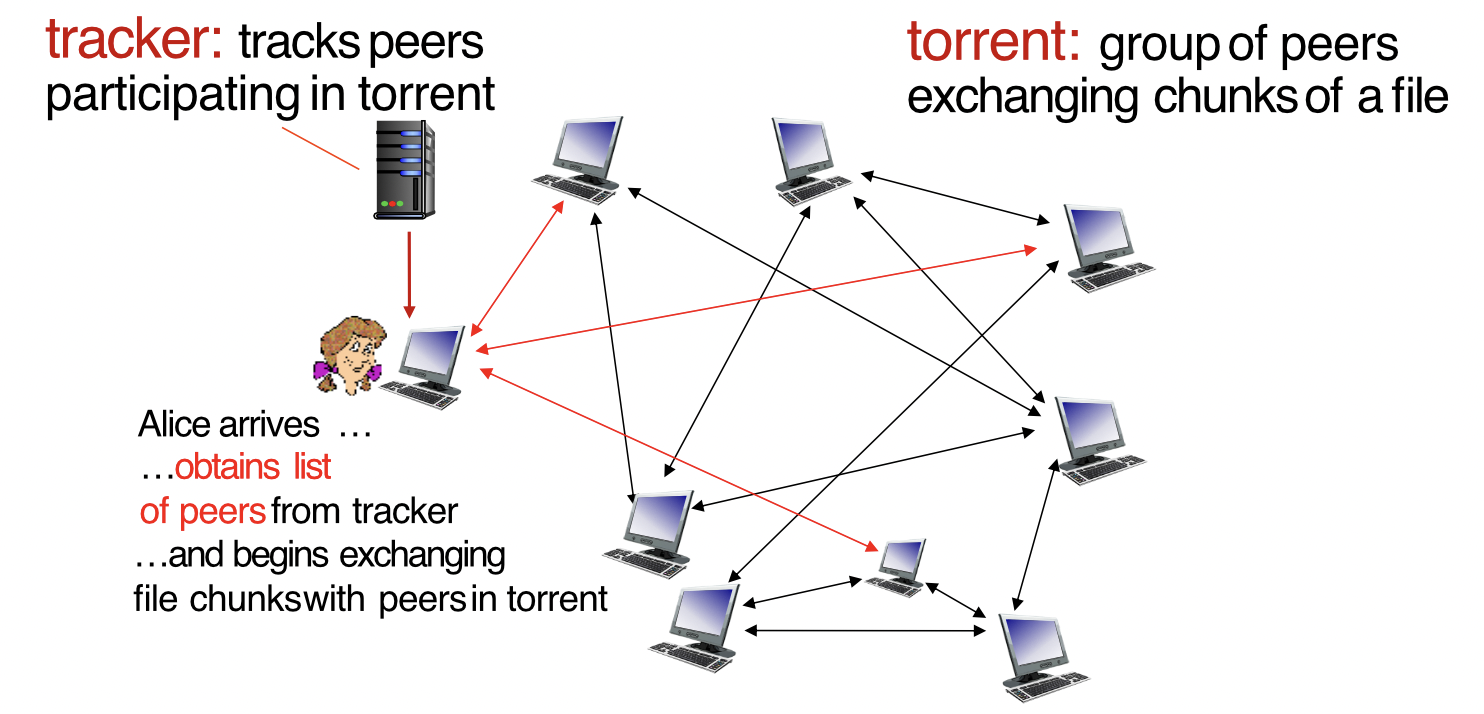

• File sharing: BitTorrent
• Streaming: KanKan
• VoIP: Skype

Analogy: P2P is like a potluck dinner - everyone brings food (resources) and everyone eats (consumes resources). The more people join, the more food is available!

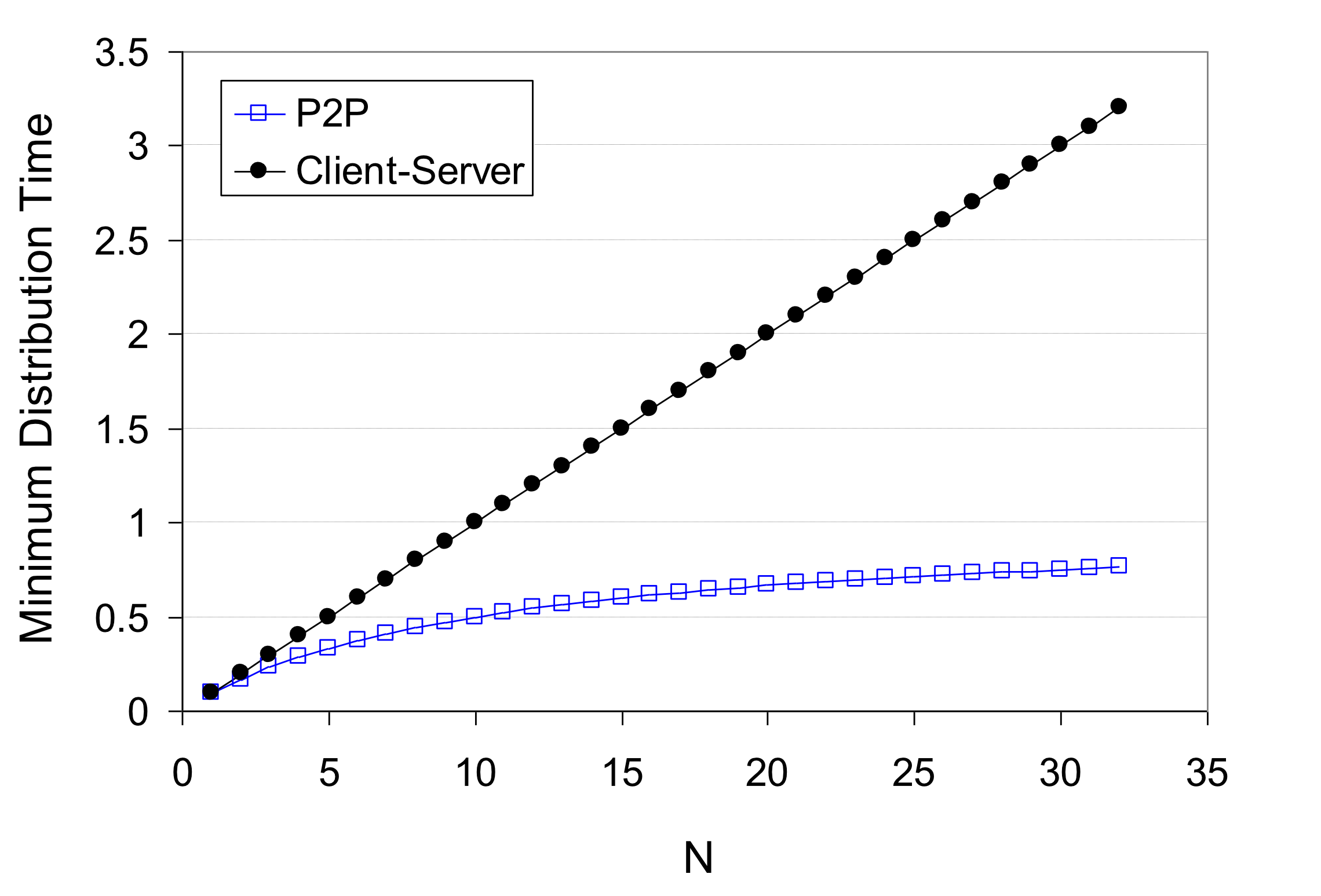

File Distribution: Client-Server vs P2P

Question: How much time to distribute file (size $F$) from one server to $N$ peers?

• Peer upload/download capacity is limited resource

Variables:

• $u_s$ = server upload capacity
• $u_i$ = peer $i$ upload capacity
• $d_i$ = peer $i$ download capacity
• $d_{min}$ = minimum client download rate

Client-Server Distribution Time

Server transmission:

• Must sequentially send (upload) $N$ file copies
• Time to send one copy: $F/u_s$
• Time to send $N$ copies: $NF/u_s$

Client download:

• Each client must download file copy
• Min client download time: $F/d_{min}$

Formula:
\boxed{D_{c-s} \geq \max\left{\frac{NF}{u_s}, \frac{F}{d_{min}}\right}}

Key characteristic: Increases linearly in $N$

P2P Distribution Time

Server transmission:

• Must upload at least one copy: $F/u_s$

Client download:

• Each client must download file copy
• Min client download time: $F/d_{min}$

Clients as aggregate:

• Must download $NF$ bits total
• Max upload rate (limiting max download rate) is $u_s + \sum u_i$

Formula:

\boxed{D_{P2P} \geq \max\left{\frac{F}{u_s}, \frac{F}{d_{min}}, \frac{NF}{u_s + \sum u_i}\right}}

Key characteristics:

• Increases linearly in $N$...
• BUT denominator also increases as each peer brings service capacity
• Much more scalable!

Comparison Example

Scenario: Client upload rate = $u$, $F/u$ = 1 hour, $u_s = 10u$, $d_{min} \geq u_s$

Graph comparison:

• Client-Server: Linear growth (reaches ~3.5 hours for 35 clients)
• P2P: Sub-linear growth (stays under ~0.8 hours for 35 clients)

P2P becomes increasingly efficient as more peers join!

P2P File Distribution: BitTorrent

BitTorrent Basics

File structure:

• File divided into 256KB chunks
• Peers in torrent send/receive file chunks

Key components:

• Tracker: Tracks peers participating in torrent
• Torrent: Group of peers exchanging chunks of a file

BitTorrent Process

When Alice joins:

1. Alice arrives at torrent
2. Obtains list of peers from tracker
3. Begins exchanging file chunks with peers in torrent

Characteristics:

• Peers accumulate chunks over time from other peers
• While downloading, peer uploads chunks to other peers
• Peer may change peers with whom it exchanges chunks
• Churn: Peers may come and go
• Once peer has entire file:
  • May (selfishly) leave torrent, OR
  • May (altruistically) remain in torrent to help others

BitTorrent Chunk Selection

Requesting Chunks

Strategy:

• At any time, different peers have different subsets of file chunks
• Periodically, Alice asks each peer for list of chunks they have
• Alice requests missing chunks from peers using "rarest first" strategy

Rarest first ensures that rare chunks get distributed quickly, improving overall swarm health.

Sending Chunks: Tit-for-Tat

Alice's strategy:

• Sends chunks to the four peers currently sending her chunks at highest rate
• Other peers are "choked" by Alice (do not receive chunks from her)
• Re-evaluates top 4 every 10 seconds

Optimistic unchoking:

• Every 30 seconds: randomly select another peer, start sending chunks
• "Optimistically unchoke" this peer
  • ไปหามาแปลว่าไร
• Newly chosen peer may join top 4

Tit-for-tat process:

1. Alice "optimistically unchokes" Bob
2. Alice becomes one of Bob's top-four providers → Bob reciprocates
3. Bob becomes one of Alice's top-four providers

Result: Higher upload rate → find better trading partners → get file faster!

Video Streaming and Content Distribution Networks (CDNs)

Context and Challenges

Video Traffic Statistics

Stream video traffic: Major consumer of Internet bandwidth

• Netflix, YouTube, Amazon Prime, Apple TV: 80% of residential ISP traffic (2020)

Challenges:

1. Scale: How to reach ~1 billion users?
2. Heterogeneity:
   • Different users have different capabilities
   • Wired vs mobile
   • Bandwidth rich vs bandwidth poor

Solution: Distributed, application-level infrastructure (CDNs)

Multimedia: Video Basics

Video Characteristics

Definition:

• Video: Sequence of images displayed at constant rate
  • Example: 24 images/sec (frames per second)

Digital image:

• Array of pixels
• Each pixel represented by bits


Video Coding Techniques

1. Spatial Coding (Within Image)

Concept: Use redundancy within a single image

Example:

• Instead of sending $N$ values of same color (all purple)
• Send only two values:
  • Color value (purple)
  • Number of repeated values ($N$)

2. Temporal Coding (Between Images)

Concept: Use redundancy between consecutive frames

Example:

• Instead of sending complete frame at $i+1$
• Send only differences from frame $i$

Analogy: Spatial coding is like using "ditto marks" in a list; temporal coding is like describing only what changed in a "before and after" photo.

Video Encoding Rates

Lecture 11 - Asynchronous Transfer Mode (ATM)

CBR (Constant Bit Rate):

• Video encoding rate fixed
• Predictable bandwidth usage

VBR (Variable Bit Rate):

• Video encoding rate changes
• Varies with amount of spatial/temporal coding changes
• More efficient use of bandwidth

Common formats:

• MPEG1 (CD-ROM): 1.5 Mbps
• MPEG2 (DVD): 3-6 Mbps
• MPEG4 (Internet): 64 Kbps – 12 Mbps

Encoding vs transposing (ต่างกันยังไง??)

Streaming Stored Video

Main Challenges

Network variability:

• Server-to-client bandwidth varies over time
• Changes due to network congestion (home, access network, core, video server)

Packet issues:

• Packet loss and delay due to congestion
• Can delay playout or result in poor video quality

Streaming Process

Timeline:

Time →
[Video recorded]
       [Video sent from server]
              [Video received by client]
                     [Video played out]

← Network delay (variable) →

Key concept: Streaming

• At any time, client playing out early part of video
• While server still sending later part of video

Streaming Challenges and Solutions

Continuous Playout Constraint

Requirement:

• During client video playout, playout timing must match original timing

Problem:

• Network delays are variable (jitter)

Solution:

• Need client-side buffer to match continuous playout constraint

Analogy: Buffer is like having a water tank - even if water supply is irregular, you can maintain steady output.

Other Challenges

1. Client interactivity:
   • Pause
   • Fast-forward
   • Rewind
   • Jump through video
2. Reliability:
   • Video packets may be lost
   • Packets may need retransmission

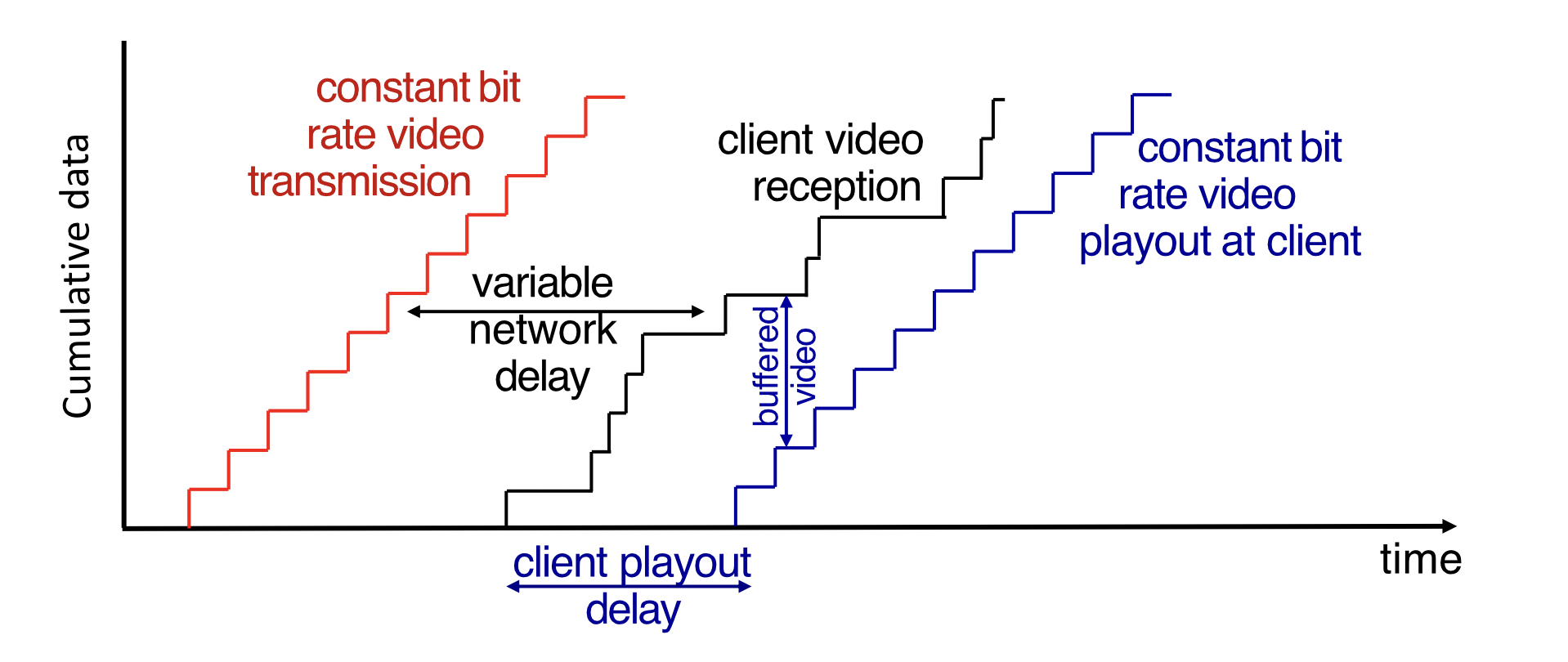

Playout Buffering

How It Works

Constant bit rate    Variable         Constant bit rate
video transmission   network delay    video playout

[Server] ──────→ [Network] ──────→ [Buffer] ──────→ [Screen]

Client-side buffering:

• Compensates for network-added delay
• Compensates for delay jitter
• Creates client playout delay

Buffered video:

• Accumulates in client buffer
• Played out at constant rate
• Smooths out network variations

DASH (Dynamic Adaptive Streaming over HTTP)

Server Side

Video preparation:

1. Divides video file into multiple chunks
2. Each chunk encoded at multiple different rates
3. Different rate encodings stored in different files
4. Files replicated in various CDN nodes
   • CDN = provide fast retrieval (อยู่ไทย ก็เอาจาก server ใกล้ ๆ ละกัน)
5. Manifest file provides URLs for different chunks

Client Side

Adaptive streaming process:

1. Periodically estimates server-to-client bandwidth
2. Consulting manifest, requests one chunk at a time
3. Chooses maximum coding rate sustainable given current bandwidth
4. Can choose different coding rates at different points in time
5. Can request from different servers

"Intelligence" at client determines:

• When to request chunk (avoid buffer starvation/overflow)
• What encoding rate to request (higher quality when more bandwidth available)
• Where to request chunk (from nearby or high-bandwidth server)

Manifest File Example

<MPD ...>
  <Period>
    <!-- Video Adaptation Set -->
    <AdaptationSet contentType="video" mimeType="video/mp4">
      <!-- 720p rendition at 4 Mbps -->
      <Representation id="1" bandwidth="4000000"
                      width="1920" height="1080"
                      codecs="avc1.4D4028">
      ...
      </Representation>

      <!-- 360p rendition at 500 Kbps -->
      <Representation id="2" bandwidth="500000"
                      width="640" height="360"
                      codecs="avc1.4D401E">
      ...
      </Representation>
    </AdaptationSet>

    <!-- Audio Adaptation Set -->
    <AdaptationSet contentType="audio" mimeType="audio/mp4">
      <!-- single rendition at 192 Kbps -->
      <Representation id="3" bandwidth="192000"
                      codecs="mp4a.40.2">
      ...
      </Representation>
    </AdaptationSet>
  </Period>
</MPD>

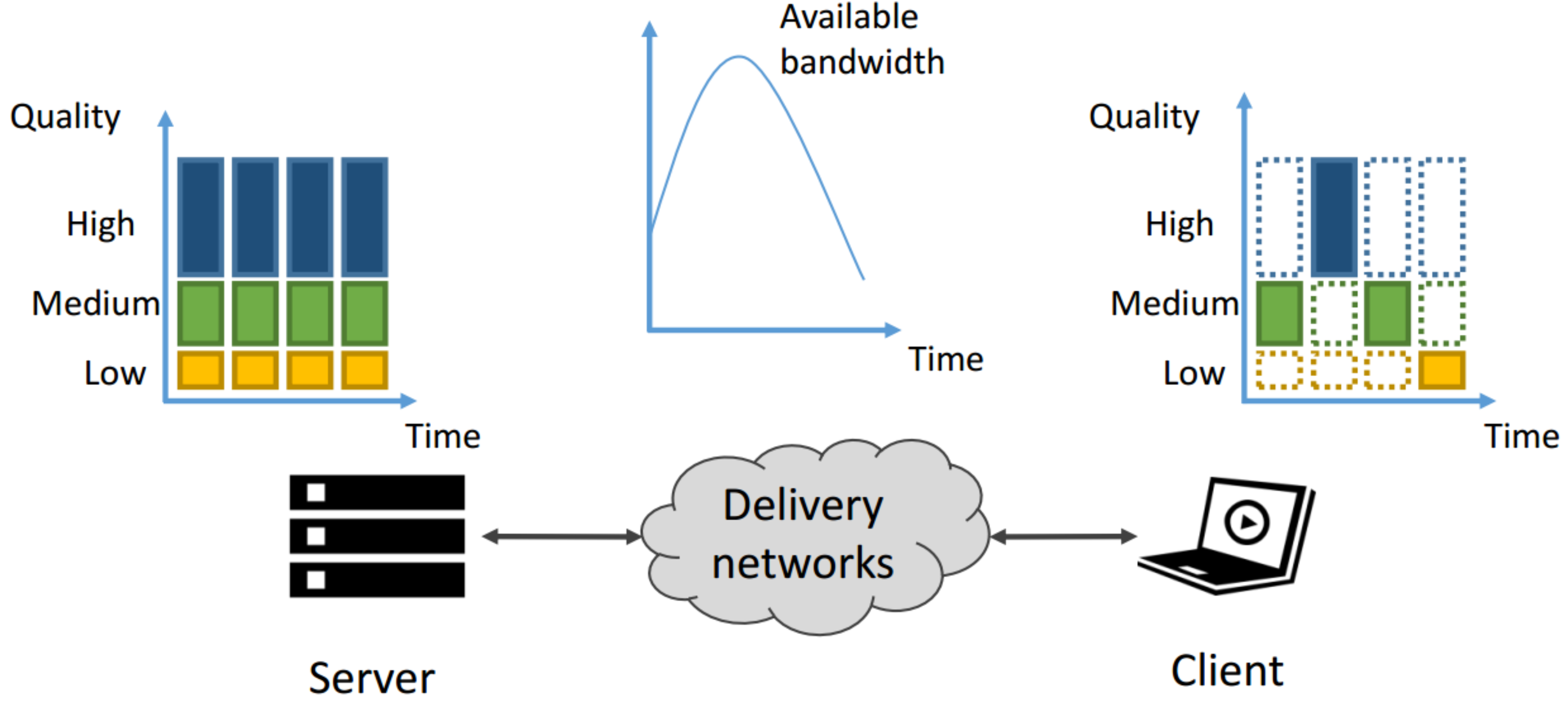

DASH Adaptive Quality

Visualization:

Server Side:                    Client Side:
Quality                         Quality
  High ████████                   High █ █ █
Medium ████████        →       Medium █ █ █ █
   Low ████████                    Low █ █████
       Time                            Time
                                   (adapts to
                                    bandwidth)

Formula for streaming:
$\boxed{\text{Streaming video} = \text{encoding} + \text{DASH} + \text{playout buffering}}$

Content Distribution Networks (CDNs)

The Challenge

Problem: How to stream content (selected from millions of videos) to hundreds of thousands of simultaneous users?

Option 1: Single Mega-Server (Doesn't Scale)

Problems:

• ❌ Single point of failure
• ❌ Point of network congestion
• ❌ Long path to distant clients
• ❌ Multiple copies of video sent over same outgoing link

Conclusion: Simply doesn't scale!

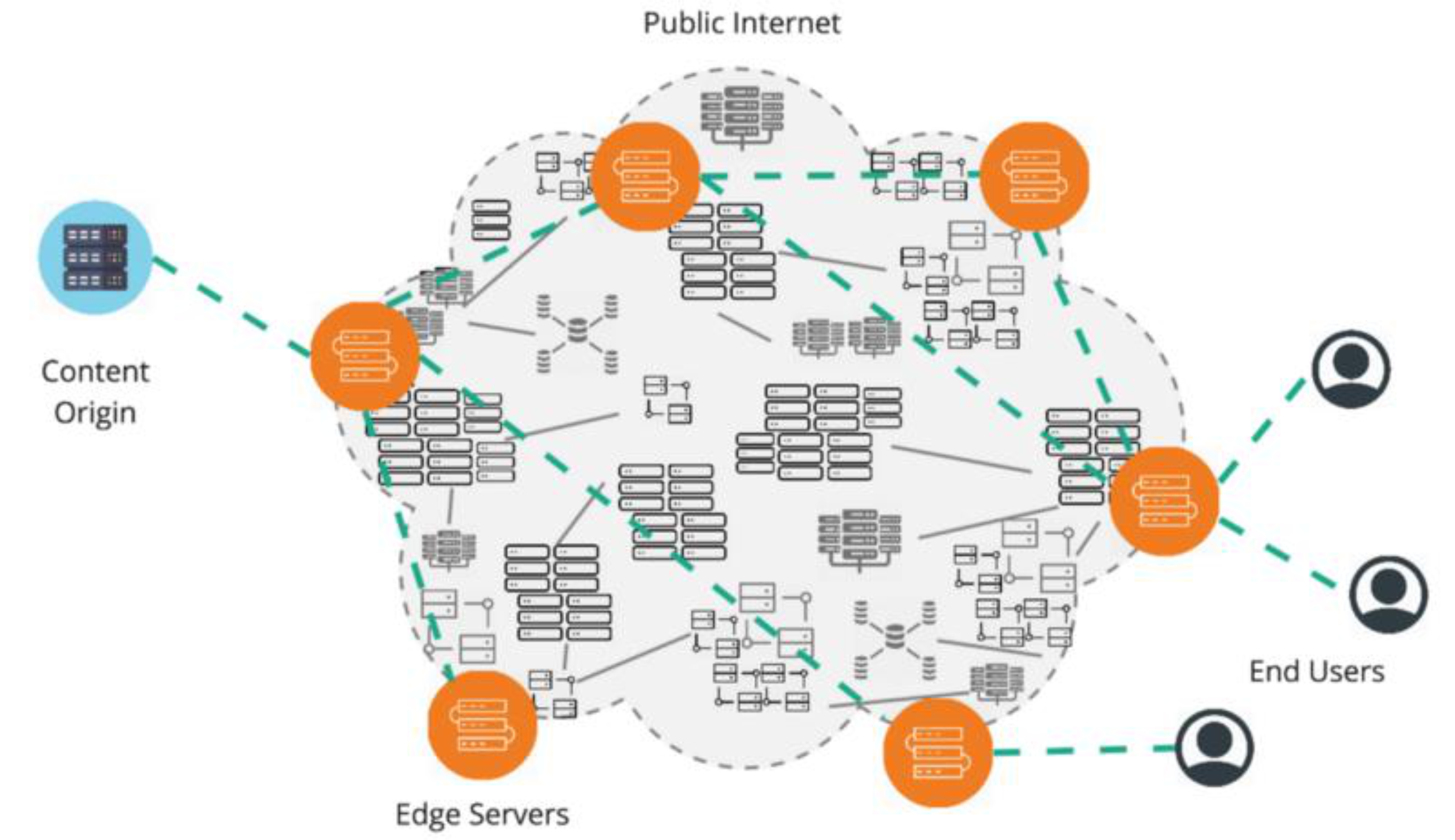

Option 2: CDN (Scalable Solution)

Concept:

• Store/serve multiple copies of videos
• At multiple geographically distributed sites

CDN Deployment Strategies

1. Enter Deep (Akamai)

Strategy:

• Push CDN servers deep into many access networks
• Close to users
• More servers, closer proximity

Stats:

• Akamai: 240,000 servers deployed in >120 countries (2015)

2. Bring Home (Limelight)

Strategy:

• Smaller number of larger clusters
• At key points in Internet
• IXPs (Internet Exchange Points)

CDN Operations

How CDN Works

Process:

1. Subscriber requests content
   • User goes to Netflix, selects video
2. Service provider returns manifest
   • Contains URLs for video chunks at various CDN nodes
3. Client retrieves content
   • Using manifest, requests chunks at highest supportable rate
   • May choose different rate if path congested
   • May choose different CDN node if closer/faster

CDN stores copies:

• Content (e.g., "Mad Men") replicated at multiple CDN nodes
• Strategically placed around Internet

CDN Challenges

Key decisions:

1. What content to place in which CDN node?
2. From which CDN node to retrieve content?
3. At which rate to retrieve content?

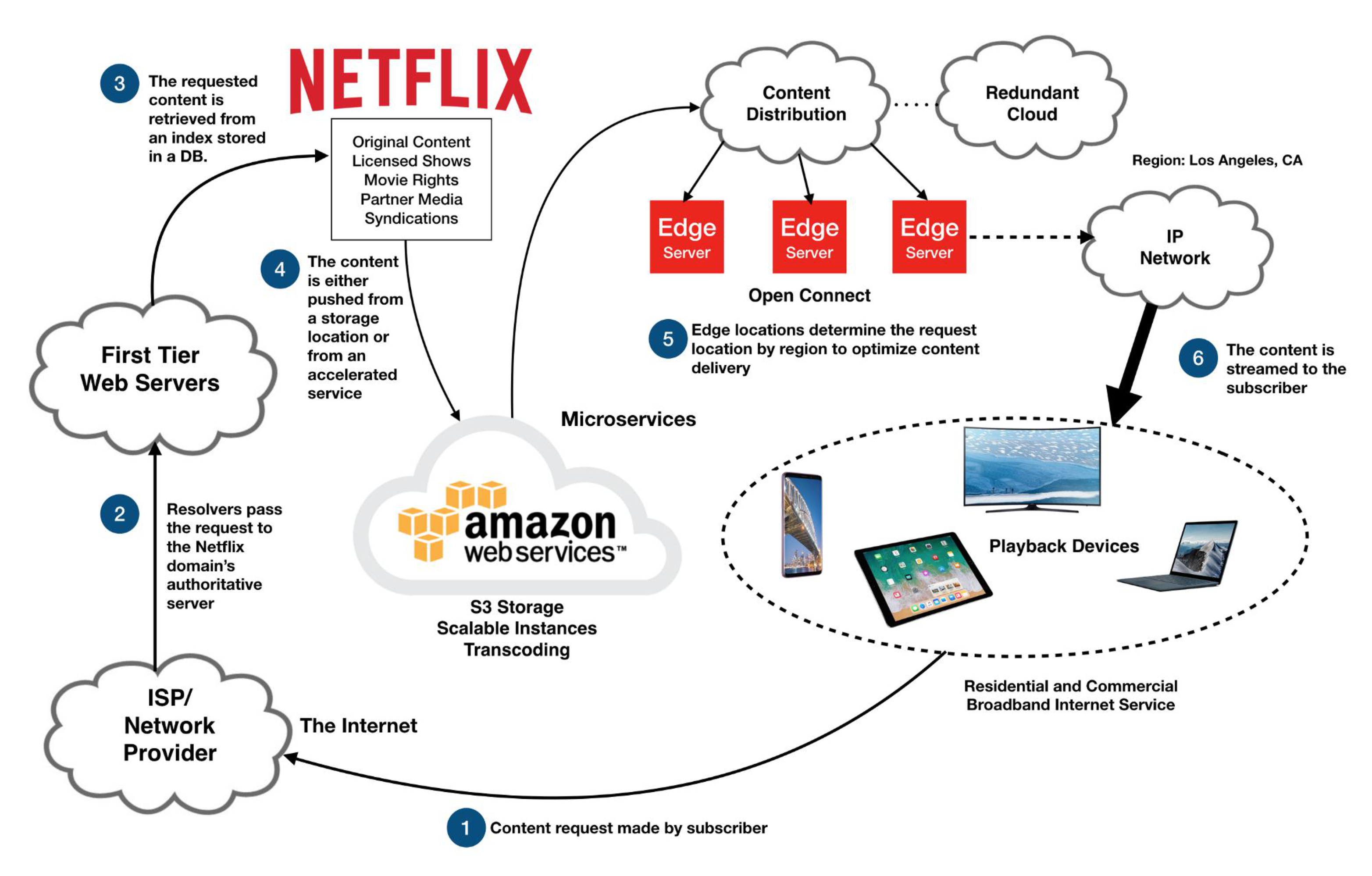

Netflix Architecture Example

Complete system:

[Subscriber] → [ISP] → [Netflix Web Servers] → [Content Distribution]
                                                      ↓
                                                  Amazon AWS
                                                  - S3 Storage
                                                  - Transcoding
                                                      ↓
                                             [Edge Servers (CDN)]
                                              Open Connect
                                                      ↓
                                             [Playback Devices]

Process:

1. Content request made by subscriber
2. Resolvers pass request to Netflix domain's authoritative server
3. Requested content retrieved from index stored in DB
4. Content pushed from storage location or from accelerated service
5. Edge locations determine request location by region to optimize delivery
6. Content streamed to subscriber

Socket Programming

Socket Basics

Goal: Learn how to build client/server applications that communicate using sockets

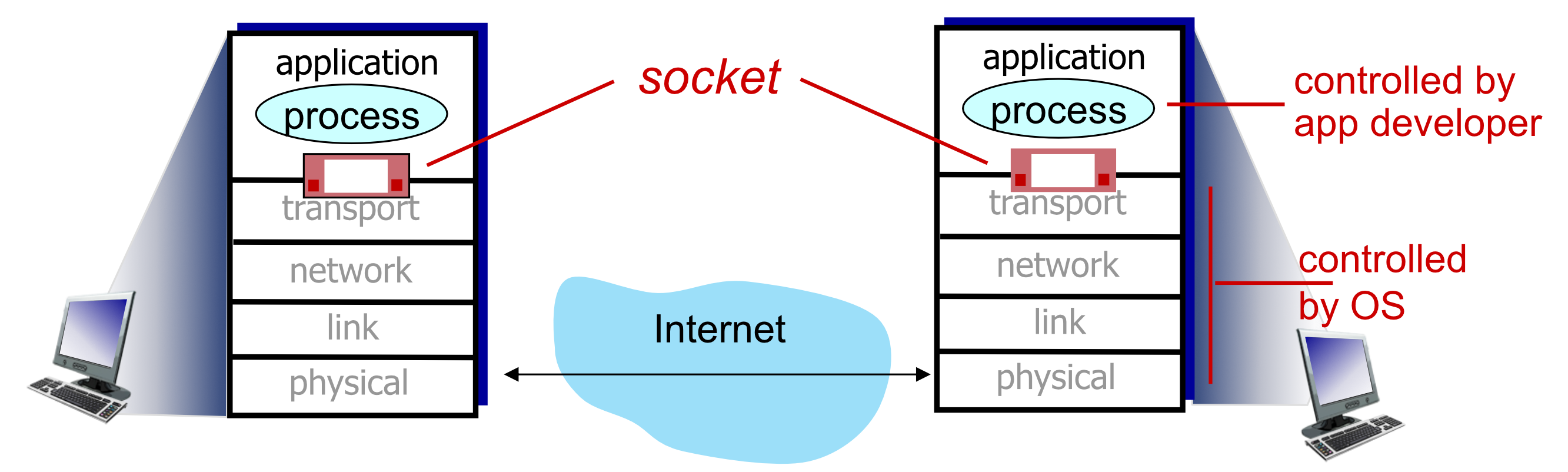

Socket definition:

• Door between application process and end-to-end transport protocol

[Application Process]
       ↕ (controlled by app developer)
    [Socket]
       ↕ (controlled by OS)
[Transport Layer]
[Network Layer]
[Link Layer]
[Physical Layer]

Analogy: A socket is like a mailbox - you put messages in (send) and take messages out (receive), but you don't control how they get delivered.

Two Socket Types

1. UDP Socket

• Unreliable datagram service
• No connection between client and server
• SOCK_DGRAM

2. TCP Socket

• Reliable, byte stream-oriented service
• Connection established between client and server
• SOCK_STREAM

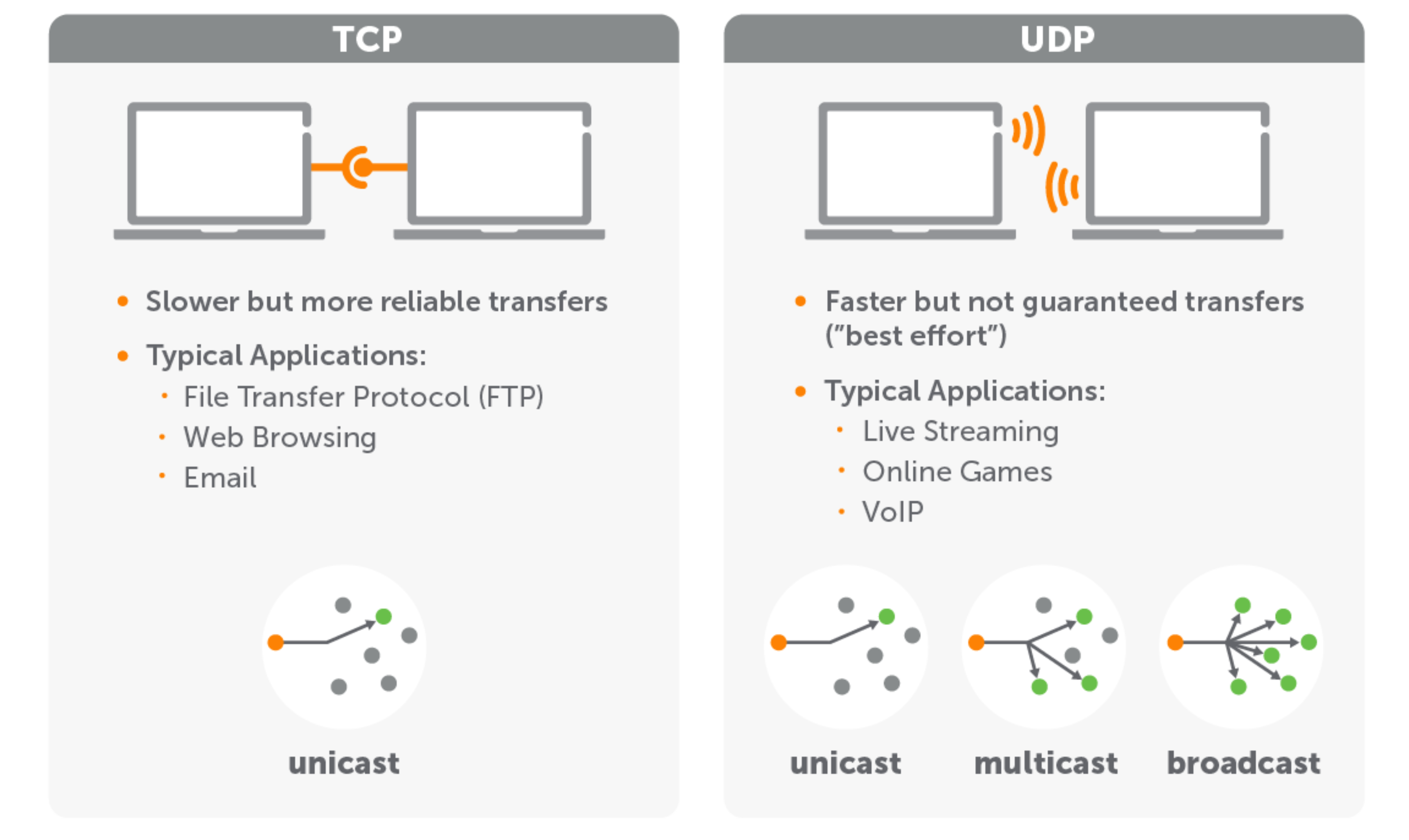

Comparison

TCP:

• Slower but more reliable transfers
• Typical applications:
  • File Transfer Protocol (FTP)
  • Web Browsing
  • Email
• Unicast: One-to-one communication

UDP:

• Faster but not guaranteed transfers ("best effort")
• Typical applications:
  • Live Streaming
  • Online Games
  • VoIP
• Unicast, Multicast, or Broadcast

Application Example

Common example for both UDP and TCP:

1. Client reads line of characters from keyboard
2. Client sends data to server
3. Server receives data and converts characters to uppercase
4. Server sends modified data back to client
5. Client receives modified data and displays on screen

Socket Programming with UDP

UDP Characteristics

No "connection" between client and server:

• No handshaking before sending data
• Sender explicitly attaches:
  • IP destination address
  • Port number to each packet
• Receiver extracts sender IP address and port from received packet

Transmission characteristics:

• ⚠️ Transmitted data may be lost
• ⚠️ Data may be received out-of-order

Application viewpoint:

• UDP provides unreliable transfer of groups of bytes ("datagrams")
• Between client and server processes

UDP Socket Interaction

Server Side

# Create socket, bind to port
serverSocket = socket(AF_INET, SOCK_DGRAM)
serverSocket.bind(('', serverPort))

# Wait for incoming datagram
while True:
    message, clientAddress = serverSocket.recvfrom(2048)

    # Process and respond
    modifiedMessage = message.decode().upper()
    serverSocket.sendto(modifiedMessage.encode(),
                       clientAddress)

Client Side

# Create socket
clientSocket = socket(AF_INET, SOCK_DGRAM)

# Create datagram with server IP and port
# Send datagram via clientSocket
clientSocket.sendto(message.encode(),
                   (serverName, serverPort))

# Receive response
modifiedMessage, serverAddress = clientSocket.recvfrom(2048)

# Close socket
clientSocket.close()

Socket Parameters

• AF_INET: Address family for Internet Protocol v4
• SOCK_DGRAM: Socket type for unreliable, individually-addressed packets

Example: UDP Server Code

from socket import *

serverPort = 12000
serverSocket = socket(AF_INET, SOCK_DGRAM) # Create UDP socket
serverSocket.bind(('', serverPort)) # Bind socket to local port 12000

print("The server is ready to receive")

while True: # Loop forever
    message, clientAddress = serverSocket.recvfrom(2048) # Read from UDP socket into message, getting client's address (wait until data arrive)
    modifiedMessage = message.decode().upper()
    serverSocket.sendto(modifiedMessage.encode(),
                       clientAddress)

Key points:

• Create UDP socket
• Bind socket to local port 12000
• Loop forever
• Read from UDP socket into message, getting client's address
• Send uppercase string back to client

Example: UDP Client Code

from socket import *

serverName = 'hostname'
serverPort = 12000
clientSocket = socket(AF_INET, SOCK_DGRAM) # Create UDP socket for server

message = input('Input lowercase sentence:') # Get user keyboard input
clientSocket.sendto(message.encode(),
                   (serverName, serverPort)) # Attach server name and port to message, send into socket

modifiedMessage, serverAddress = clientSocket.recvfrom(2048) # Read reply from socket
print(modifiedMessage.decode()) # Print out
clientSocket.close() # Close socket

Key points:

• Create UDP socket for server
• Get user keyboard input
• Attach server name and port to message
• Send into socket
• Read reply from socket
• Close socket

Socket Programming with TCP

TCP Characteristics

Reliable protocol

Connection-oriented:

• ✅ Client must contact server first
• ✅ Server must be running with created socket
• ✅ Connection must be established before data exchange

Reliable, in-order transfer:

• Provides reliable, byte-stream transfer ("pipe")
• Between client and server processes

Server handling:

• When contacted by client, server TCP creates new socket for that client
• Allows server to talk with multiple clients
• Source port numbers distinguish different clients

TCP Socket Interaction

Process Flow

Server side:

1. Create welcoming socket: serverSocket = socket()
2. Bind to port x
3. Listen for incoming requests: serverSocket.listen(1)
4. Accept connection: connectionSocket = serverSocket.accept()
5. Read request from connectionSocket
6. Write reply to connectionSocket
7. Close connectionSocket

Client side:

1. Create socket: clientSocket = socket()
2. Connect to server (hostid, port x)
3. Send request using clientSocket
4. Read reply from clientSocket
5. Close clientSocket

TCP Connection Setup:

• Occurs between steps 3 (client) and 4 (server)
• Three-way handshake establishes connection

Example: TCP Server Code

from socket import *

serverPort = 12000
serverSocket = socket(AF_INET, SOCK_STREAM) # SOCK_DGRAM (คือ UDP นะ จำ!)
serverSocket.bind(('', serverPort))
serverSocket.listen(1)

print('The server is ready to receive')

while True:
    connectionSocket, addr = serverSocket.accept()
    sentence = connectionSocket.recv(1024).decode()
    capitalizedSentence = sentence.upper()
    connectionSocket.send(capitalizedSentence.encode())
    connectionSocket.close()

Key points:

• Create TCP welcoming socket
• Server begins listening for incoming TCP requests
• Loop forever
• Server waits on accept() for incoming requests
• New socket created on return
• Read bytes from socket (no address needed like UDP)
• Close connection to this client (but not welcoming socket)

Example: TCP Client Code

from socket import *

serverName = 'servername'
serverPort = 12000
clientSocket = socket(AF_INET, SOCK_STREAM)
clientSocket.connect((serverName, serverPort))

sentence = input('Input lowercase sentence:')
clientSocket.send(sentence.encode())
modifiedSentence = clientSocket.recv(1024)

print('From Server:', modifiedSentence.decode())
clientSocket.close()

Key points:

• Create TCP socket for server, remote port 12000
• No need to attach server name and port explicitly
• connect() establishes connection
• SOCK_STREAM means connection-oriented TCP protocol
• Send and receive through connected socket
• Close socket when done

Summary

Application Architectures

• ✅ Client-Server: Centralized server, multiple clients
• ✅ P2P (Peer-to-Peer): Distributed, no central server

Application Service Requirements

• Reliability: Data must arrive correctly
• Bandwidth: Amount of data transfer capacity
• Delay: Time sensitivity of application

Internet Transport Services

TCP

• ✅ Connection-oriented
• ✅ Reliable delivery
• ✅ Flow control
• ✅ Congestion control

UDP

• ⚡ Fast, lightweight
• ⚠️ Unreliable
• ⚠️ No connection setup
• ⚠️ No guarantees

Specific Protocols Covered

1. HTTP (1.0, 1.1, 2.0)
   • Web page transfer
   • Request/response model
2. SMTP, IMAP
   • Email protocols
   • Send and retrieve messages
3. DNS
   • Domain name resolution
   • Distributed hierarchical database
4. P2P: BitTorrent
   • Distributed file sharing
   • Tit-for-tat chunk exchange

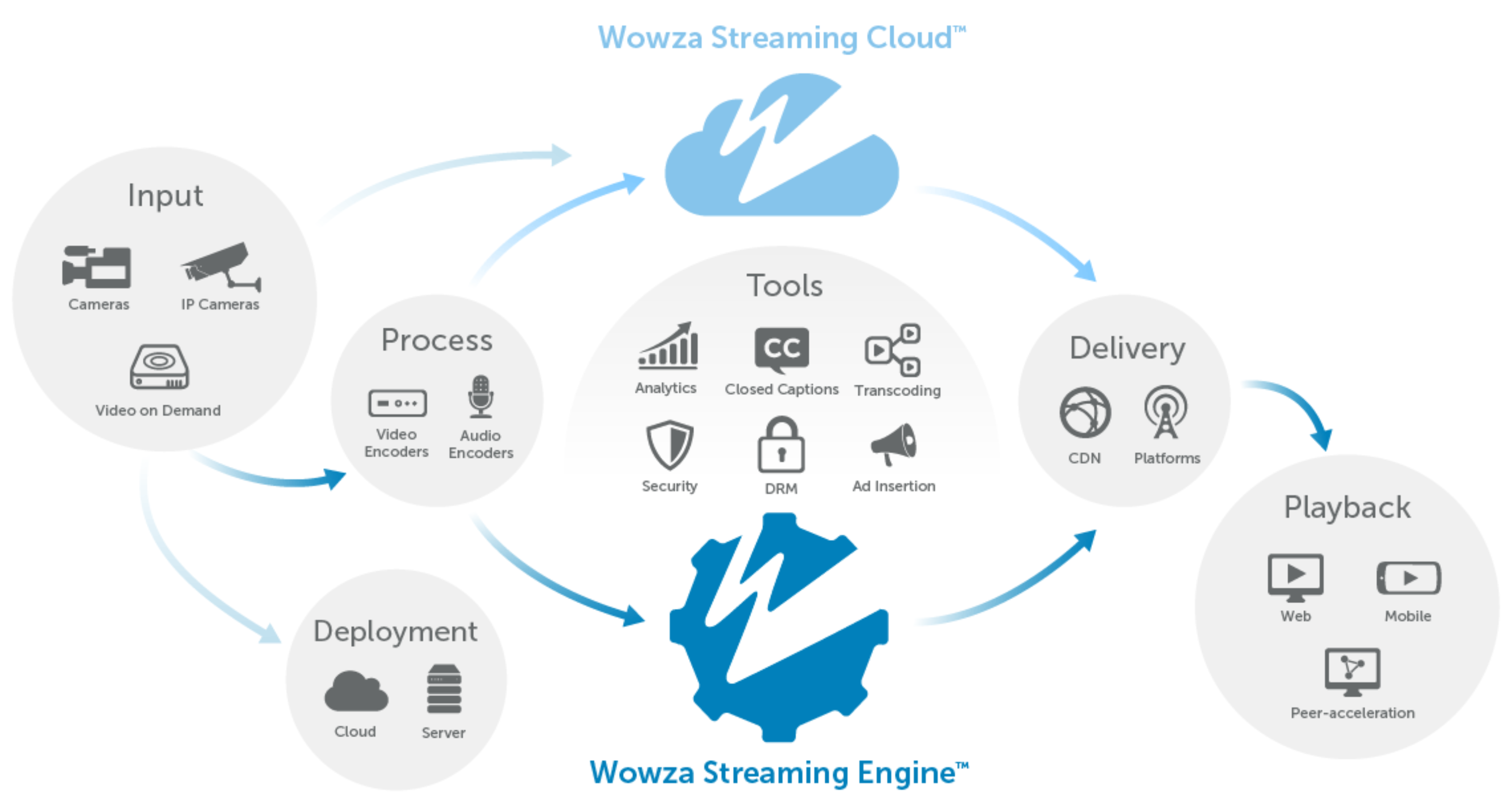

Video Streaming

• DASH: Dynamic Adaptive Streaming over HTTP
• CDNs: Content Distribution Networks
  • Geographic distribution
  • Load balancing
  • Reduced latency

Socket Programming

• TCP sockets: Reliable, connection-oriented
• UDP sockets: Unreliable, connectionless
• Building client-server applications
