Lecture 6 - Transport Layer (Part 2)

Roadmap

• Lecture 5 - Transport Layer (Part 1)
  • Transport-layer services ✅
  • Multiplexing and demultiplexing ✅
  • Connectionless transport: UDP ✅
    • เรียนไปแล้วอาทิตย์ก่อน แบบพวก Checksum
    • Checksum: ที่เคยพูดว่าใส่ใน Exam บ่อย
  • Principles of reliable data transfer ✅
• Lecture 6 - Transport Layer (Part 2)
  • Port Numbers ⏳
  • Connection-oriented transport: TCP ⏳
    • Connection management ⏳
    • Segment structure ⏳
    • Reliable data transfer ⏳
    • Flow control ⏳
      • Control sender by receiver (แบบ receiver ไม่อยากให้ sender ส่งไวเกิน)
  • Principles of congestion control ⏳
  • TCP congestion control ⏳

Reliable Data Transfer (RDT) Summary

ไปทวนมาด้วย น่าจะออกเลยล่ะ

• RDT 1.0 – Over reliable channel
• RDT 2.0 – Handle bit error, ACK/NAK
• RDT 2.1 – Handle corrupted ACK/NAK, duplicate, resend
• RDT 2.2 – NAK-free with ACK seq#
• RDT 3.0 – Handle error and loss, timeout
• RDT 3.1 – Handle performance issue with pipeline
  • Go-Back-N – No buffer at receiver
  • Selective Repeat – Buffer at receiver

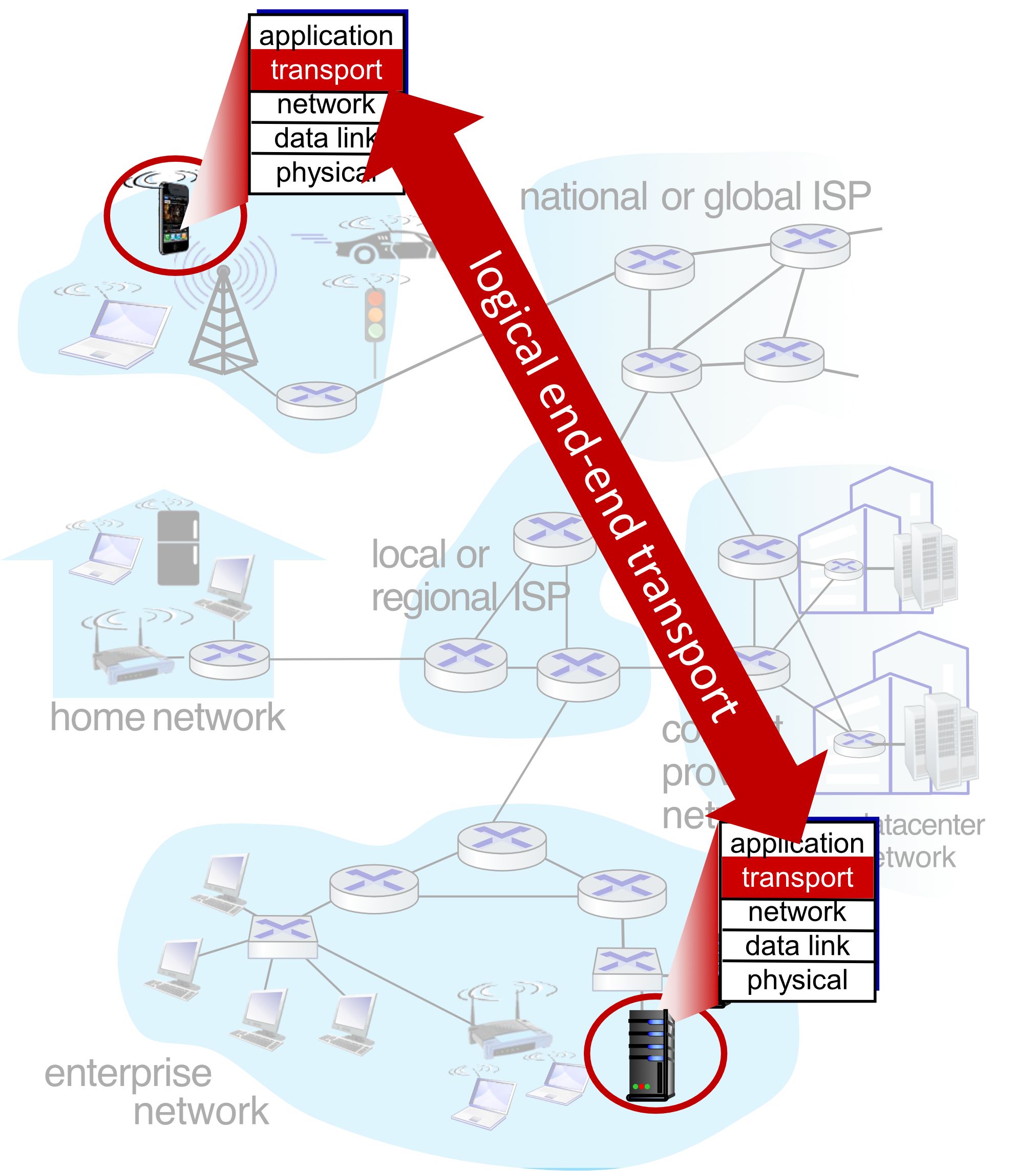

Two Principal Internet Transport Protocols

UDP – User Datagram Protocol

• Unreliable, unordered delivery
• No-frills extension of "best-effort" IP
• Fast, low overhead

TCP – Transmission Control Protocol

• Reliable, in-order delivery
• Congestion control
• Flow control
• Connection setup

Analogy: UDP is like sending a postcard — fast, no guarantee it arrives. TCP is like sending a registered letter — slower but confirmed delivery.

Port Numbers

ถือว่าเป็น Identifier ใน TCP เลย

Applications that use TCP

• เชื่อมหา Process โดยผ่าน Socket นี้ ๆ นะ
  • UDP → sock_dgram
  • TCP → sock_stream

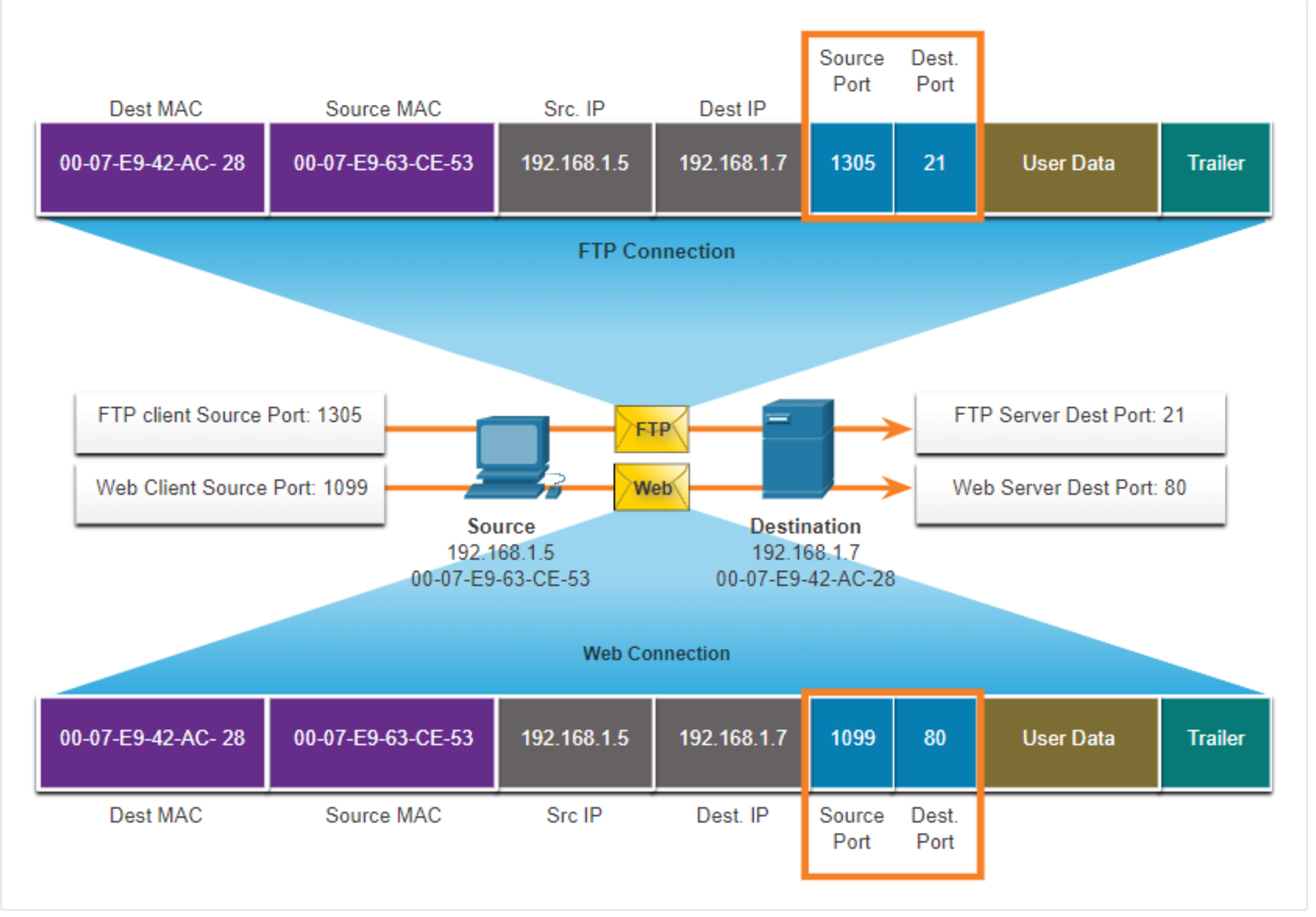

• Src, Dest IP identify host
• Dest MAC, Source MAC identify next hop.

Port Number Groups

จริง ๆ แล้ว Port number มี 16 bits = $2^{16}$ = 65k

If used up ALL the port, they cannot create socket, cannot connect to another computer. นี่ก็เป็นอีกวิธีนึงในการทำ DDoS as well

Well-Known Port Numbers Table

Port Number Rules

• One IP cannot have two services assigned to the same port number within the same transport protocol (TCP or UDP)
• TCP Port range: 1 – 65,535
• UDP Port range: 1 – 65,535

Examples:

• HTTP Server: TCP 80 + NGINX: TCP 80 → ❌ Not OK (same protocol, same port)
• HTTP Server: TCP 80 + NGINX: TCP 8080 → ✅ OK (different port)
• HTTP Server: TCP 80 + APP: UDP 80 → ✅ OK (different protocol)

Analogy: Like two stores can't be in the exact same room (same IP + same port + same protocol), but they can share a building number if they're in different rooms (different port) or different buildings entirely (different protocol).

จำได้มั้ย Python ที่อาจารย์เคยให้ดู

• bind() → Indicate that you want to reserve this port number (available or not?)
• accept() → I want to start accept the connection (from the client), ready!

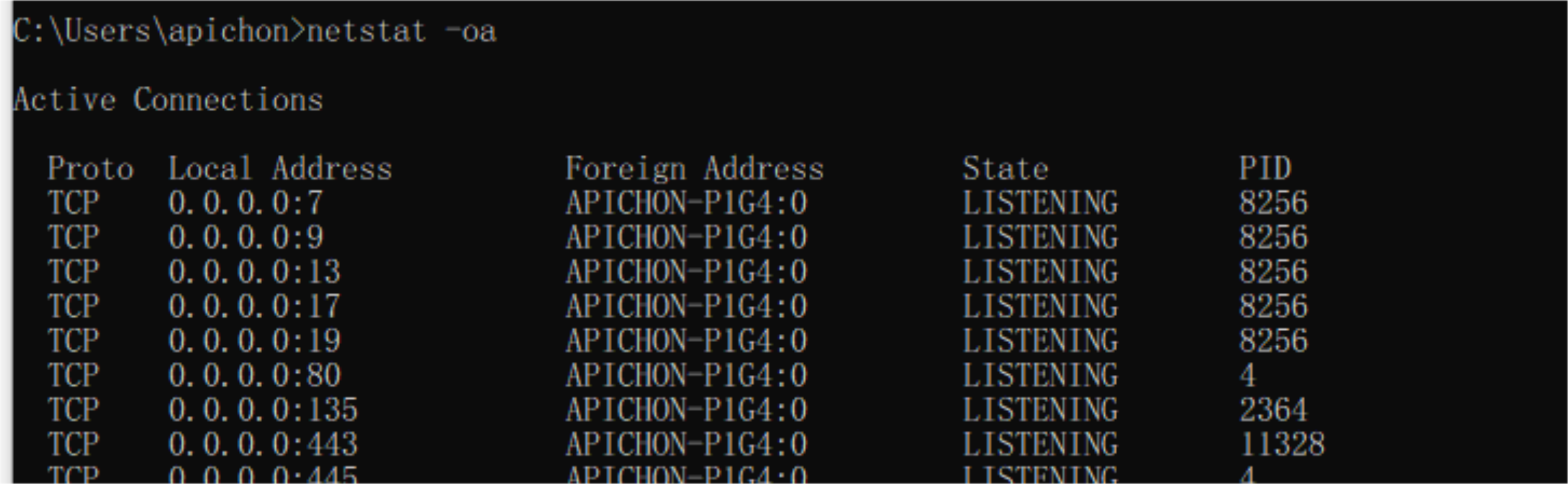

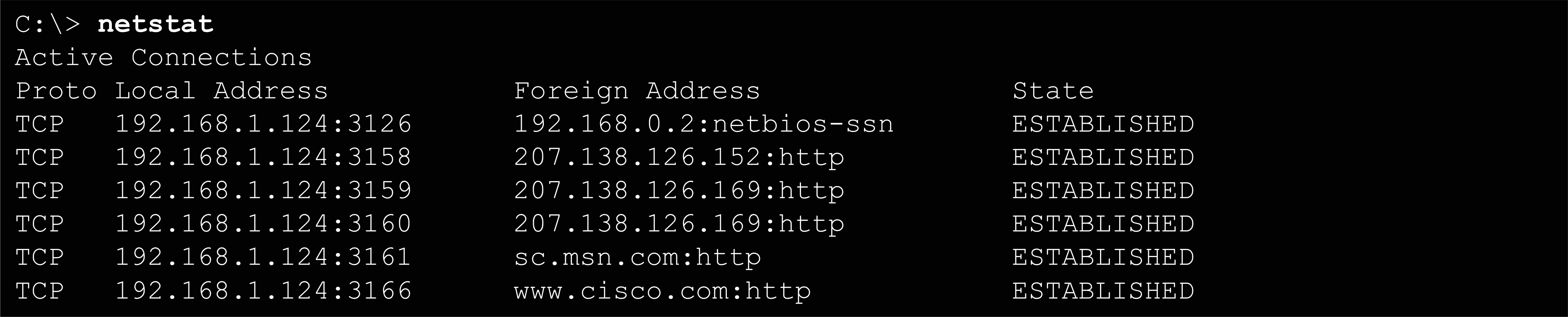

Netstat Command

netstat

Shows active TCP connections, including local address, foreign address, and connection state (ESTABLISHED / LISTENING).

สังเกตว่า netstat จะโชว์ PID ด้วย เผื่อเห็นว่า Process ในมันกิน Port นี้ไปก็ kill ทิ้งได้เลย555

ใน TCP จะเห็นคำว่า LISTENING หลังจากเรา call accept()

TCP Overview

(RFCs: 793, 1122, 2018, 5681, 7323)

• Point-to-point – One sender, one receiver
• Reliable, in-order byte stream – No "message boundaries", the size can be very large
• Full duplex data – Bi-directional data flow in same connection; MSS = maximum segment size
  • ปกติไม่ต้องสนใจมากว่า MSS คืออะไร แต่ถ้าคุณเป็น Network Administrator ก็ต้องรู้
  • เช่น TCP: MSS = 1460
• Cumulative ACKs
  • อ๋ออ ก็จะเพิ่ม ACKs ไปเรื่อย ๆ เช่น แบบส่งไป 3 ได้ ACKs กลับมา 100
  • แต่ ACKs กลับมาแค่อันเดียว ที่เหลืออีก 2 หาย
  • แต่พอได้กลับมาอีกรอบเป็นเลข 140 แปลว่ามันรู้ละว่าก่อนหน้านั้นส่ง OK
• Pipelining – TCP congestion and flow control set window size
• Connection-oriented – Handshaking initializes sender/receiver state before data exchange
• Flow controlled – Sender will not overwhelm receiver

TCP Segment Structure

 0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|          Source Port          |       Destination Port        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                        Sequence Number                        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Acknowledgement Number                     |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|  Data |       |C|E|U|A|P|R|S|F|                               |
| Offset|  Res. |W|C|R|C|S|S|Y|I|         Receive Window        |
|       |       |R|E|G|K|H|T|N|N|                               |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|           Checksum            |         Urgent Pointer        |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Options (variable)                         |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Application Data                           |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Key fields:

• Sequence number – Byte-stream number of first byte in segment's data (not segment count)
• Acknowledgement number – Seq# of next expected byte; cumulative ACK
• Receive window (rwnd) – Flow control: number of bytes receiver is willing to accept
• RST, SYN, FIN – Connection management flags
• C, E – Congestion notification flags
  • They’ll know there’s congestion in the network

TCP Connection Management

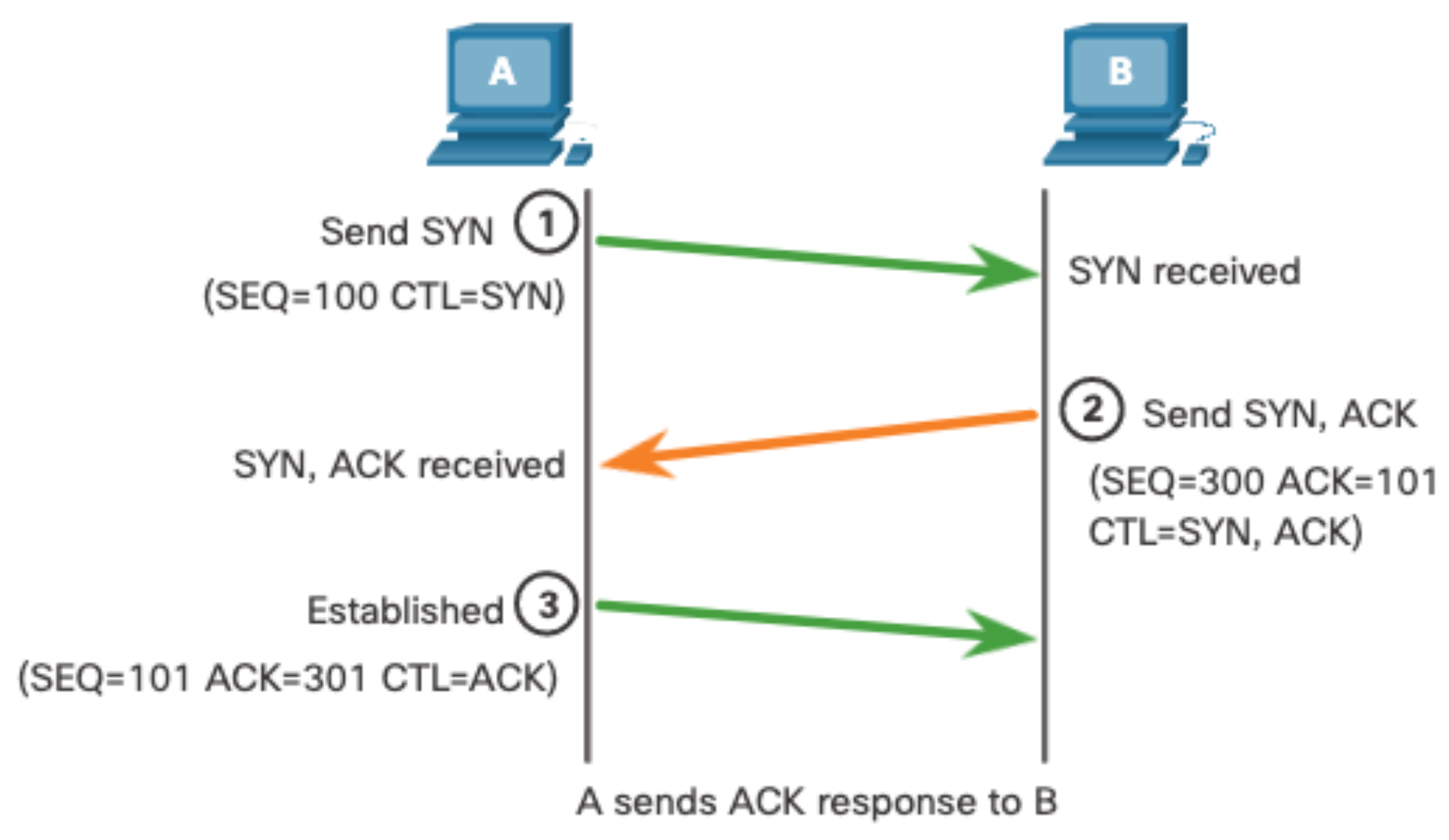

3-Way Handshake 🤝 🤝 🤝

Before exchanging data, sender/receiver must:

1. Agree to establish connection (each knows the other is willing)
2. Agree on connection parameters (e.g., starting sequence numbers)

1. The initiating client requests a client-to-server communication session with the server.
2. The server acknowledges the client-to-server communication session and requests a server-to-client communication session.
3. The initiating client acknowledges the server-to-client communication session.

Syn Flood: The client initiate the syn flag to the server, the server will crate half-connection. (So server hold that socket) → Kinda DoS

TCP Connection Management Python

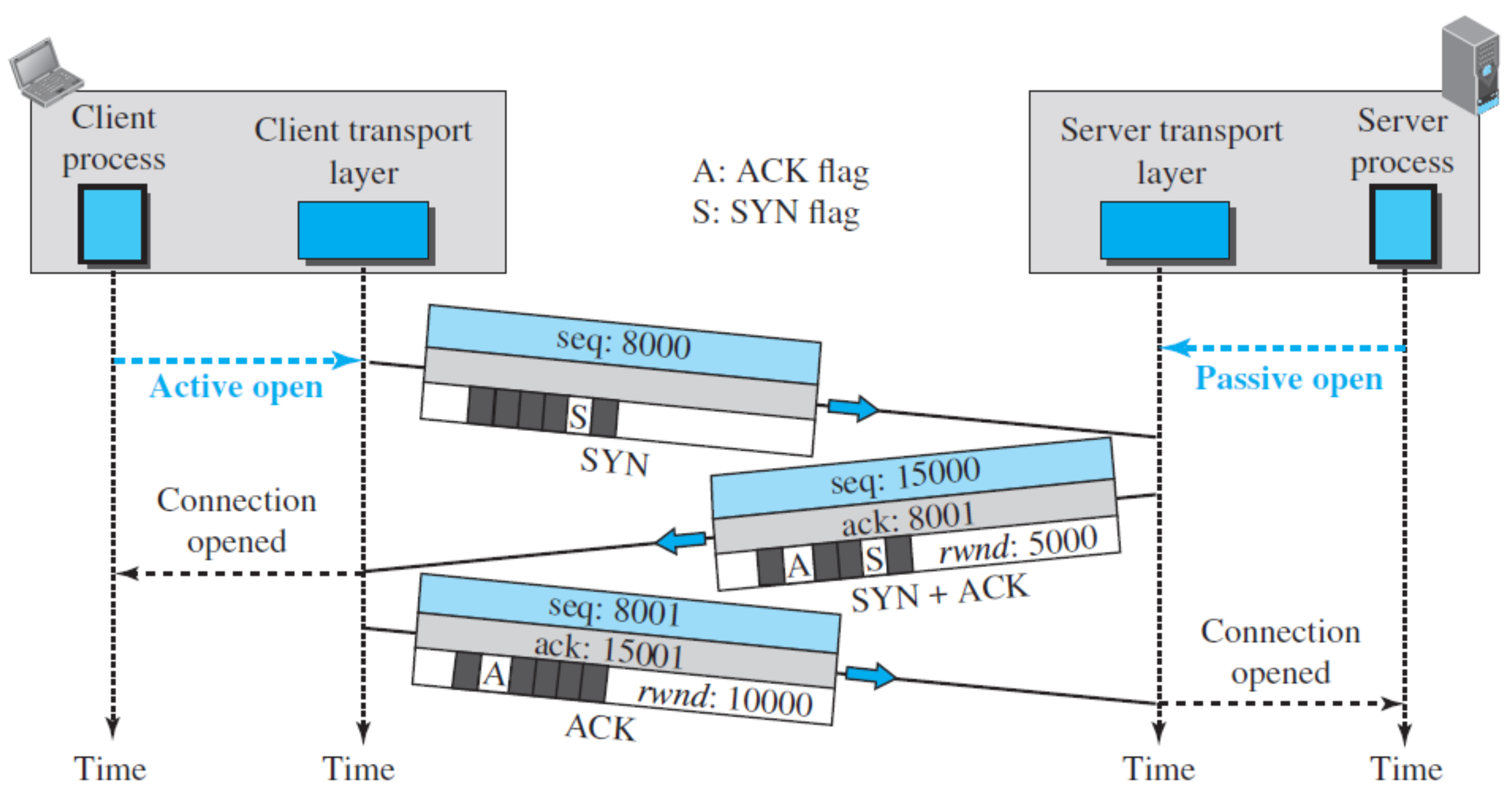

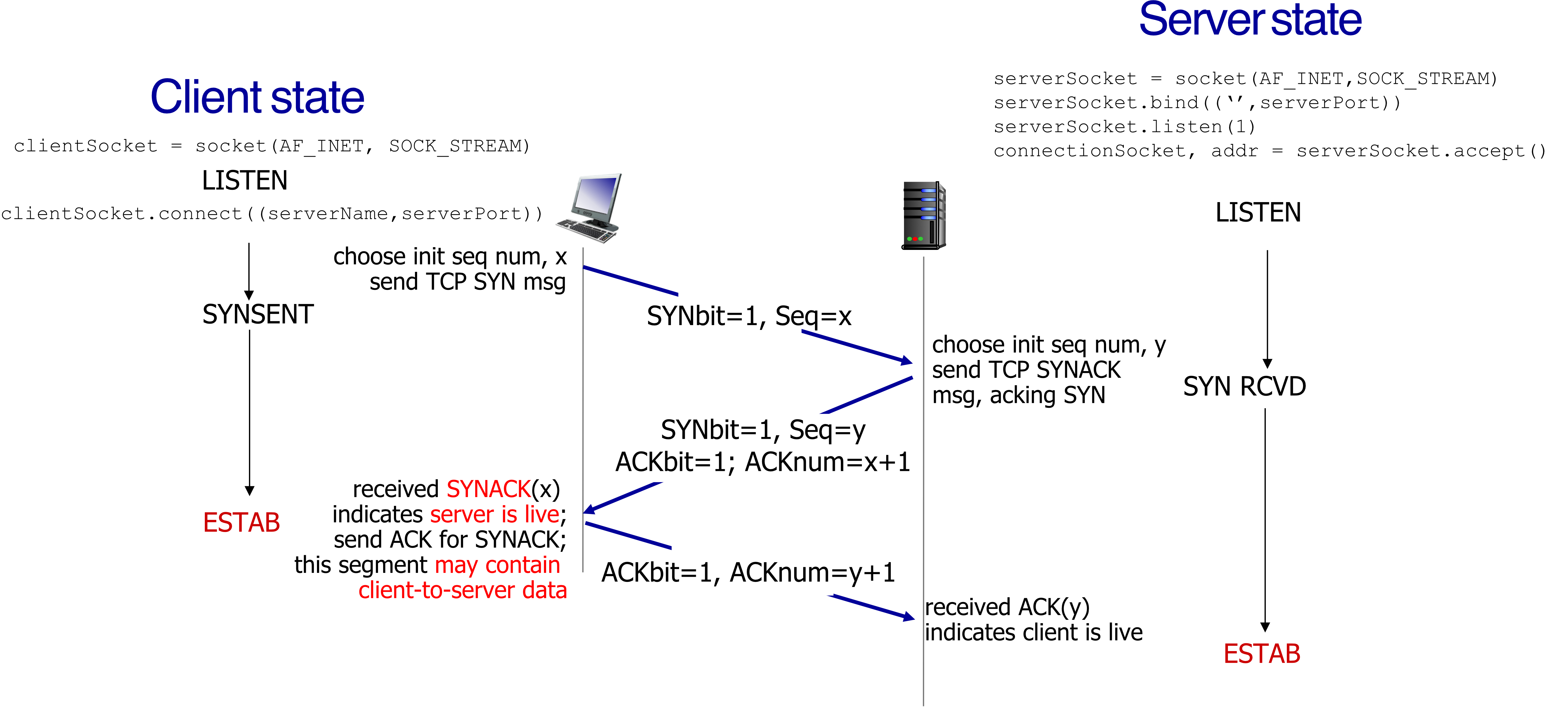

Steps:

Step 1 – SYN (Client → Server)

• Client chooses initial seq number $x$
• Sends: SYNbit=1, Seq=x
• Client state: SYNSENT

Step 2 – SYN-ACK (Server → Client)

• Server chooses initial seq number $y$
• Sends: SYNbit=1, Seq=y, ACKbit=1, ACKnum=x+1
• Server state: SYN RCVD

ACKnum → next expected number
แต่ถ้าเป็นฝั่งของ Data ก็อาจจะเปลี่ยนเป็น x + len(byte) จะได้รู้ไงว่า Data ส่งมาถึงไหนแล้ว ส่งอะไรต่อ

Step 3 – ACK (Client → Server)

• Sends: ACKbit=1, ACKnum=y+1
• This segment may contain client-to-server data

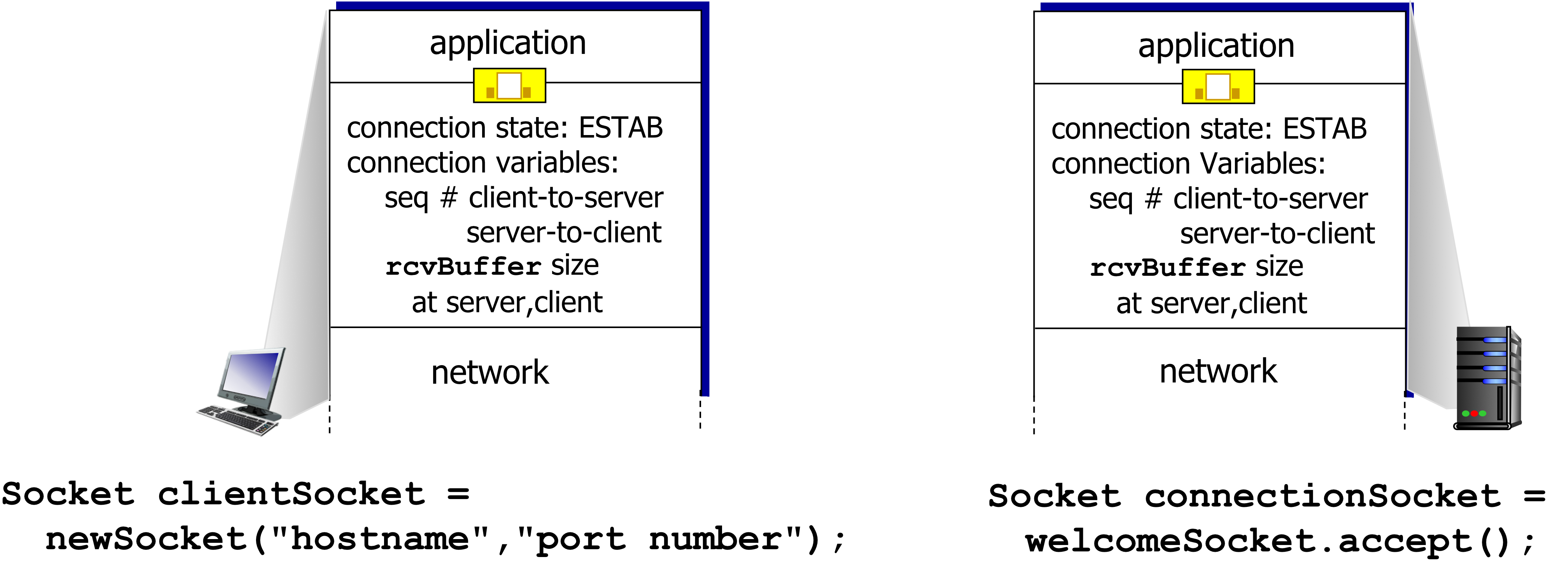

• Client state: ESTAB; Server state: ESTAB

The connection is now established.

Analogy: Like a phone call — "Can you hear me?" (SYN) → "Yes, can you hear me?" (SYN-ACK) → "Yes!" (ACK). Now both sides confirm the line is open.

Establishment Example (with rwnd):

• rwnd ensures that the client will not send the data larger than this amount!

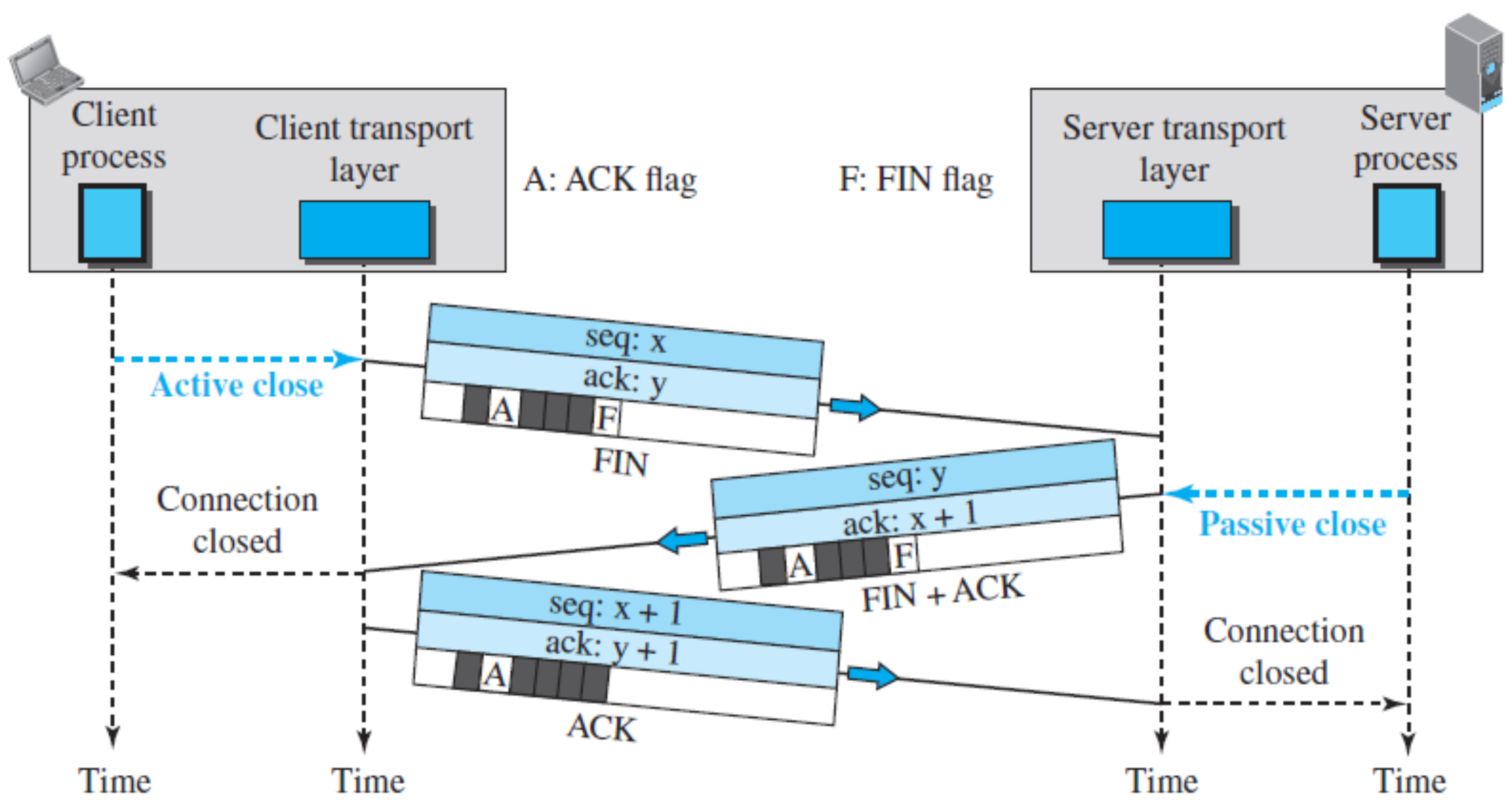

Closing a TCP Connection

• Each side closes its own half of the connection
• Send TCP segment with FIN bit = 1
• Respond to received FIN with ACK
• On receiving FIN, ACK can be combined with own FIN
• Simultaneous FIN exchanges can be handled

TCP Close Sequence:

Analogy: Like ending a phone call — "I'm done talking" (FIN) → "OK, I'm also done" (FIN+ACK) → "Acknowledged" (ACK). The connection is fully closed.

TCP Sequence Numbers and ACKs

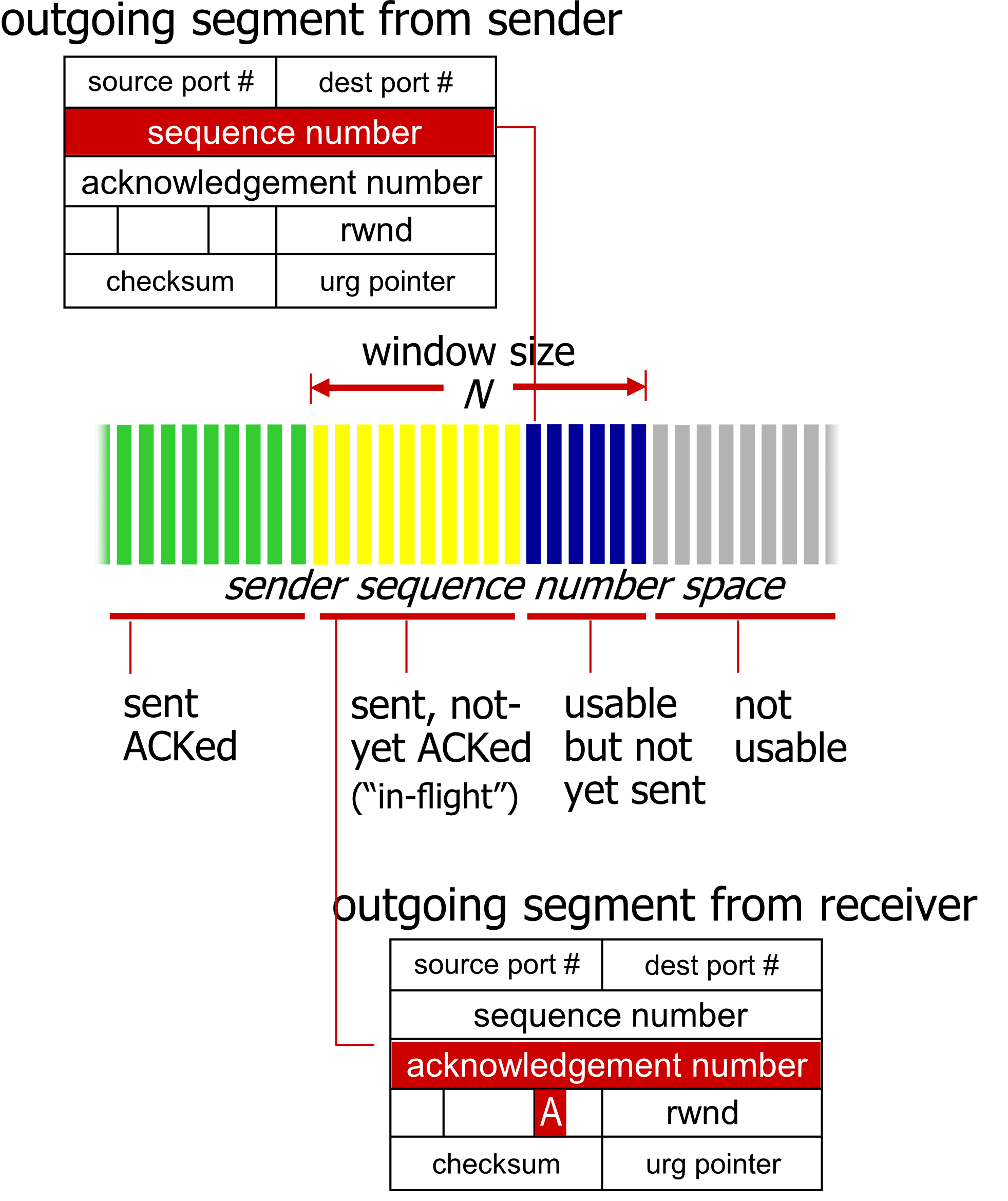

• Sequence numbers – Byte-stream number of the first byte in the segment's data
• Acknowledgements – Seq# of the next byte expected from the other side; cumulative ACK

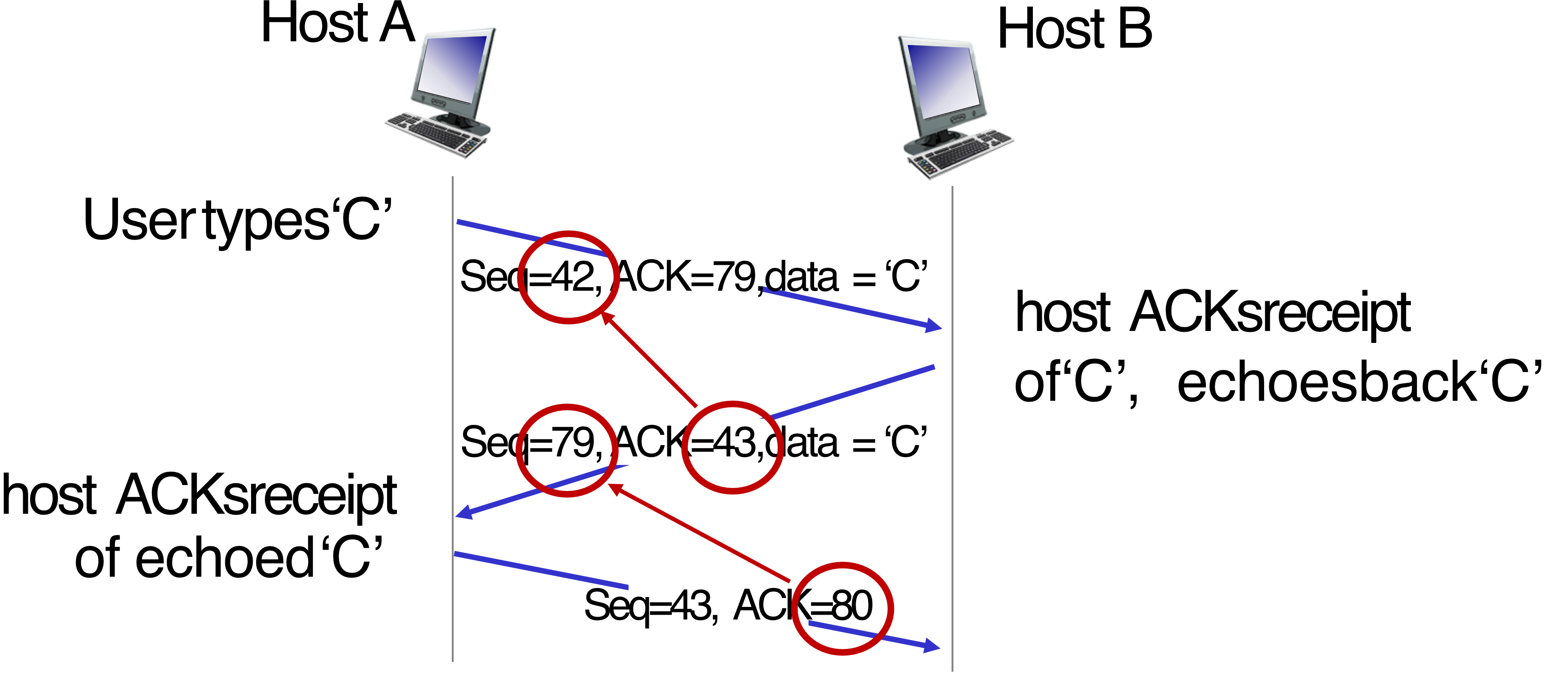

Telnet Example

Host A                        Host B
  |  Seq=42, ACK=79, data='C'   |
  |---------------------------→ |  ← receives 'C', echoes back
  |  Seq=79, ACK=43, data='C'   |
  |←--------------------------- |
  |  Seq=43, ACK=80             |
  |---------------------------→ |  ← ACKs the echoed 'C'

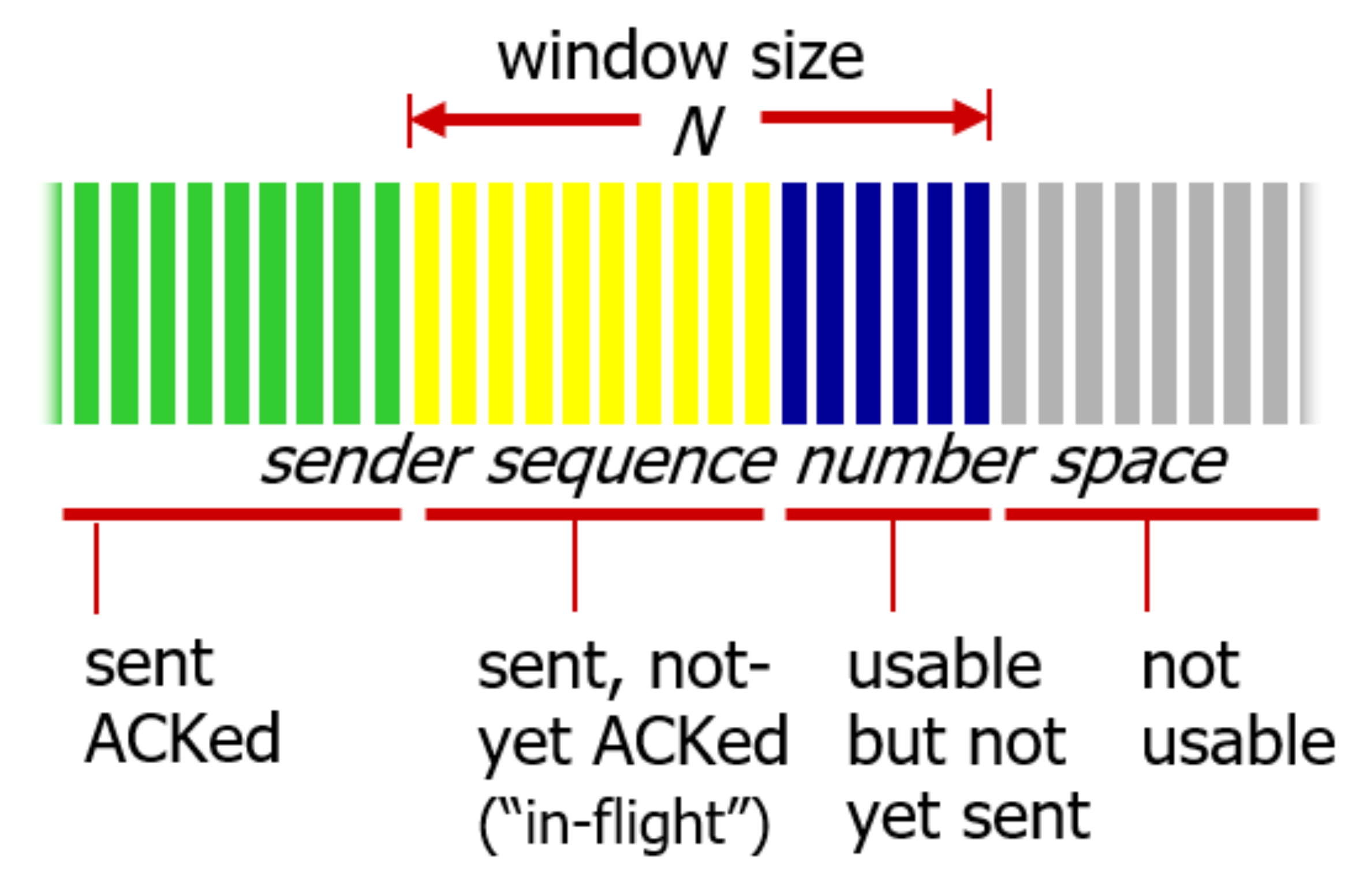

• ข้อมูล “In-flight” ยังคงอยู่ใน Window Size
  • ย้อนกลับไป Principles of Reliable Data Transfer
  • เพื่อให้สามารถ Re-transmit ได้

TCP Reliable Data Transfer

TCP Sender (Simplified)

Event: Data received from application

• Create segment with seq#
• Seq# = byte-stream number of first data byte in segment
• Start timer if not already running (timer = oldest unACKed segment)
• Expiration interval: TimeOutInterval

Event: Timeout

• Retransmit the segment that caused the timeout
• Restart timer

Event: ACK received

• If ACK acknowledges previously unACKed segments:
  • Update what is known to be ACKed → Shift the window(?)
  • Start timer if there are still unACKed segments

TCP Retransmission Scenarios

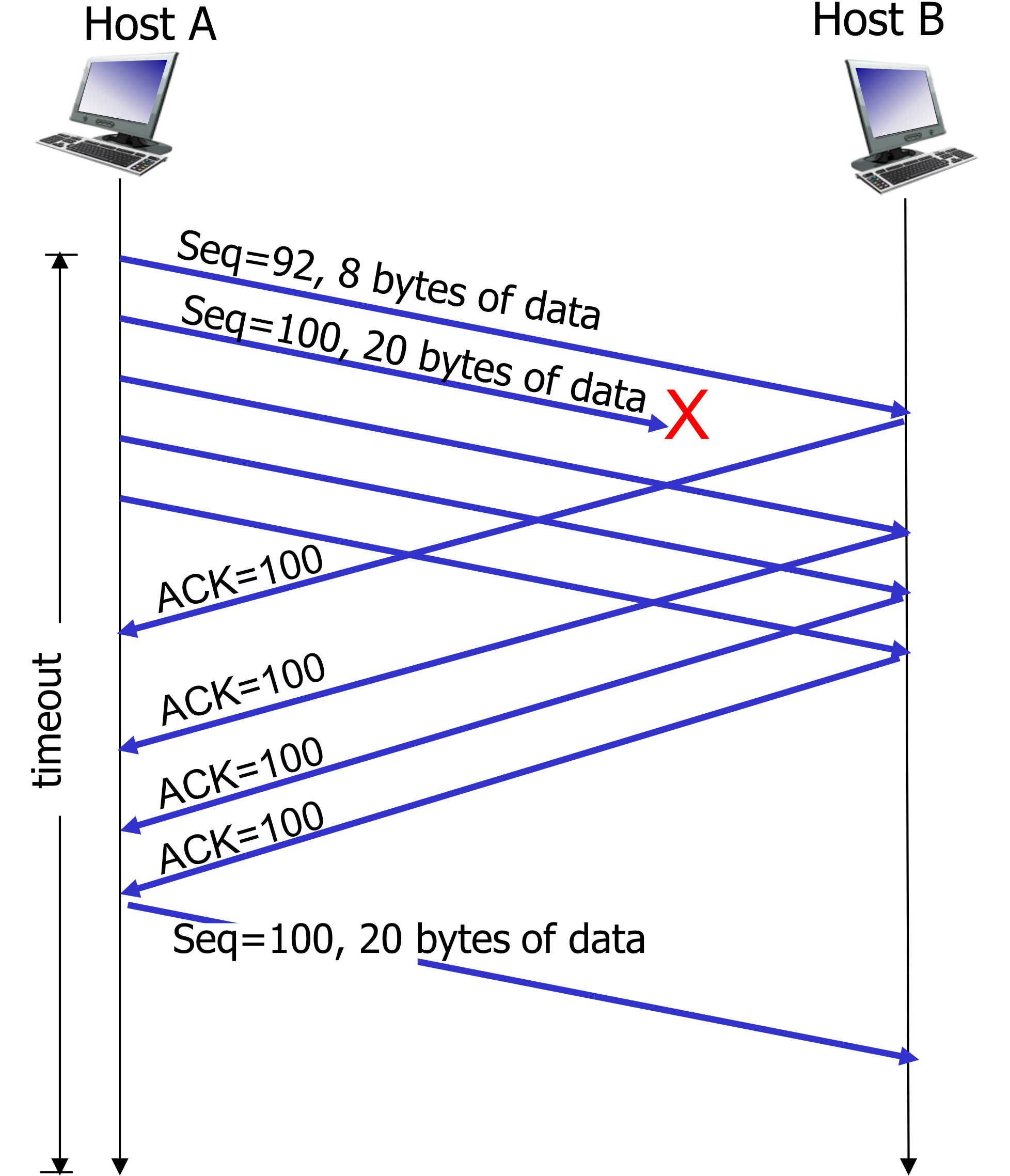

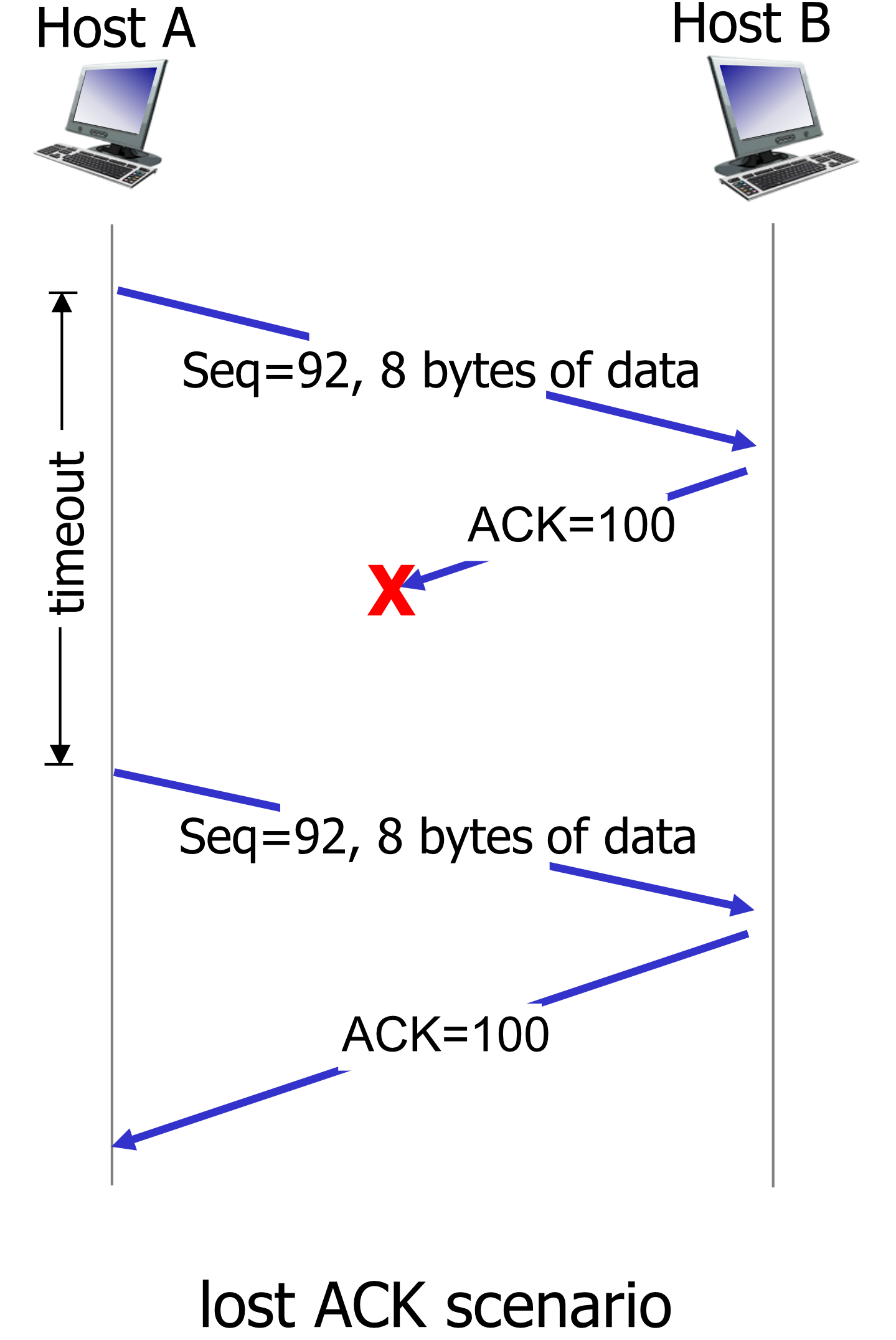

Lost ACK Scenario

Premature Timeout Scenario

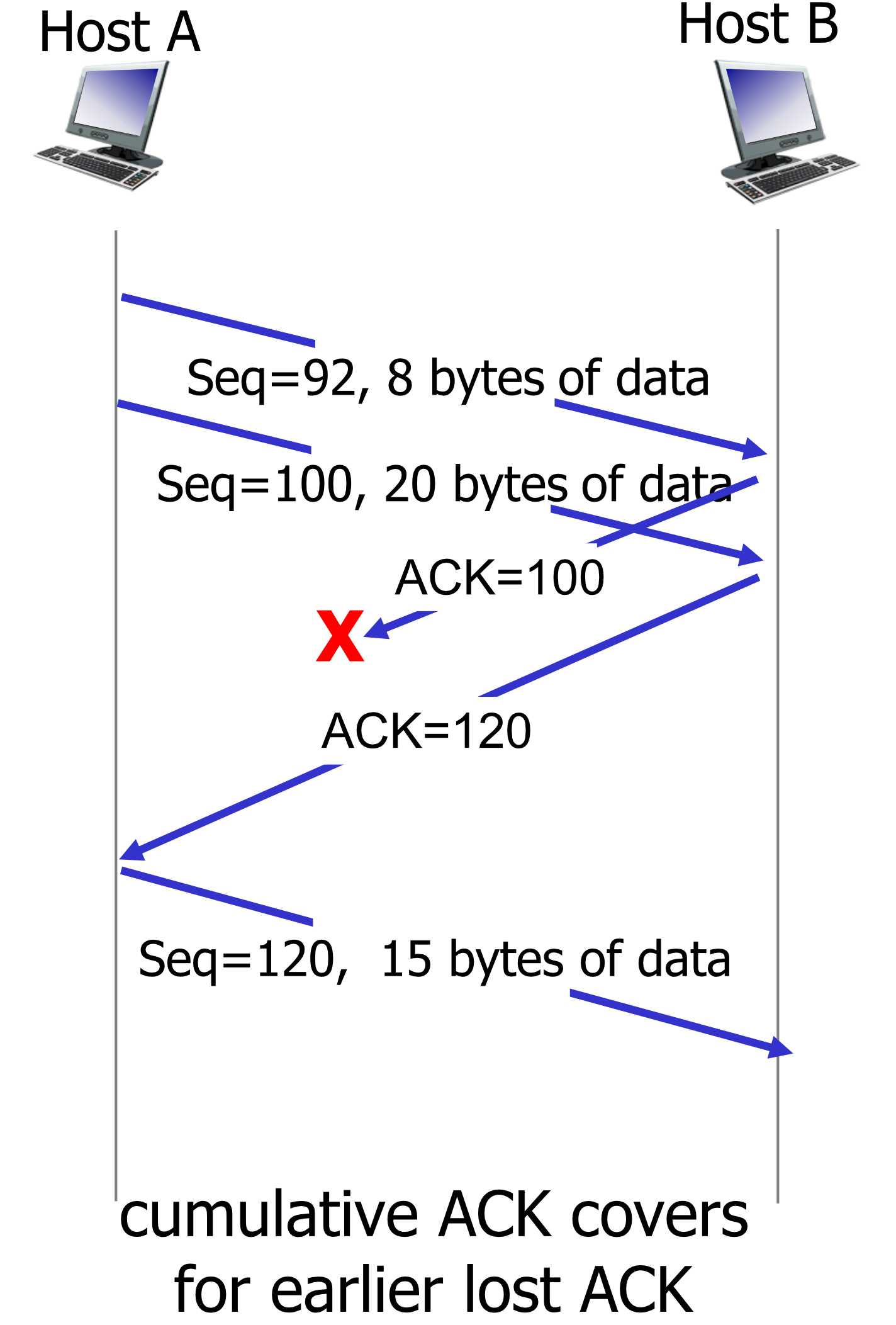

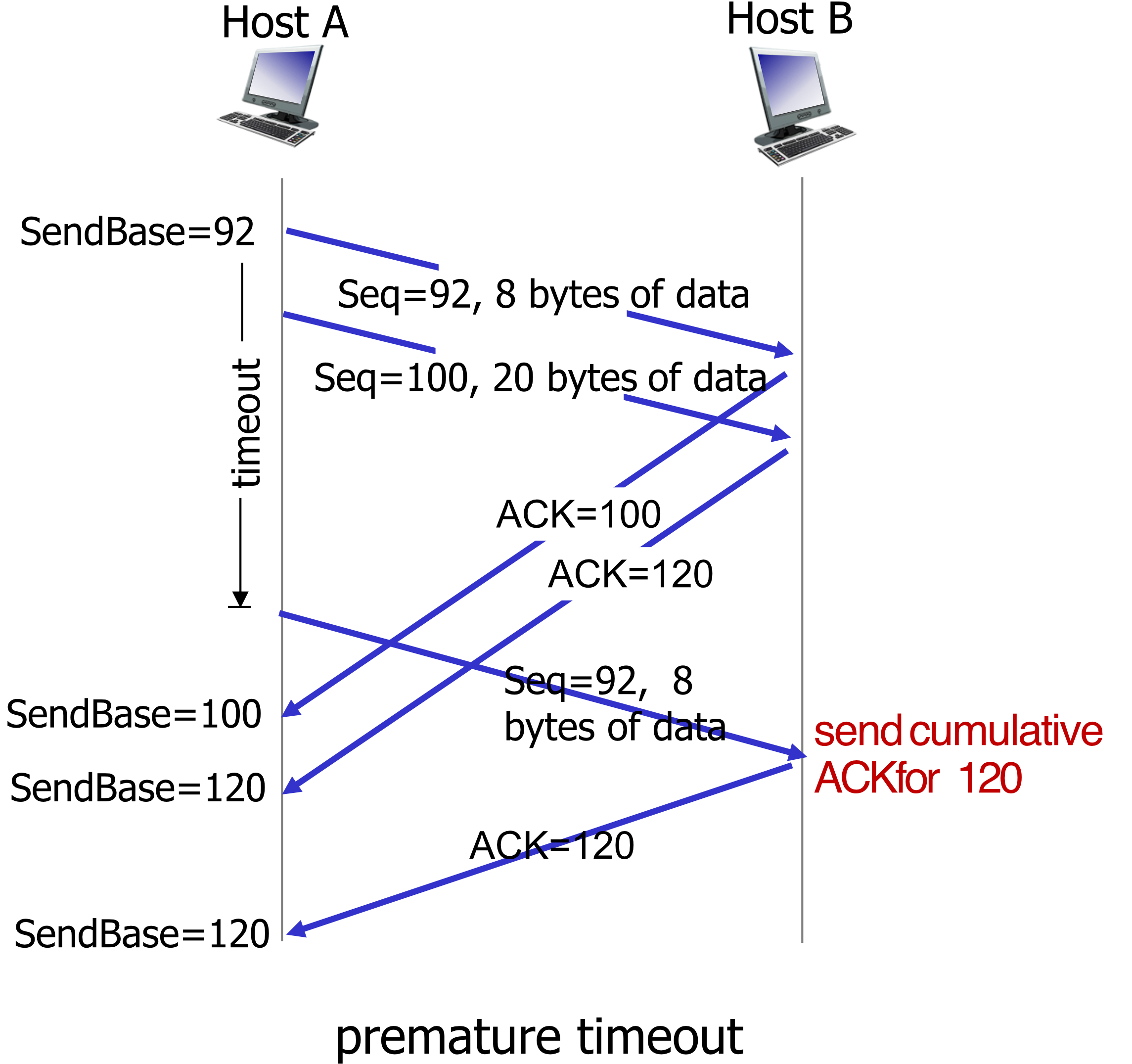

Cumulative ACK Covers Lost ACK

TCP Fast Retransmit

DO NOT WAIT FOR TIMEOUT! → But this works only if you used the pipeline

If the sender receives 3 additional (duplicate) ACKs for the same data ("triple duplicate ACKs"), resend the unACKed segment with the smallest seq#.

• Why? Receipt of 3 duplicate ACKs indicates 3 segments were received after a missing segment → lost segment is likely
• Don't wait for timeout — retransmit immediately

$\boxed{\text{3 duplicate ACKs} \Rightarrow \text{Fast Retransmit (don't wait for timeout)}}$

Analogy: If your friend keeps asking "what did you say after part 2?" three times, you know they missed part 3 — just repeat it without waiting for a long pause.

TCP Flow Control

Problem

clientSocket.send(sentence.encode())
modifiedSentence = clientSocket.recv(1024)
# 1024 = amount of byte, wanted to be read
# smaller = slow down the system, slow read

print('From Server:', modifiedSentence.decode())
clientSocket.close()

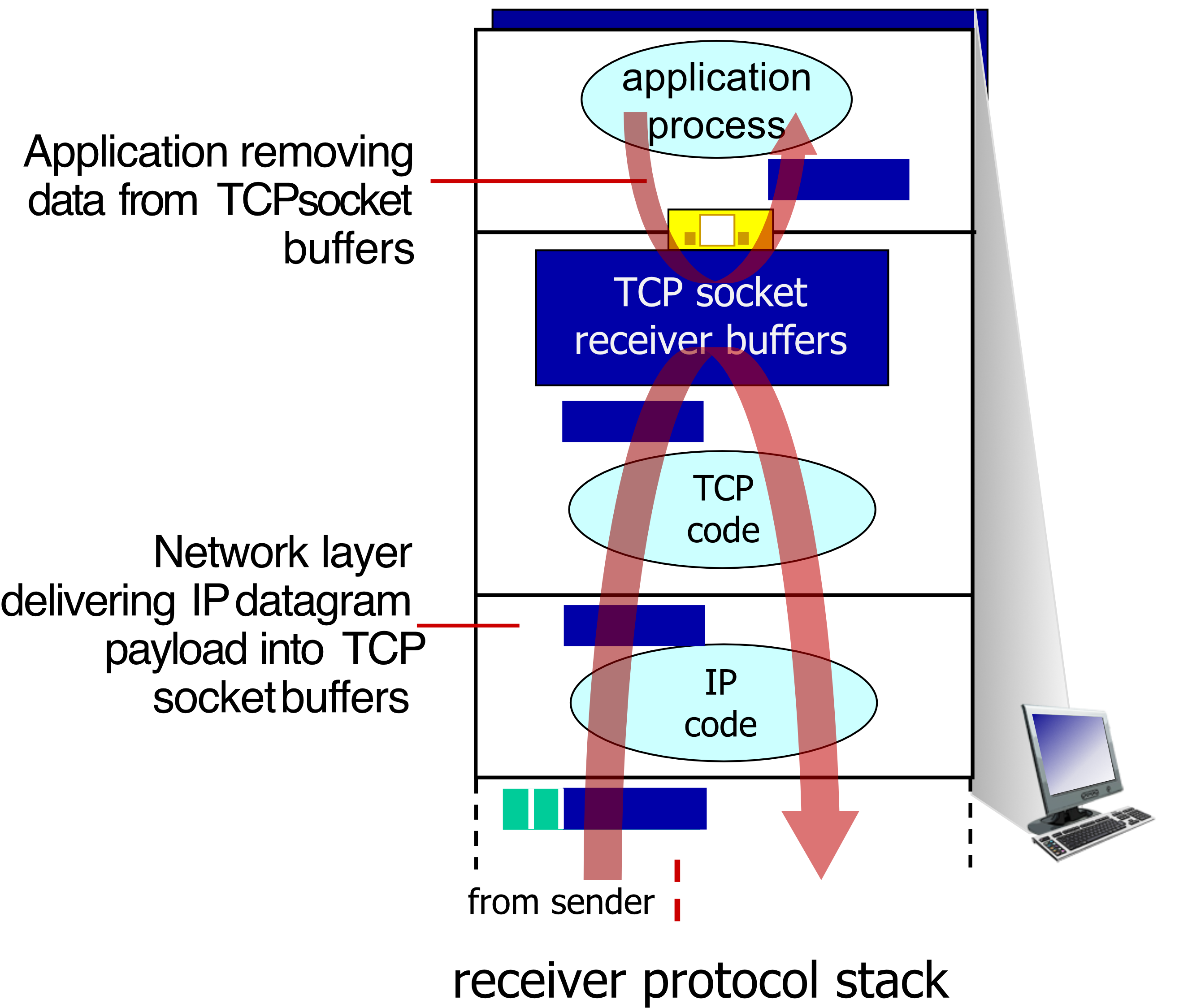

What happens if the network layer delivers data faster than the application layer removes data from socket buffers?

→ Buffer overflow at the receiver!

Solution: Flow Control

Receiver controls sender, so sender won't overflow receiver's buffer by transmitting too much, too fast.

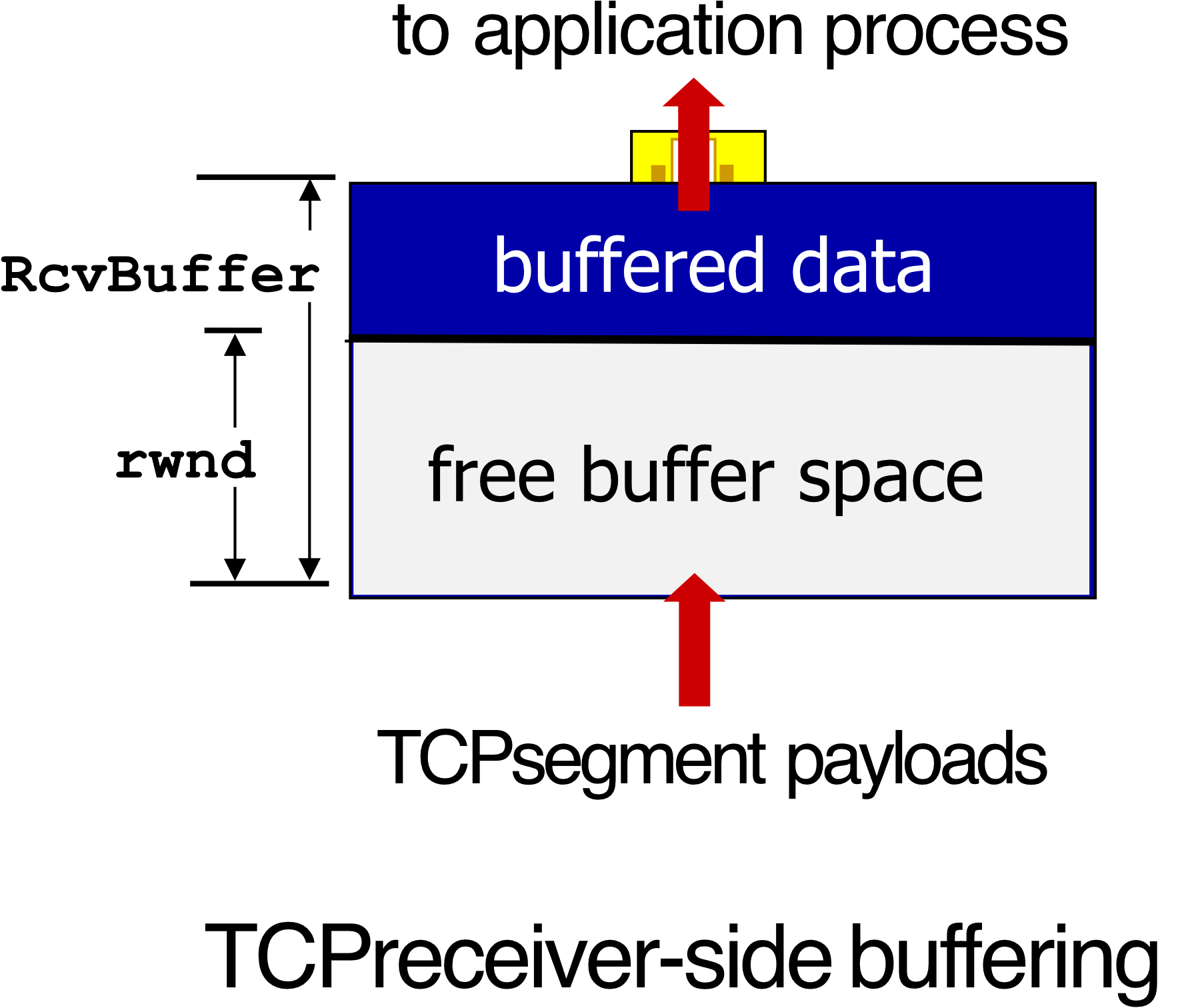

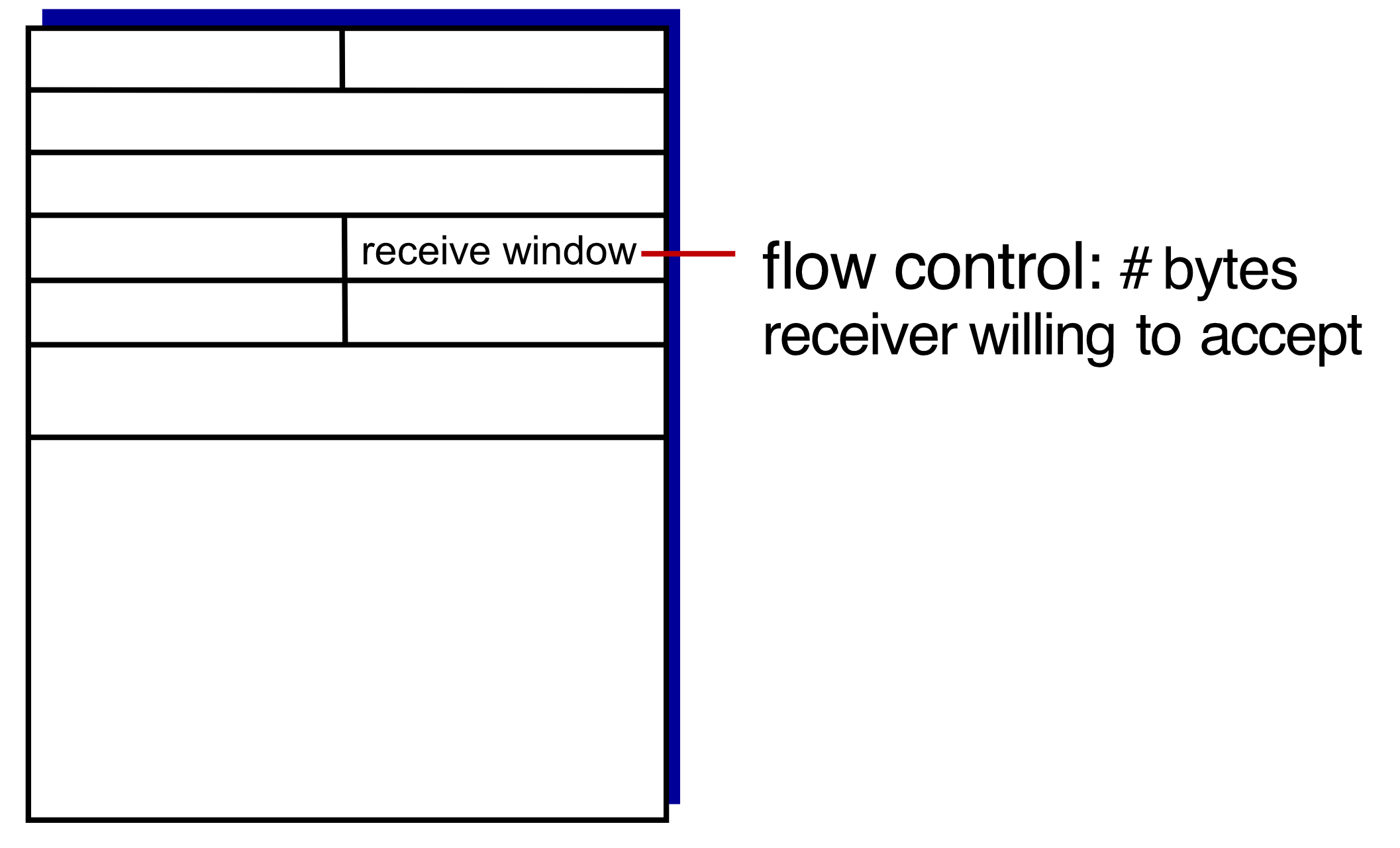

Mechanism: Receive Window (rwnd)

• TCP receiver advertises free buffer space in the rwnd field in the TCP header
• RcvBuffer size set via socket options (typical default: 4096 bytes); many OS auto-adjust

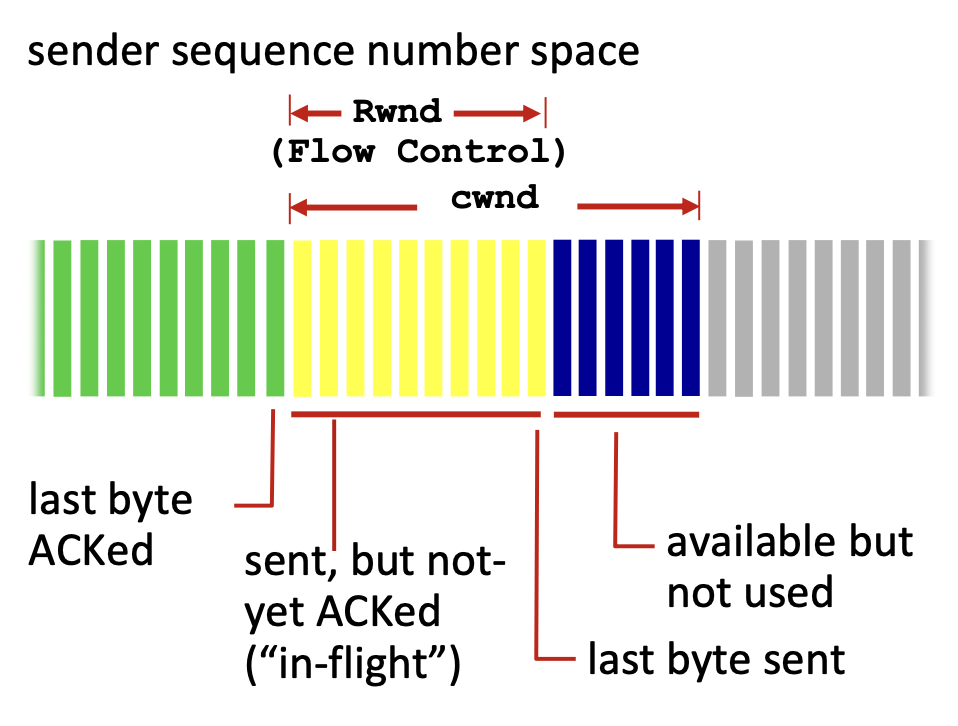

• Sender limits amount of unACKed ("in-flight") data to the received rwnd
• Guarantees receive buffer will not overflow

$\boxed{\text{LastByteSent} - \text{LastByteAcked} \leq \text{cwnd}}$

Analogy: Like a water tank with a faucet — the receiver tells the sender how much room is left in the tank (rwnd). The sender won't pour more water than the tank can hold.

Principles of Congestion Control

What is Congestion?

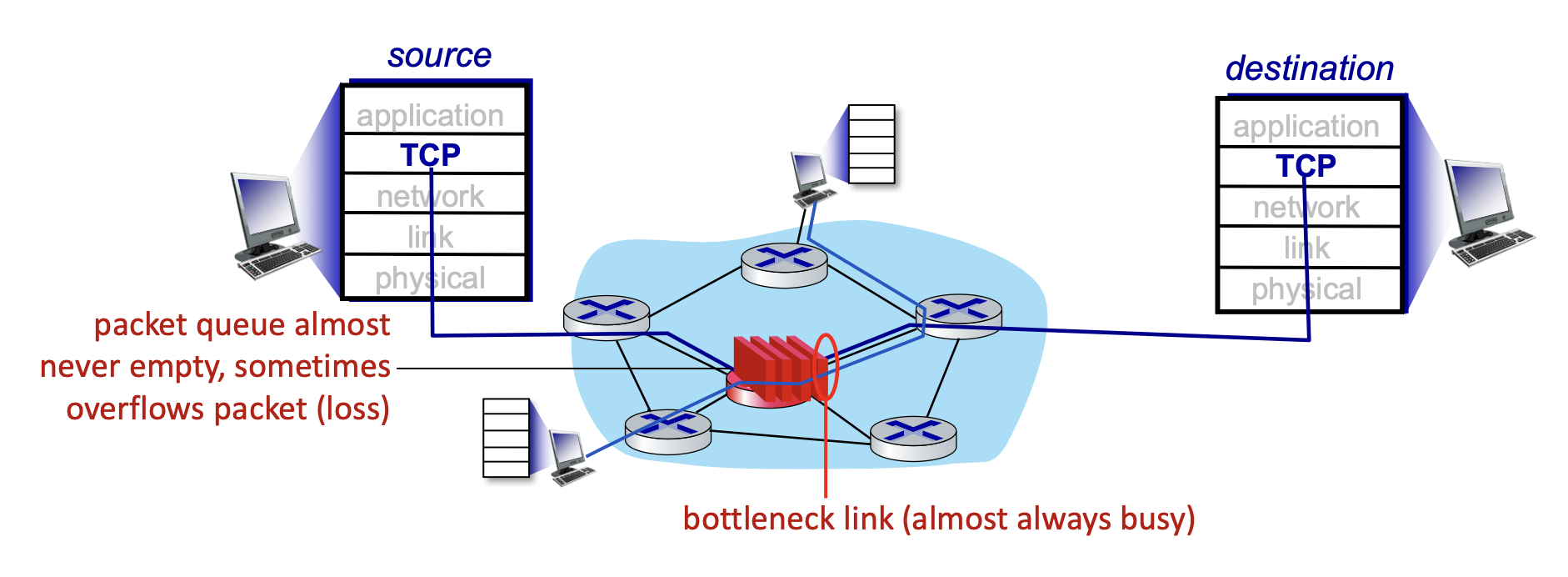

เรามองเป็นภาพรวมของ Network, ไม่มี Flow control ที่ดู 1-1 (Client-server)

Informally: "Too many sources sending too much data too fast for the network to handle"

Problems caused by congestion:

• Long delays (queueing in router buffers)
• Packet loss (buffer overflow at routers)

Flow Control vs. Congestion Control

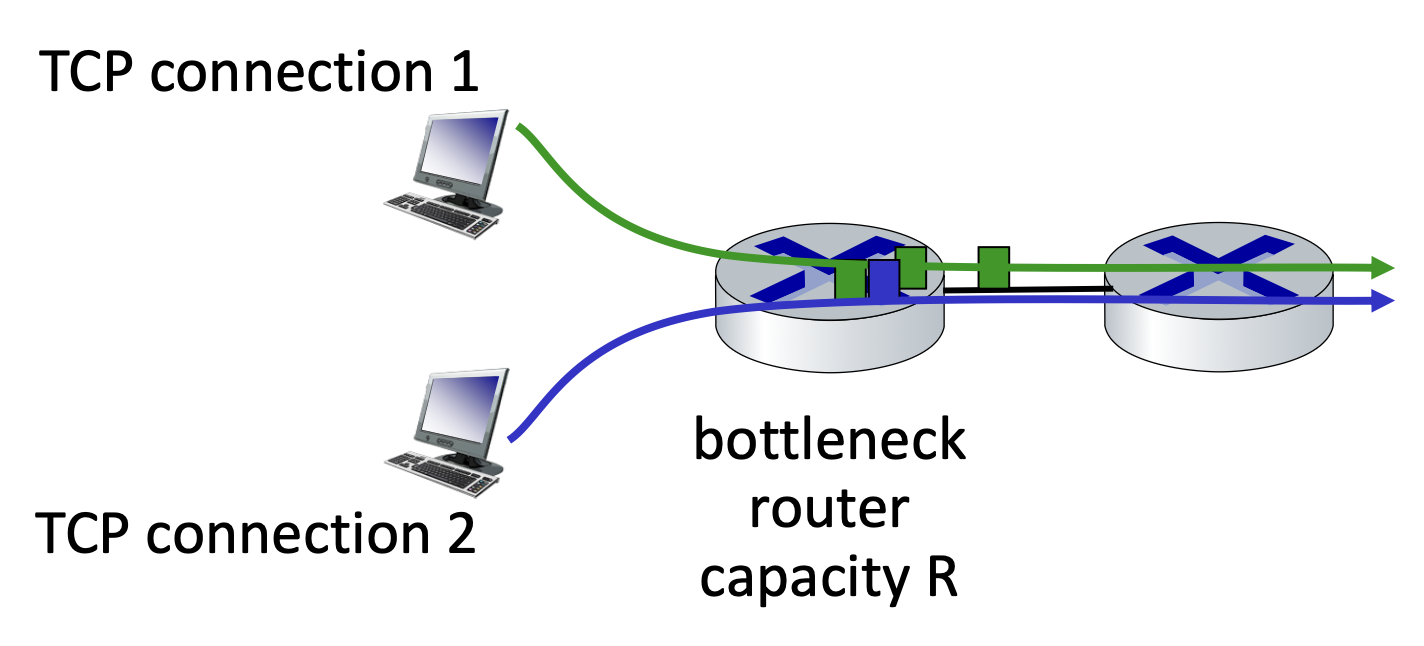

Analogy: Flow control = one garden hose overwhelming one bucket. Congestion control = too many garden hoses filling up the city's water pipes.

Causes/Costs of Congestion

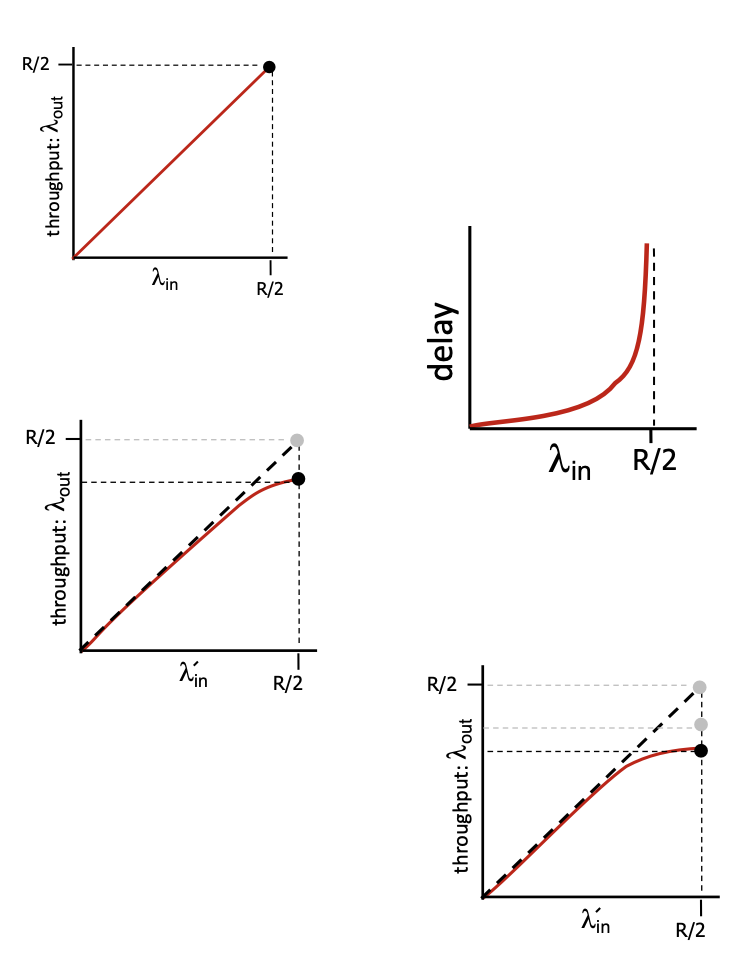

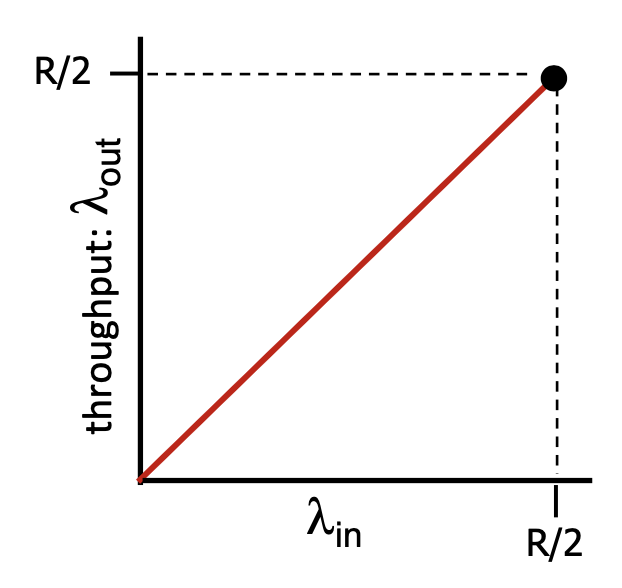

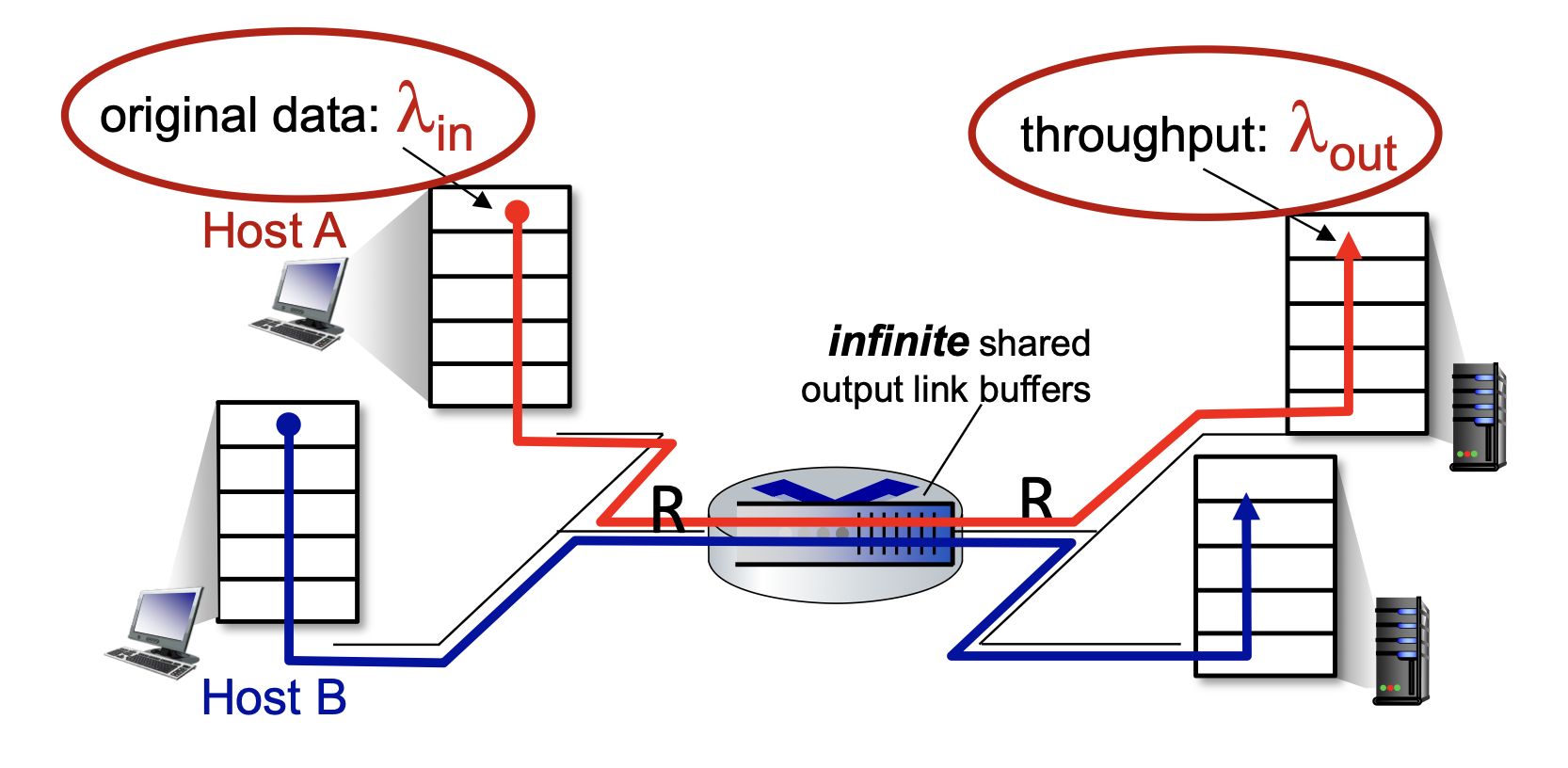

Scenario 1 – One Router, Infinite Buffers, No Retransmissions

• Two flows sharing one router with capacity $R$
• Maximum per-connection throughput: $R/2$

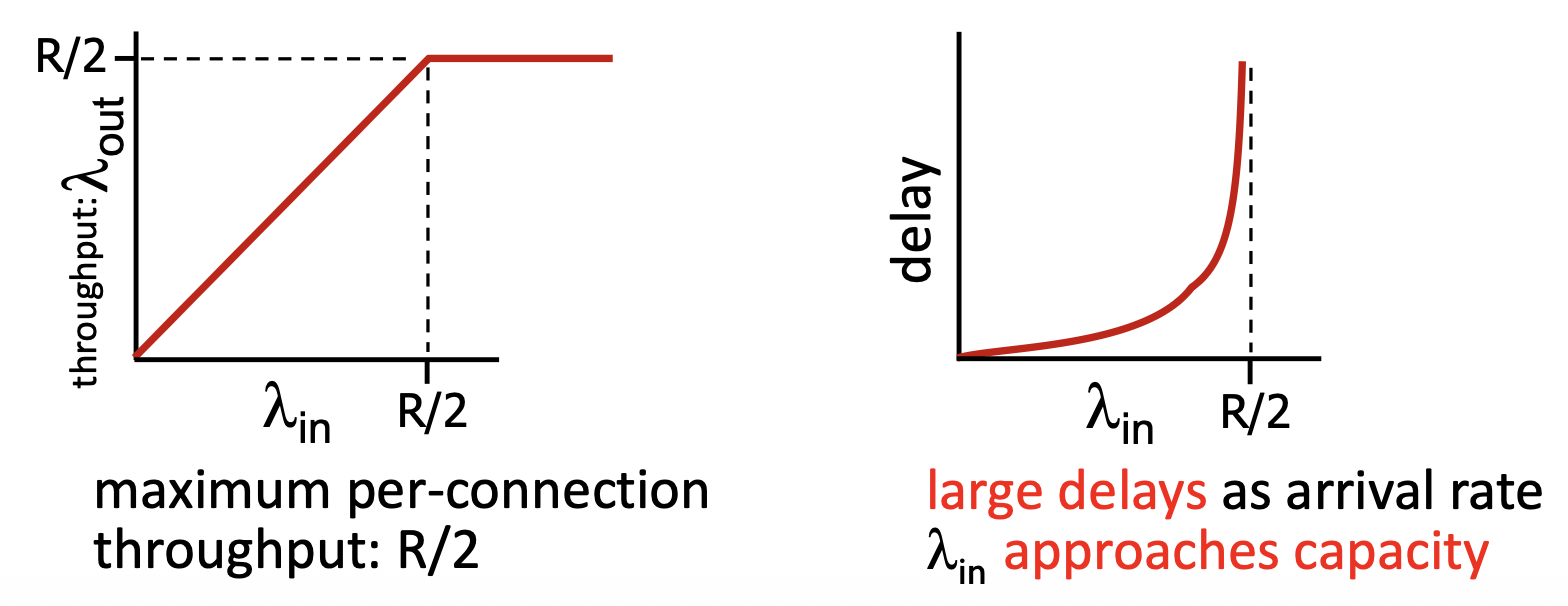

• As $\lambda_{in}$ approaches $R/2$: large delays (queueing)

$\boxed{\lambda_{out} \leq \frac{R}{2}}$

Delay เป็น Exponential เลยล่ะ เพราะอะไร เกี่ยวกับ Queue theory

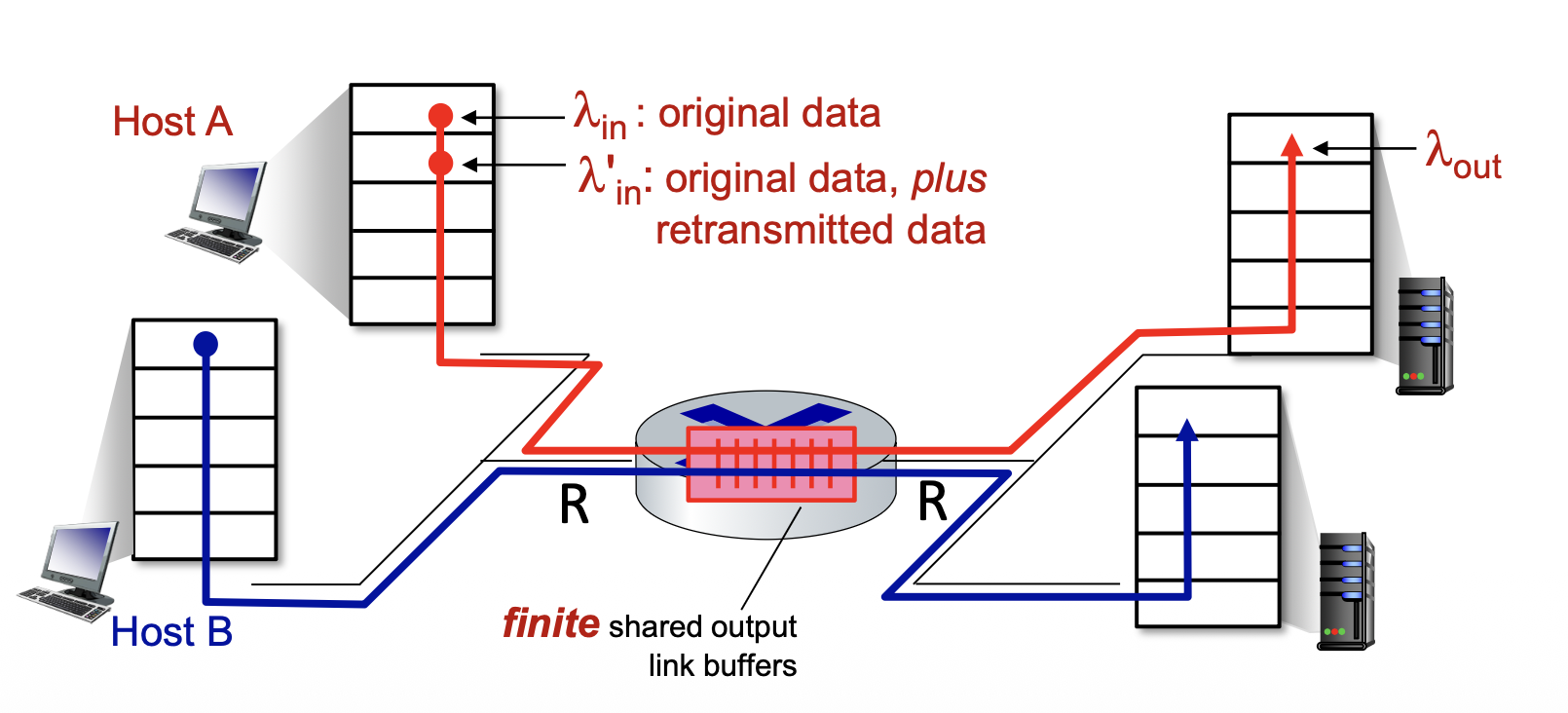

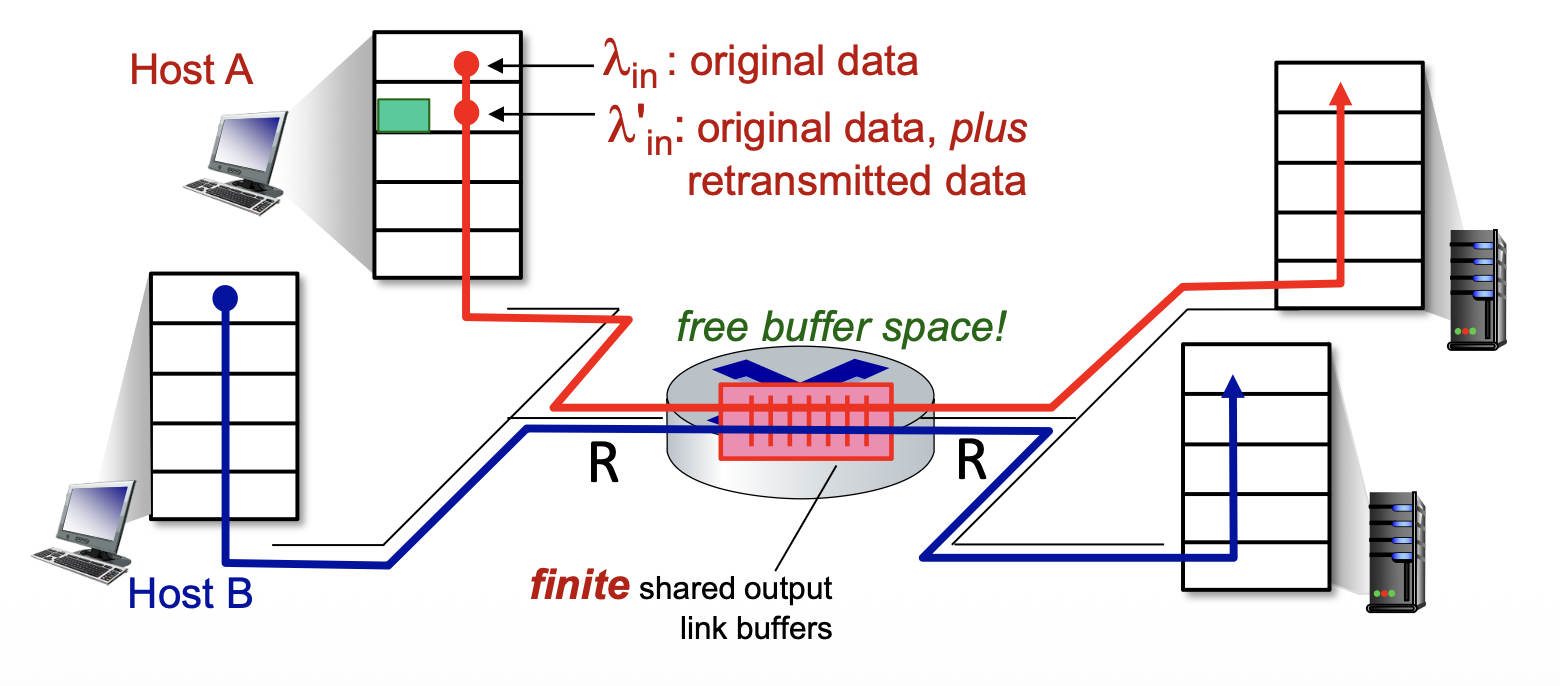

Scenario 2 – One Router, Finite Buffers, Retransmissions

ลองเช็คนิดนึง ข้อมูลหายรึเปล่า???

• Packets can be dropped at router due to full buffers → sender must retransmit
• Transport-layer input includes retransmissions: $\lambda'_{in} \geq \lambda_{in}$

Idealization (perfect knowledge):

• Sender only sends when router buffer is available → throughput can reach $R/2$

Idealization (some perfect knowledge):

• Sender knows when packet dropped → only resends if packet known to be lost
• Some bandwidth wasted on retransmissions

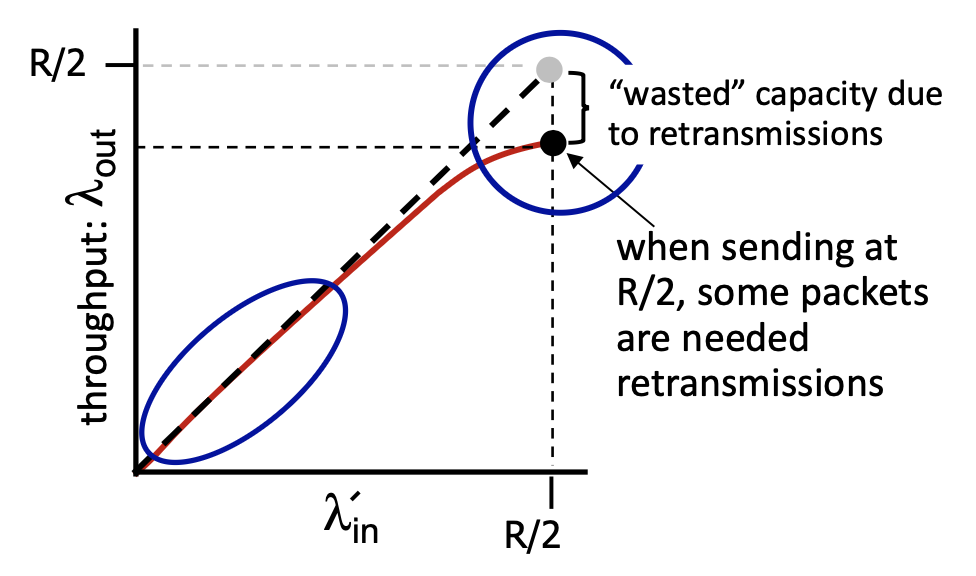

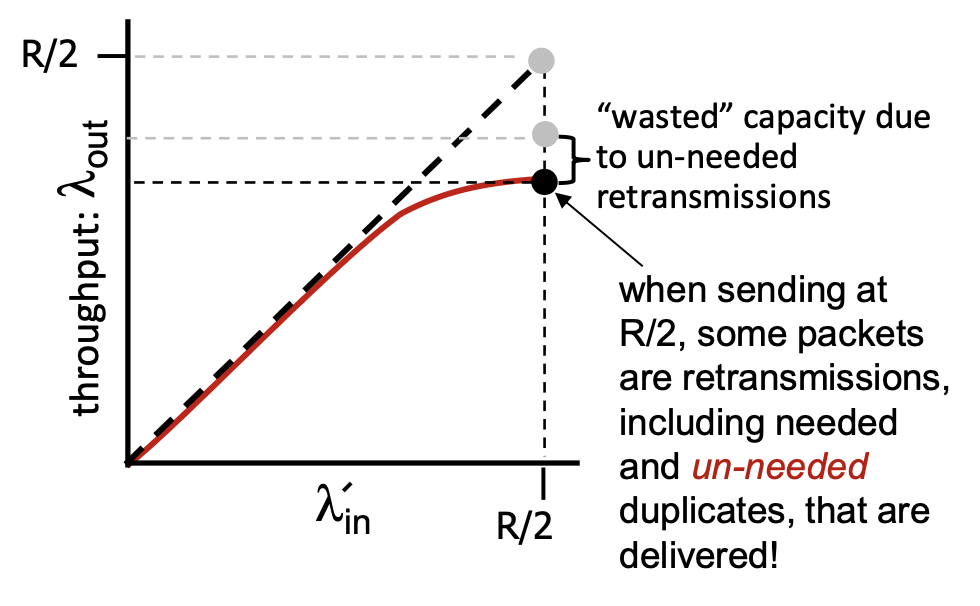

Realistic scenario (premature timeout / un-needed duplicates):

• Sender times out too early → sends two copies, both delivered
• "Wasted" capacity due to un-needed retransmissions → effective throughput further decreases

Key Insights

• Throughput can never exceed capacity $R/2$
• Delay increases as capacity is approached
• Loss/retransmission decreases effective throughput
• Un-needed duplicates further decrease effective throughput

Approaches to Congestion Control

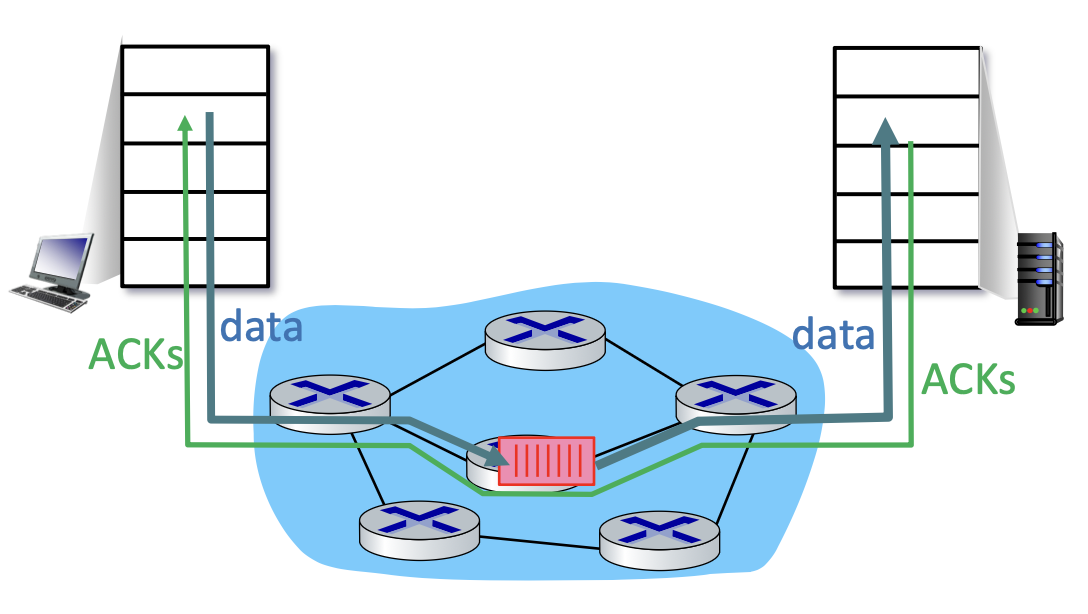

1. End-to-End Congestion Control

• No explicit feedback from network
• Congestion inferred from observed loss and delay
• ✅ Approach taken by TCP

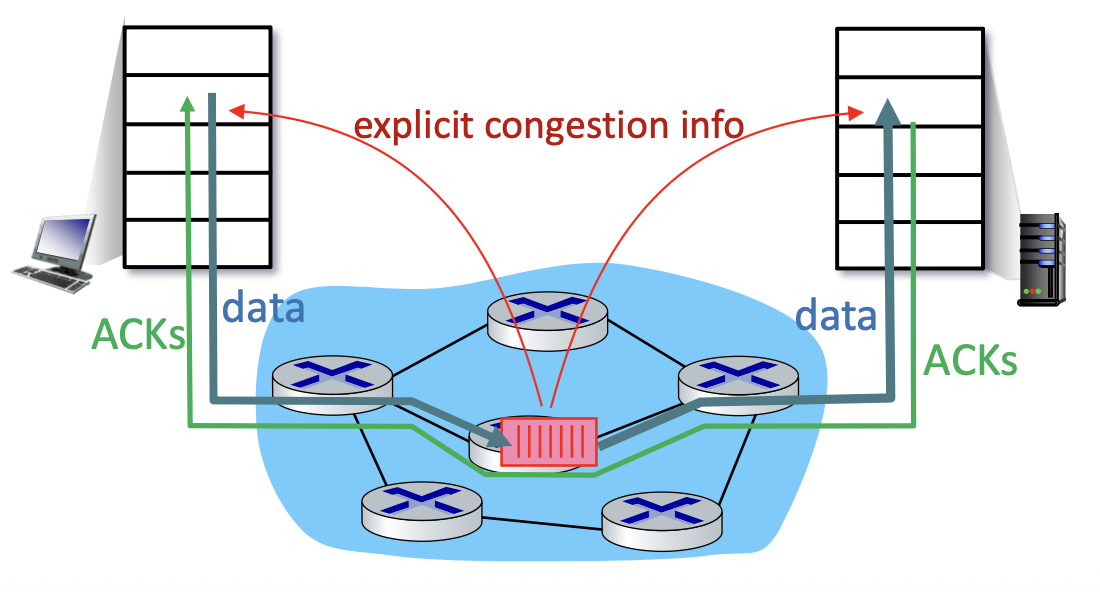

2. Network-Assisted Congestion Control

• Routers provide direct feedback to sending/receiving hosts
• May indicate congestion level or explicitly set sending rate
• Examples: DECbit+, TCP ECN

TCP Congestion Control

Topics covered:

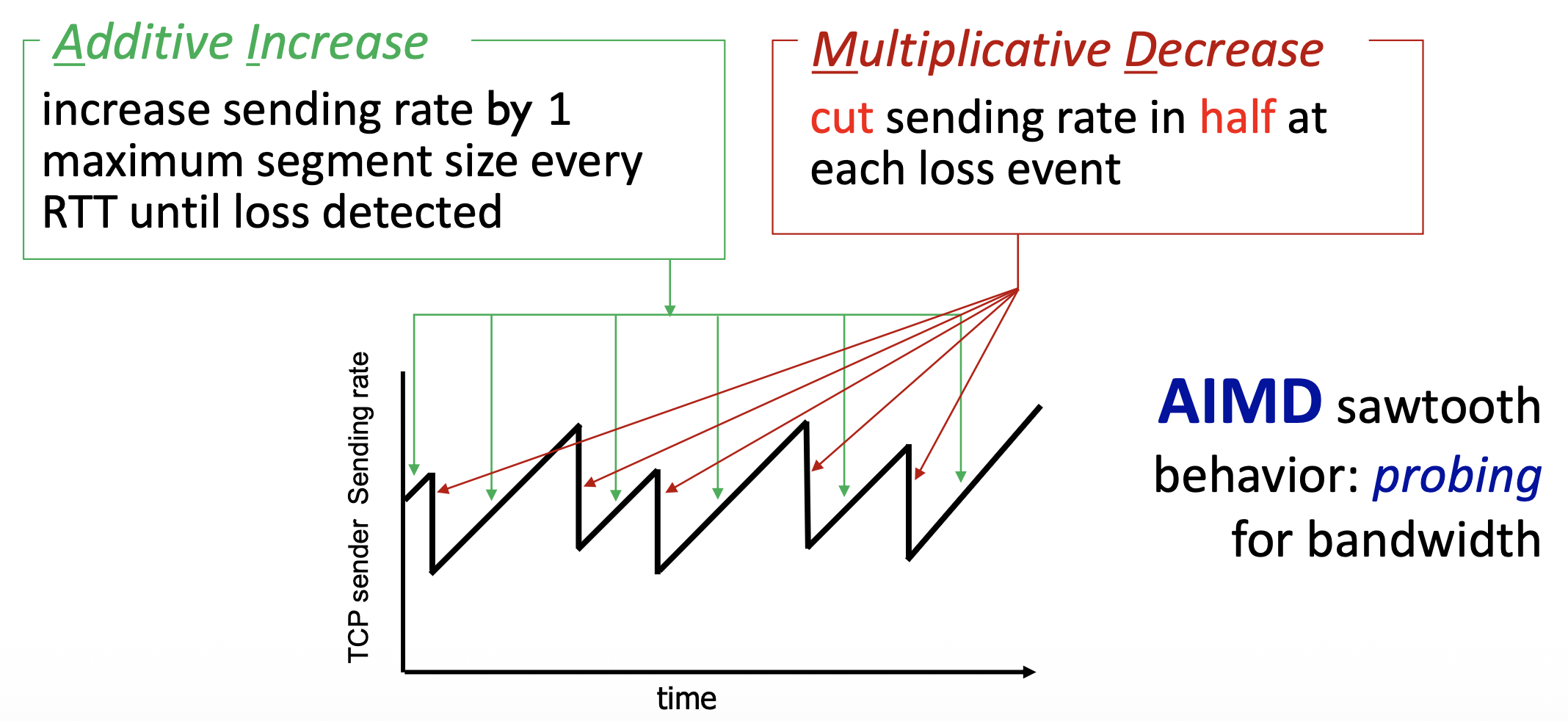

• AIMD (Additive Increase Multiplicative Decrease)

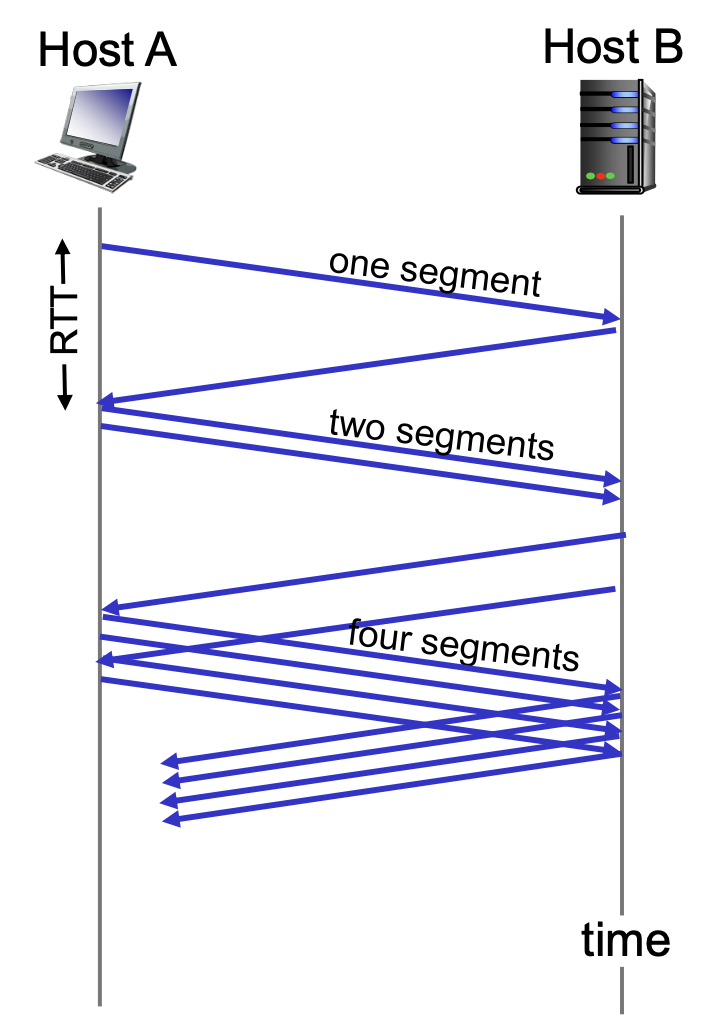

• Slow Start

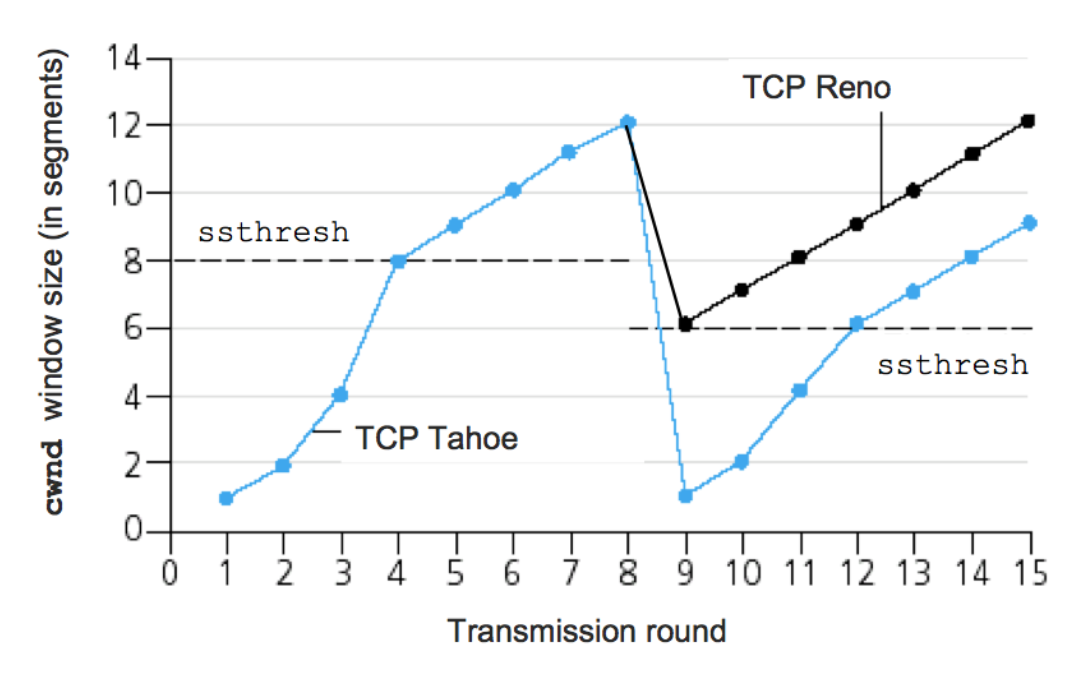

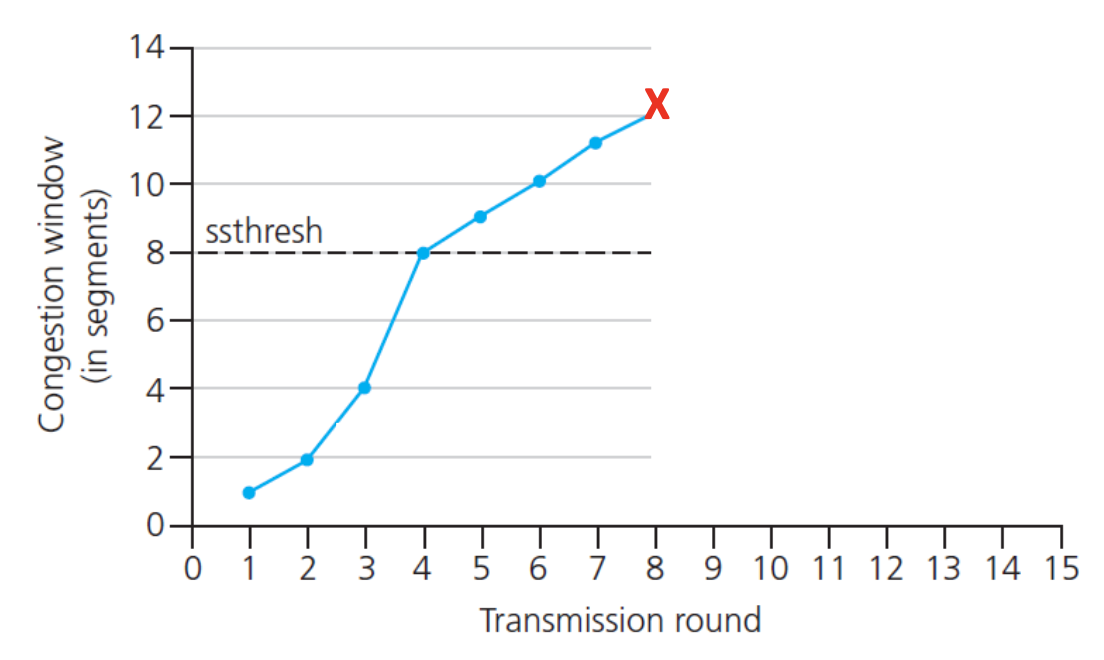

• TCP Reno (Fast Retransmit, Fast Recovery)
• TCP Tahoe

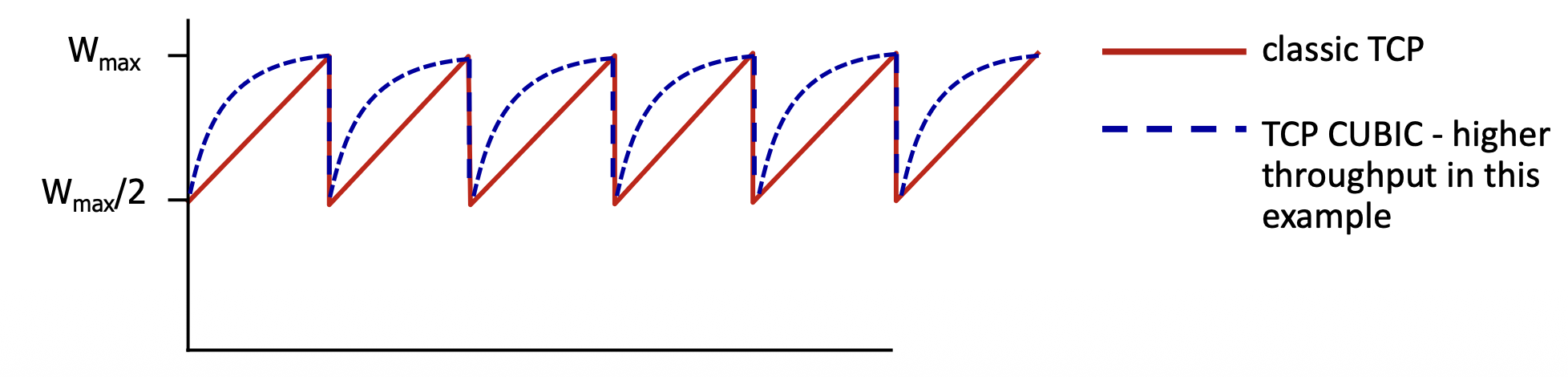

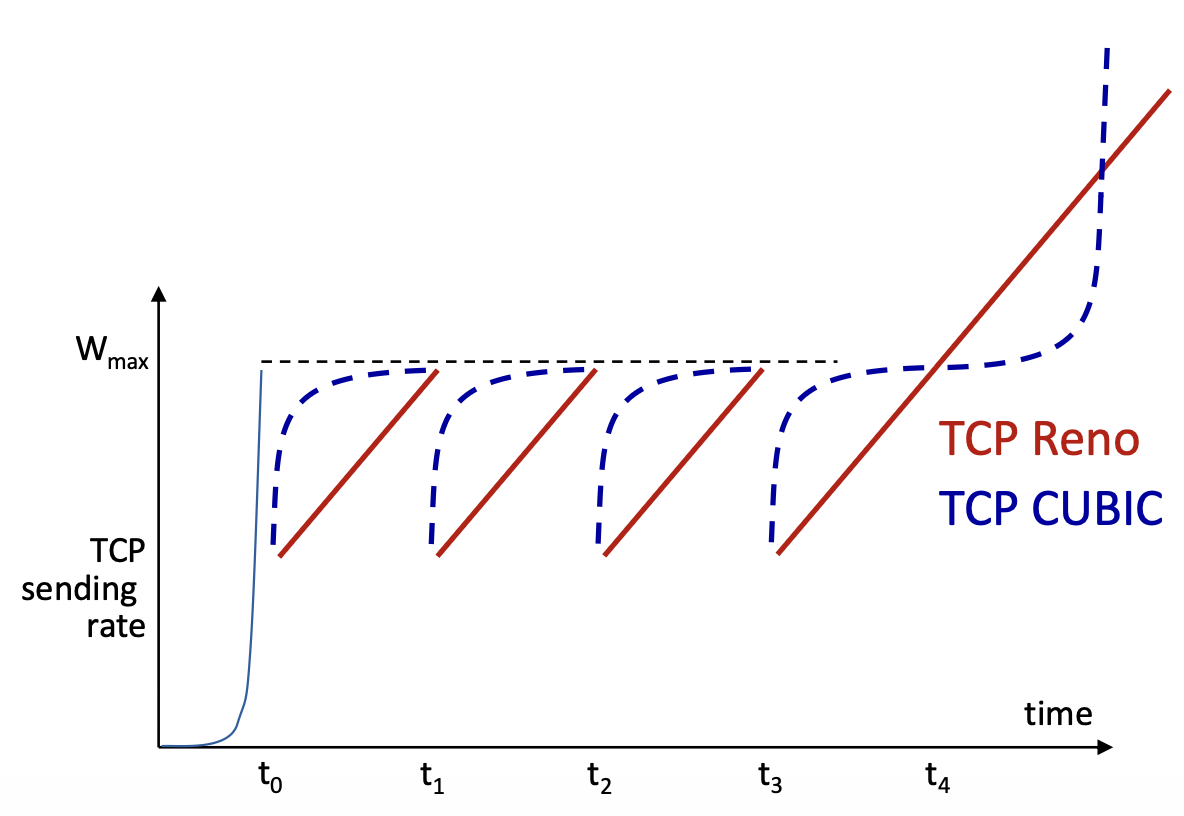

• TCP CUBIC

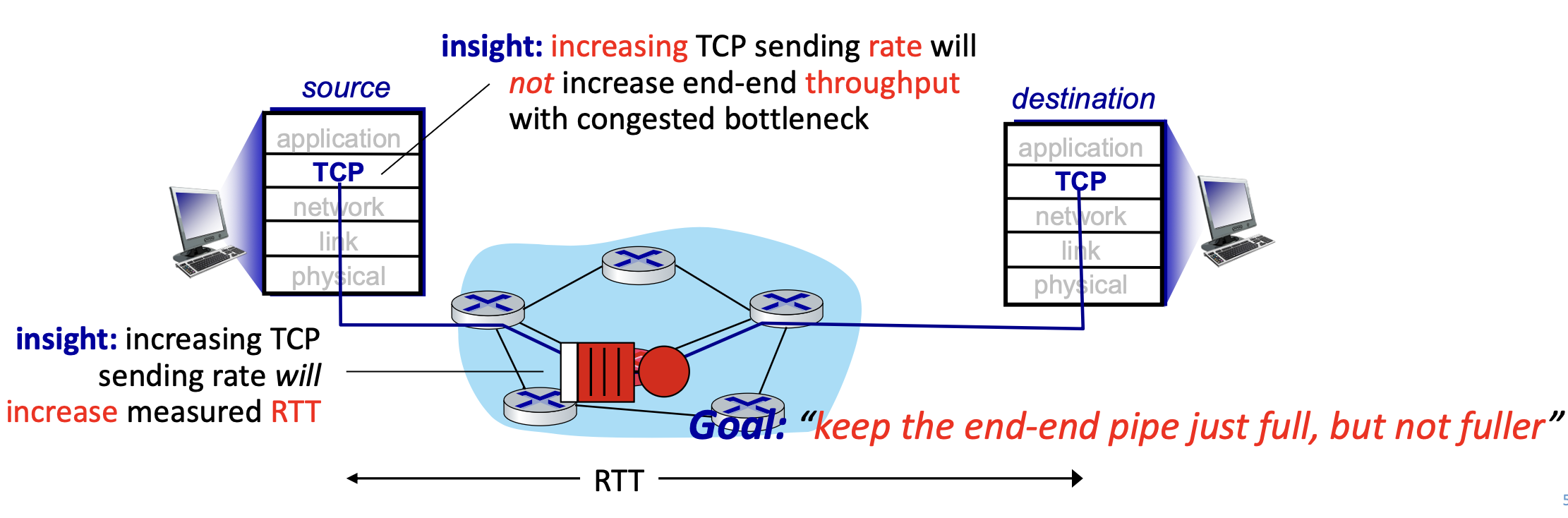

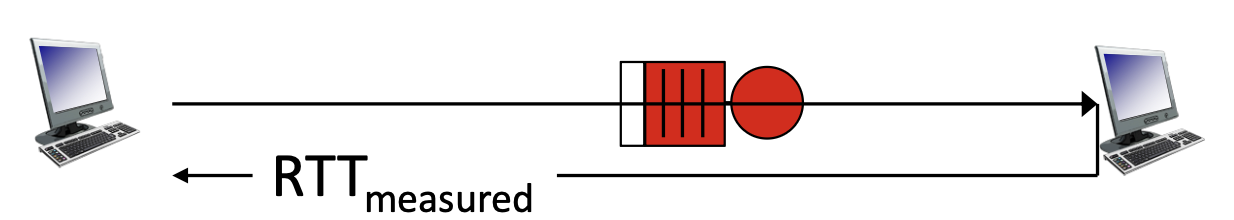

• Delay-based TCP congestion control

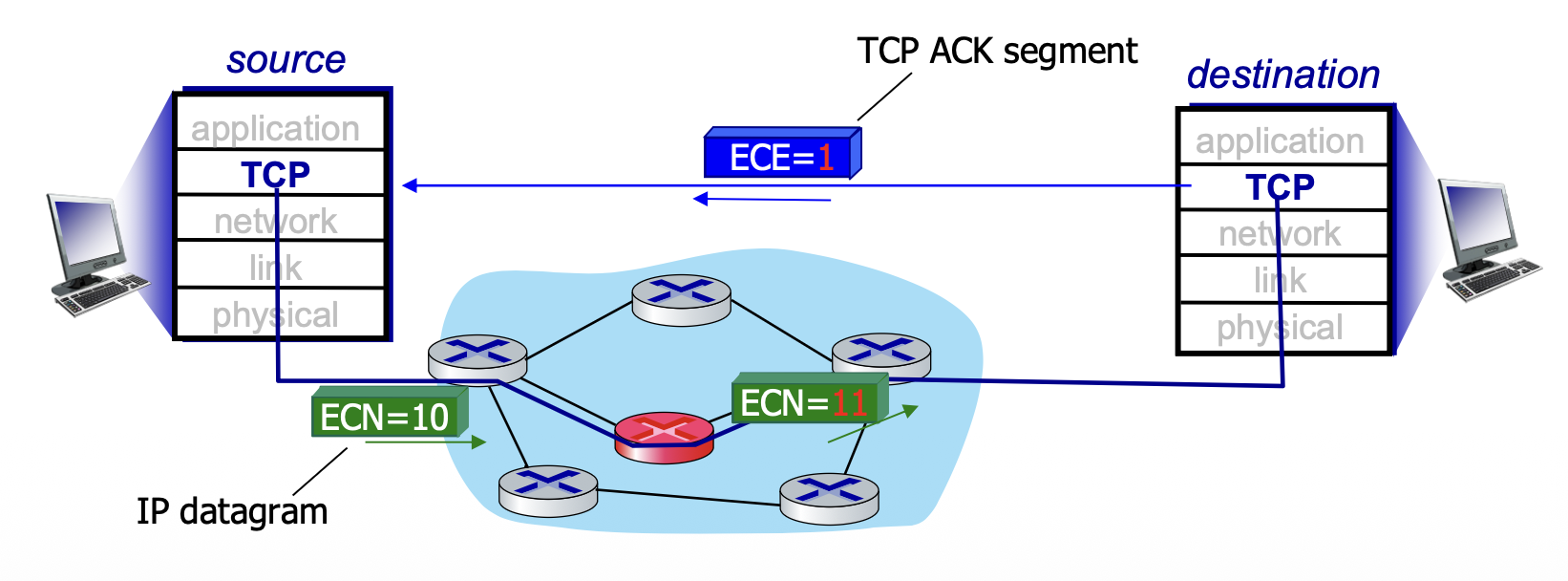

• Explicit Congestion Notification (ECN)

TCP Congestion Window (cwnd)

TCP sender limits transmission:

$\boxed{\text{LastByteSent} - \text{LastByteAcked} < \text{cwnd}}$

• cwnd is dynamically adjusted based on observed network congestion
• TCP sending rate ≈ $\dfrac{\text{cwnd}}{\text{RTT}}$ bytes/sec

Note: The actual send window = $\min(\text{cwnd}, \text{rwnd})$ — both congestion control and flow control apply. (สำคัญนะะะ!!!)

AIMD – Additive Increase, Multiplicative Decrease

Senders increase sending rate until packet loss (congestion) occurs, then decrease on loss.

• Additive Increase – Increase sending rate by 1 MSS every RTT until loss detected
• Multiplicative Decrease – Cut sending rate in half at each loss event

$\boxed{\text{On loss: cwnd} \leftarrow \frac{\text{cwnd}}{2}}$

This creates the characteristic AIMD sawtooth behavior — probing for bandwidth.

Analogy: Like driving on a highway — you gradually speed up, and when you see brake lights (congestion), you cut your speed in half immediately.

Slow Start

• When connection begins, increase rate exponentially until first loss event
  • Initially cwnd = 1 MSS
  • Double cwnd every RTT
  • Done by incrementing cwnd for every ACK received

RTT 1: send 1 segment
RTT 2: send 2 segments
RTT 3: send 4 segments
RTT 4: send 8 segments
...

Summary: Initial rate is slow, but ramps up exponentially fast.

Analogy: Like starting a car — you start slow, but accelerate quickly before reaching your cruising speed.

Slow Start → Congestion Avoidance Transition

Q: When should exponential increase switch to linear?

A: When cwnd reaches ½ of its value before the last timeout.

Implementation — ssthresh (Slow Start Threshold):

• On loss event: $\text{ssthresh} = \frac{\text{cwnd}}{2}$ (just before loss)
• When cwnd < ssthresh → Slow Start (exponential)
• When cwnd ≥ ssthresh → Congestion Avoidance (linear, +1 MSS per RTT)

$\boxed{\text{ssthresh} \leftarrow \frac{\text{cwnd}}{2} \text{ on loss}}$

TCP Tahoe vs TCP Reno

TCP Reno – Loss by Triple Duplicate ACK

• No wait for timeout (Fast Retransmit)
• cwnd is cut to half window, then grows linearly (Fast Recovery)
• ssthresh = cwnd/2

TCP Tahoe – Loss by Timeout

• cwnd is cut to 1 MSS
• Enter TCP Slow Start

Analogy: Reno is more optimistic — 3 duplicate ACKs means some data got through, so just halve the rate. Tahoe is more conservative — timeout means the network is really struggling, so reset completely.

TCP CUBIC

Is there a better way than AIMD to "probe" for usable bandwidth?

Key Insight:

• $W_{max}$: sending rate at which congestion loss was detected
• After cutting rate in half on loss, initially ramp to $W_{max}$ faster, then approach $W_{max}$ more slowly

• Go very fast and slow down later, เหมือนเปลี่ยน animation curve อะ55555

K = point in time when TCP window will reach $W_{max}$

• Larger increases when farther from K
• Smaller increases (cautious) when nearer to K
• Window increases as a function of the cube of the distance from K

$\boxed{W(t) = C(t - K)^3 + W_{max}}$

• TCP CUBIC is the default in Linux and most popular TCP for popular Web servers
• Higher throughput compared to classic TCP

TCP Bottleneck Link

• TCP (classic, CUBIC) increases sending rate until packet loss occurs at some router's output: the bottleneck link

• The bottleneck link's packet queue is almost never empty, and sometimes overflows (packet loss)

  Key Insights:
• Increasing TCP sending rate will NOT increase end-end throughput with a congested bottleneck
• Increasing TCP sending rate WILL increase measured RTT

$\boxed{\text{Goal: ``Keep the end-end pipe just full, but not fuller"}}$

Delay-Based TCP Congestion Control

Keeping sender-to-receiver pipe "just full enough, but no fuller."

$\text{measured throughput} = \frac{\text{\# bytes sent in last RTT interval}}{\text{RTT}_{measured}}$
Algorithm:

• $\text{RTT}_{min}$ = minimum observed RTT (uncongested path)
• Uncongested throughput with cwnd = $\dfrac{\text{cwnd}}{\text{RTT}_{min}}$

if measured throughput ≈ cwnd/RTT_min:
    increase cwnd linearly   # path not congested
else if measured throughput << cwnd/RTT_min:
    decrease cwnd linearly   # path is congested

Analogy: You're on a highway — if your actual speed matches the speed limit (uncongested), speed up a bit. If you're stuck at 40 mph when the limit is 80 mph, you slow down to avoid making things worse.

Explicit Congestion Notification (ECN)

Network-assisted congestion control built on top of TCP:

• Two bits in IP header (ToS field) marked by network router to indicate congestion
• Congestion indication carried to destination
• Destination sets ECE bit on ACK segment to notify sender of congestion
• Involves both IP (ECN bit marking) and TCP (C, E bit marking)

Source           Router        Destination
  |  ECN=10         |              |
  |────────────────→| (congested)  |
  |           ECN=11|              |
  |                 |────────────→ |
  |  ECE=1 (in ACK) |              |
  |←────────────────────────────── |

TCP Fairness

Fairness Goal: If $K$ TCP sessions share the same bottleneck link of bandwidth $R$, each should have average rate of:
$\boxed{\frac{R}{K}}$

Is TCP Fair?

• Under idealized conditions, AIMD leads to equal bandwidth sharing
• Multiple TCP connections between same two hosts will get proportionally more bandwidth

Fairness and UDP

• Multimedia apps often use UDP (not TCP) — they do not want rate throttled by congestion control
• Send audio/video at constant rate, tolerate packet loss
• There is no "Internet police" enforcing use of congestion control

Fairness and Parallel TCP Connections

• Applications can open multiple parallel TCP connections between two hosts
• Example: link with rate $R$, 9 existing connections:
  • New app asks for 1 TCP → gets $R/10$
  • New app asks for 11 TCPs → gets $R/2$ (unfair!)

Summary
