Chapter 8 - Resource Management, VM CPU Schedulers (VM Scheduling)

Technique that most VM use to control (schedule) allocate to other VMs

Contents

• Resource management and scheduling
• Policies and mechanisms
• Case-study of CPU schedulers:
  • Xen CPU schedulers: BVT, SEDF, Credit
• Based on the paper: "Comparison of the Three CPU Schedulers in Xen" by L. Cherkasova, D. Gupta, A. Vahdat — ACM SIGMETRICS Performance Evaluation Review, Vol. 35 Issue 2, Sep 2007, pp. 42–51

Cloud Resource Management Policies

Five key policies that govern cloud resource management:

1. Admission control → Prevent the system from accepting workload in violation of high-level system policies
   • ป้องกันไม่ให้ระบบรับงานเกิน policy ที่กำหนด
   • บริษัทกำหนดว่า API server รับได้ไม่เกิน 10,000 requests/sec ถ้า traffic พุ่งไป 15,000 requests/sec → ระบบจะ Reject บาง request (HTTP 503) หรือยัดใส่ Queue งี้
2. Capacity allocation → Allocate resources for individual activations of a service
   • จัดสรรทรัพยากรให้แต่ละ service
     • Service A ได้ 2 vCPU, 4 GB RAM
     • Service B ได้ 1 vCPU, 2 GB RAM
3. Load balancing → Distribute the workload evenly among the servers
4. Energy optimisation → Minimisation of energy consumption
5. Quality of service (QoS) guarantees → Ability to satisfy timing or other conditions specified by a Service Level Agreement (SLA)
   • การรับประกันตาม SLA
   • Uptime ≥ 99.9%
   • Response time ≤ 200 ms
   • Latency ≤ 50 ms

Server Load Balancing

• Server load balancing distributes client traffic to servers to ensure consistent, high-performance application delivery
• It ensures: application delivery, scalability, reliability, and high availability
• Works within two main types of load balancing:
  • Transport-level load balancing — A DNS-based approach which acts independently of the application payload
  • Application-level load balancing — Uses traffic load to make balancing decisions (e.g., Windows Server Load Balancing)

Think of a load balancer like a restaurant host — they seat customers (requests) across different tables (servers) so no single table gets overwhelmed.

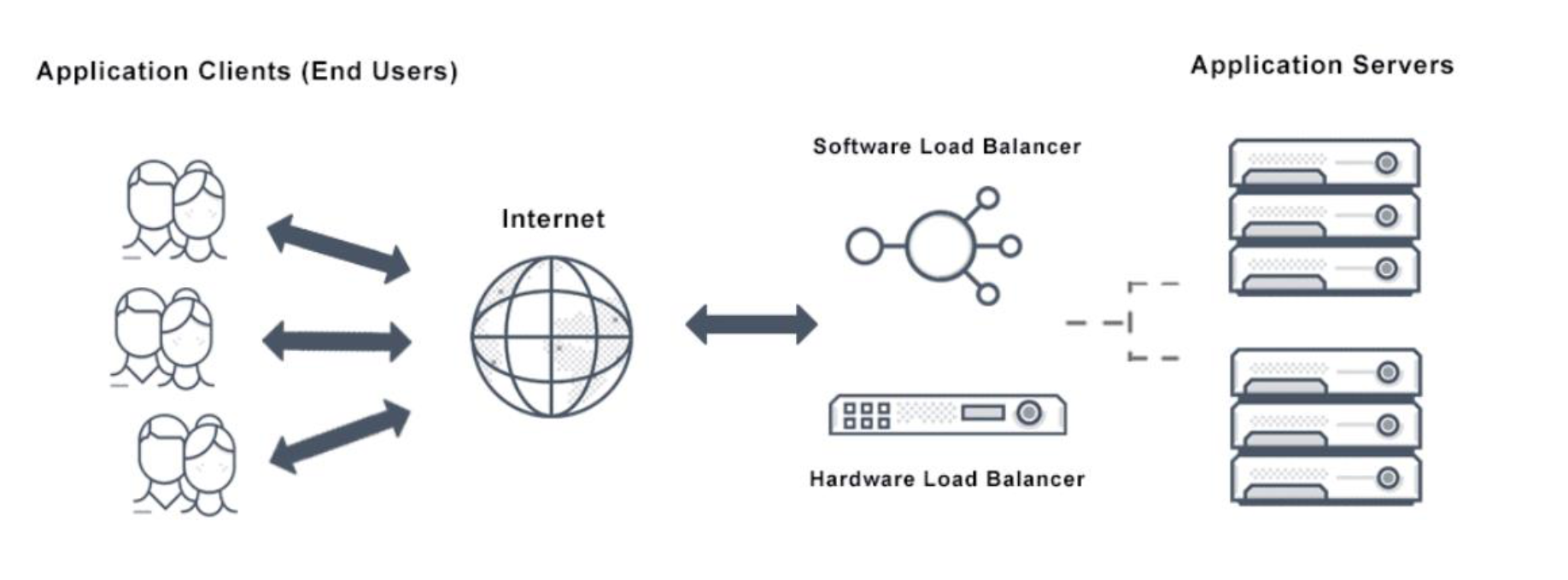

Load Balancer Diagram

Resource Management and Scheduling

• Scheduling in a computing system → deciding how to ==allocate resources== (CPU cycles, memory, storage, I/O, network bandwidth) between users and tasks
• A scheduler → a program that implements a particular scheduling algorithm
• Scheduling is a critical function of any man-made system

Three Basic Criteria for System Evaluation

1. Functionality — Does it work as it should?
2. Performance — Does it perform well?
3. Cost — How much does it cost?
   • Processing Cost (computation cost, processing time)
   • Communication Cost
   • Storage Cost

Policies vs Mechanisms

• Policy → Principles guiding decisions (what to do)
• Mechanism → The means to implement policies (how to do it)

Policy is like a company rule ("prioritize premium customers"). Mechanism is the actual software/queue that enforces it.

Motivation — Why Cloud Resource Management is Hard

Cloud resource management is challenging because:

• It requires complex policies and decisions for multi-objective optimisation
• The system complexity makes it impossible to have accurate global state information
• Cloud service providers face large fluctuating loads which challenge Cloud elasticity
• Affected by unpredictable interactions with the environment (e.g., system failures, attacks)

Scheduling Algorithms

• Scheduling → responsible for resource sharing and multiplexing at several levels
  • A server can be shared among several virtual machines
  • A virtual machine could support several applications
• A scheduler decides:
  • The amount of resources allocated
  • The duration of the particular resource allocation
• A scheduling algorithm should be: efficient, fair, and starvation-free
  • Efficient usually refer to performance (speed)

Starvation — A problem in concurrent computing where a process is perpetually denied necessary resources. Can be caused by scheduling errors, resource leaks, or deliberate attacks (e.g., fork bomb).

Scheduler Objectives (by application type)

• Real-time system: (e.g. K-Plus,)

Common Scheduling Algorithms

• Round-robin
• First-Come-First-Serve (FCFS)
• Shortest-Job-First (SJF)

เหมือนมีบางอย่างหาย check!!

Deadline Types

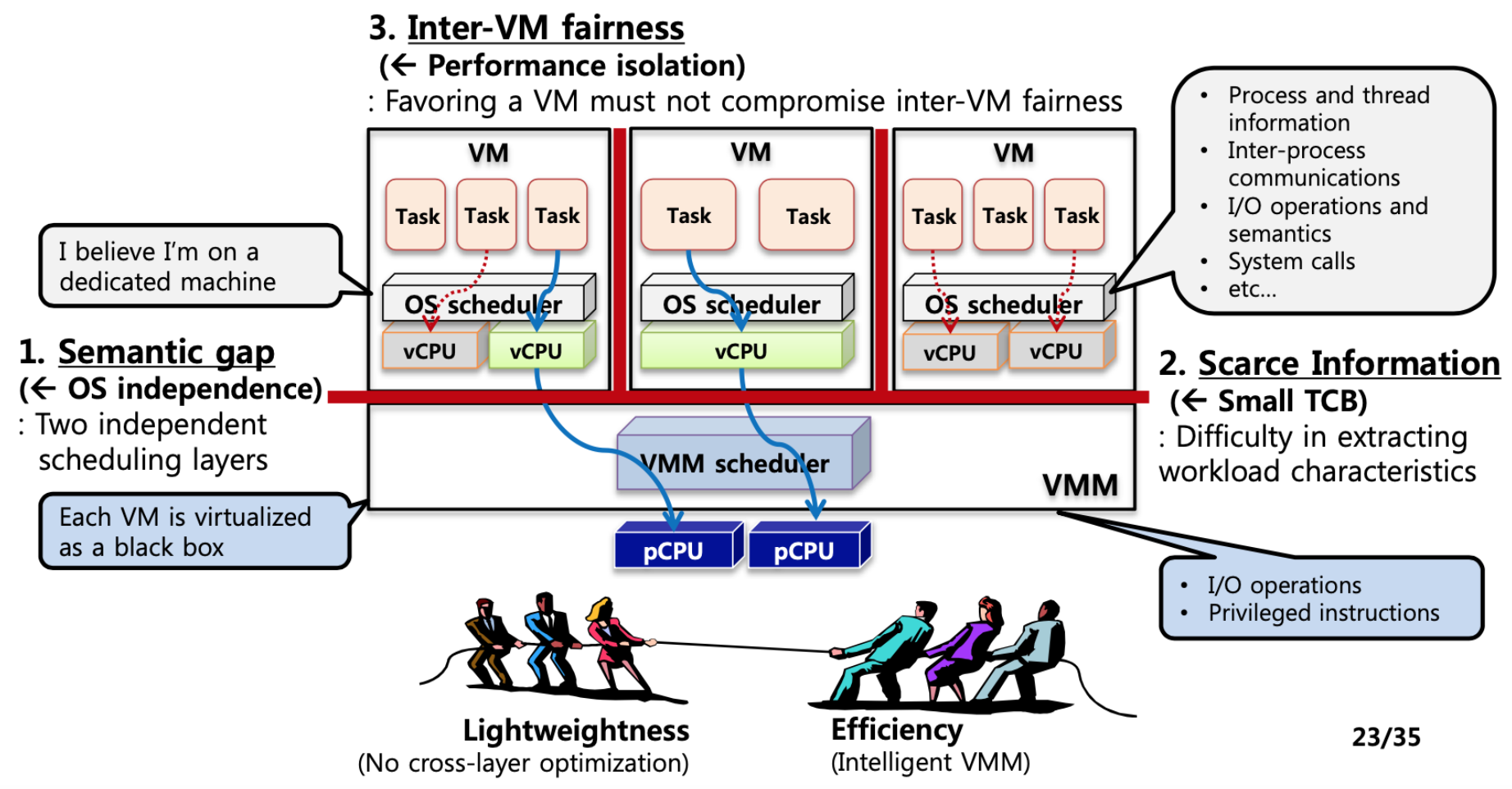

Resource Management in Virtualized Servers

Key considerations:

1. Many different workloads
2. Finite numbers of workloads can be hosted on each server
3. Time-varying workload requirements
4. Performance and resource isolation among the workloads

Terminology for CPU Schedulers

Proportional Share (PS) Scheduling

• PS scheduling allocates CPU in proportion to the number of shares (weights) that VMs have been assigned
• Every job has a weight, and jobs receive a share of CPU proportional to that weight

$\boxed{\text{Each process gets } \frac{w_i}{\sum w}}$

• Equal fairness (equal-priority case): $\text{Each process gets } \frac{1}{n}$

Like splitting a pizza — if you paid for 3 slices and your friend paid for 1, you get 3/4 of the pizza.

PS Example

Pros and Cons of PS

CPU overcommit = Virtual CPU > Physical CPU

Because PS guarantees share, not deadline.

บางอย่างหาย มากมาย check!!

Work-Conserving vs Non-Work-Conserving

1. Work-Conserving (WC-mode)
   • CPU shares are merely guarantees
   • As long as there is work to be done and all clients have used their shares, the CPU will be used (no idle CPU)
   • Schedule จะพยายามให้งานเสร็จ เมื่อเริ่มแล้ว no interruption is allowed
2. Non Work-Conserving (NWC-mode)
   • CPU shares are caps (fixed)
   • Clients get their share of CPU and only that — even if CPU is free

WC = "If someone's done, let others use the leftover time."
NWC = "You get exactly your time slot, nothing more."

Preemptive vs Non-Preemptive Schedulers

1. Non-preemptive schedulers
   • The process takes the CPU and holds it until terminated or pushed to waiting state
   • No process is interrupted until it completes
2. Preemptive schedulers
   • Works by dividing CPU into time slots
   • The time slot may or may not complete the process
   • When burst time > CPU cycle, process goes back to ready queue (wait for the next cycle)

Why is preemption good for I/O intensive workloads? (Previous Exam Question #FinalExam)
I/O-bound processes often wait for disk/network. Preemption allows the CPU to serve other processes during those waits, rather than sitting idle.

Completely Fair Scheduler (Linux CFS)

• The CFS is the default CPU scheduler in Linux (since kernel 2.6.23)
• Designed to provide fair CPU time distribution among runnable processes

Key Concept: vruntime

• Each process tracks virtual runtime (vruntime) — increases as the process runs
• The process with the smallest vruntime runs next
• This ensures processes that received less CPU get priority

$\boxed{\text{Schedule: } \text{process with smallest } vruntime}$

• Unlike fixed time-slice schedulers, CFS simulates an "ideal multitasking CPU":
  • Every runnable process runs simultaneously and gets an equal share
  • Since real CPUs can't do that, CFS approximates this mathematically

Idea ของ CFS = Fair Share (equal CPU allocation to no. of processes) + allocate to process having smallest vruntime

Two Key Properties of CFS

1. Long-term Fairness — All runnable processes (equal priority) receive approximately equal CPU time over time
2. Immediate Scheduling Decision — At any scheduling point: run the process with smallest vruntime

💡 Think of vruntime like a debt counter. Whoever used the CPU less recently has the lowest "debt" and gets to go first. It levels out fairly over time.

Workload Management

• Workload management = the ability to precisely assign (CPU, memory, I/O) resources to applications
• Applications provide service levels on desired performance; workload managers assign resources to comply

Two Approaches

1. Static
   • Resources are estimated once and assigned statically despite varying workloads
   • Problem: over-provisioning (wasted resources)
2. Dynamic
   • Dynamically allocate resources to match application workload demands
   • Workload managers usually use PS schedulers in NWC mode → for performance isolation reasons

CPU Overcommit

• When a hypervisor allocates more virtual CPUs (vCPUs) than physical cores exist

Example:

• Server has 8 physical CPU cores
• Hypervisor creates 6 VMs, each with 4 vCPUs
• Total allocated = $6 \times 4 = 24$ vCPUs
• Physical cores = 8

$\boxed{\text{Overcommit ratio} = \frac{24}{8} = 1:3}$

• The scheduler must time-share physical cores among 24 virtual CPUs

Like a hotel overbooking rooms, betting not everyone shows up at once — works fine until everyone actually arrives.

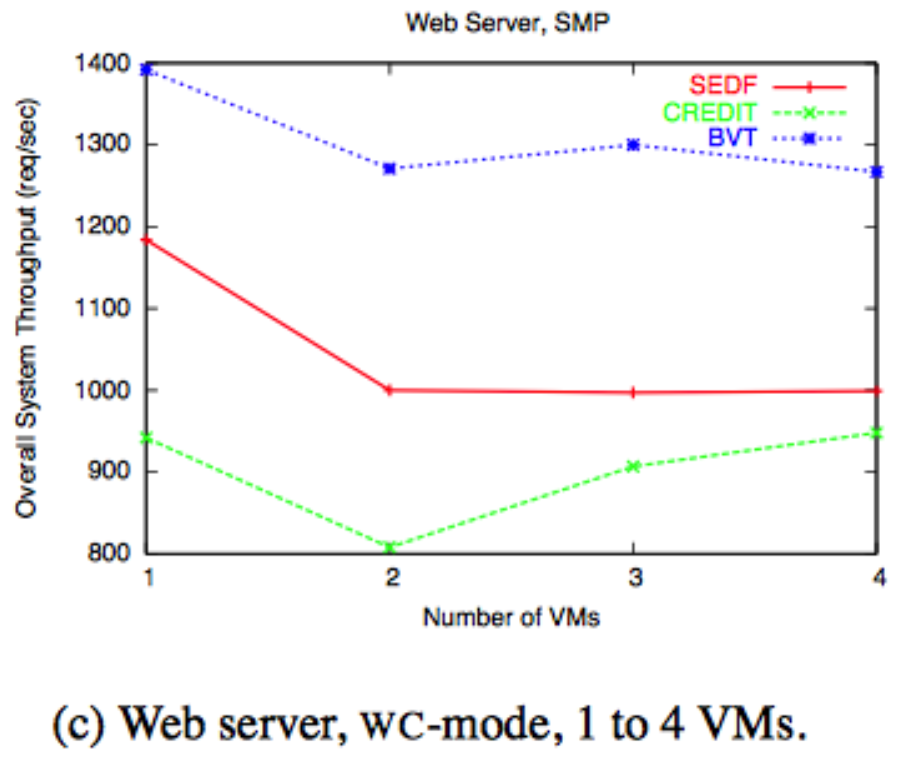

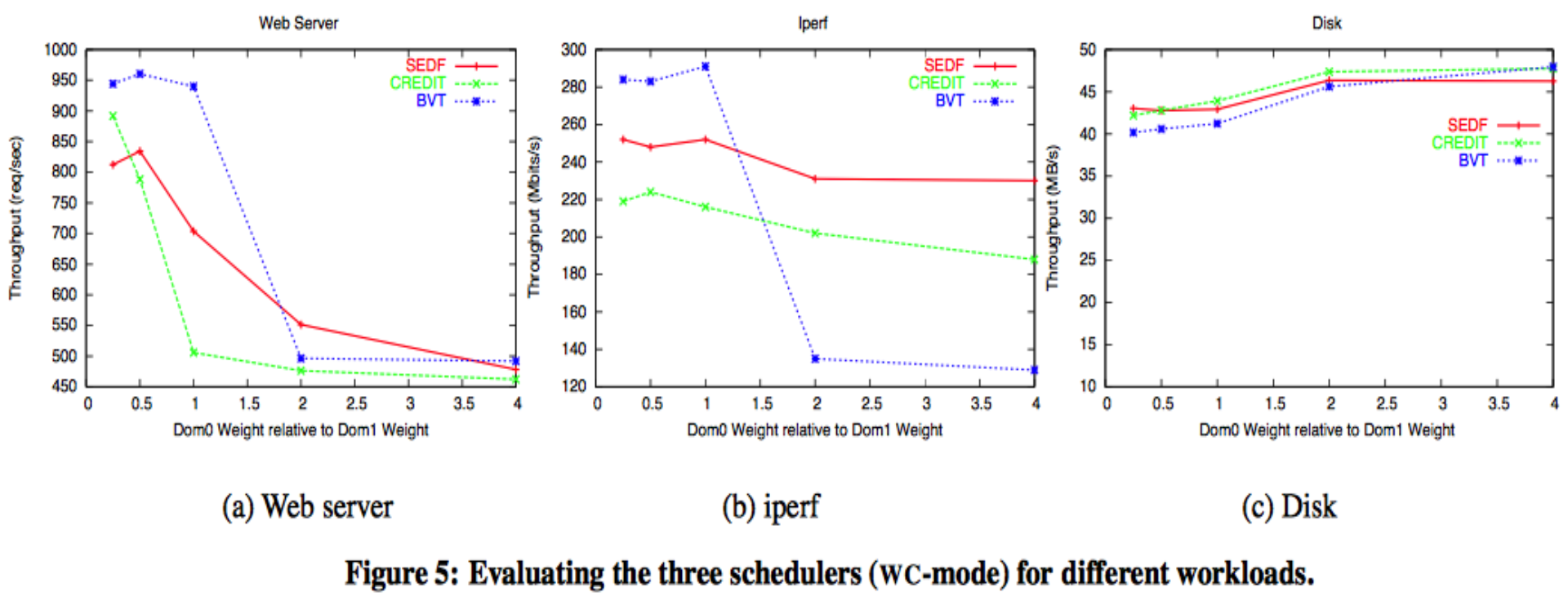

Case Study: Xen CPU Schedulers

Over the years, three CPU schedulers were proposed and used in Xen VMM:

1. Borrowed Virtual Time (BVT) ← oldest
2. Simple Earliest Deadline First (SEDF)
3. Credit Scheduler ← current (used today)

1. Borrowed Virtual Time (BVT)

Overview

• A fair-share scheduler based on the concept of virtual time
• Dispatches the thread with the runnable VM that has the lowest virtual time first
• Thread execution time is monitored in terms of virtual time

Key Idea: Borrowing

• Latency-sensitive applications can "wrap back" in virtual time to gain scheduling priority
• Applications borrow virtual time from their future allocation
• The VM borrows from its future → does not disrupt long-term CPU sharing

How BVT Works

1. Each thread has a virtual time counter
2. The scheduler selects the thread with the smallest virtual time for execution
3. If urgent execution is needed, a thread can borrow time → runs earlier
4. The borrowed time is compensated later by penalizing the thread's virtual time
5. Creates balance between fair scheduling and low-latency responsiveness

BVT Characteristics

• ✅ Preemptive, WC-mode only
• ✅ Optimally-fair
• ✅ Low-overhead on uni- and multiprocessors
• ❌ Does not support NWC-mode → limits isolation

BVT Example

Scheduler compares effective virtual time (EVT), not raw VT

• Thread-2 runs first (EVT = 10)
• Thread-3 can run at same priority level as Thread-2 (EVT = 15 - 5 = 10)
• Thread-1 runs last (EVT = 20)

After Thread-3 executes, its virtual time increases, so it will run later in the next cycle — fairness is maintained.

What’s the problem of BVT (Disadvantage) #FinalExam
If the process keep borrowing and borrowing → How about the fairness? → Unfairness

2. Simple Earliest Deadline First (SEDF)

Overview

• A deadline-based scheduler — the runnable domain with the earliest deadline is scheduled next
• Each domain specifies three values: $(s_i, p_i, x_i)$

$\boxed{(s_i, p_i, x_i)}$

• $Dom_i$ will receive $s_i$ units of time every period of length $p_i$
• If WC-mode enabled: SEDF distributes slack time fairly among all runnable domains

Assigning 30% CPU

We need: $\dfrac{s_i}{p_i} = 0.3$
$\boxed{\frac{s_i}{p_i} = 0.3}$
Two valid configurations:

• (3ms, 10ms, 0) → every 10ms, domain gets 3ms
• (30ms, 100ms, 0) → every 100ms, domain gets 30ms

It depends on task (process)

What final output that can be used to determine the proper choice of choosing $s$, $p$?
A. Communication Cost
B. Speed
C. Throughput (Correct Answer)
D. Reduced Error

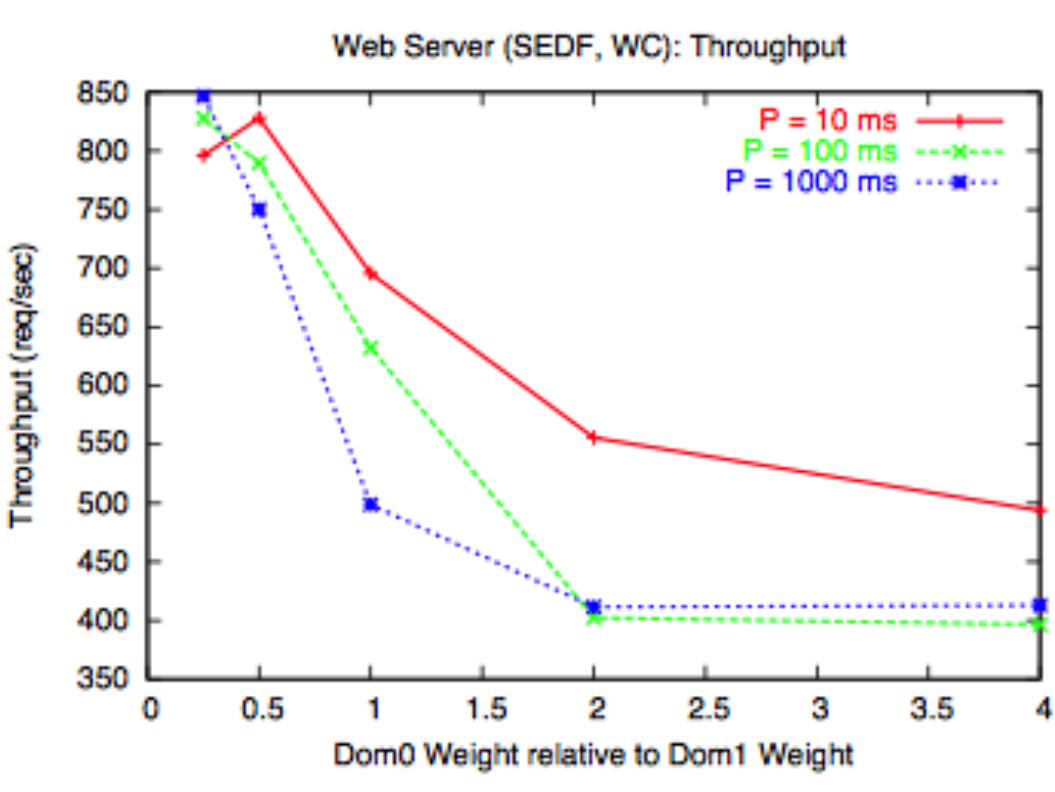

Does Period Size Matter?

Burst Time = the time to process (time to execute)

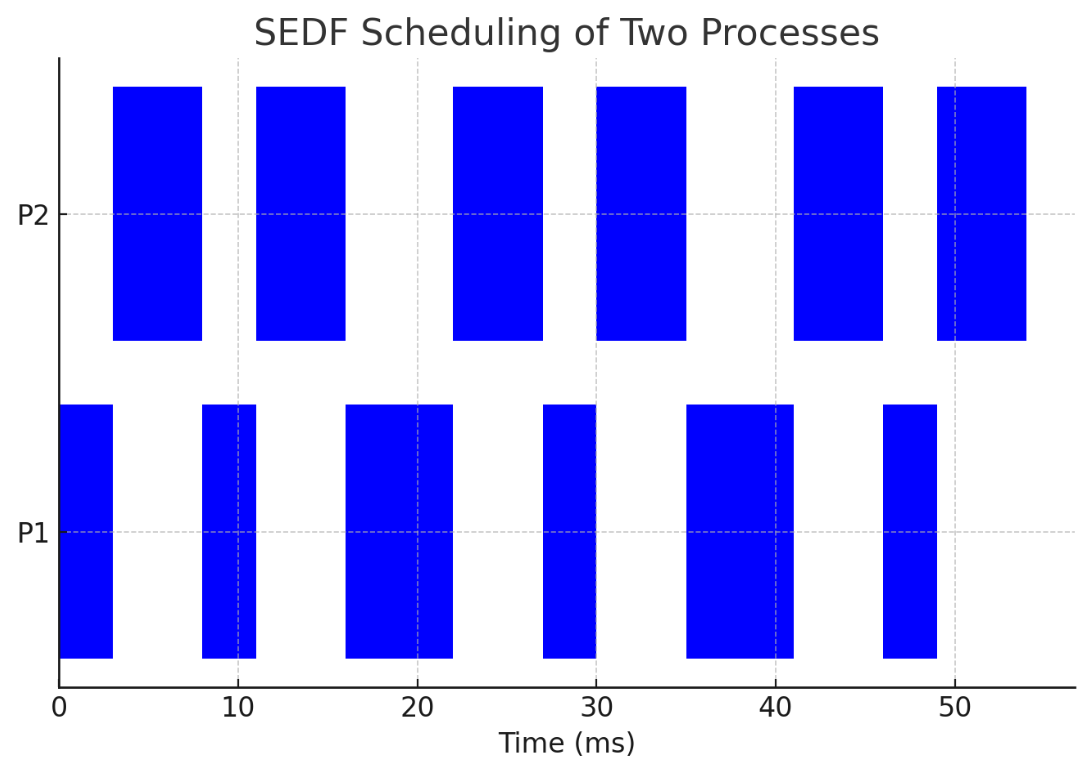

SEDF Example 1

• P1: (3ms, 10ms, 0) — runs 3ms every 10ms, deadline = 10ms
• P2: (5ms, 15ms, 0) — runs 5ms every 15ms, deadline = 15ms

Execution order (Earliest Deadline First):

• Time 0: P1 runs for 3ms (deadline 10ms)
• Time 3: P2 runs for 5ms (deadline 15ms)
• Time 8: P1 runs again (deadline 20ms)
• Time 11: P2 runs again (deadline 30ms)
• Pattern continues...

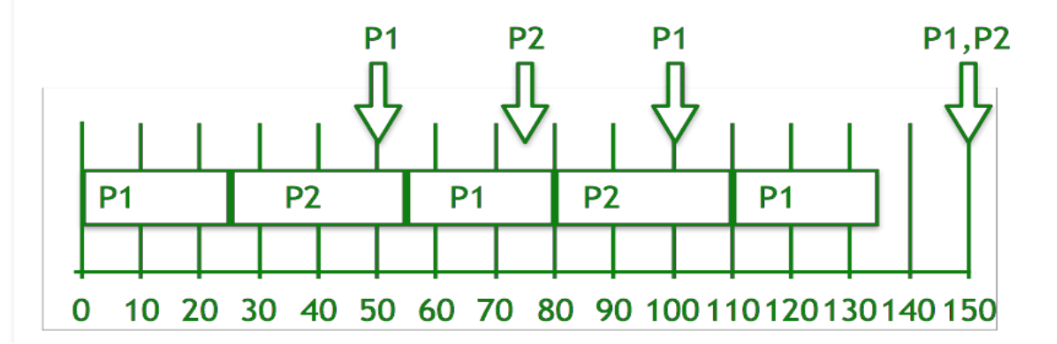

SEDF Example 2

• P1: period $p_1 = 50$, processing time $t_1 = 25$
• P2: period $p_2 = 75$, processing time $t_2 = 30$

Steps:

1. P1 has earlier deadline → priority P1 > P2
2. P1 runs and completes at time 25
3. P2 starts, runs until time 50 (when P1 is ready again)
4. Deadlines now: P1 = 100, P2 = 75 → P2 has earlier deadline, continues
5. P2 completes at time 55
6. P1 starts, runs until time 75 (P2 ready again)
7. Compare: P1 = 100, P2 = 150 → P1 continues
8. At time 150: both have same deadline → P2 runs first then P1

SEDF Characteristics

• ✅ Preemptive, supports WC and NWC modes
• ⚠️ Fairness depends on period value
• ❌ Implements per-CPU queue but lacks global load balancing on multiprocessors

When to Use SEDF

3. Credit Scheduler

Overview

• Xen's latest PS scheduler with automatic load balancing of vCPUs across physical CPUs on SMP hosts
• Before a physical CPU goes idle → scheduler considers other CPUs with runnable vCPUs
• Goal: No CPU idles when there is runnable work in the system

Parameters per VM

• Weight → determines proportional CPU share
• Cap → maximum CPU usage limit
  • Cap = 0 → VM can receive extra time (WC-mode)
  • Cap ≠ 0 → shows max time VM can receive (NWC-mode)

How the Credit Scheduler Works

1. Each VM gets an initial credit allocation based on its weight
2. When a VM runs → it spends credits
3. Scheduler selects VM with the highest remaining credits
4. If credits go negative → VM execution is delayed, letting other VMs run
5. Idle VMs accumulate credits (but do not consume them)
6. WC-mode allows borrowing CPU time if others are idle

Credit Allocation Example

• VM3 gets most CPU (highest weight)
• VM2 gets least CPU (lowest weight)
• If a VM becomes idle → scheduler redistributes to active VMs

Credit Scheduler Timing

• Works with 30ms slices — a vCPU receives 30ms before being preempted by another VM
• Every 30ms → priorities/credits of all runnable VMs are recalculated
• CPU usage monitored every 10ms

Credit Scheduler Characteristics

• Supports both WC and NWC modes
• Global load balancing on multiprocessors (key advantage over BVT and SEDF)

Credit Scheduler = fair share + dynamic load balancing. Like a taxi dispatcher that reassigns idle drivers to busy areas automatically.

BVT → SEDF → Credit: Evolution

Comparison: Credit vs SEDF

Widely-Used Scheduler Models

• Credit-based schedulers (e.g., Xen Credit Scheduler)
• Completely Fair Scheduler (Linux CFS)
• Proportional share scheduling
• Work-conserving schedulers

Challenges on VMM Scheduler

Three main challenges compared to OS scheduling research:

1. Semantic gap (← OS independence)
   • Two independent scheduling layers exist
   • Each VM is virtualized as a black box — the VMM cannot see inside
2. Scarce Information (← Small TCB)
   • Difficulty in extracting workload characteristics
   • Only I/O operations and privileged instructions are visible to VMM
3. Inter-VM fairness (← Performance isolation)
   • Favoring one VM must not compromise fairness among others

Two competing goals:

• Lightweightness — No cross-layer optimization
• Efficiency — Intelligent VMM

Experimental Comparison of the Three Schedulers

Setup

• Benchmarks used:
  1. Web server — measure web server throughput (req/sec)
  2. Iperf — measure maximum achievable network throughput (Mbits/s)
  3. Disk read — measure disk read throughput (MB/s)
• Machine specs: Dual CPU HP workstations LP200R, 1-GHz PIII processors, 2GB RAM, 1 Gbits NICs, running Xen 3.0.3

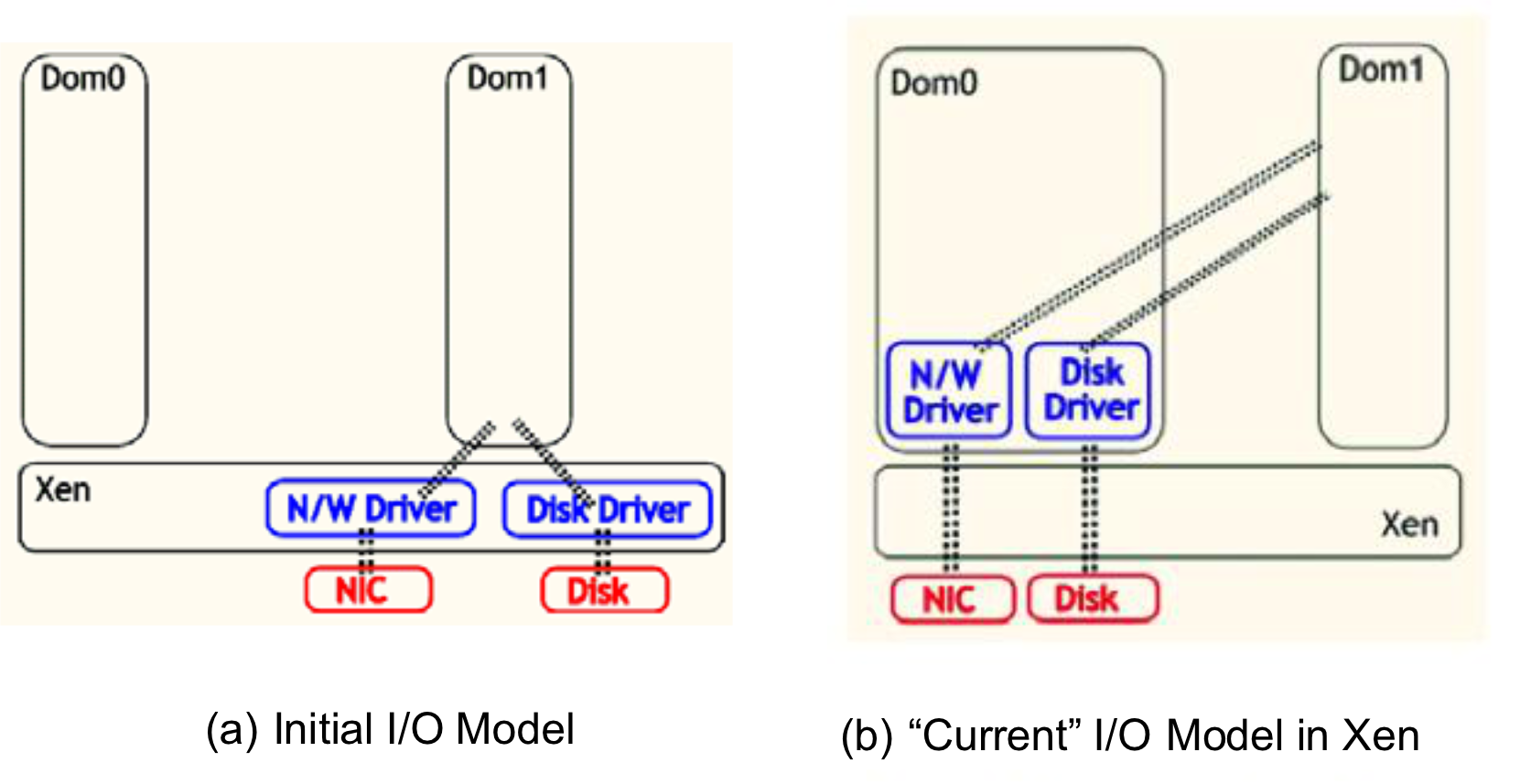

I/O Model for VMs in Xen

• Dom0 performs I/O processing on behalf of guest domains
• This means Dom0 also requires a certain CPU allocation to perform I/O for VMs
• Question: How much allocation is enough for Dom0?

Effect of SEDF Parameter Values on Performance

• Dom0 = x × Dom1 (x axis = Dom0 weight relative to Dom1 weight)
• Web server throughput decreases as Dom0 weight increases relative to Dom1
  • More weight for Dom0 = less CPU for Dom1 (the web server) → lower throughput
• Web server throughput decreases as P (period) increases
  • Larger period = longer gaps between CPU slices → higher latency → lower web server responsiveness

A web server handles many short requests. If CPU slices arrive infrequently (large P), requests pile up and throughput drops.

Comparison of Schedulers for Different Workloads

Key findings:

• Application performance varies significantly under different schedulers
• I/O applications are highly sensitive to the amount of CPU given to Dom0

Performance Comparison in SMP Case

Setup:

• Dual CPU HP workstation
• 2 vCPUs for dom0, dom1
• Each VM given 2 vCPUs, runs web server, all domains given equal weights

Findings:

• Credit scheduler is able to increase throughput with more VMs (due to global load balancing)
• Credit throughput is lower than SEDF and BVT in single-node case
  • Further analysis showed a high allocation error for Credit (Figure 11 from paper)

Summary

• Resource management and scheduling → critical for cloud systems
• Policies (what to do) and Mechanisms (how to do it)
• Three Xen CPU schedulers, in order of introduction:

Current Xen uses the Credit Scheduler.
