Chapter 12 - Internet Security Protocols and Standards

MIME and S/MIME

MIME (Multipurpose Internet Mail Extensions)

• Extension to the old RFC 822 specification of an Internet mail format
  • RFC 822 defines a simple heading with To, From, Subject
  • Assumes ASCII text format only
• Provides a number of new header fields that define information about the body of the message

S/MIME (Secure/Multipurpose Internet Mail Extension)

• Security enhancement to the MIME Internet e-mail format
  • Based on technology from RSA Data Security
• Provides the ability to sign and/or encrypt e-mail messages
  • Supports Confidentially, Integrity ไงง, also non-repudiation

Analogy: MIME is like a plain envelope — it just defines how to structure the letter. S/MIME is like a sealed, tamper-proof envelope with a wax seal — it proves who sent it and hides the contents.

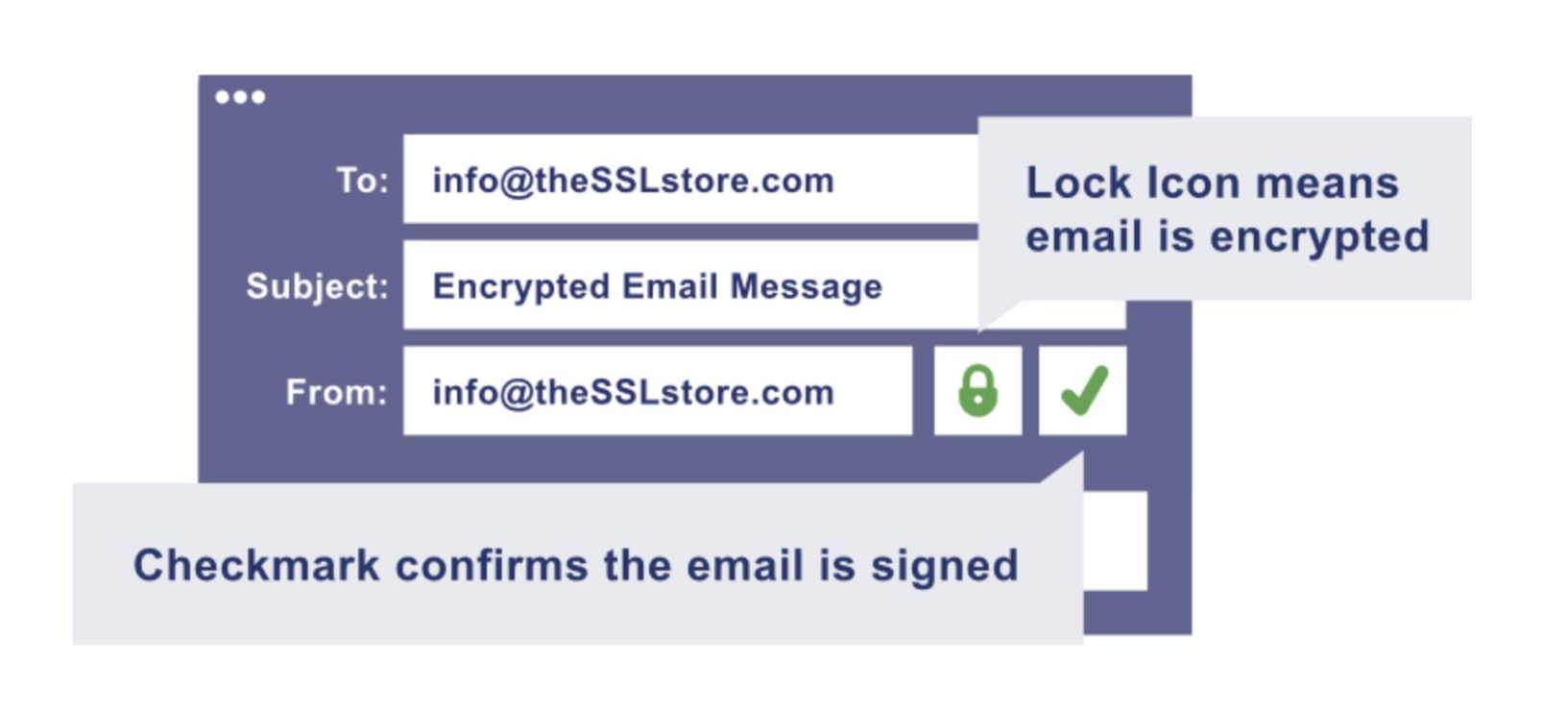

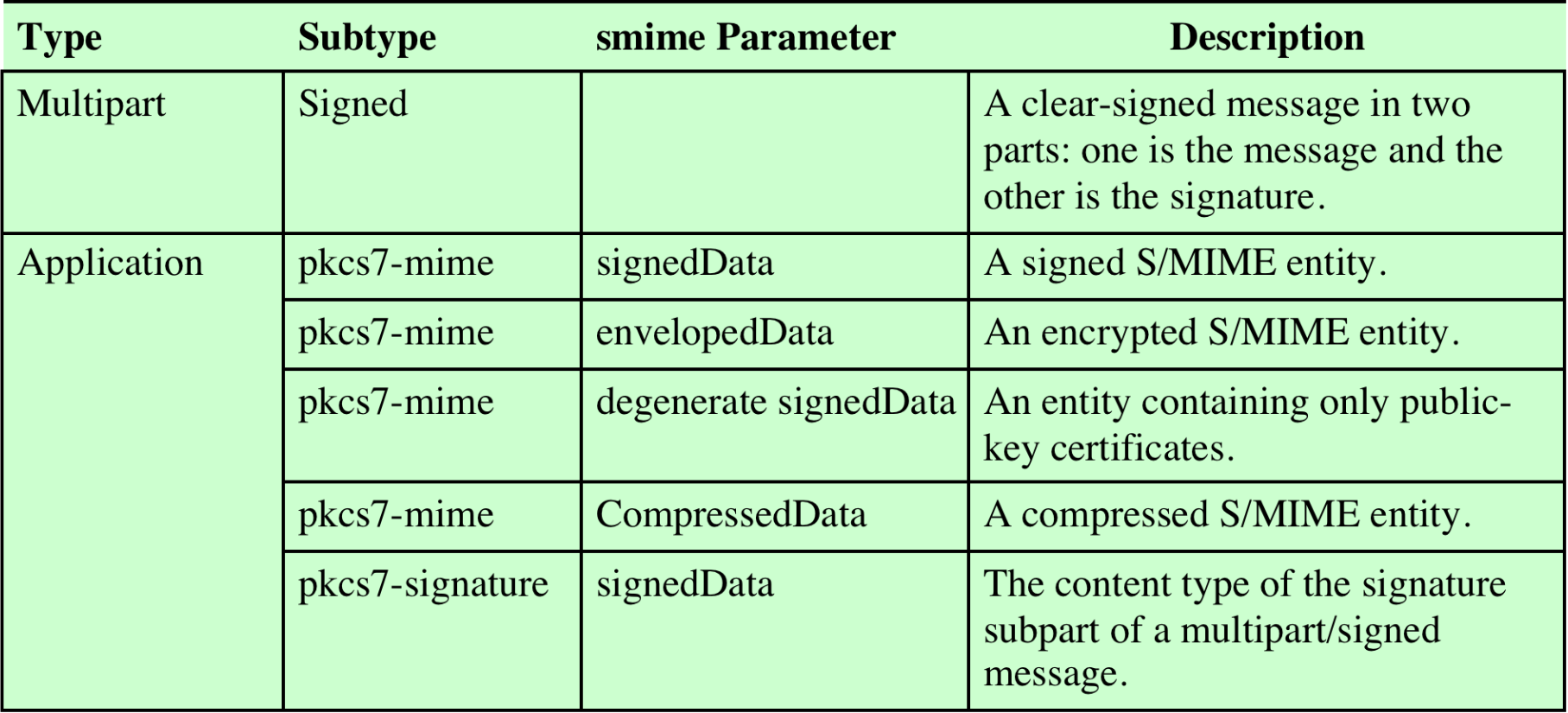

S/MIME Content Types

PKCS (Public-Key Cryptography Standards)

• PKCS #11
  • Defines that the private key must be stored in hardware (smartcard, token)
  • Prevents the key from being copied
• PKCS #12
  • Key is stored in file format (e.g., .p12, .pfx)
  • Usually protected by passphrase ไงงง จำได้บ่
• PKCS #7
  • Digital signature format
  • Standard syntax for storing signed and/or encrypted data

Analogy: PKCS #11 is like keeping your house key physically locked in a safe — no copies allowed. PKCS #12 is like keeping it in a password-protected key file on your computer.

S/MIME Process (Signing + Encrypting)

Image: Figure 22.1 Typical S/MIME Process for Creating an S/MIME Message

Steps (Bob → Alice):

1. Plaintext message (unsigned)
2. Digital signature added using Bob's private key → RSA/ECC + SHA-2
3. Message + signature encrypted with a one-time session key (Triple DES / AES)
4. Session key encrypted with Alice's public key (El Gamal / RSA)
5. Document converted to Radix-64 (Base64) format for transmission

Signed and Clear-Signed Data

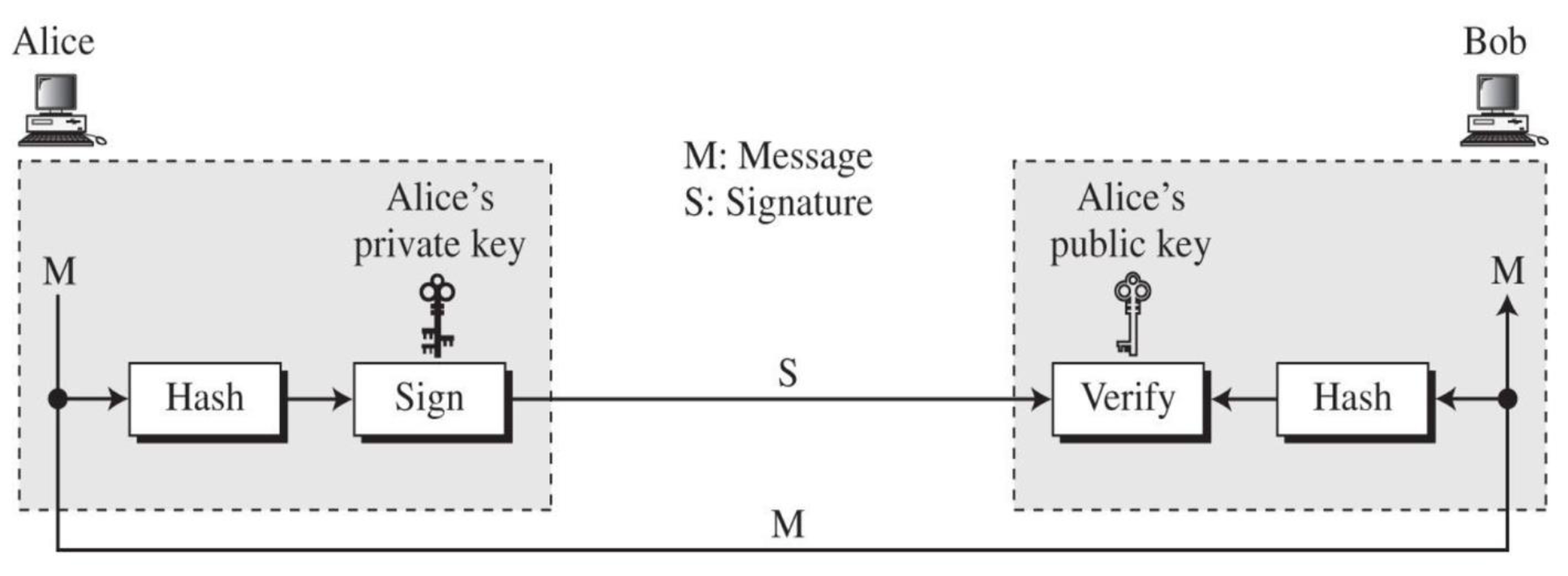

อย่าลืมรูปนี้นะ ถ้าลืมก็กลับไปดู Chapter 5 - Digital Signature and Certificates

• Default algorithms used for signing: RSA/ECC + SHA-2
• X.509 Certificate should be used by both sender and receiver
• Base64 mapping is used to map the signature and message into printable ASCII characters

S/MIME Public Key Certificates

• Default algorithm for encrypting S/MIME messages: AES
• If encryption is used alone, radix-64 converts ciphertext to ASCII
• RSA is commonly used for key encryption/signing
• The basic tool that permits widespread use of S/MIME is the public-key certificate
• ==S/MIME uses certificates conforming to X.509v3 standard==

X.509 Certificate Fields

• DN (Distinguished Name)
  • O = Organization (Citizen ID, Corporate ID)
  • OU = Organization Unit (e.g., ICT, AC department)
  • CN = Common Name (Personal: Name Surname; Organization: Company name e.g., SIIT, TU) → Certificate Holder
  • C = Country (e.g., TH)
  • State
  • Email
• Public key
• Validity (expiry date)
• Fingerprint (Digital Signature)
• CRL distribution point — URL pointing to location of Certificate Revocation List (CRL)

Analogy: A certificate is like a national ID card — it has your name, photo (public key), expiry date, and an issuing authority's signature to prove it's authentic.

• เราต้อง import Receiver certificate (เพราะว่าจะเอา public key ไง)
• content ของ email จะ encrypted ด้วย symmetric key algorithm นะ อย่าง AES ไง

S/MIME Functions

S/MIME Example (Enveloped Data)

Content-Type: application/pkcs7-mime; mime-type=enveloped-data
Content-Transfer-Encoding: Radix-64
Content-Description: attachment
name="report.txt";
cb32ut67f4bhijHU21oi87eryb0287hmnklsgFDoY8bc659GhIGfH...

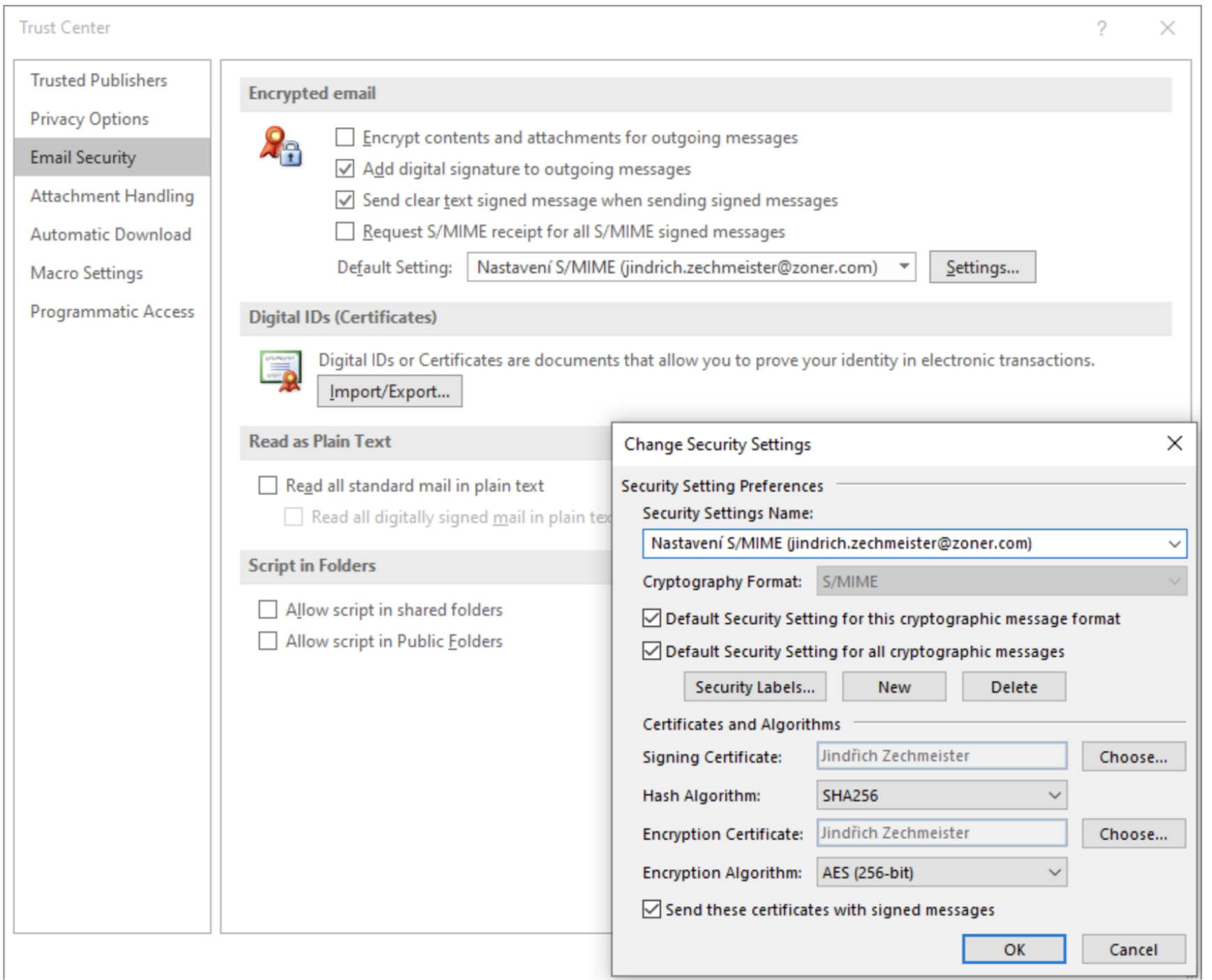

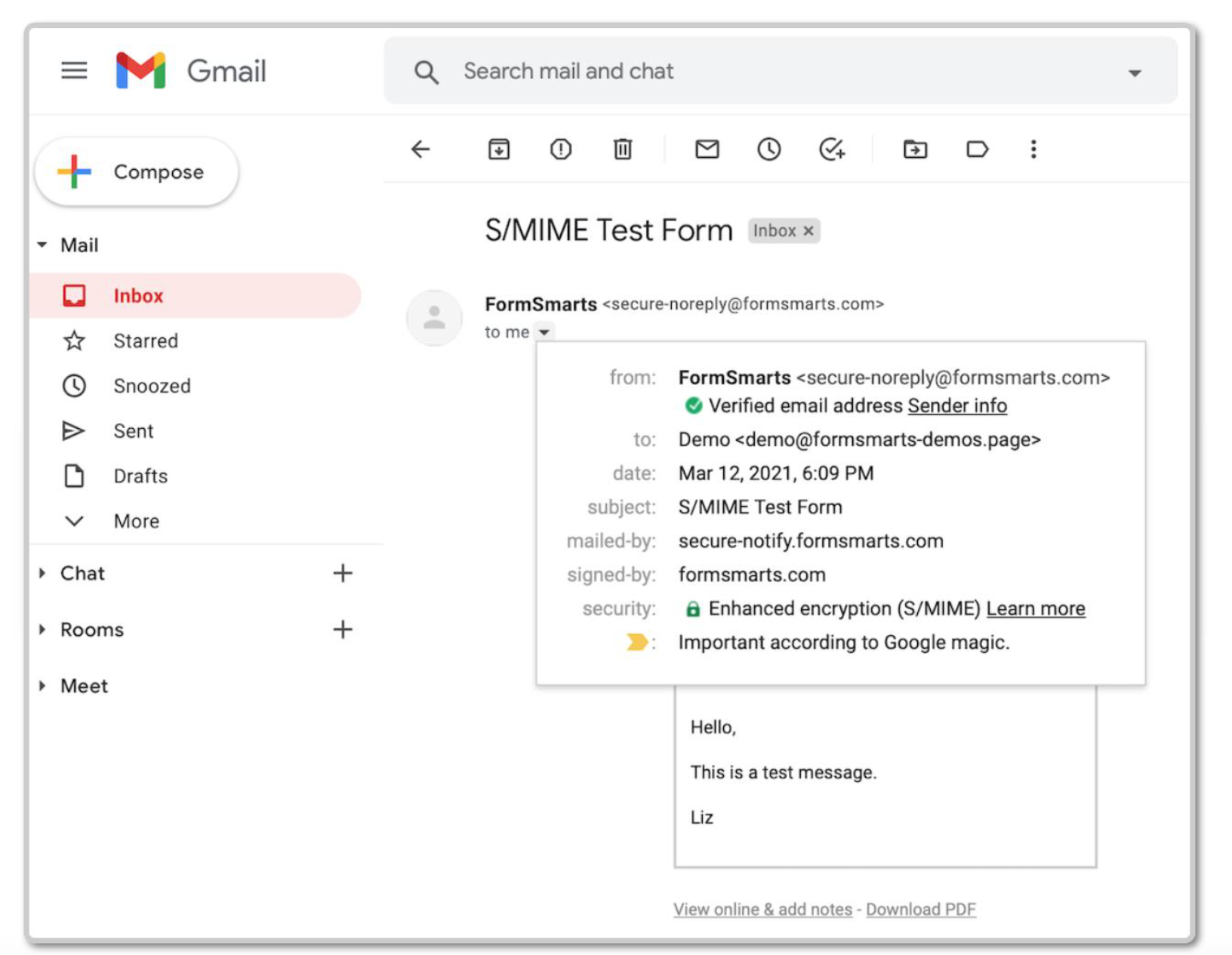

Managing S/MIME Certificates in Gmail

• The Gmail S/MIME API provides programmatic access to manage S/MIME email certificates for users in a Google Workspace domain
  • An administrator must enable S/MIME for the domain
• Certificates must be uploaded to Gmail for hosted S/MIME encryption
• Certificate must meet current cryptographic standards and use PKCS #12 archive file format

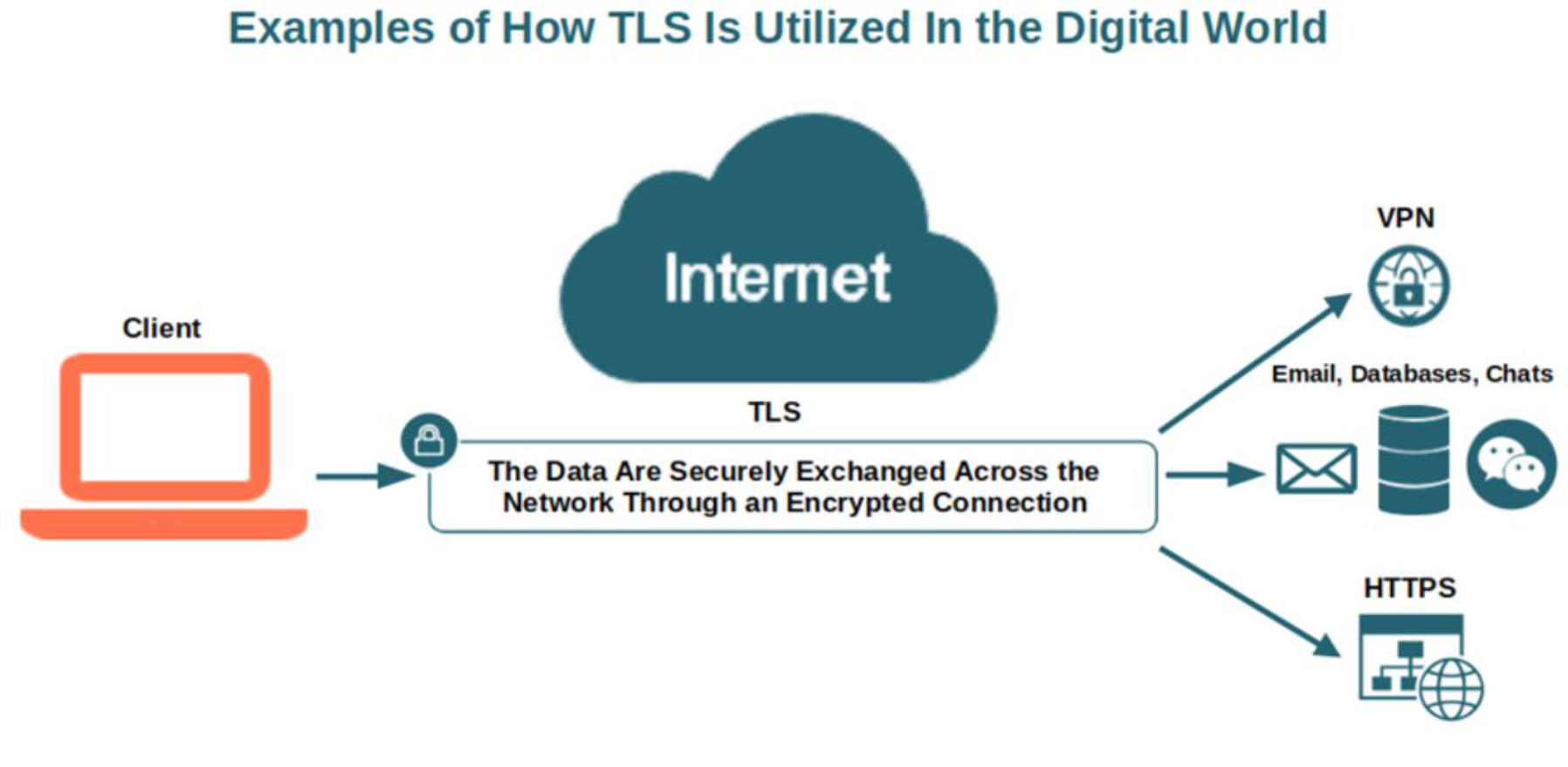

SSL and TLS

Overview

• One of the most widely used security services
• General-purpose service implemented as a set of protocols that rely on TCP
• Subsequently became Internet standard: RFC 4346 – Transport Layer Security (TLS)

Two Implementation Choices:

• Provided as part of the underlying protocol suite
• Embedded in specific packages

Analogy: SSL/TLS is like a secure channel dug beneath a city street — all traffic using the road (HTTP, FTP, etc.) can optionally route through the secured tunnel underneath.

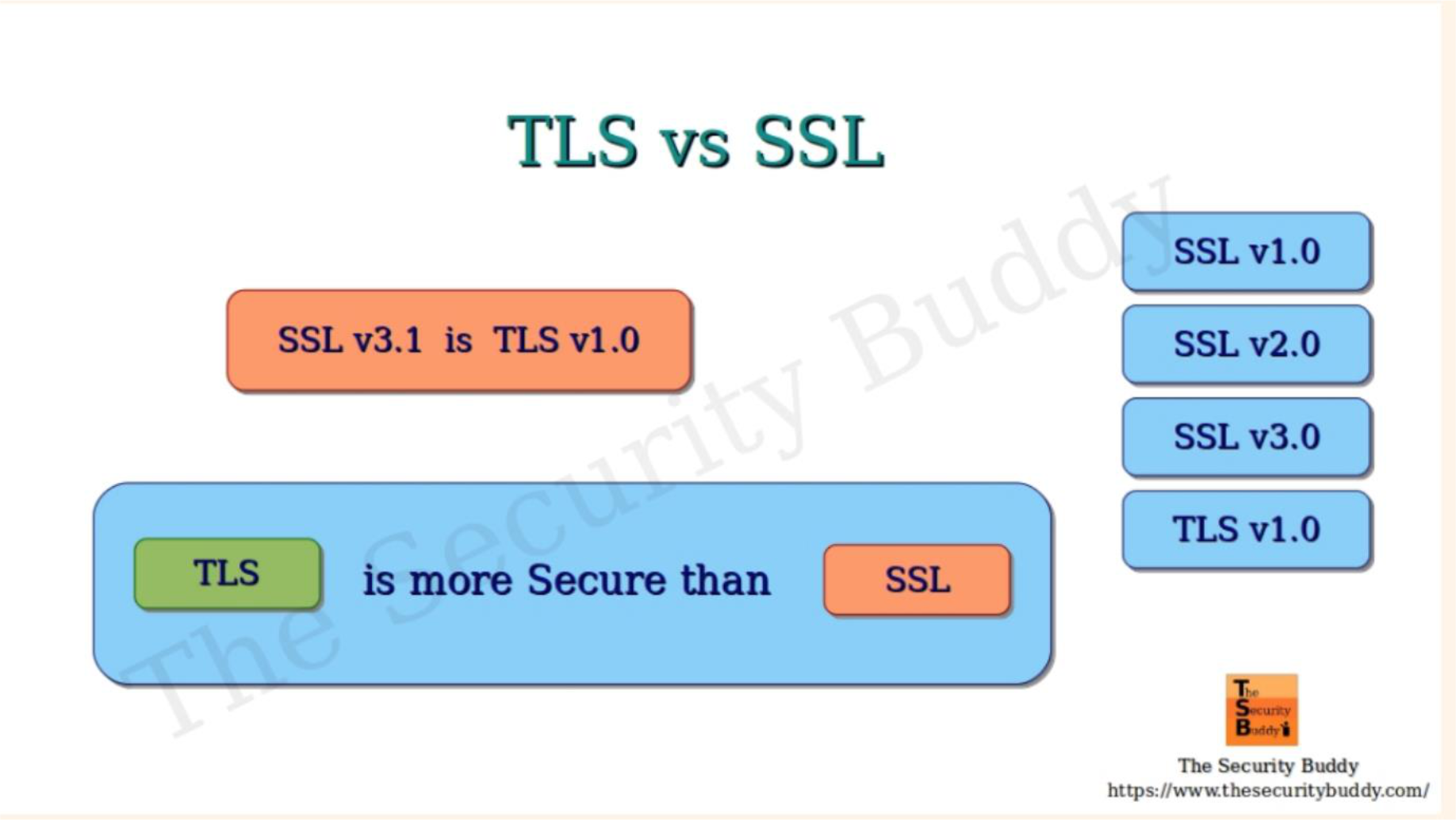

SSL vs TLS

TLS > SSL แอบนะ ในเรื่องความปลอดภัย

Key fact: SSL v3.1 = TLS v1.0

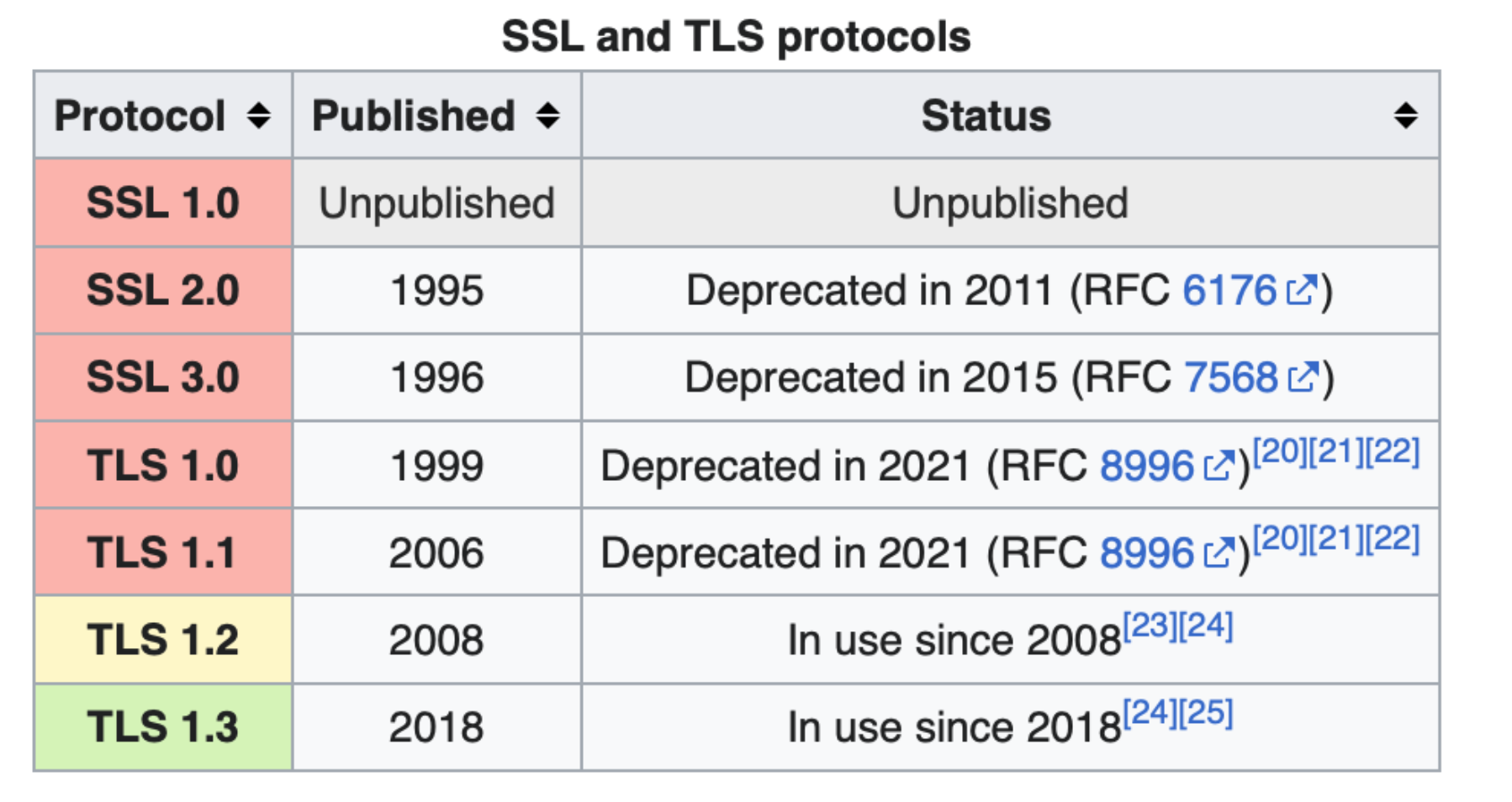

Protocol Status Table

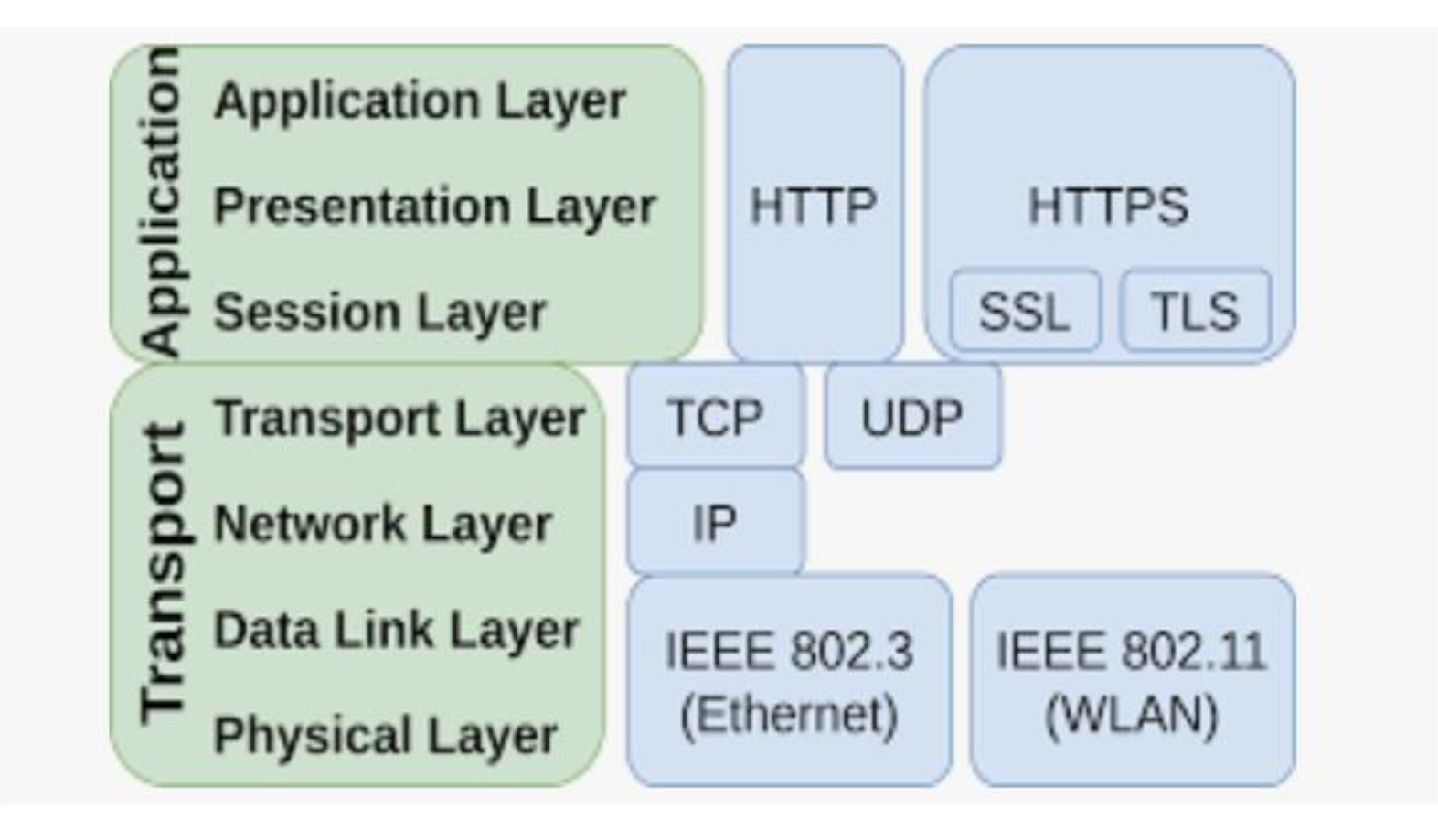

Network Layers & Where TLS Fits

• TLS/SSL operates between the Application Layer and Transport Layer
• Sits above TCP, below HTTP
• HTTP + TLS = HTTPS

TLS 1.3 Cipher Suites

TLS 1.3 (RFC 8446) dramatically simplified cipher suites:

• Only 5 cipher suites defined (all strong)
• Removes support for RSA key exchange and static DH
• Uses AEAD ciphers (Authenticated Encryption with Associated Data)
• Always provides Forward Secrecy

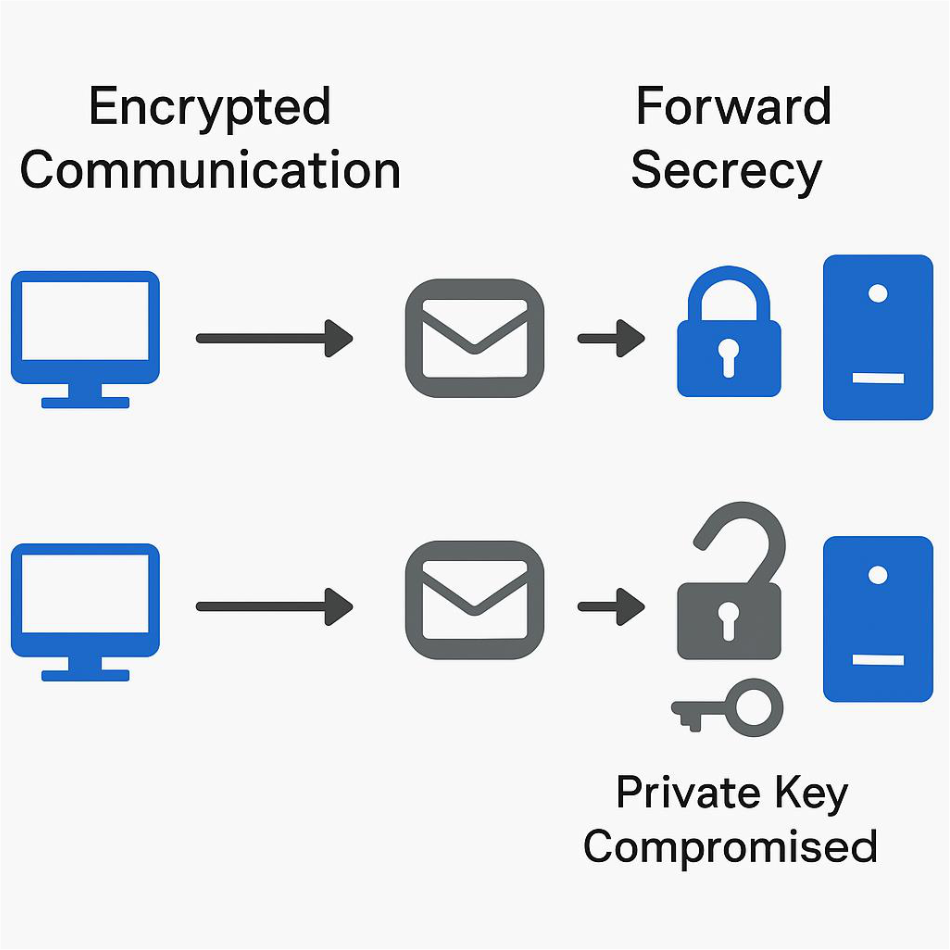

Forward Secrecy

• Each session uses a unique, ephemeral encryption key (session key)
• Compromise of one key does not affect past sessions

Why it matters:

• Without Forward Secrecy: If attacker records traffic now and later gets the private key → can decrypt all past communications
• With Forward Secrecy: Even if private key is stolen later → previous sessions remain secure (temp key is gone)

Analogy: Forward Secrecy is like using a different padlock for every box you send. Even if someone steals your master key, they still can't open the old boxes — because each was locked with a unique, now-destroyed key.

TLS Services

TLS provides three core services:

• Authentication — users know they're communicating with the legitimate party
• Data Integrity — users know data hasn't been modified since it was sent
• Encryption — data is secured; only authorized users can read it

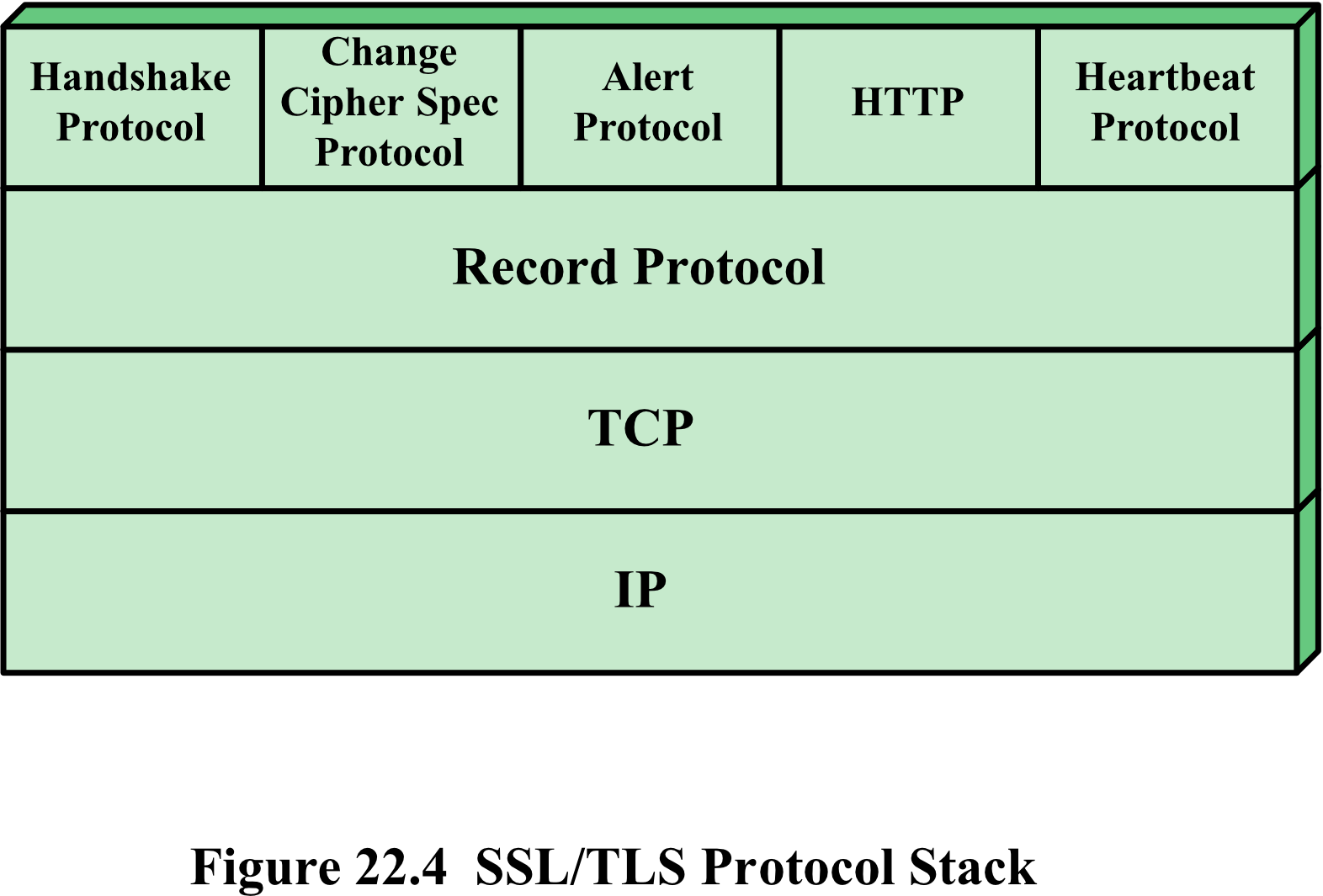

SSL/TLS Protocol Stack

┌─────────────────────────────────────────────────────┐
│  Handshake │ Change Cipher │ Alert │ HTTP │ Heartbeat│
│  Protocol  │    Spec       │       │      │ Protocol │
├─────────────────────────────────────────────────────┤
│                    Record Protocol                   │
├─────────────────────────────────────────────────────┤
│                          TCP                        │
├─────────────────────────────────────────────────────┤
│                          IP                         │
└─────────────────────────────────────────────────────┘

TLS Concepts

TLS Session

• An association between a client and a server
• Created by the Handshake Protocol
• Defines a set of cryptographic security parameters
• Used to avoid expensive renegotiation of new parameters for each connection

TLS Connection

• A transport (OSI model definition) providing a suitable type of service
• Peer-to-peer relationships
  • Client-server
• Transient
• Every connection is associated with one session

Analogy: A TLS Session is like a phone account setup (agreed once). A TLS Connection is like an individual phone call — you can make many calls on one account, but when the call ends, the line is gone.

TLS Record Protocol Operation

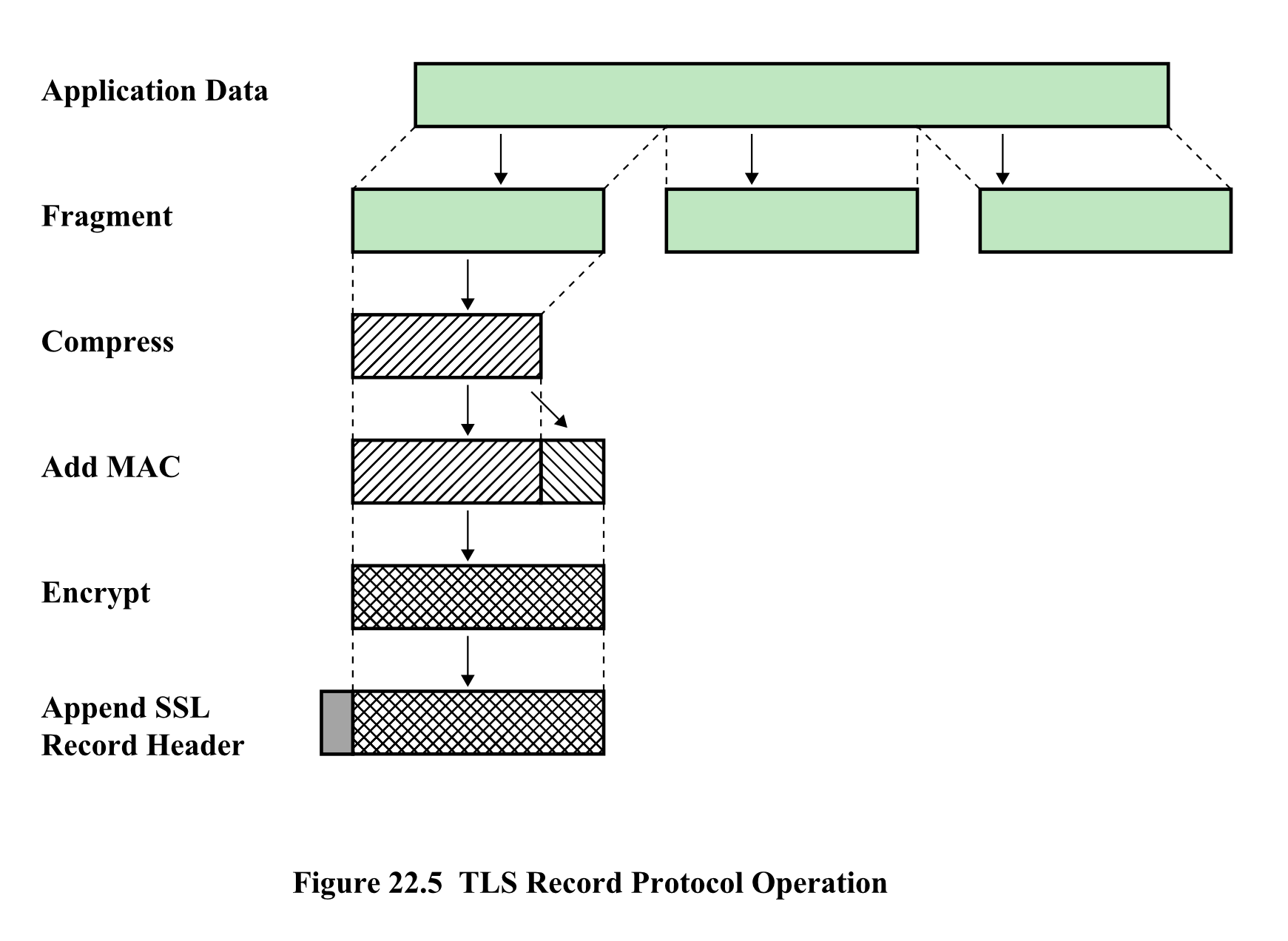

Image: Figure 22.5 TLS Record Protocol Operation

Steps:

1. Fragment — Application data split into chunks
2. Compress — (optional in older versions)
3. Add MAC — Message Authentication Code appended
   • ใส่มาทำไม? ก็สำหรับ Integrity check ไงง Chapter 2 - Symmetric Encryption
4. Encrypt — Entire fragment encrypted
5. Append SSL Record Header — Final record ready for transmission

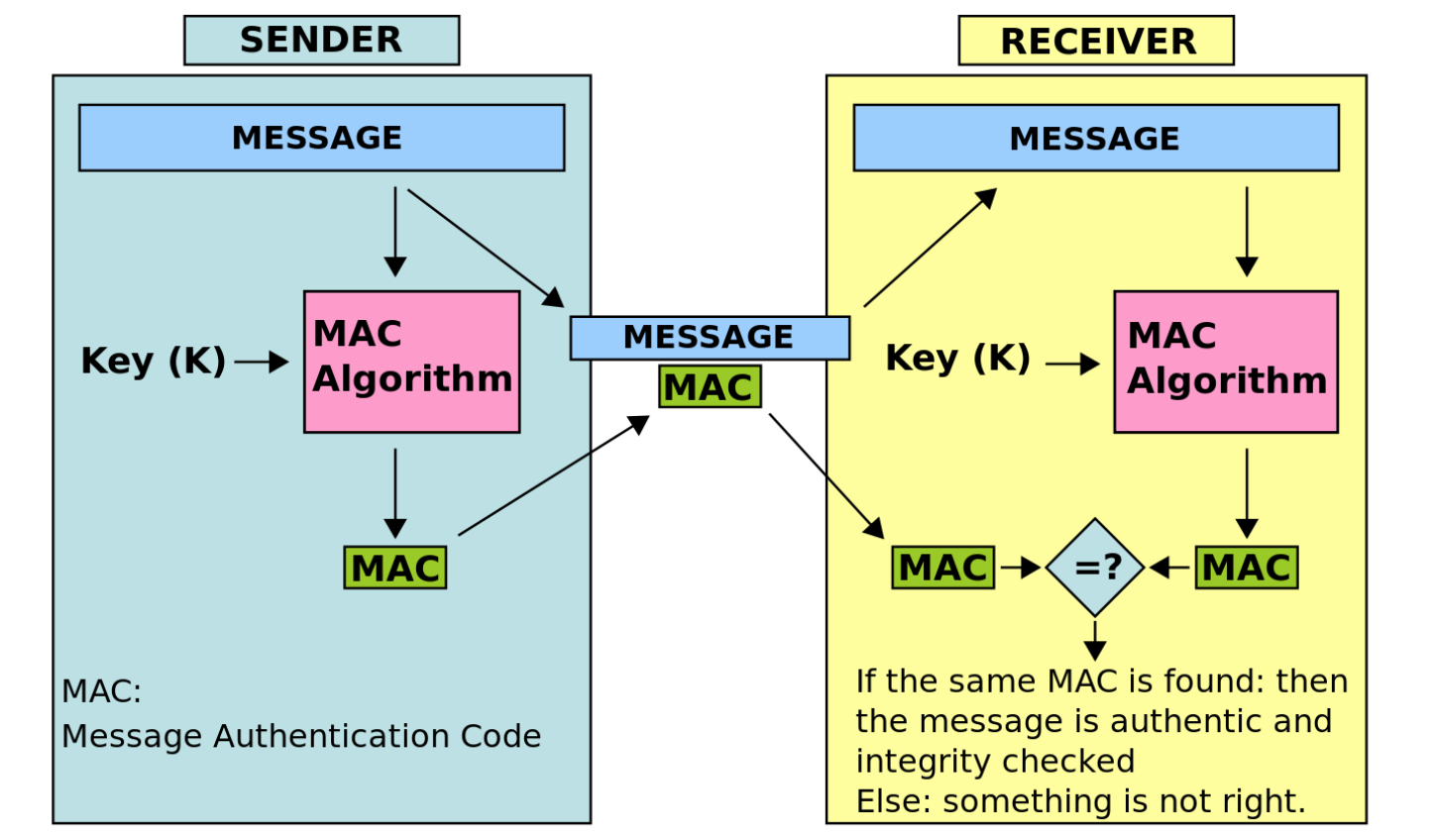

MAC vs HMAC in TLS

TLS 1.2 and earlier:

• Uses HMAC for integrity (e.g., HMAC-SHA256, HMAC-SHA384)
• Example cipher suite: TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256 → uses HMAC-SHA256

TLS 1.3:

• Does NOT use HMAC directly for record integrity
  • ไม่ใช้แล้วจ้าาา555
• Uses AEAD ciphers (AES-GCM or ChaCha20-Poly1305)
  • Because AEAD supports integrity and sender authentication too!
• MAC functionality is built into the AEAD cipher

What is AEAD?

AEAD = Authenticated Encryption with Associated Data

Combines:

1. Confidentiality (encryption)
2. Integrity (authentication/MAC)
3. Optional: protection of unencrypted metadata ("associated data")

AEAD Equation in TLS 1.3

Encryption:

$\boxed{(C, T) = \text{AEAD.Enc}_K(N, P, A)}$
Where:

• $K$ = symmetric traffic key (derived from handshake secrets)
• $N$ = nonce (constructed per record): $IV \oplus \text{seq\_num}$
• $P$ = plaintext (TLSInnerPlaintext)
• $A$ = associated data (record header)
• $C$ = ciphertext
• $T$ = authentication tag

Decryption:

$\boxed{P = \text{AEAD.Dec}_K(N, C, A, T)}$

• If tag verification fails → reject ($\bot$)

TLS 1.3 AEAD Guarantees:

• IND-CPA confidentiality
• INT-CTXT integrity
• Replay protection (via sequence numbers) – protected by nonce น้าา
• No separate MAC → MAC-then-encrypt is removed

Change Cipher Spec Protocol

• One of four TLS-specific protocols that use the TLS Record Protocol
• The simplest protocol
• Consists of a single message = a single byte with value 1
• Used to indicate that communication is shifting from unencrypted to encrypted
  • ถ้า Byte เปลี่ยนเป็น 1 → Encrypted state, and vice versa.
• New parameters are considered "pending" until the single byte is received
• Updates the cipher suite in use

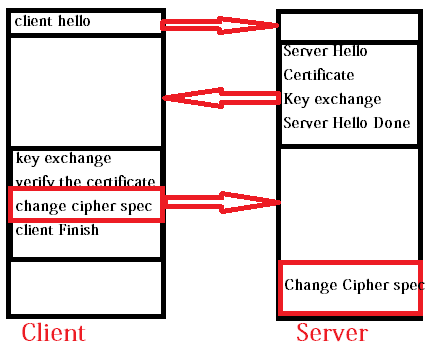

Flow:

1. Client Hello → Server Hello (Phase 1: negotiate)
2. Key exchange + certificate verification (Phases 2–3)
3. Client sends change_cipher_spec → "Let's start using what we negotiated"
4. Server responds with change_cipher_spec

Analogy: It's like both sides agreeing to "switch to code language" — once you say the magic word (the single byte), all future messages use the new cipher.

Alert Protocol

• Conveys TLS-related alerts to the peer entity
• Alert messages are compressed and encrypted
• Each message consists of two bytes:

Alert Behavior:

• Fatal → TLS immediately terminates the connection; no new connections on this session
• Warning → Other connections on the same session may continue

Handshake Protocol 🤝

• The most complex part of TLS
• Used before any application data is transmitted
• Allows server and client to:
  • Authenticate each other (ก็ certificate ไงล่ะะ)
  • Negotiate encryption and MAC algorithms
  • Negotiate cryptographic keys to be used
• Comprises a series of messages exchanged in four phases

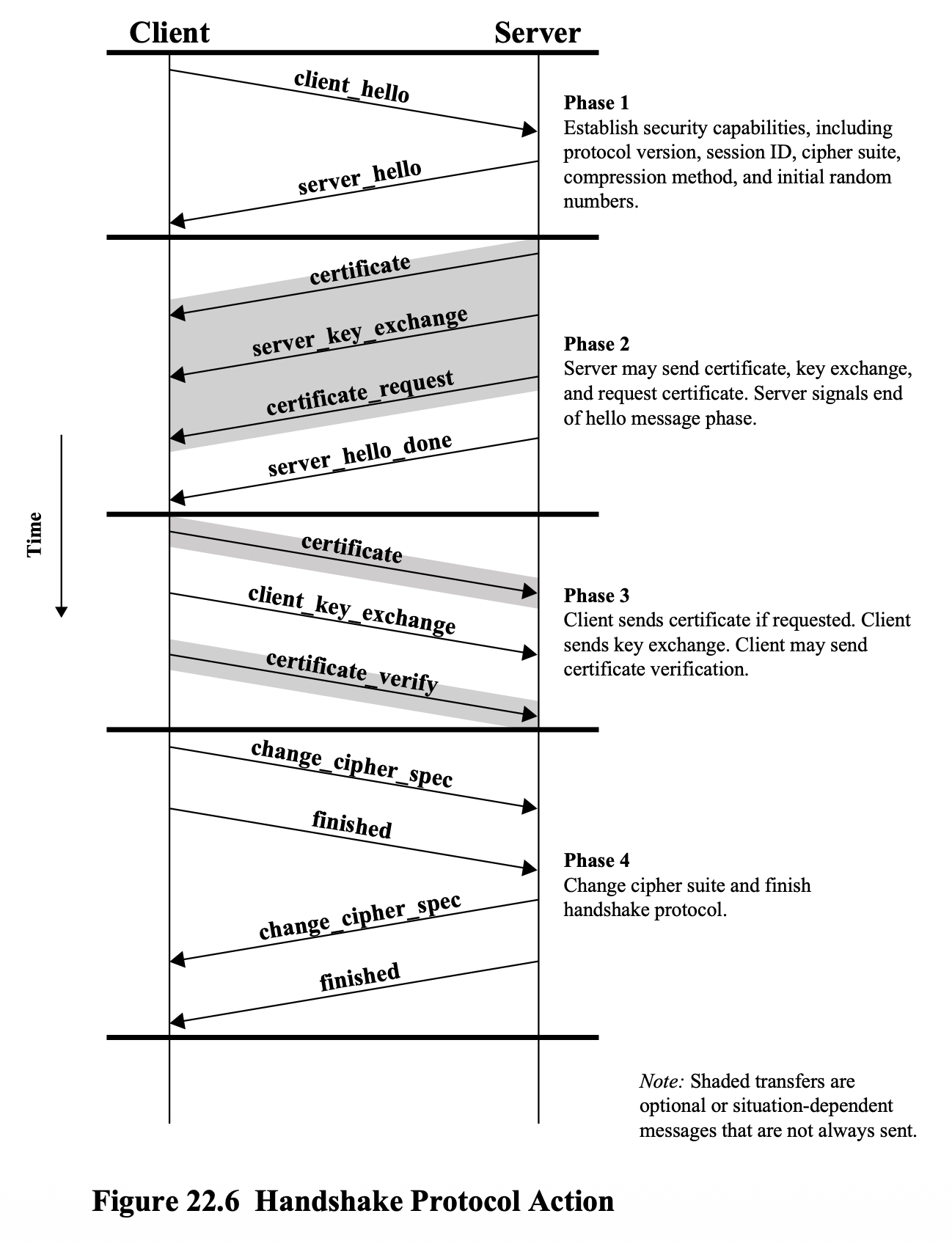

Image: Figure 22.6 Handshake Protocol Action

Phase 1 — Establish Security Capabilities

• Client sends client_hello
• Server responds with server_hello
• Negotiate: protocol version, session ID, cipher suite, compression method, random numbers

Phase 2 — Server Authentication and Key Exchange

• Server may send: certificate, server_key_exchange, certificate_request
• Server signals end with: server_hello_done

Phase 3 — Client Authentication and Key Exchange

• Client sends certificate (if requested)
• Client sends client_key_exchange
• Client may send certificate_verify

Phase 4 — Finish

• Both sides send change_cipher_spec and finished

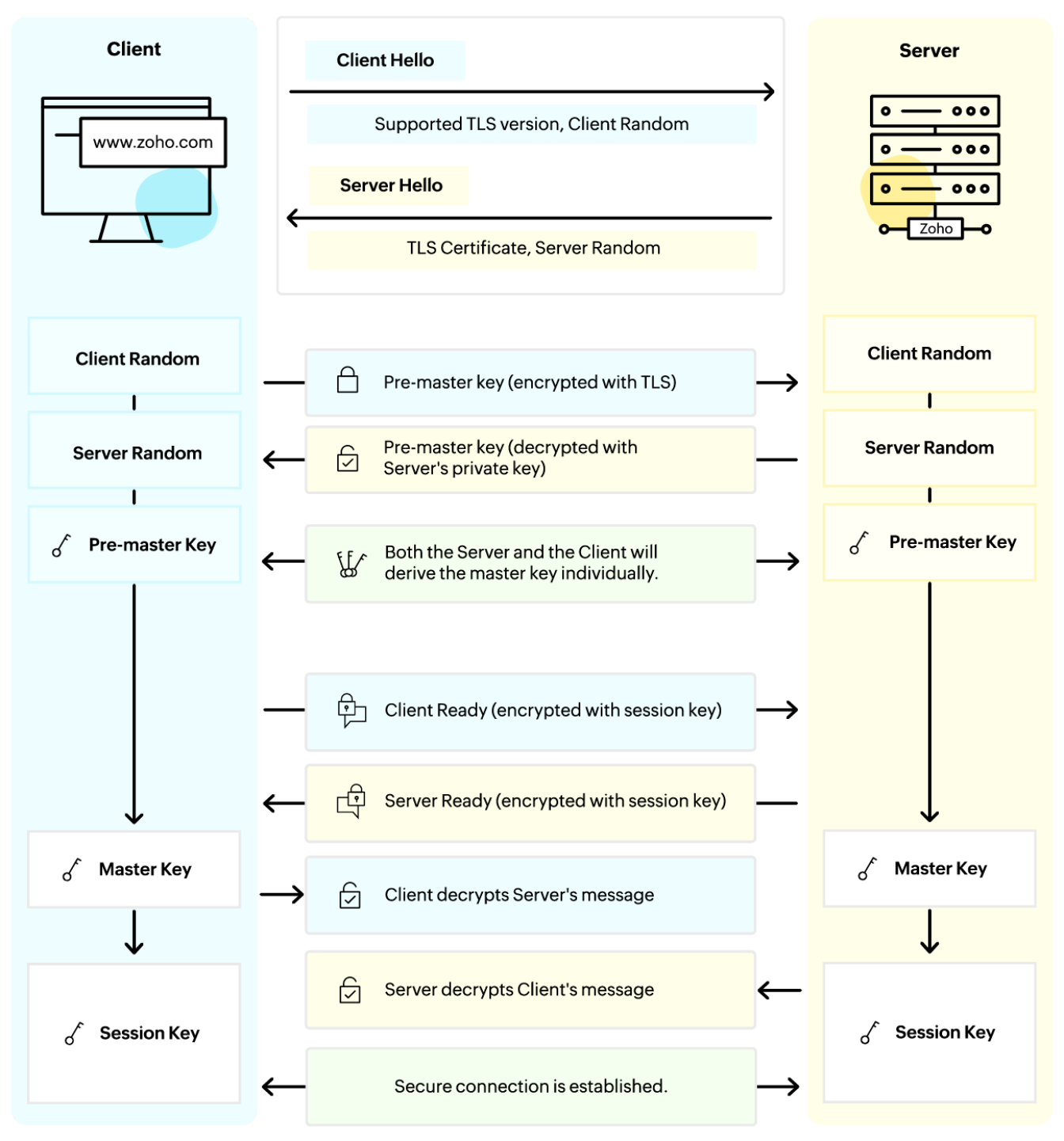

TLS Handshake Details

Client Hello

• Includes: TLS protocol version, cipher suites, Client Random
• Optional: Session ID, Compression Methods, Supported Extensions

Server Hello

• Includes: TLS version, selected cipher suite, Server Random
• Optional: Session ID, Compression Methods

Server Authentication

• Server presents its digital certificate
• Client validates against Certificate Authority (CA)

Premaster Key Generation

• Client generates a random premaster secret
• Unique for every TLS session → protects past sessions (Forward Secrecy)

Key Exchange

• Premaster secret encrypted with server's public key → sent to server
• Server decrypts with its private key

Session Key Generation

$\boxed{\text{Session Key} = f(\text{Server Random}, \text{Client Random}, \text{Premaster Key})}$
Both client and server compute this independently — must match.

Client/Server Finished

• Both send finished to confirm handshake is complete

Heartbeat Protocol

• A periodic signal to indicate normal operation or synchronize parts of a system
• Typically used to monitor availability of a protocol entity
• Defined in 2012, RFC 6520
• Runs on top of the TLS Record Protocol
• Use established during Phase 1 of Handshake Protocol
• Each peer indicates whether it supports heartbeats

Serves Two Purposes:

• Assures sender that recipient is still alive
• Generates activity across the connection during idle periods

SSL/TLS Attacks

Four general categories:

• จะมา Attack algorithm ไม่ได้ เช่น RSA (มันยังปลอดภัยอยู่ไง)

HTTPS (HTTP over SSL)

• Combination of HTTP and SSL to implement secure communication between a web browser and web server
• Built into all modern web browsers
  • URL addresses begin with https://
• Documented in RFC 2818: HTTP Over TLS
• The HTTP client also acts as the TLS client
• Closing HTTPS requires TLS to close the connection with the peer, which involves closing the underlying TCP connection

SSL Certificate Types:

Level of certificate → level of cryptography is the same, but validation process is more strict.

• Normal SSL — standard validation
• EV-SSL (Extended Validation SSL) — more rigorous validation process; higher trust

Analogy: HTTPS is HTTP wearing a security badge — every packet is encrypted and authenticated before it leaves the building.

A Certificate Signing Request (CSR) is a Base-64 encoded block of text generated on a server that contains public key information and identifying details (domain name, organization, location)

IP Security (IPsec)

หายเยอะเลย ไปตามหามา benefits of IPsec ก็หาย

มีคนเคยบอกว่า VPN is a technique to bypass firewall, แต่จริง ๆ not 100% true
แต่เวลาเรา configure firewall เราต้องระบุไงว่าให้ VPN access ได้มั้ย

• Used to secure IP packets between hosts or networks — often in VPNs
• Security concerns cross protocol layers
• Provides security at the network layer → transparent to applications above
• Authentication and encryption features included in IPv6; also usable in IPv4
  • ที่ Highlight ออกสอบแน่!

IPsec Provides Three Things:

The Scope of IPsec

Two Main Functions:

• ESP (Encapsulating Security Payload) — combined authentication/encryption
• IKE (Internet Key Exchange) — key exchange function

Also:

• AH (Authentication Header) — authentication-only function
  • AH included in IPsecv3 for backward compatibility
  • Should NOT be used in new applications (ESP already provides authentication)

VPNs want both authentication and encryption → Use ESP

Internet Key Exchange (IKE)

IKE is a key management protocol used with IPsec to securely establish, negotiate, and maintain encrypted communication channels (Security Associations – SAs).

Functions:

• Establish secure communication channels
• Exchange cryptographic keys
• Authenticate communicating parties

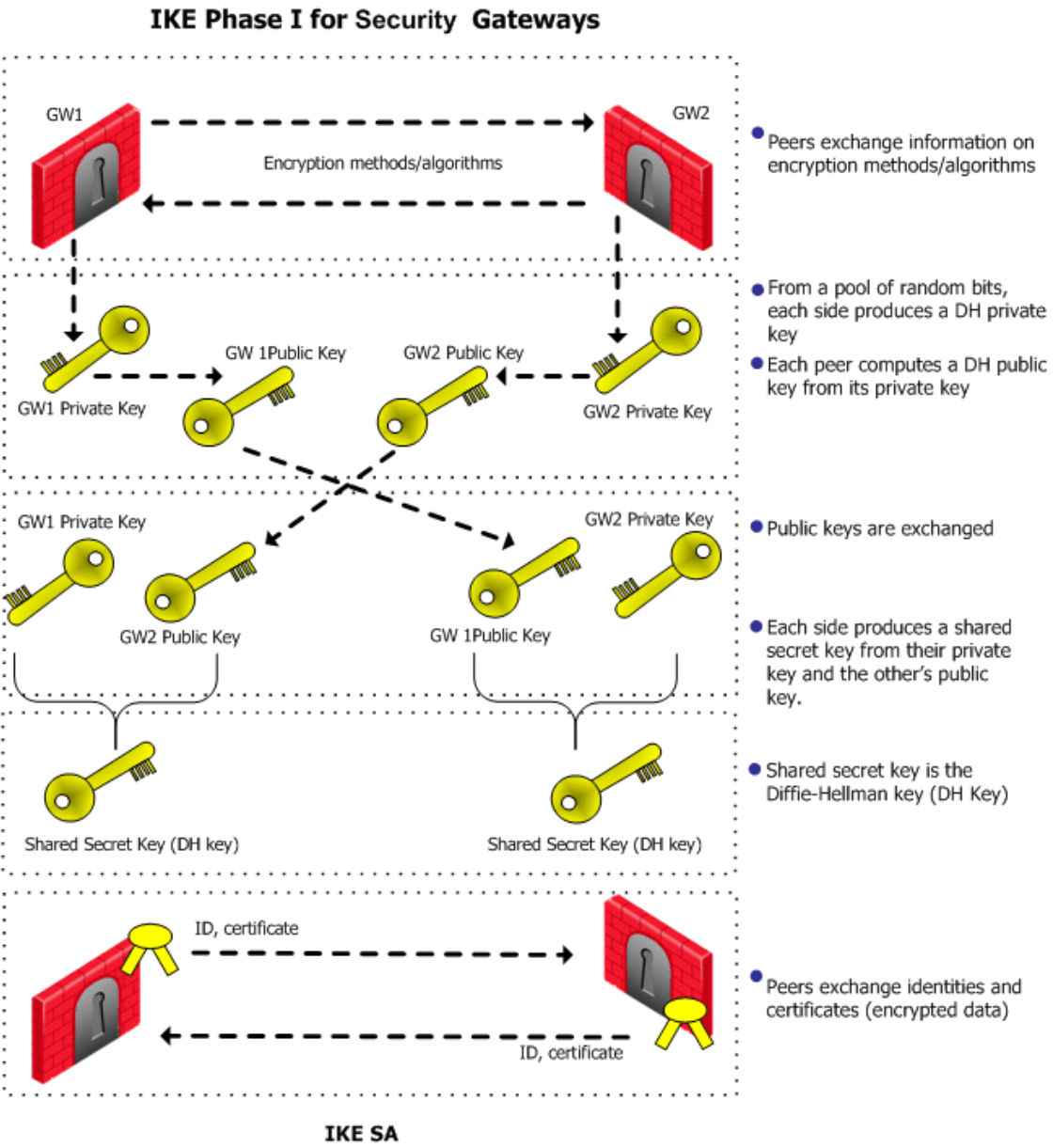

IKE Phase I (for Security Gateways):

1. Peers exchange information on encryption methods/algorithms
2. Each side generates a DH private key from random bits
3. Each peer computes a DH public key from its private key
4. Public keys are exchanged
5. Each side produces a shared secret from their private key + other's public key → Diffie-Hellman key
6. Peers exchange identities and certificates (encrypted)
7. → IKE SA established

VPN Security Based on IPsec

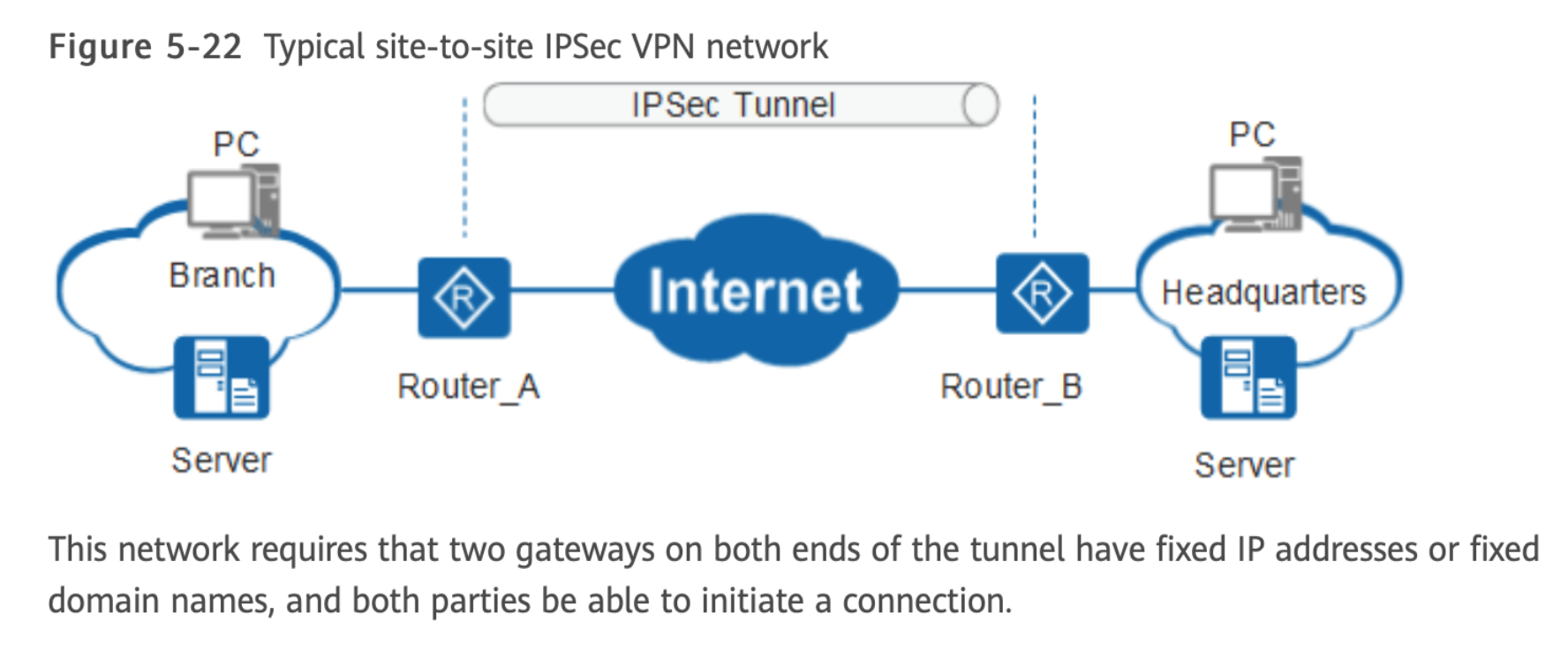

• A VPN creates a secure private tunnel through a public network
• IPsec in VPN requires:
  • Authentication → to assure unauthorized users do not penetrate the VPN
  • Encryption → to assure eavesdroppers/attackers on the internet cannot read messages

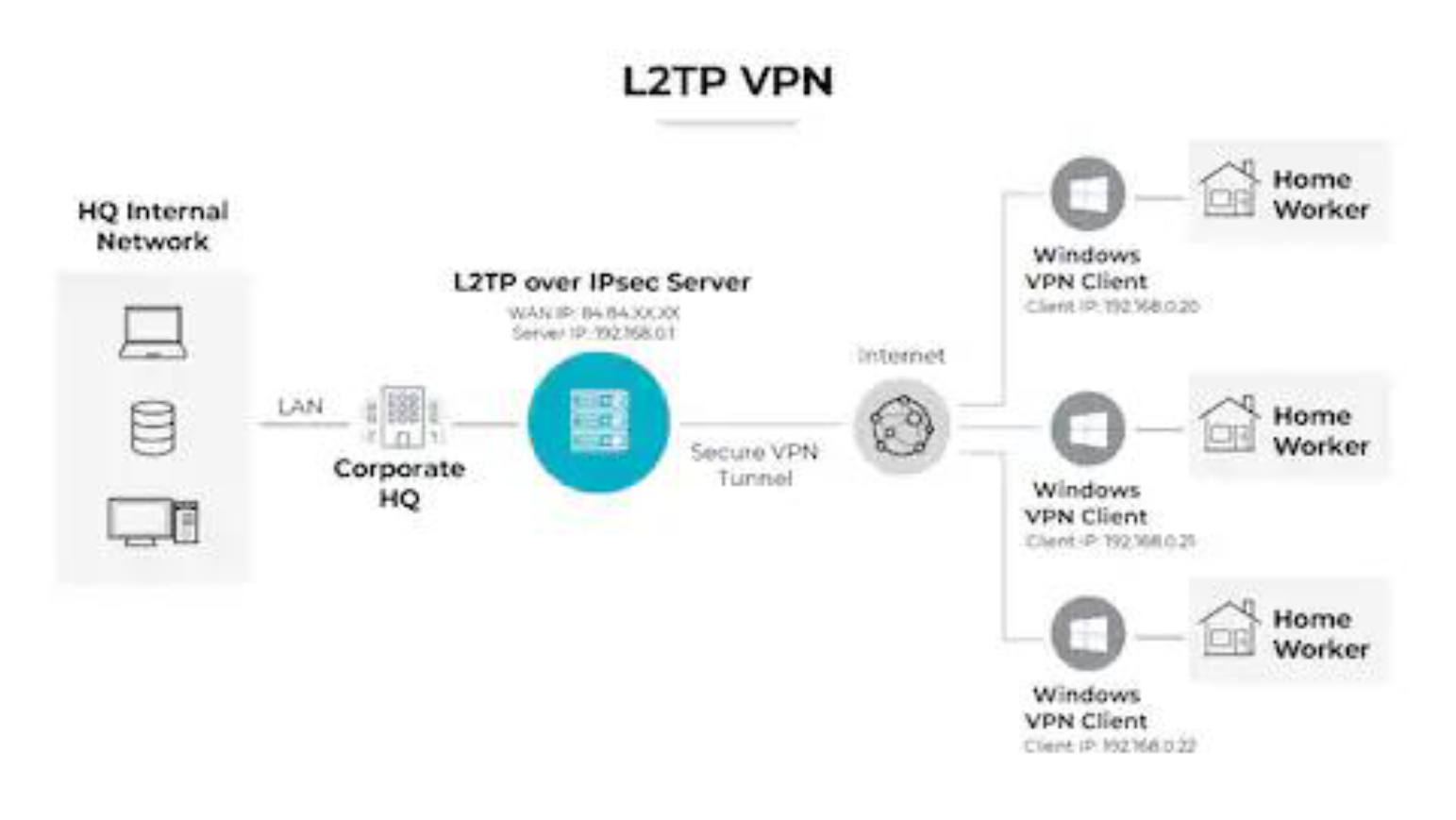

L2TP (Layer 2 Tunneling Protocol)

• Tunneling protocol used to create a virtual tunnel between a client and a VPN server
• Operates at Layer 2 (Data Link Layer)
• Encapsulates PPP (Point-to-Point Protocol) frames
• Uses UDP port 1701
• No encryption! (tunneling only)

Process:

1. User connects to ISP or network
2. L2TP creates a tunnel to VPN server
3. PPP frames are encapsulated inside L2TP
4. Data is transmitted through the tunnel (not encrypted)

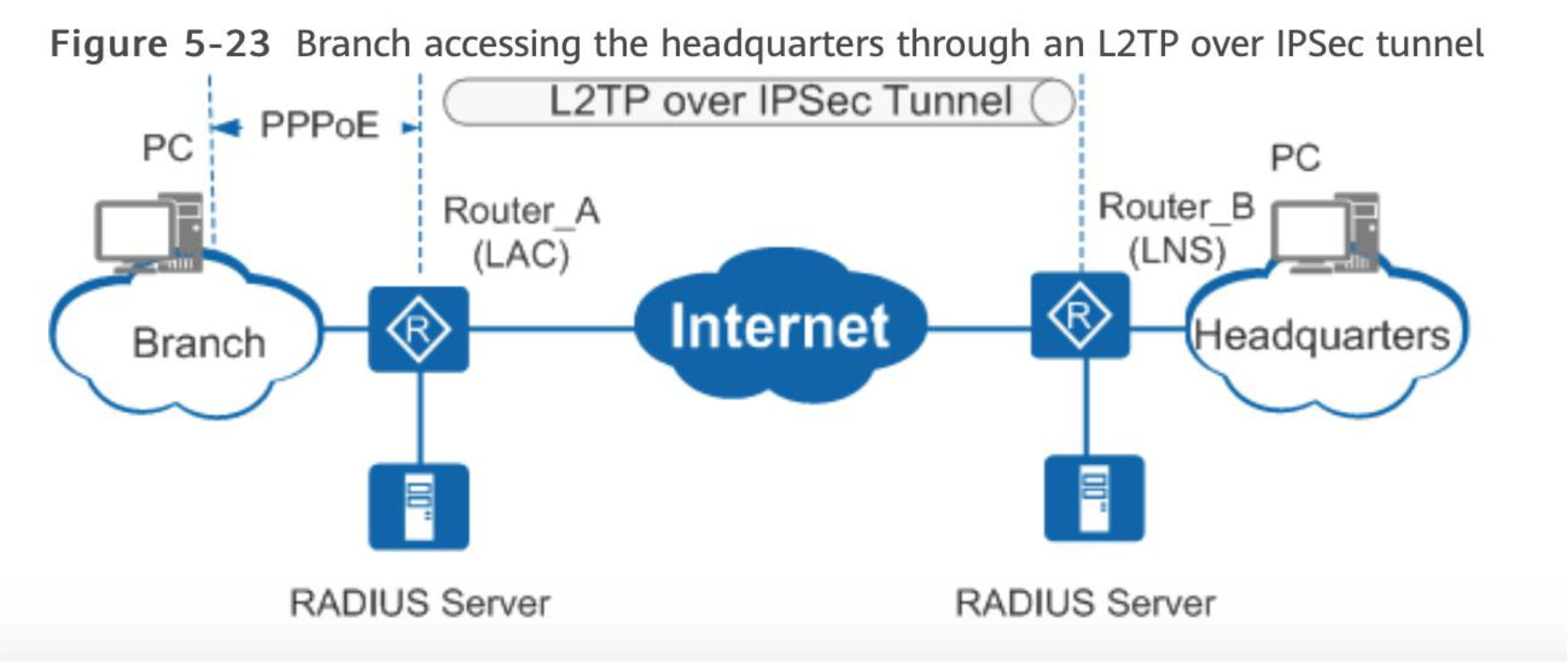

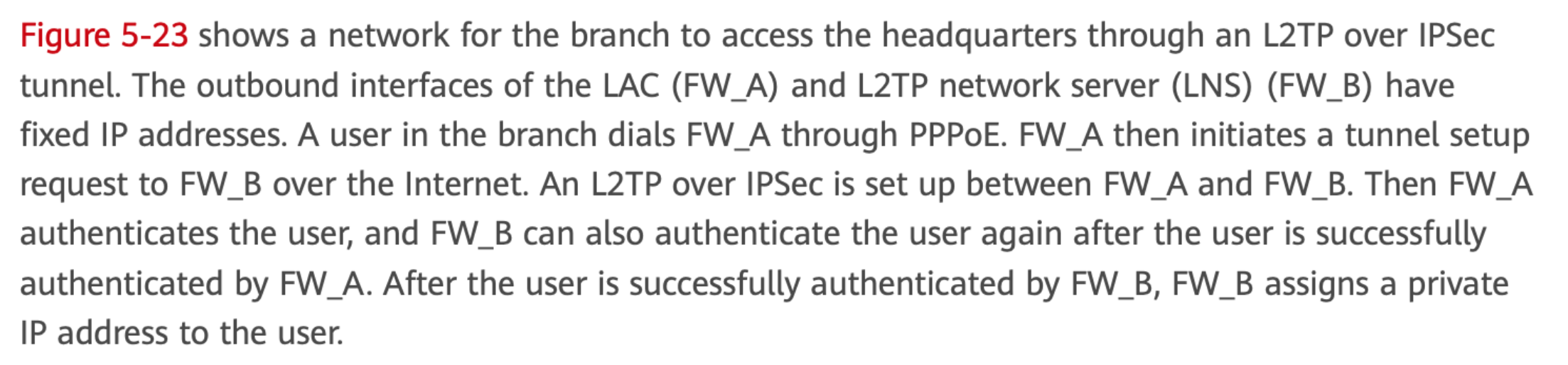

L2TP/IPsec Combined:

• L2TP → provides tunneling
• IKE → negotiates keys
• IPsec → provides security (encryption)

How L2TP/IPsec Works:

Original Data
  → PPP
  → L2TP
  → IPsec (ESP encryption)
  → IP packet

Security Associations (SA)

• A one-way relationship between sender and receiver that affords security for traffic flow
  • Two-way secure exchange requires two SAs
• Uniquely identified by Destination Address + SPI in the extension header (AH or ESP)

Defined by 3 Parameters:

IPsec ESP Format

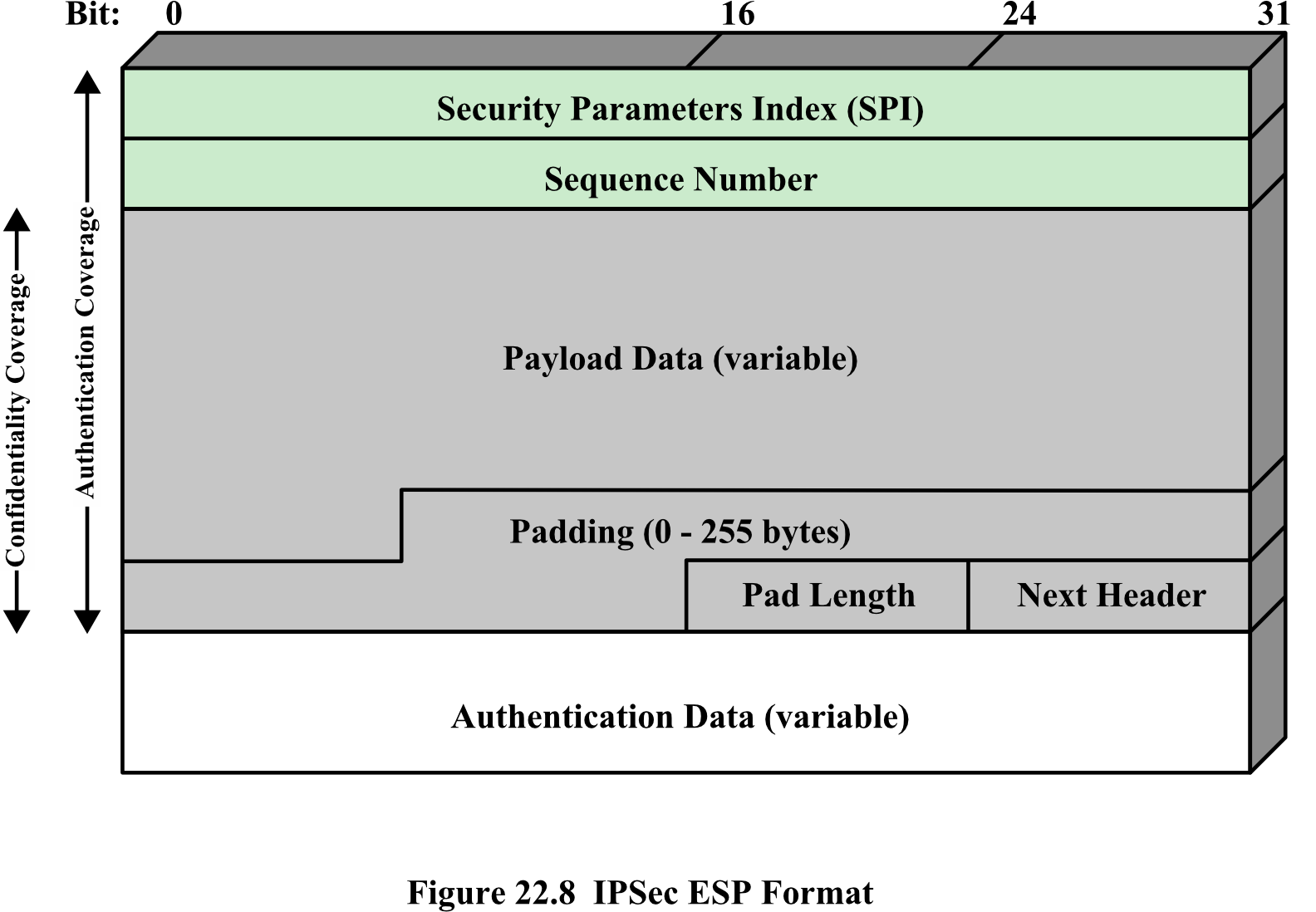

Image: Figure 22.8 IPSec ESP Format

Fields:

┌──────────────────────────────────────────┐
│        Security Parameters Index (SPI)   │ ← Authentication Coverage
├──────────────────────────────────────────┤
│              Sequence Number             │ ← Authentication Coverage
├──────────────────────────────────────────┤  ┐
│           Payload Data (variable)        │  │ Confidentiality
├──────────────────────────────────────────┤  │ + Authentication
│          Padding (0-255 bytes)           │  │
├───────────────────┬──────────────────────┤  │
│    Pad Length     │     Next Header      │  ┘
├──────────────────────────────────────────┤
│       Authentication Data (variable)     │
└──────────────────────────────────────────┘

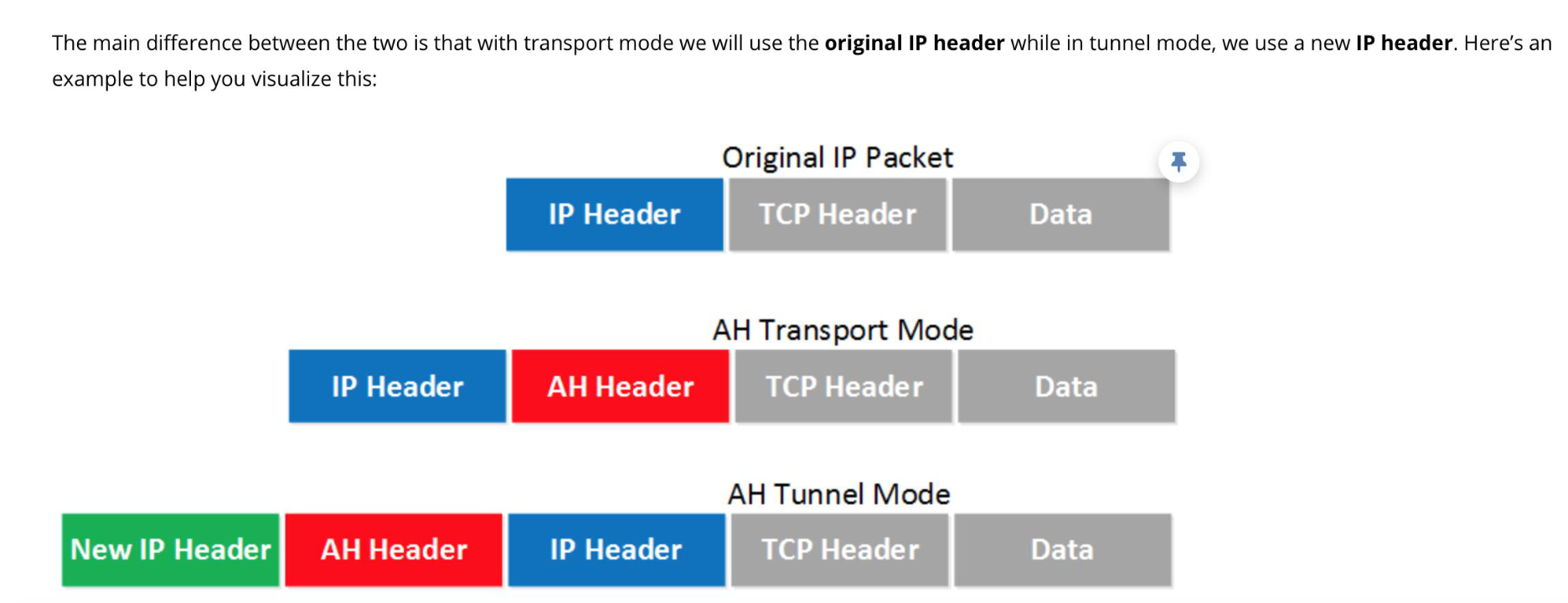

Transport vs. Tunnel Modes

Aspect	Transport Mode	Tunnel Mode
IP Payload	Encrypted	Encrypted
IP Header	Not encrypted	Encrypted
IP Header Usage	Original IP header used for routing	New IP header wraps the encrypted original
Use Case	Host-to-host communication	Network-to-network (VPN)
Protection	Payload from end to end	Entire IP packet

Analogy: Transport Mode is like sealing the letter inside an envelope but leaving the address label visible. Tunnel Mode is like putting that envelope inside another envelope with a new address — the original is completely hidden.

Kerberos Overview

• Initially developed at MIT
• Available in public domain and commercially supported versions
• Issued as an Internet standard — de facto standard for remote authentication
• Overall scheme: trusted third-party authentication service
• Requires that a user prove identity for each service invoked
• Servers must also prove their identity to clients

Kerberos Protocol

Involves:

• Clients
• Application Servers
• Kerberos Server (AS + TGS)

Key Concern:

• Sending password directly over network → opponent could observe it
• Opponent could impersonate AS → need a secure way

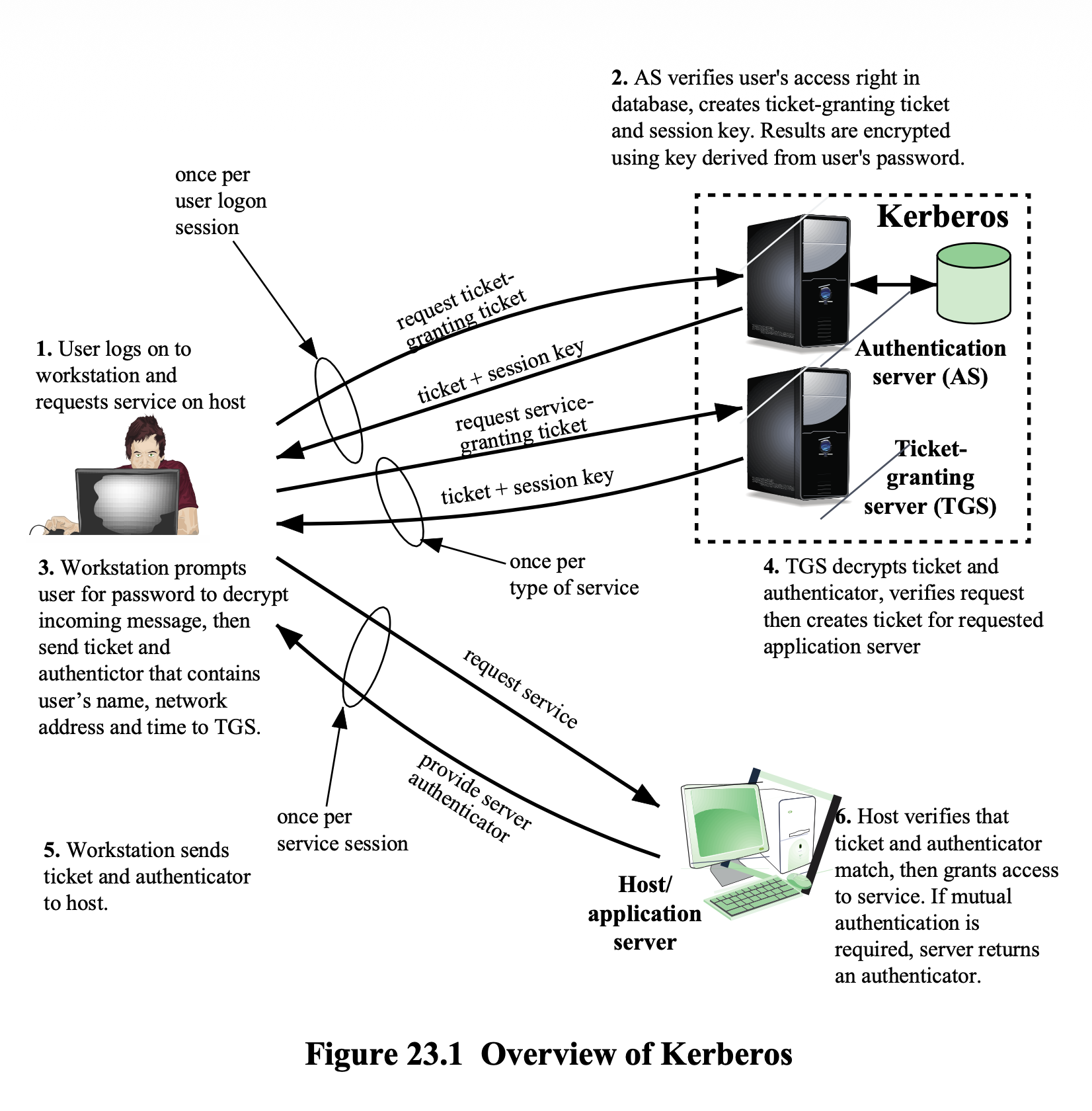

Flow:

1. User logs on and requests service on host
2. AS verifies user's access rights → creates Ticket-Granting Ticket (TGT) + session key; encrypted with key derived from user's password
3. Workstation prompts user for password to decrypt → sends TGT + authenticator (name, network address, time) to TGS
4. TGS decrypts and verifies → creates ticket for requested application server
5. Workstation sends ticket + authenticator to host
6. Host verifies ticket and authenticator → grants access (optionally returns authenticator for mutual authentication)

Analogy: Kerberos is like an amusement park — you check in at the gate (AS) and get a wristband (TGT), then show it at each ride booth (TGS) to get a specific ride ticket, so you don't need to verify your identity at every single ride.

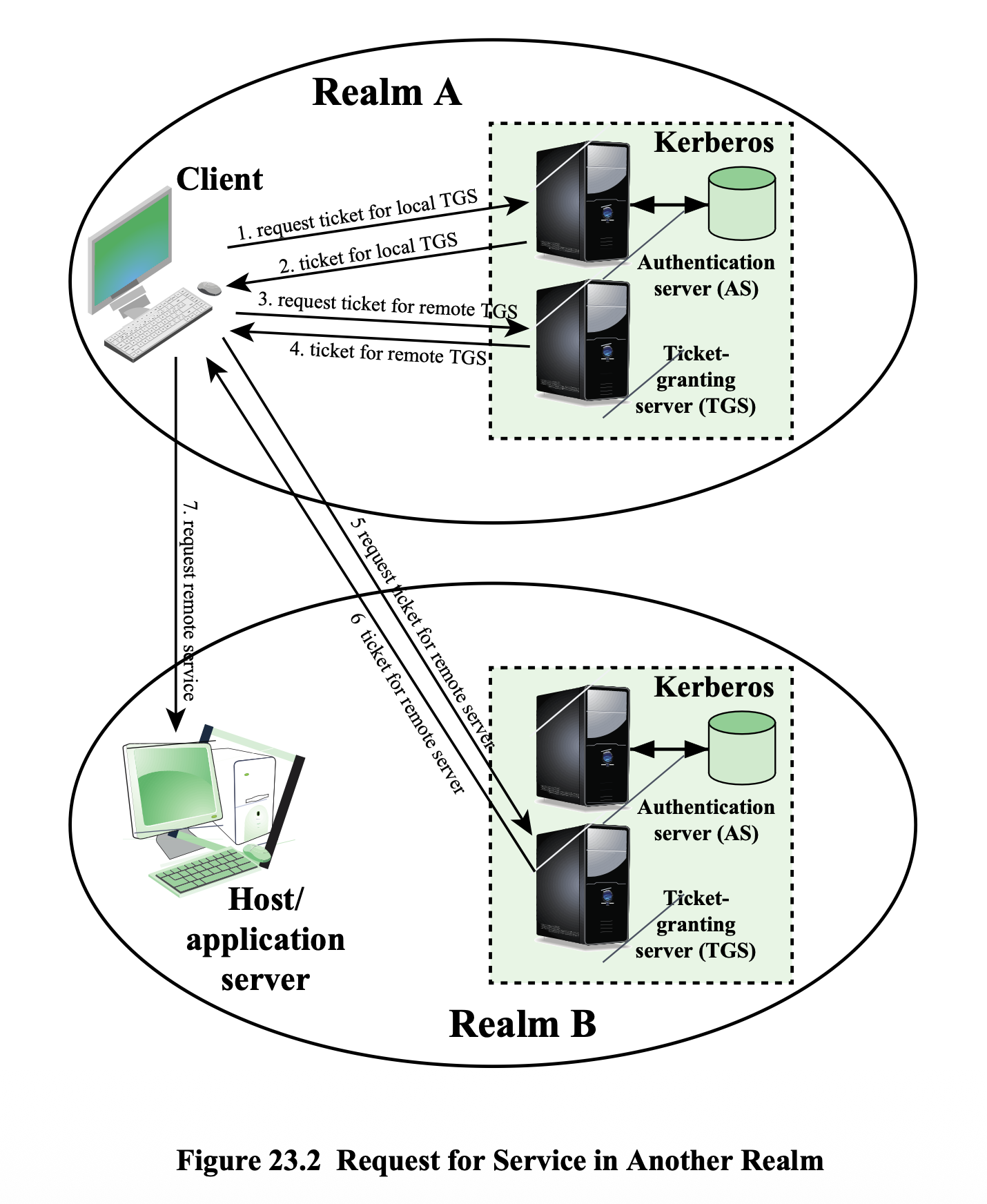

Kerberos Realms

• A Kerberos realm = a Kerberos server + registered clients + application servers sharing keys
• Networks under different administrative organizations = different realms

Multi-Realm Requirements:

• Kerberos servers must share a secret key
• Must trust each other's Kerberos server to authenticate users
• Participating servers must accept authentication from the other realm's Kerberos

Kerberos Versions 4 and 5

• Kerberos v4 is most widely used
• Kerberos v5 improvements:
  • Encrypted messages are tagged with encryption algorithm identifier → supports algorithms other than DES
  • Supports authentication forwarding
    • Client can access a server and have that server access another server on behalf of the client (through ticket)
  • Supports interrealm authentication requiring fewer secure key exchanges

Kerberos Performance Issues

• Large client-server installations: very little performance impact if properly configured
• Best security practice: place Kerberos server on a separate, isolated machine
  • แยกออกเป็น Authentication Server ไปเลย, we need to prevent security effects from other applications → แยกไปเล้ย!
• Motivation for multiple realms: administrative reasons, not performance

Summary — Topics Covered

• Secure E-mail and S/MIME
  • MIME
  • S/MIME
• DomainKeys Identified Mail (DKIM) - SKIPPED ไปคอร์สหน้านะ!
  • Internet mail architecture
  • DKIM strategy
• SSL and TLS
  • TLS architecture
  • TLS protocols
  • TLS attacks
  • SSL/TLS attacks
• HTTPS
  • Connection initiation
  • Connection closure
• IPv4 and IPv6 Security
  • IP security overview
  • Scope of IPsec
  • Security associations
  • Encapsulating Security Payload (ESP)
  • Transport and Tunnel modes
• Kerberos
  • The Kerberos Protocol
  • Kerberos realms and multiple Kerberi
  • Version 4 and Version 5
  • Performance issues
