Chapter 14 - Firewalls and Intrusion Prevention Systems (IPS)

1. The Need for Firewalls

• Internet connectivity is essential — but it creates a threat
• Firewall = effective means of protecting LANs
• Inserted between the premises network and the Internet to establish a controlled link
  • Can be a single computer system or a set of two or more systems working together
• Used as a perimeter defense
  • Single choke point to impose security and auditing
  • Insulates the internal systems from external networks

Perimeter = การเอาพวก control อะไรมาใช้ป้องกันระบบ

Analogy: คิดว่า Firewall เป็นเหมือน "ประตูหน้าบ้าน" ที่มีเจ้าหน้าที่รักษาความปลอดภัยคอยตรวจบัตรทุกคนที่จะเข้า-ออก ไม่มีใครข้ามไปได้โดยไม่ผ่านจุดนี้

2. Firewall Characteristics

Design Goals (3 ข้อสำคัญ)

• All traffic from inside to outside, and vice versa, must pass through the firewall
  • จากในไปนอก สามารถป้องกัน Data leakage ได้ไง
• Only authorized traffic as defined by the local security policy will be allowed to pass
• The firewall itself is immune to penetration

3. Firewall Access Policy

• A critical component in planning and implementing a firewall is specifying a suitable access policy
  • Lists the types of traffic authorized to pass through the firewall
  • Includes address ranges, protocols, applications, and content types
• Policy should be developed from the organization's information security risk assessment
• Should start from a broad specification of which traffic types the organization needs to support
  • Then refined to detail the filter elements → implemented within an appropriate firewall topology

4. Firewall Filter Characteristic

Characteristics that a firewall access policy could use to filter traffic:

5. Firewall Capabilities and Limitations

Capabilities

• Defines a single check point
• Provides a location for monitoring security events
• Convenient platform for several Internet functions (not just security-related)

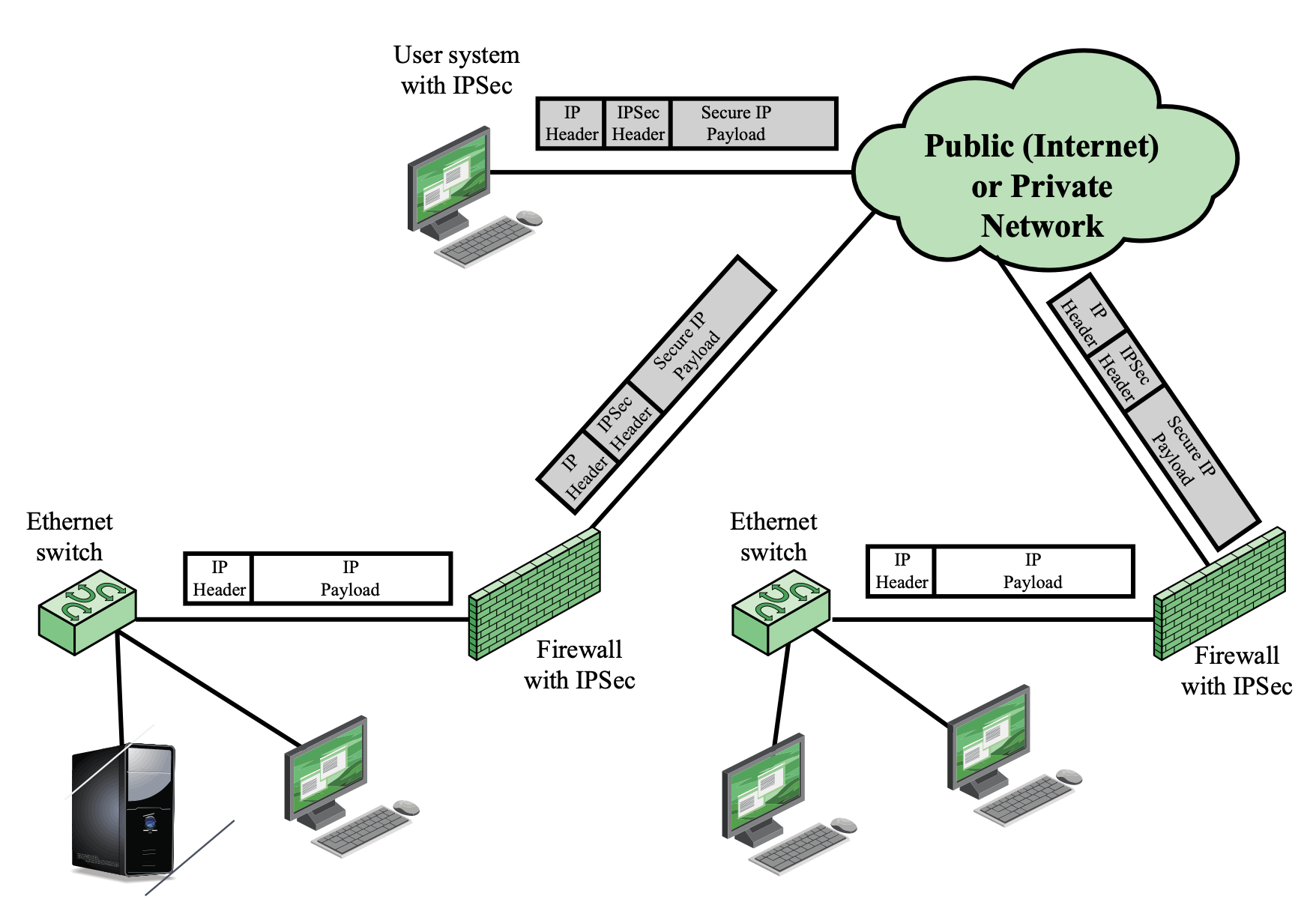

• Can serve as the platform for IPSec

Limitations

• Cannot protect against attacks bypassing the firewall
• May not protect fully against internal threats
• Improperly secured wireless LAN can be accessed from outside the organization
• Laptop, PDA, or portable storage device may be infected outside the corporate network then used internally

Analogy: Firewall เหมือนประตูหน้าบ้าน — ถ้าโจรปีนรั้วหลังบ้าน หรือคนในบ้านเองเป็นโจร Firewall ก็ช่วยไม่ได้

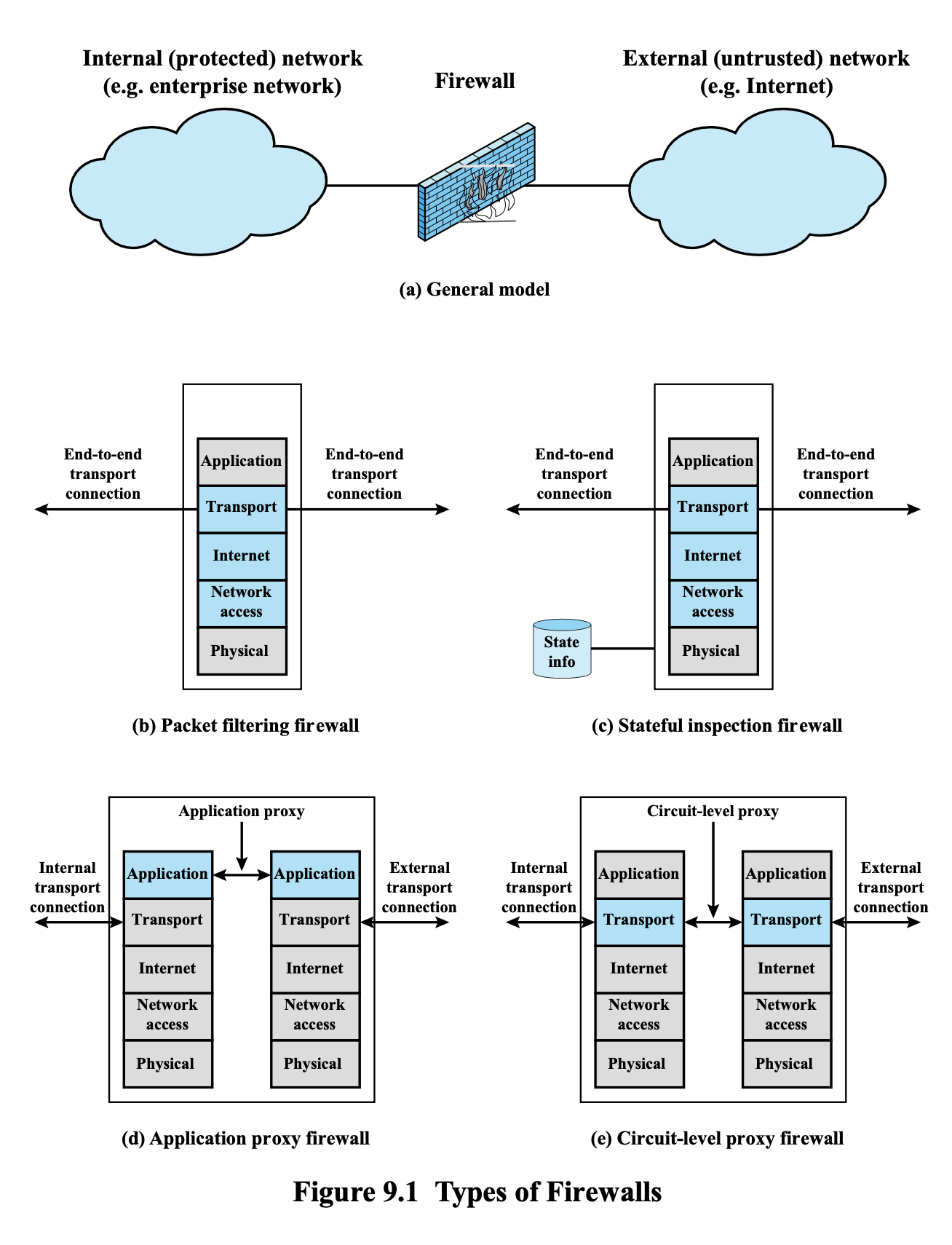

6. Types of Firewalls

6.1 Packet Filtering Firewall (Stateless)

• Applies rules to each incoming and outgoing IP packet
  • Typically a list of rules based on matches in the IP or TCP header
  • Forwards or discards the packet based on rules match

Filtering rules are based on:

• Source IP address
• Destination IP address
• Source and destination transport-level address (port)
• IP protocol field
• Interface

Two default policies:

• Discard — prohibit unless expressly permitted
  • More conservative, controlled, visible to users
• Forward — permit unless expressly prohibited
  • Easier to manage and use but less secure

Example Packet-Filtering Rules (Table 9.1)

Analogy: Packet Filtering เหมือนยามที่ดูแค่ "บัตรประชาชน" (header) ว่าชื่อนี้ในลิสต์ไหม — ไม่สนว่าคนนั้นจะทำอะไรหลังผ่านเข้าไป

Packet Filter Advantages & Weaknesses

Advantages:

• Simplicity
• Typically transparent to users and very fast

Weaknesses:

• Cannot prevent attacks that employ application-specific vulnerabilities or functions
  • Cannot determine whether the content of the request will negatively affect the application
• Limited logging functionality
• Do not support advanced user authentication
• Vulnerable to attacks on TCP/IP protocol bugs
• Improper configuration can lead to breaches

6.2 Stateful Inspection Firewall

Stateful firewalls remember information associated with previously passed packets and thus provide much better security.

Two key mechanisms:

• Tightens rules for TCP traffic by creating a directory of outbound TCP connections
  • There is an entry for each currently established connection
  • Packet filter allows incoming traffic to high-numbered ports only for those packets that fit the profile of one of the entries in this directory
• Reviews packet information but also records information about TCP connections
  • Keeps track of TCP sequence numbers to prevent attacks that depend on the sequence number
  • Inspects data for protocols like FTP, IM, and SIPS commands

Example Stateful Firewall Connection State Table (Table 9.2)

Security Features of Stateful Firewall

• Stateful firewalls are active and intelligent defense mechanisms as compared to static firewalls which are "dumb"
• Attacks such as denial of service and spoofing are easily safeguarded
• Limitation: Stateful filtering occurs at lower layers of the OSI model (layers 3 and 4)
  • Application layer is not protected
  • Authentication of users to connections cannot be done

Analogy: Stateful = ยามที่จำได้ว่า "คนนี้เพิ่งออกไปซื้อของ รอบนี้กลับเข้ามาปกติ" — ไม่ใช่แค่ดูบัตรรอบเดียว แต่จำ context ด้วย

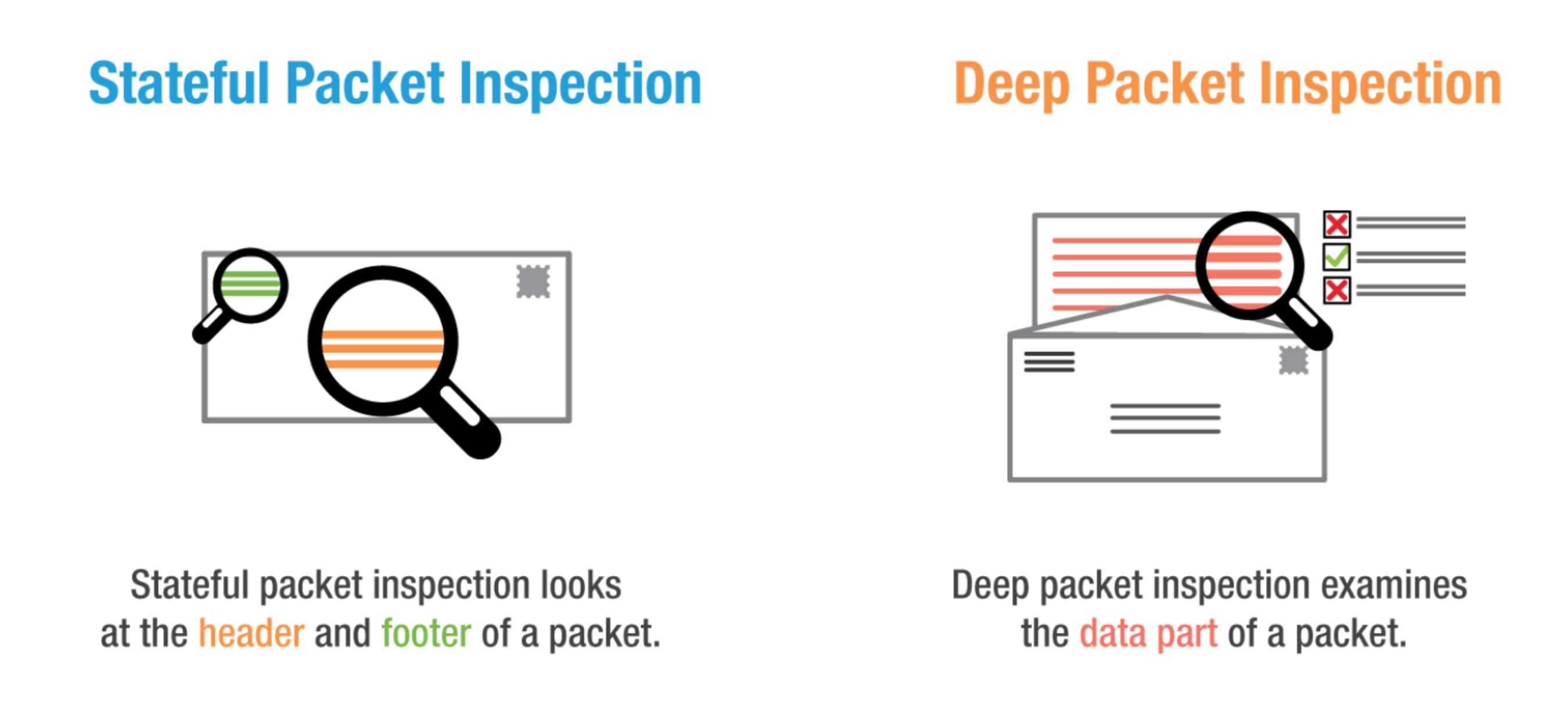

6.3 Deep Packet Inspection (DPI)

6.4 Stateless vs. Stateful — Side-by-Side Comparison

Real-world Example

6.5 Application-Level Gateway (Proxy Firewall)

• Also called an application proxy or Proxy Firewall
• Acts as a relay of application-level traffic
  • User contacts gateway using a TCP/IP application
  • User is authenticated
  • Gateway contacts application on remote host and relays TCP segments between server and user
• Must have proxy code for each application
  • May restrict application features supported
  • Proxy code = perform authentication for each applications
• Tend to be more secure than packet filters
• Disadvantage: Additional processing overhead on each connection

Proxy Firewall Details

• Operates at the application level and acts as an intermediary between two end systems
• The client's request is evaluated against security rules → permitted or blocked
• Uses both stateful and deep packet inspection
• Mostly used for monitoring 7th layer protocols like HTTP and FTP

Analogy: Proxy Firewall เหมือน "นายหน้า" ที่คุณต้องติดต่อผ่านเขาทุกครั้ง — เขาตรวจสอบก่อน แล้วค่อยไปติดต่อปลายทางให้คุณ

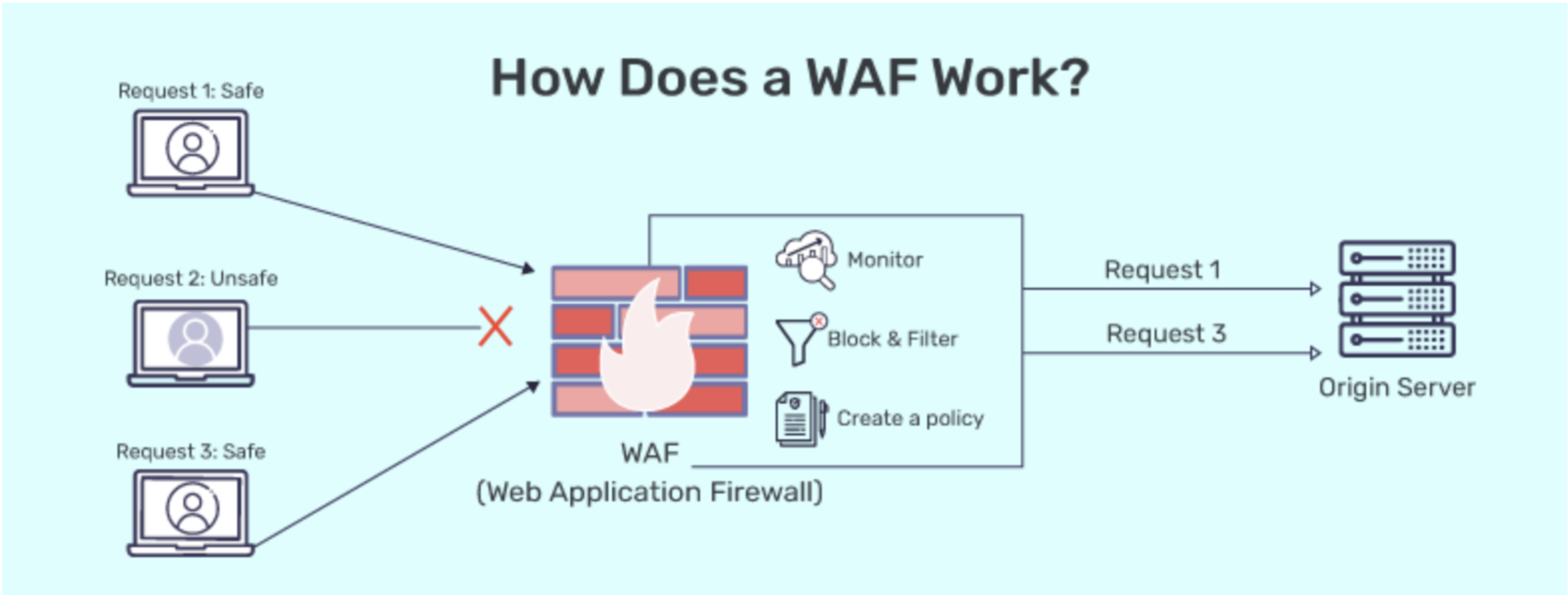

6.6 Web Application Firewall (WAF)

Web Application only นะ!! (Server)

• Developed in the early 1990s to respond to threats beyond the scope of traditional firewalls
• Traditional firewalls were bypassed because attacks used authorized protocols (like HTTP) to attack the application
• Relies on a security policy enforcement point positioned between a web application and the client endpoint
• Can be implemented in software or hardware

WAF Security Models

• Positive Security Model (Whitelist)
  • Explicitly defines allowed patterns and behaviors
  • Permits only known legitimate traffic — rejects all other patterns
• Negative Security Model (Blacklist)
  • Identifies and blocks known malicious patterns or signatures
  • Assumes traffic matching predefined attack patterns is malicious
• Advanced Capabilities
  • Leverages machine learning / AI and threat intelligence for proactive defence

What WAF Protects Against

WAF protects the app layer and analyzes each HTTP/HTTPS request. It is user, session, and application aware.

• Injection attacks
• Broken Authentication
• Sensitive data exposure
• XML External Entities (XXE)
• Broken Access control
• Security misconfigurations
• Cross Site Scripting (XSS)
• Insecure Deserialization

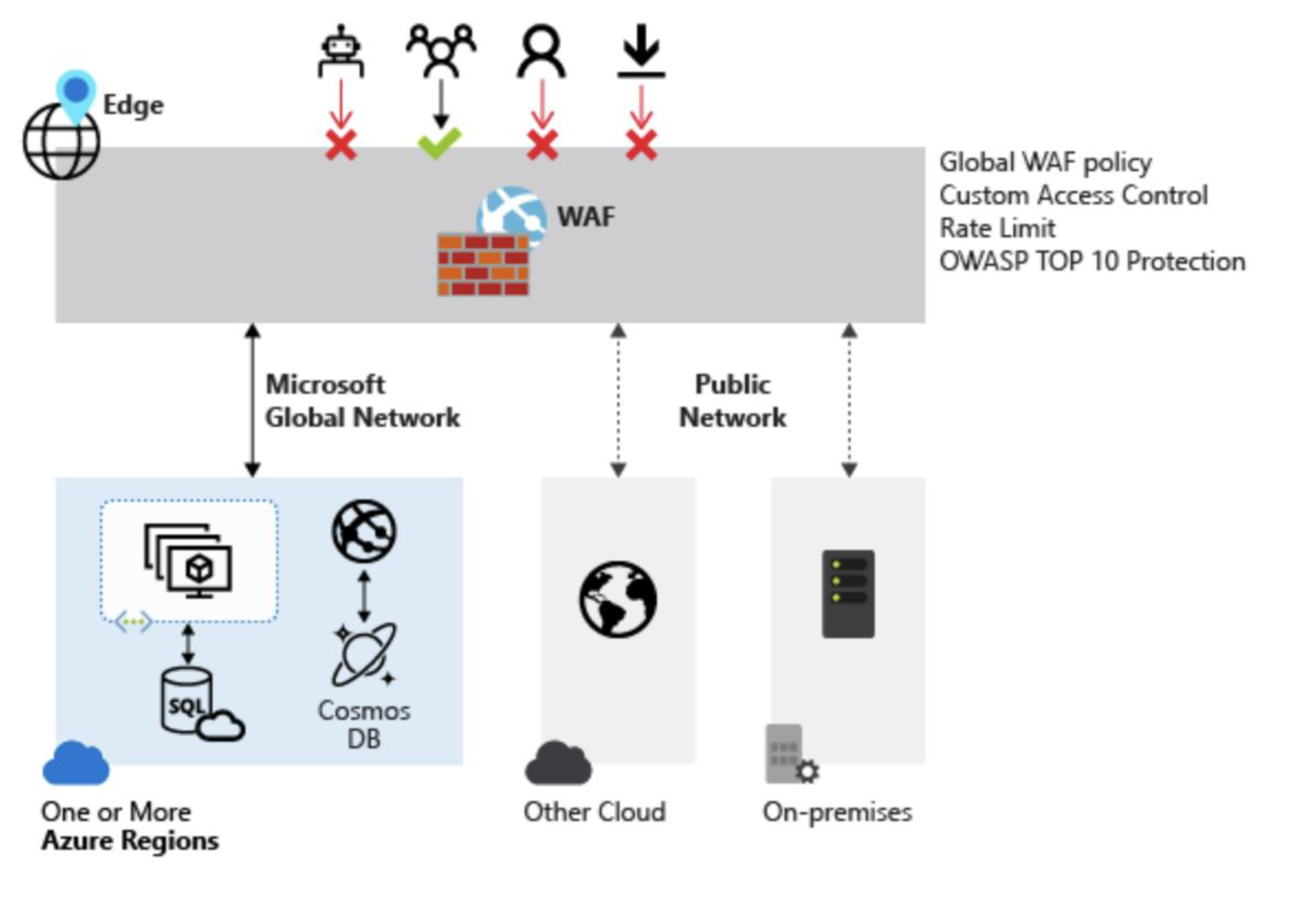

Types of WAF

Analogy: WAF เหมือนยามที่ตรวจสอบ "เนื้อหาของจดหมาย" ไม่ใช่แค่ดูว่าจ่าหน้าถูกต้องไหม — Network Firewall แค่ดูซอง, WAF เปิดอ่านข้างใน

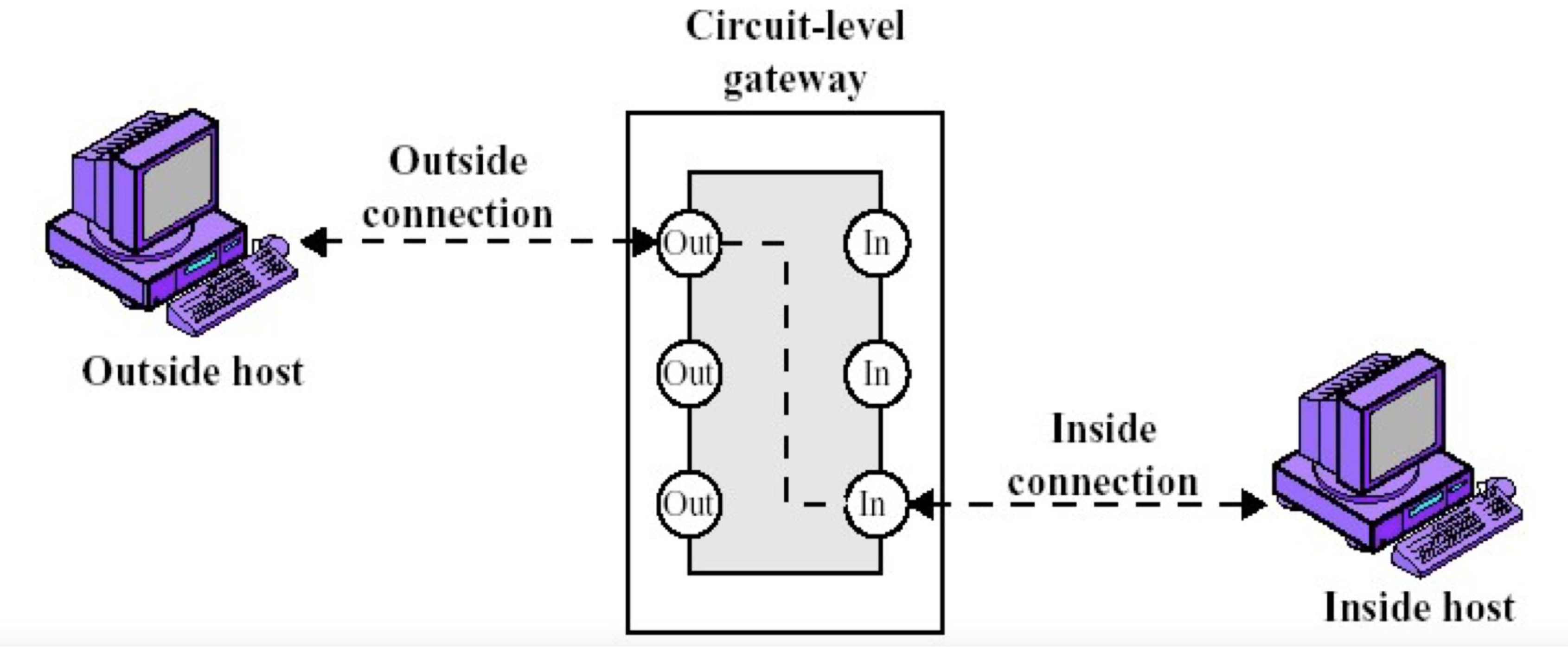

6.7 Circuit-Level Gateway

• Sets up two TCP connections: one between itself and a TCP user on an inner host, and one on an outside host
• Relays TCP segments from one connection to the other without examining contents
• Security function = determining which connections will be allowed
• Typically used when inside users are trusted
• May use application-level gateway inbound and circuit-level gateway outbound
• Lower overheads than application-level gateway

Analogy: Circuit-Level Gateway เหมือนช่างโทรศัพท์ที่ต่อสาย — เขาเชื่อมการเชื่อมต่อให้คุณ แต่ไม่ได้ฟังเนื้อหาสนทนา

7. Firewall Basing

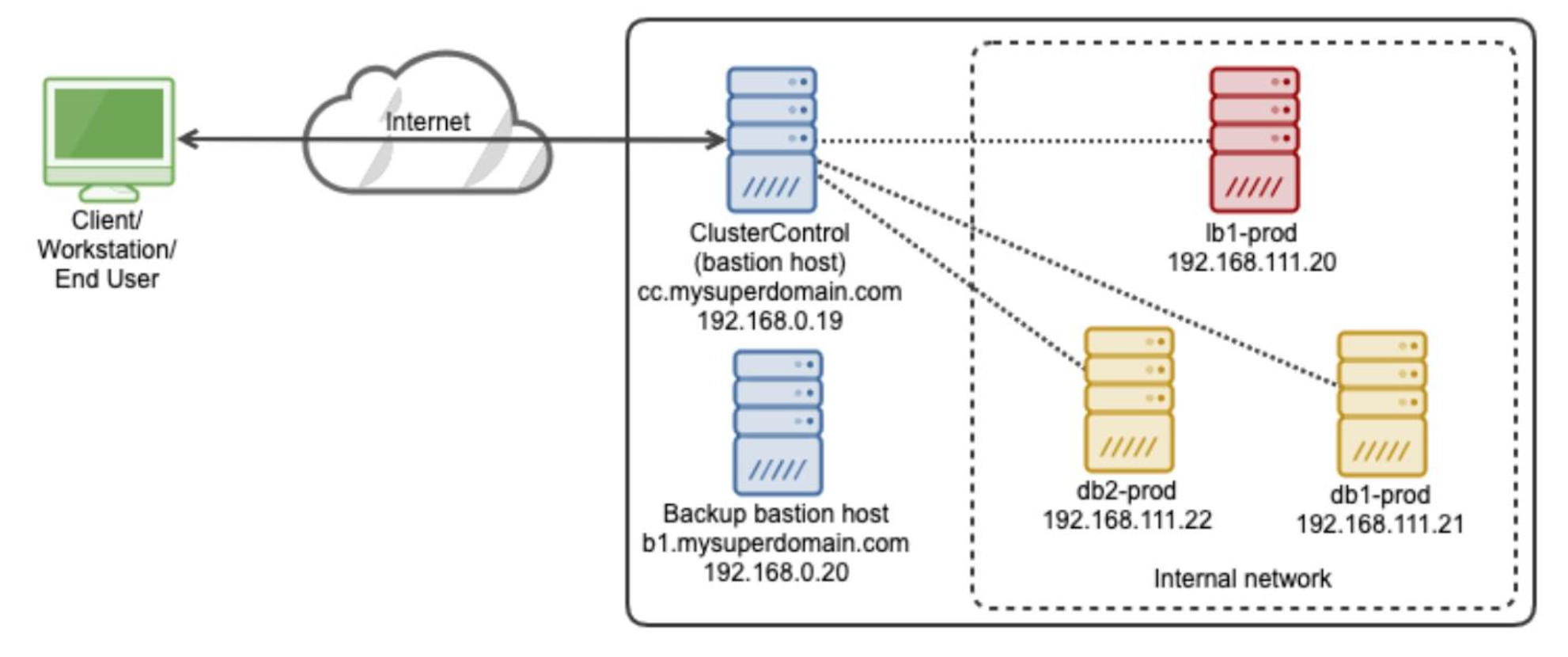

7.1 Bastion Hosts

• System identified as a critical strong point in the network's security
• Serves as a platform for an application-level or circuit-level gateway
• Common characteristics:
  • Runs secure O/S, only essential services
  • May require user authentication to access proxy or host
  • Each proxy can restrict features, hosts accessed
  • Each proxy is small, simple, checked for security
  • Each proxy is independent, non-privileged
  • Limited disk use — hence read-only code

Analogy: Bastion Host เหมือน "ป้อมปราการ" ที่แข็งแกร่งที่สุดในเครือข่าย — ทุกอย่างถูก hardened และมีแค่สิ่งจำเป็นเท่านั้น

7.2 Host-Based Firewalls

• A software module used to secure an individual host
• Available in operating systems or can be provided as an add-on package
• Filter and restrict packet flows
• Common location is a server

Advantages:

• Filtering rules can be tailored to the host environment
• Protection is provided independent of topology
• Provides an additional layer of protection

7.3 Personal Firewall

• Controls traffic between a personal computer/workstation and the Internet or enterprise network
• For both home or corporate use
• Typically is a software module on a personal computer
• Can be housed in a router that connects all home computers to DSL, cable modem, or other Internet interface
• Typically much less complex than server-based or standalone firewalls
• Primary role is to deny unauthorized remote access
• May also monitor outgoing traffic to detect and block worms and malware activity

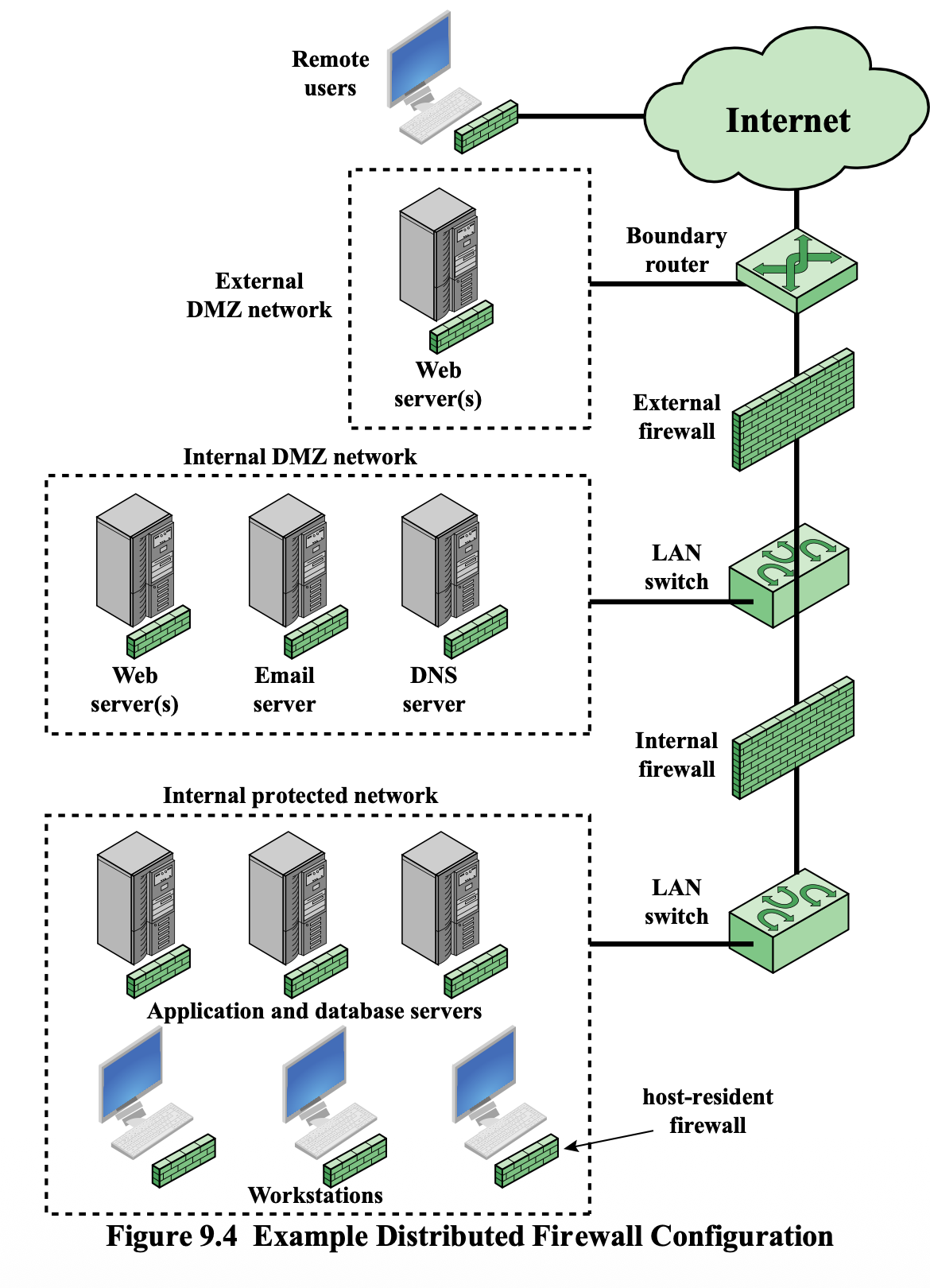

8. Firewall Topologies

จำรูป 9.4 ไว้ ออก #FinalExam แน่นอน!

9. VPN and Firewalls

• VPNs are considered one of the best solutions to bypass firewalls (along with proxy servers)
• When you establish a VPN connection, it alters your routing tables
  • IP layer routes outgoing traffic into the VPN
  • VPN wraps the whole IP datagram into another TCP packet → sent to the VPN
  • Original packet becomes practically invisible to the IP layer
• Once the packet passes through the VPN, it is unwrapped and sent to its final destination in its original form
• Creates the effect of a tunnel

⚠️ VPN can evade firewall inspection or restrictions if the firewall permits encrypted tunneling traffic.

10. Ways a Firewall Can Get Breached

• Outdated software
• Weak passwords
• Malware infection
• Unsecured remote access
• Incorrectly configured rules

11. Methods of Evasion

1. Encrypting data — Makes it more difficult for the firewall/IDS to detect malicious activity
2. VPN — Bypass firewalls by routing traffic through a secure server
3. Proxy server — Masks the origin of traffic
4. TOR — Hides identity of user and origin of traffic
5. Port hopping — Constantly changing the port used to transmit data
6. Steganography — Hiding data within another file or message
7. Application layer protocols — Using HTTP or SMTP to disguise malicious activity
8. Malicious code — Using malware to evade detection
9. Social engineering — Tricking users into divulging sensitive information
10. Physical access — Physically accessing the network to bypass the firewall/IDS

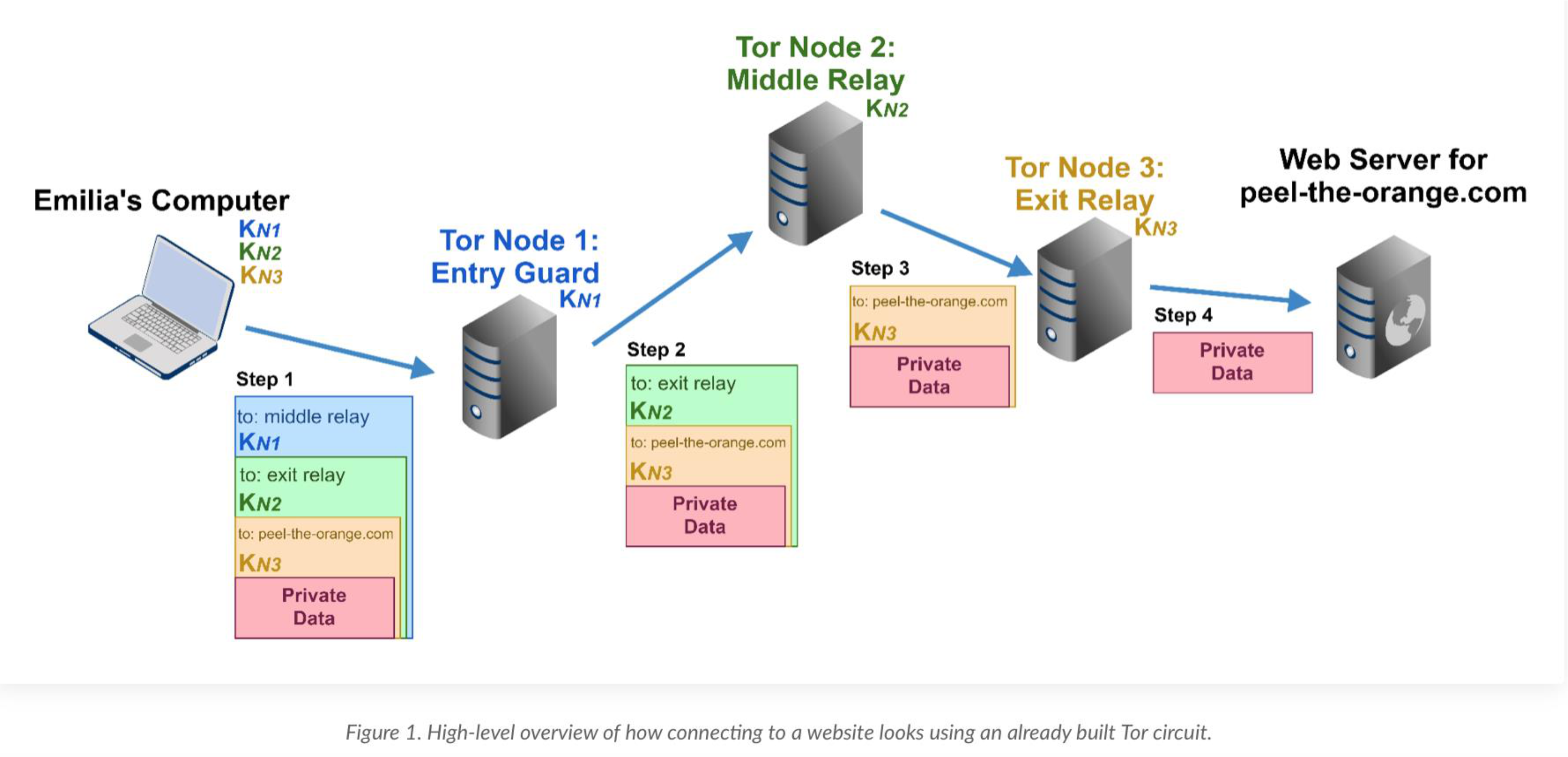

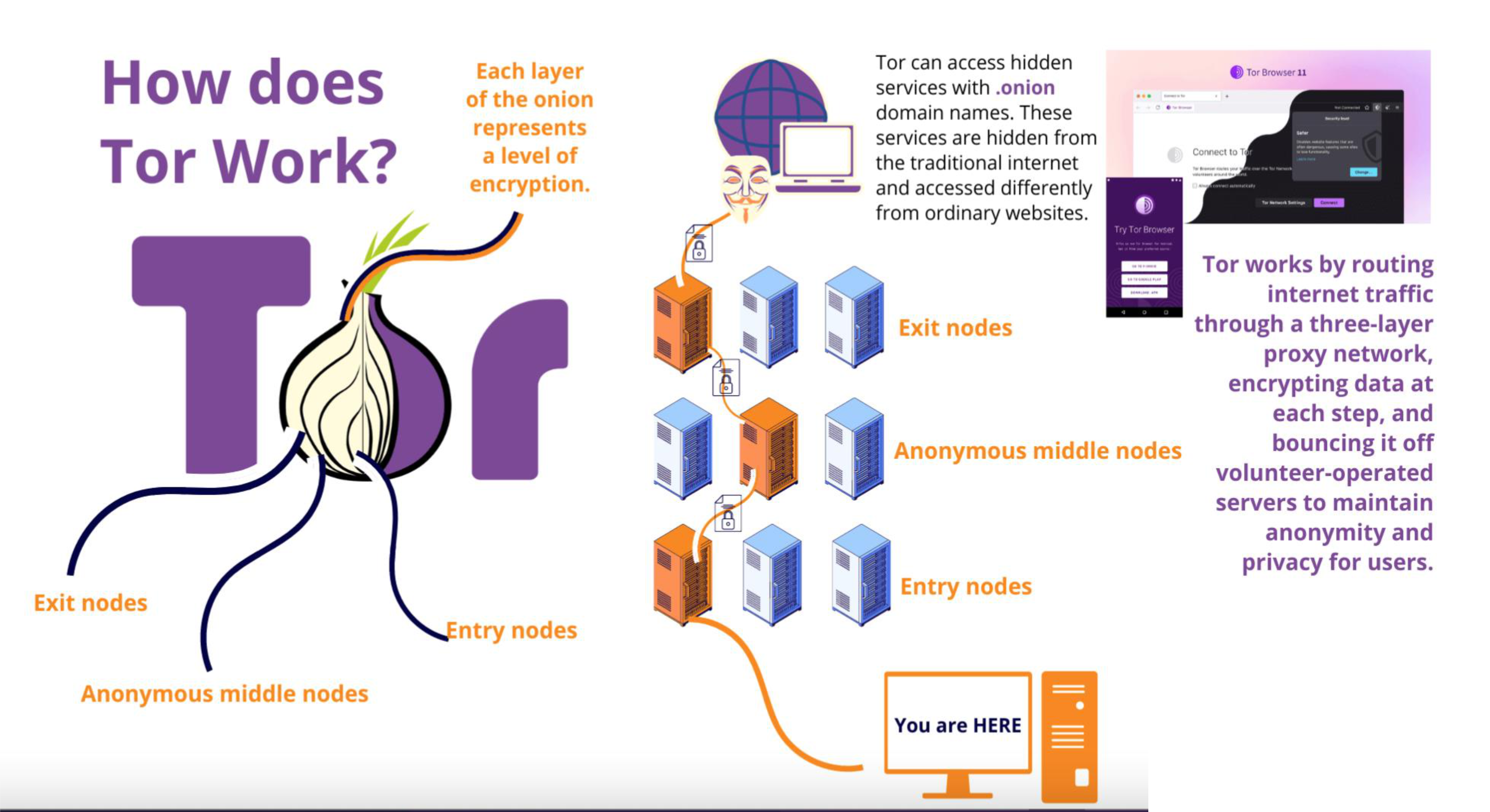

12. TOR (The Onion Ring)

• Tor routes internet traffic through a three-layer proxy network, encrypting data at each step, and bouncing it off volunteer-operated servers to maintain anonymity
• Tor can access hidden services with .onion domain names
• Each layer of the onion represents a level of encryption

Tor Node Types

• Entry nodes — First point of contact
• Anonymous middle nodes — Middle relay, does not know origin or destination
• Exit nodes — Last node before destination

Why Firewalls Struggle Against TOR

Uses of TOR (Good and Bad)

• ✅ Political activists use Tor to express views while staying out of sight of governments
• ❌ Cybercriminals use Tor to evade defenses and hide identity from law enforcement
• ❌ Tor enables the operation of dark web marketplaces (drugs, weapons, fake IDs)
• ❌ Malware authors use Tor for DoS attacks, hidden reconnaissance, command and control, and data exfiltration

Analogy: TOR เหมือนการส่งจดหมายผ่านคนกลางหลายๆ คน แต่ละคนรู้แค่ว่า "รับจากใคร ส่งให้ใคร" ไม่มีใครรู้ทั้งต้นทางและปลายทาง

13. Intrusion Prevention Systems (IPS)

IPS = IDS + Prevention Action

• Also known as Intrusion Detection and Prevention System (IDPS)
• An extension of IDS that includes the capability to attempt to block or prevent detected malicious activity
• Can be host-based, network-based, or distributed/hybrid
• Can use:
  • Anomaly detection — identify behavior that is not that of legitimate users
  • Signature/heuristic detection — identify known malicious behavior
• Can block traffic as a firewall does, but makes use of IDS algorithms to determine when to do so

13.1 Host-Based IPS (HIPS)

• Can use either signature/heuristic or anomaly detection techniques
  • Signature: Focus is on specific content of application network traffic, or sequences of system calls — looking for patterns identified as malicious
  • Anomaly: IPS is looking for behavior patterns that indicate malware

Types of malicious behavior addressed by HIPS:

• Modification of system resources
• Privilege-escalation exploits
• Buffer-overflow exploits
• Access to e-mail contact list
• Directory traversal
  • AD = Active Directory = Source of user's identity → Authentication source

จะรู้ว่าระบบเรามี Privilege-escalation exploits หรือไม่ ก็ต้องทำ Pen test

Role of HIPS

• Enterprise endpoint (desktop and laptop) is now the main target for hackers
• Security vendors focus more on endpoint security products
• Traditionally: endpoint security = collection of distinct products (antivirus, antispyware, antispam, personal firewalls)
• Modern approach: integrated, single-product suite of functions
  • Various tools work closely together
  • Threat prevention is more comprehensive
  • Management is easier
• Best practice: use HIPS as one element in a defense-in-depth strategy alongside network-level devices

13.2 Network-Based IPS (NIPS)

• Inline NIDS with the authority to modify or discard packets and tear down TCP connections
• Makes use of signature/heuristic detection and anomaly detection
• May provide flow data protection
  • Requires that the application payload in a sequence of packets be reassembled

Methods used to identify malicious packets:

13.3 Snort Inline

• Enables Snort to function as an intrusion prevention system
• Includes a replace option which allows the Snort user to modify packets rather than drop them
  • Useful for a honeypot implementation
  • Attackers see the failure but cannot figure out why it occurred

Analogy: Snort Inline เหมือนยามที่ไม่แค่รายงาน แต่สามารถ "กั้นประตู" ได้เลย หรือแม้แต่ "เปลี่ยนเนื้อหาจดหมาย" ก่อนส่งต่อ (เพื่อให้ hacker งงว่าทำไม exploit ไม่ work)

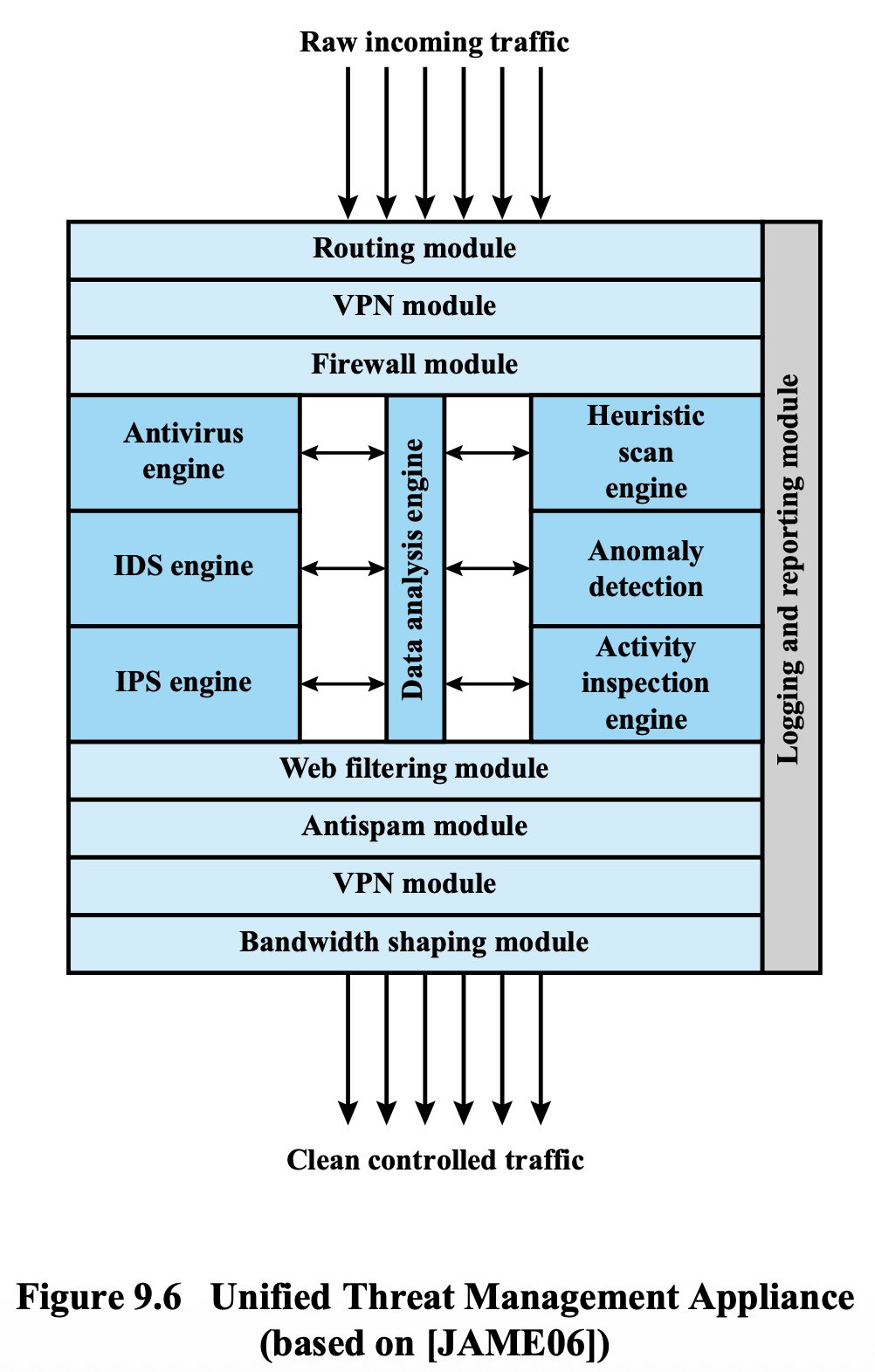

14. Unified Threat Management (UTM)

A UTM appliance processes traffic through multiple layers:
Inbound processing order:

1. Routing module
2. VPN module
3. Firewall module
4. Data analysis engine (with Antivirus, IDS, IPS engines)
   • Heuristic scan engine
   • Anomaly detection
   • Activity inspection engine
5. Web filtering module
6. Antispam module
7. VPN module
8. Bandwidth shaping module

→ Clean controlled traffic output

15. Common Port Numbers Reference

What layer does it operate on?

• Application Layer

Summary
