Chapter 8 - User Interface Design

Learning Objectives

• Explain user interfaces
• Explain the concept of human-computer interaction, including user-friendly interface design
• Summarize the seven habits of successful interface designers
• Summarize the 10 guidelines for user interface design
• Design effective source documents and forms
• Explain printed output report design guidelines and principles
• Describe three types of printed output reports
• Discuss output and input technology issues
• Describe output and input security and control issues
• Explain emerging user interface trends, including modular design, responsive web design, and prototypes

User Interfaces

• Describes how users interact with a computer system
  • Features that affect two-way communications between the user and the computer
    • Central to usability: user satisfaction, support for business functions, and system effectiveness
• Apple introduced the graphical user interface (GUI) — complete with mouse and screen icons
• In a user-centered system, the distinction blurs between input, output, and the interface itself
  • Most users work with a varied mix of input, screen output, and data queries as they perform day-to-day job functions

Think of a user interface like a car's dashboard — it doesn't matter how powerful the engine is if the driver can't easily read the gauges or find the controls.

Human-Computer Interaction (HCI)

• The relationship between computers and people who use them to perform their jobs
  • Covers everything from smartphones to global networks
  • Includes all communications and instructions to enter input and obtain output in the form of screen displays or printed reports
  • Transparent user interface: does not distract the user — the interface "gets out of the way" so the user can focus on their task

A transparent UI is like a well-designed tool handle — you don't think about it, you just use it.

Seven Habits of Successful Interface Designers

1. Understand the Business

• Designer must understand the underlying business functions
• Must understand how the system supports business goals

2. Maximize Graphical Effectiveness

• A well-designed interface enables rapid learning
• Use visuals purposefully to guide users, not just decorate

3. Think Like a User

• Designer must see the system from the user's perspective
• Avoid designer bias — what is obvious to the developer may not be obvious to the user

4. Use Models and Prototypes

• Designers can present initial screen designs as a storyboard
• Users test the design and provide feedback before full development

5. Focus on Usability

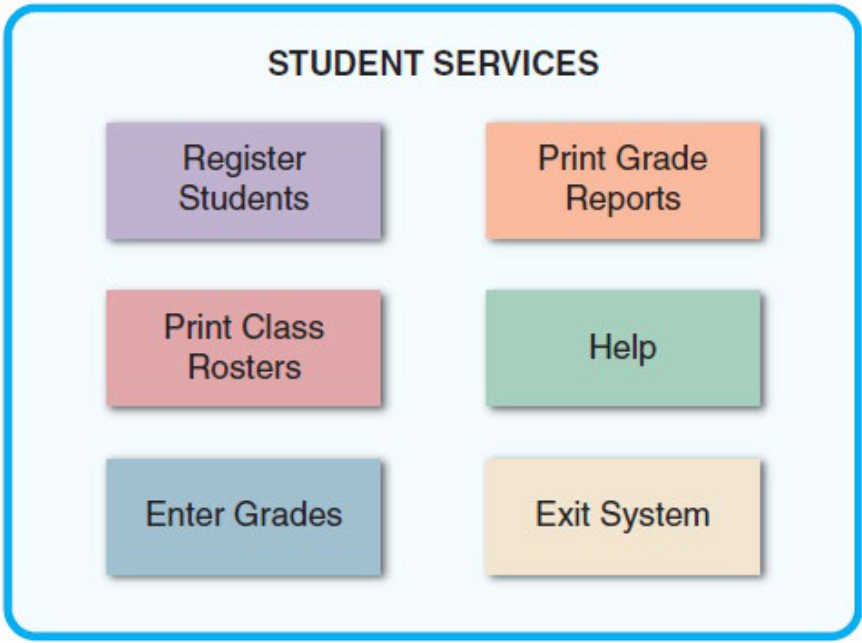

• Include main options in the opening screen
• Offer a reasonable number of choices that a user can easily comprehend

6. Invite Feedback

• Monitor system usage and solicit user suggestions
• Determine if features are being used as intended by observing and surveying users

7. Document Everything

• Document all screen designs for later use by programmers
• User-approved sketches and storyboards can be used to document the user interface

Think of interface design like architecture: great architects understand how people will actually live in a space, sketch blueprints, get feedback, and document everything before building.

Guidelines for User Interface Design

Guideline 1: Easy to Learn and Use

• Focus on system design objectives
• Create a design that is easy to understand and remember
• Provide commands, actions, and system responses that are consistent and predictable
• Allow users to correct errors easily
• Clearly label all controls, buttons, and icons
• Select familiar images that users understand
• Provide on-screen instructions that are logical, concise, and clear
• Show all commands in a list of menu items — dim unavailable commands
• Make it easy to navigate or return to any level in the menu structure

Guideline 2: Enhance User Productivity

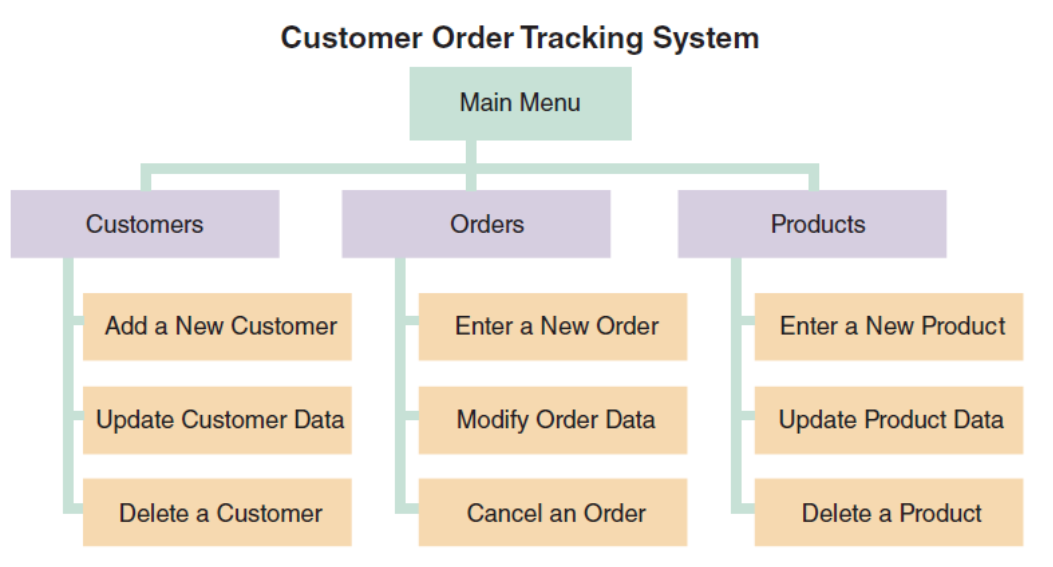

• Organize tasks, commands, and functions into groups that resemble actual business operations
• Create alphabetical menu lists or place frequently used items at the top
• Provide shortcuts for experienced users
• Use default values if the majority of values in a field are the same
• Use a duplicate value function, but allow users to toggle it on or off

Guideline 3: Provide a Fast-Find Feature

• If available, consider a natural language feature that allows users to type commands or requests in normal text phrases

Guideline 4: Provide Flexibility

• Offer several alternatives for how users can accomplish tasks

Guideline 5: Provide Users with Help and Feedback

• Ensure help is always available on demand
• Provide both user-selected help and context-sensitive help
• Provide a direct route for users to return to where they requested help
• Include contact information
• Require user confirmation before data deletion
• Provide an "Undo" key
• When a command contains an error, highlight the erroneous part
• Use hypertext links to assist users
• Display messages at a logical place
• Alert users to lengthy processing
• Allow messages to remain on screen long enough to be read
• Let users know whether a task was successful or not
• Provide a text explanation for icon/image control buttons
• Use messages that are specific, understandable, and professional

Guideline 6: Create an Attractive Layout and Design

• Use appropriate colors to highlight different areas of the screen
• Use special effects sparingly
• Use hyperlinks to navigate to related topics
• Group related objects and information
• Keep screen displays uncluttered
• Display titles, messages, and instructions in a consistent manner
• Use consistent terminology
• Ensure commands and similar mouse actions have the same effect
• Require the user to confirm entry by pressing Enter or Tab
• Remember the color convention: red = stop, yellow = caution, green = go

Guideline 7: Provide Consistent Commands

• Provide a keystroke alternative for each menu command
• Use familiar commands if possible
• Provide a Windows look and feel interface
• Avoid complex terms and technical jargon

Guideline 8: Enhance the Interface

• The opening screen is important as it introduces the application
• Use a command button to initiate an action
• Create customized menu bars and toolbars
• Add a shortcut feature that lets a user select a menu command
• If variable input data is needed, provide a dialog box that explains what is required
• A toggle button makes it easy to show on/off status
• Use list boxes that display available choices
• Use an option button (radio button) to control user choices
• Use check boxes to select one or more choices from a group
• When dates must be entered, use a calendar control

Guideline 9: Focus on Data Entry Screens

• Use the form filling method whenever possible
• Restrict user access to screen locations where data is entered
• Provide a way to leave the data entry screen at any time without entering the current record
• Provide a descriptive caption for every field
• Provide a means for users to move among fields in a standard or custom order
• Allow users to add, change, delete, and view records
• Design the screen form layout to match the layout of the source document
• Display a sample format using an input mask
• Require an ending stroke for every field
• Do not require users to type leading zeros for numeric fields or trailing zeros
• Display default values
• Display a list of acceptable values for fields, and provide meaningful error messages
• Provide users with an opportunity to confirm the accuracy of input data before submission

Guideline 10: Use Validation Rules

Think of validation rules like airport security checkpoints — each one catches a different type of problem before bad data "boards the plane" and enters the system.

Guideline (Additional): Manage Data Effectively

• Data management impacts company efficiency, productivity, and security
• Enter and verify data as soon as possible
• Each data item should have a specific type
• Collect input data as close to its source as possible
• In an efficient design, data is entered only once

Guideline (Additional): Reduce Input Volume

• Input necessary data only
• Do not input data that can be retrieved from system files or calculated from other data
• Do not input constant data
• Use codes as they are shorter than the data they represent

Source Document and Form Design

• GIGO (Garbage In, Garbage Out): quality of output depends entirely on quality of input
• Source document: collects input data, triggers an input action, and provides a record of the original transaction
• A good form layout makes the form easy to complete and provides enough space
• Order and placement should be logical

Source Document Zones

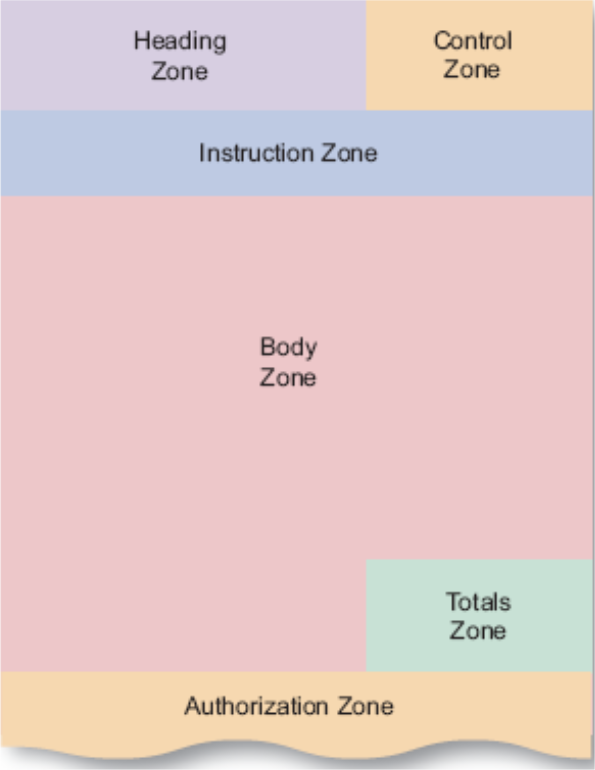

A source document is like a recipe card — it has a title at the top, instructions in the middle, and a place to note who approved it at the bottom.

Printed Output

Questions Before Designing Printed Output

• Why is this being delivered as printed output?
• Who wants the information, why is it needed, and how will it be used?
• What specific information will be included?
• Will printed output be for a specific device?
• When and how will the information be delivered, and how often must it be updated?
• Do security or confidentiality issues exist?

Report Design

• Organizations strive to reduce flow of paper and printed reports
• Users often prefer to view screen output first, then print only what they need
• Printed output is used in turnaround documents
• Reports must be easy to read and well organized
• Database programs include a variety of report design tools

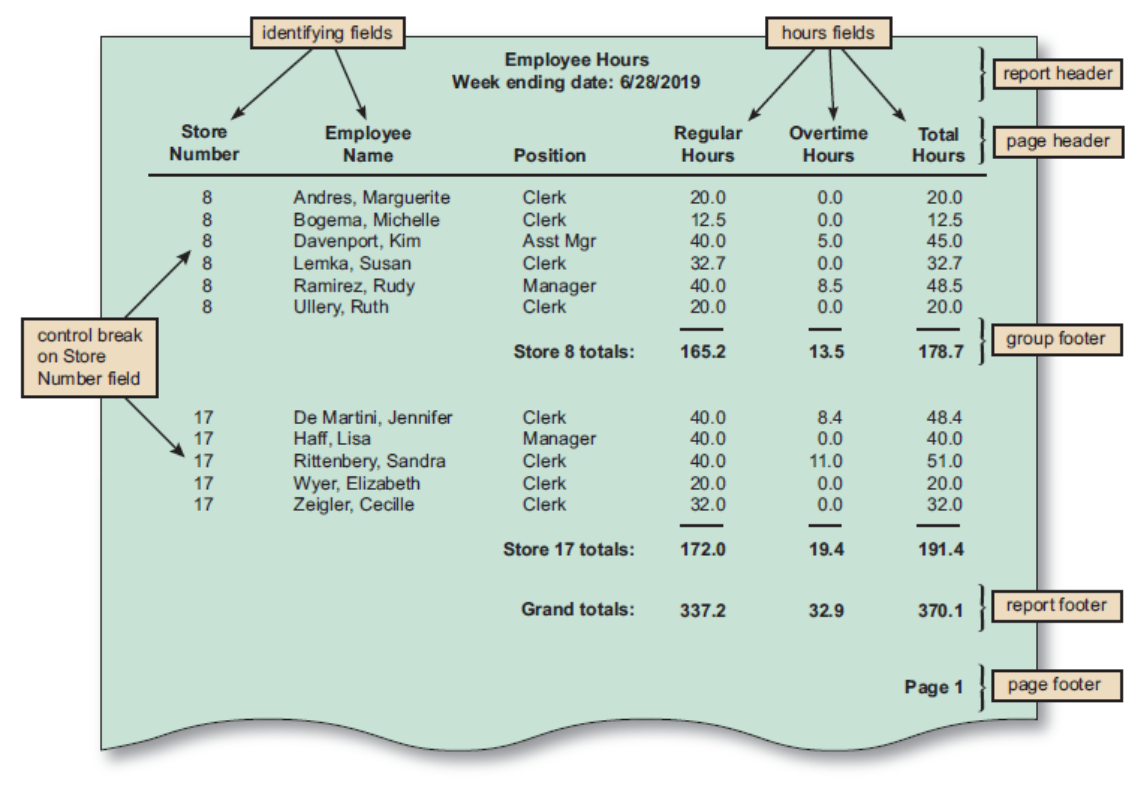

Report Design Principles

• Report headers and footers
• Page headers and footers
• Repeating fields
• Consistent design

Types of Reports

Detail = every transaction receipt; Exception = only the transactions that were flagged; Summary = the monthly bank statement total.

Technology Issues

Output Technology

• Output can be delivered in many ways beyond screen and print
  • Documents must be accessible from workstations, notebooks, tablets, smartphones, and other devices
• Internet-based information delivery: allows users to download files and documents; companies use webcasts for customers and investors
  • Email: essential for internal and external business communication
  • Blogs: useful for posting news, reviewing current events, and promoting products
  • Instant messaging: useful for team members in collaborative situations
  • Wireless devices: data transmitted using the Internet across a wide array of devices
  • Digital audio, images, and video: can be captured, stored digitally, attached to email, or inserted into documents
  • Automated fax/faxback systems: allow customers to request a fax via email, website, or telephone
  • Podcasts: used as sales/marketing tools and for employee communication
  • Computer output to digital media: used when many paper documents must be scanned and stored digitally for quick retrieval
  • Specialized forms of output: portable/web-connected devices, retail point-of-sale terminals, ATMs, special-purpose printers, plotters, electronic detection of embedded data

Input Technology

• Batch input: data entry performed on a specified time schedule (daily, weekly, monthly)
• Online input: enables immediate validation and availability of data
  • Source data automation: combines online data entry and automated data capture using RFID tags, magnetic data strips, or smartphones
• Trade-offs:
  • Manual data entry is slower and more expensive than batch input
  • Decision to use batch or online input depends on business requirements

Security and Control Issues

Output Security and Control

• Companies use output control methods to maintain output integrity and security
• Output security protects privacy rights and shields the organization's proprietary data from theft or unauthorized access
• Diskless workstation: network terminal that supports a full-featured user interface but limits the printing or copying of data

Input Security and Control

• Ensures data is correct, complete, and secure
  • Information should be traceable
  • Procedures must be put in place for handling source documents
• Data security policies and procedures protect data from loss or damage
  • Companies should have a records retention policy that meets legal requirements and business needs
  • Audit trail files and reports should be stored and saved

Input security is like a bank vault's entry log — every deposit/withdrawal is recorded, traceable, and only authorized personnel can access it.

Emerging Trends

Modular Design

• Individual components called modules connect to a higher-level program or process
• Each module is designed to perform a single function

Responsive Web Design

• Focus on how GUI artifacts are presented on the device is handled automatically by the underlying framework
• The interface adapts to different screen sizes without manual adjustment

Prototyping

• Involves a repetitive sequence of analysis, design, modeling, and testing

Types of Prototypes

Trade-offs: Benefits of Prototyping

• Users and developers can avoid misunderstandings
• Developers create accurate specifications based on the prototype
• Managers can evaluate working models more effectively than paper specs
• Helps develop testing and training procedures
• Reduces risks that occur when a finished system fails to support business needs

Trade-offs: Potential Problems with Prototyping

• Rapid pace of development can create quality problems
• System requirements cannot be tested adequately using a prototype
• In complex systems, the prototype can become unwieldy and difficult to manage
• Clients may want to adopt the prototype with few/no changes, leading to increased maintenance costs later in the SDLC

Prototyping is like building a movie set before constructing a real building — it's fast and shows what things will look like, but it's not meant to be permanent.

Summary

• When designing the user interface, it should be transparent
• Guidelines: easy to learn and use; enhance user productivity; easy to get help or correct errors; minimize input data problems; provide feedback; attractive layout and design; use familiar terms and images
• Types of printed reports: detail, exception, and summary reports
• Input methods: data capture and data entry
• Security and control plays an important role in system design
• Emerging trends: modular design, responsive web design, and prototyping
