Chapter 13 - Intrusion Detection System (IDS)

Classes of Intruders

Cyber Criminals

• Individuals or members of an organized crime group motivated by financial reward
• Activities include:
  • Identity theft
  • Theft of financial credentials
  • Corporate espionage
  • Data theft
  • Data ransoming
• Typically young individuals who operate on the Web
• Coordinate via underground forums to trade tips, data, and plan attacks

เหมือนแก๊งมิจฉาชีพออนไลน์ที่รวมตัวกันใน dark web เพื่อแบ่งปันเครื่องมือและข้อมูลเหยื่อ

Activists (Hacktivists)

• Individuals working as insiders or members of a larger group of outsider attackers
• Motivated by social or political causes
• Also known as hacktivists
• Skill level is often quite low
• Attack methods:
  • Website defacement
  • Denial of Service (DoS) attacks
  • Theft and distribution of data to cause negative publicity

เหมือน activist ที่ใช้อินเทอร์เน็ตเป็นเครื่องมือประท้วง แทนการถือป้ายหน้าตึก

State-Sponsored Organizations

• Groups of hackers sponsored by governments to conduct espionage or sabotage
• Also known as Advanced Persistent Threats (APTs)
  • "Advanced" = ทักษะสูง, ซับซ้อน
  • "Persistent" = โจมตีต่อเนื่องเป็นระยะเวลานาน, ซ่อนตัวได้ดี
• Widespread activity by countries such as China, USA, UK, and their intelligence allies

เหมือนสายลับรัฐบาลที่ได้รับการสนับสนุนเต็มรูปแบบ เงินทุน และทรัพยากรไม่จำกัด

Others

• Classic hackers or crackers motivated by:
  • Technical challenge
  • Peer-group esteem and reputation
• Many who discover new buffer overflow vulnerability categories fall in this class
• "Hobby hackers" using widely available attack toolkits to explore systems

Intruder Skill Levels

Apprentice

• Minimal technical skill — primarily use existing attack toolkits
• Likely the largest number of attackers
• Includes many criminal and activist attackers
• Easiest to defend against (uses known tools)
• Also known as "Script-kiddies"

เหมือนคนที่ download เครื่องมือสำเร็จรูปมาใช้ โดยไม่รู้ว่ามันทำงานยังไง

Journeyman

• Sufficient technical skills to modify and extend existing toolkits
• Can use newly discovered or purchased vulnerabilities
• May discover new vulnerabilities similar to known ones
• Can adapt tools for use by others
• Found across all intruder classes

Master

• High-level technical skills — discovers brand new vulnerability categories
• Can write new powerful attack toolkits from scratch
• Some well-known classical hackers are of this level
• Some employed by state-sponsored organizations
• Hardest to defend against

เหมือนนักวิจัยด้าน security แต่ใช้ความรู้ในทางที่ผิด

Examples of Intrusion

• Remote root compromise
• Web server defacement
• Guessing/cracking passwords
• Copying databases containing credit card numbers
• Viewing sensitive data without authorization
• Running a packet sniffer
• Distributing pirated software
• Using an unsecured modem to access internal network
• Impersonating an executive to get information
• Using an unattended workstation

Security perimeter = …

Intruder Behavior (Attack Lifecycle)

Target Acquisition & Info Gathering
          ↓
     Initial Access
          ↓
  Privilege Escalation
          ↓
Info Gathering / System Exploit
          ↓
    Maintaining Access
          ↓
     Covering Tracks

(a) Target Acquisition and Information Gathering

• Explore corporate website (personnel, key systems, OS, web server)
• Use DNS tools: dig, host, WHOIS database
• Map network with NMAP to find accessible services
• Send query emails to gather mail client/server/OS info
• Identify vulnerable services (e.g., vulnerable web CMS)

(b) Initial Access

• Brute force CMS passwords
• Exploit vulnerability in web CMS plugin
• Send spear-phishing emails with browser exploit links

(c) Privilege Escalation

• Scan for applications with local exploits
• Exploit vulnerable apps to gain elevated privileges
• Install sniffers to capture administrator passwords
• Use captured passwords to access privileged information
• เช่นแบบ Guest → Admin – perform higher action

(d) Information Gathering or System Exploit

• Scan files for desired information
• Transfer large numbers of documents to external repository
• Use guessed/captured passwords on other network servers

(e) Maintaining Access

• Install remote administration tool or rootkit with backdoor
• Use admin password for later network access
• Disable/modify anti-virus or IDS programs

(f) Covering Tracks

• Use rootkit to hide installed files
• Edit log files to remove intrusion entries

Definitions (RFC 2828 — Internet Security Glossary)

• Security Intrusion: A security event (or combination of events) in which an intruder gains or attempts to gain access to a system without authorization
• Intrusion Detection: A security service that monitors and analyzes system events to provide real-time or near real-time warning of unauthorized access attempts

Intrusion Detection System (IDS)

Three Logical Components

1. Sensors — collect data (traffic, pattern of request, blah blah)
2. Analyzers — determine if intrusion has occurred
3. User Interface — view output or control system behavior

Types of IDS

HIDS เหมือนกล้อง CCTV ในห้อง, NIDS เหมือนกล้องที่จุดเชื่อมต่อทางเดิน, Distributed คือใช้ทั้งสองอย่างพร้อมกัน

Preliminaries — Why IDS Matters

1. If intrusion is detected quickly → intruder can be identified and ejected before damage occurs
2. Effective IDS can serve as a deterrent → prevents intrusions
3. IDS enables collection of information about attack techniques → strengthens future defenses

Core Assumption of IDS

The behavior of the intruder differs from that of a legitimate user in ways that can be quantified.

• BUT: There will always be some overlap → leads to false positives/negatives

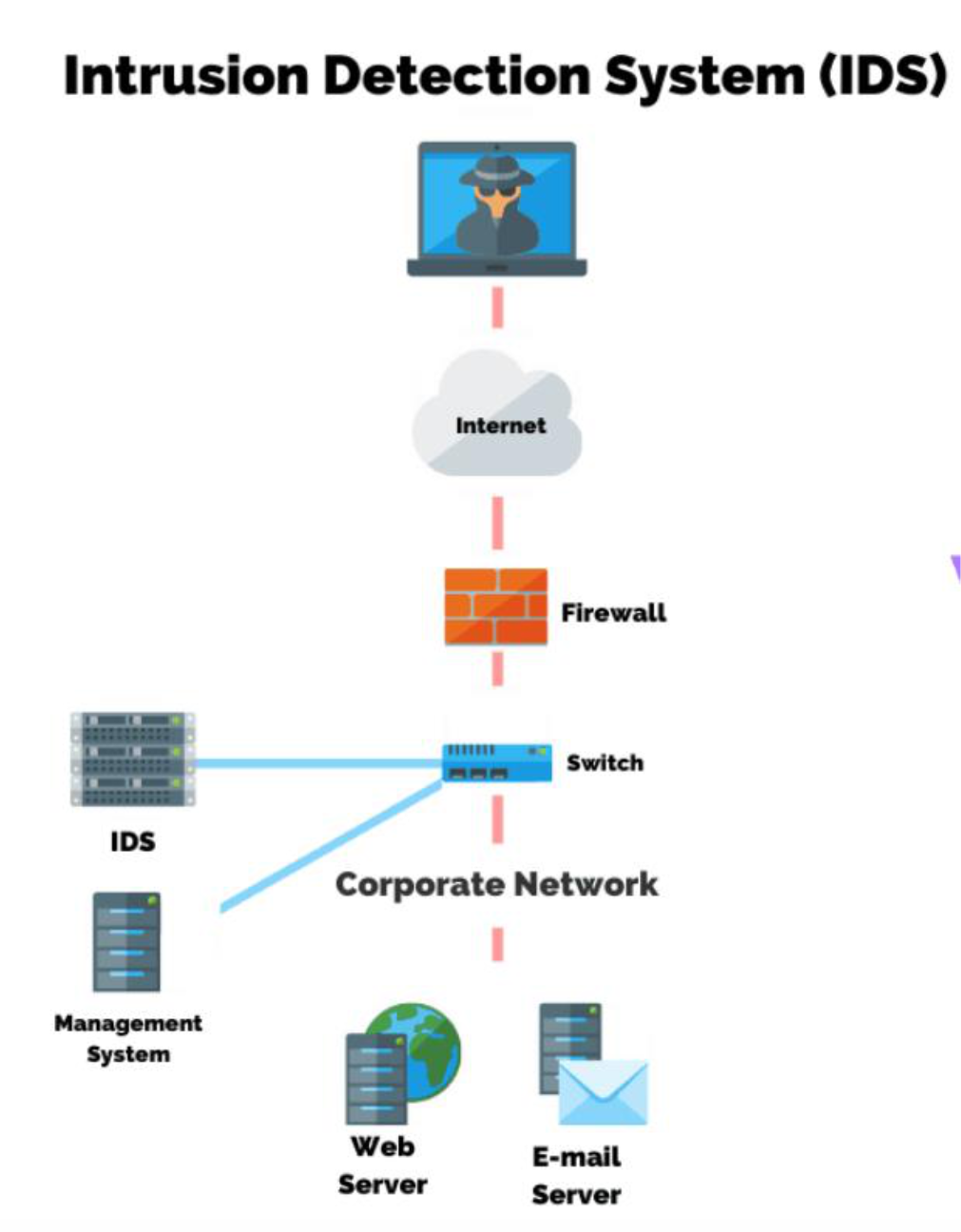

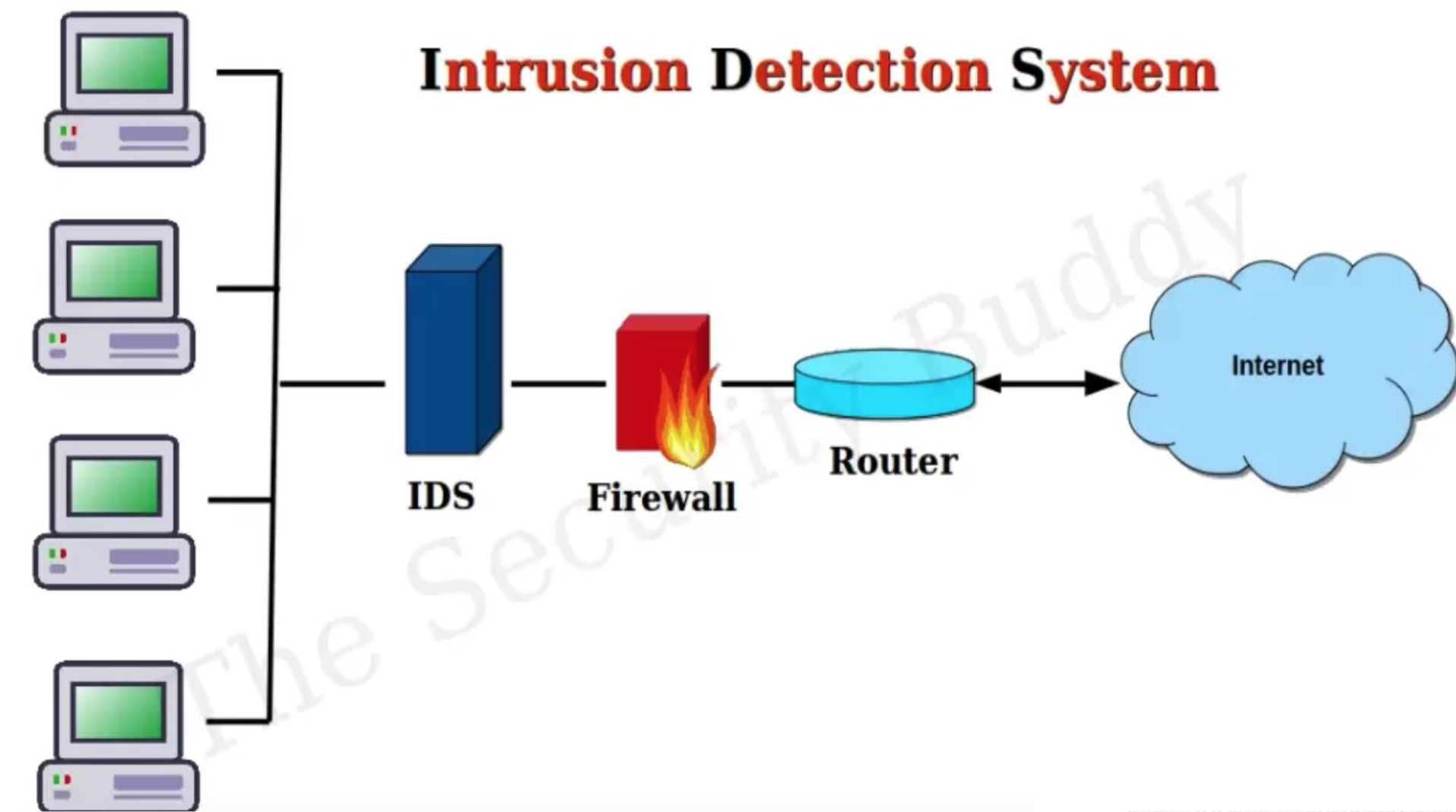

IDS Location

• After Firewall: Reduced noise because firewall already filters obvious malicious traffic → IDS analyzes cleaner, easier, more relevant traffic
  • Focus on the real threats
  • Lower processing load → IDS doesn’t get overwhelmed by irrelevant traffic
• Before Firewall:
  • Full visibility of all incoming traffic (inbound traffic) → IDS will learn and see all incoming packets, if it’s use machine learning ก็ more input ไง
  • Tradeoff with performance
• Hybrid (Before + After):
  • If our system is sensitive
  • Defense in Depth

IDS Requirements

Analysis Approaches

Anomaly Detection

• Collects data on legitimate user behavior over time → builds a baseline
• Compares current behavior against the baseline
• Alerts when behavior deviates significantly
• Can detect zero-day attacks, insider threats, unknown malware
  • Zero-day attack → when security teams are unaware of their software vulnerability, and they've had “0” days to work on a security patch or an update to fix the issue

Classification approaches:

• Threat hunting → ……
• Threat intelligence → Security + AI

เหมือนธนาคารที่รู้ว่าคุณใช้บัตรที่ไหน เวลาไหน ถ้าโผล่ใช้ที่ต่างประเทศกลางดึก → ระงับทันที

Anomaly Detection Example

• IDS learns over a week: john logs in 9am–5pm, runs only vim/nano/firefox, never accesses /etc/passwd
• Suddenly john runs: bash → sudo cp /etc/shadow /tmp/
• IDS flags: unexpected sudo use + outside normal hours + sensitive file access

Real-world Anomaly-based IDS Tools

Signature / Heuristic Detection

Signature Approaches

• Match known malicious data patterns against current traffic/system data
• Signatures must be specific enough to minimize false alarms
• Widely used in anti-virus products, traffic scanning proxies, NIDS

Rule-based Heuristic Identification

• Uses rules identifying known penetrations or exploits of known weaknesses
• Can also flag suspicious behavior within normal usage patterns

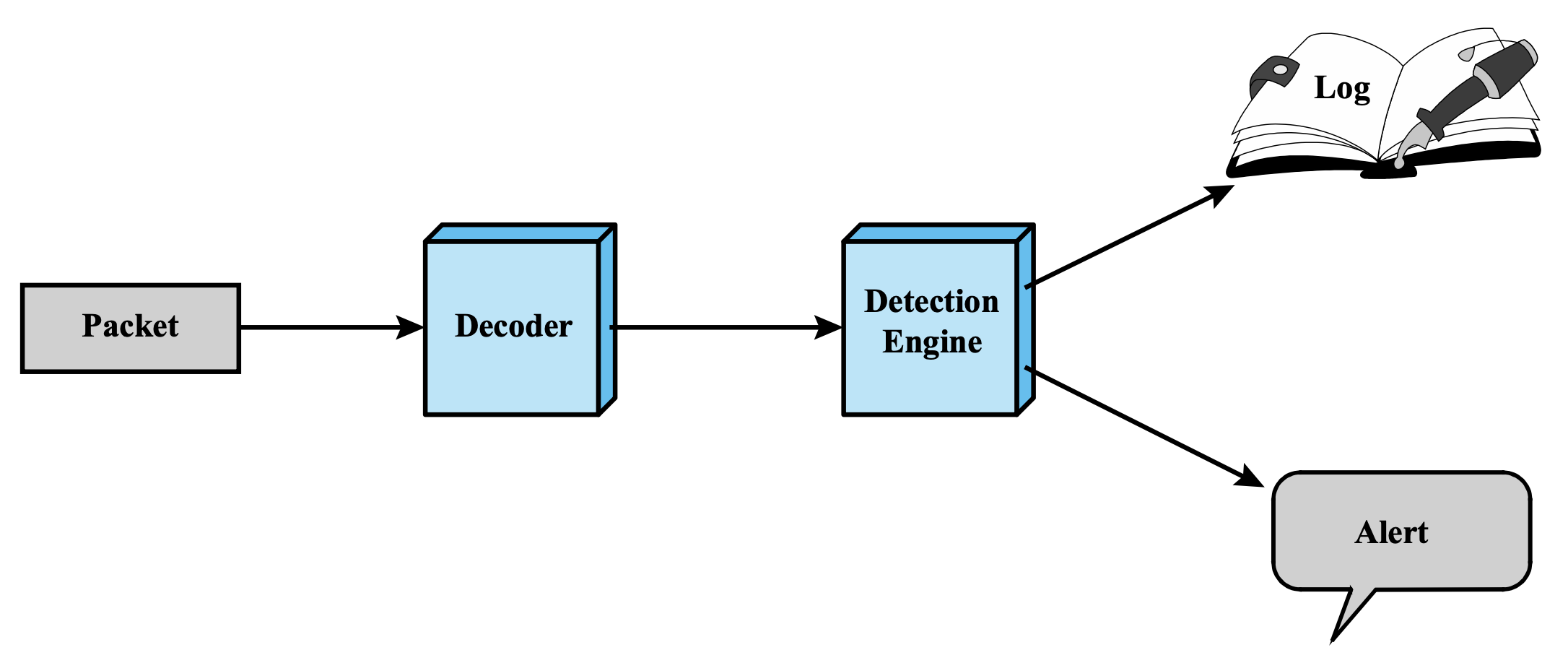

• SNORT is a prime example of rule-based NIDS

เหมือนระบบกรองสแปม ที่รู้ว่า pattern แบบไหนคือสแปม แต่จับ spam ใหม่ ๆ ที่ยังไม่เคยเห็นไม่ได้

Anomaly Detection vs. Signature Detection

Known pattern เอามาจากไหน → มันก็มี Public dataset อยู่นะ ชื่อ SNORT ไรวะ

Evaluation of IDS

• False Positive ("Not but In")
  • IDS detects normal activity as abnormal (non-intrusion events counted as intrusions)
  • = ระบบ alert ทั้งที่ไม่มีอะไรผิดปกติ
• False Negative ("Yes but Out")
  • IDS fails to detect actual malicious activity
  • = ระบบปล่อยผ่าน attack จริงๆ โดยไม่รู้ตัว

เหมือน airport security: False Positive = จับคนบริสุทธิ์ขึ้นมาตรวจ, False Negative = ปล่อยคนพกอาวุธผ่านไป

Host-Based IDS (HIDS)

Host-based → installed on the server (monitored on the host)

• Adds specialized security software to vulnerable/sensitive systems
• Can use anomaly or signature/heuristic approaches
• Monitors activity to detect suspicious behavior
  • Primary purpose: detect intrusions, log suspicious events, send alerts
  • Can detect both external and internal intrusions

Data Sources and Sensors

• System call traces
• Audit (log file) records
• File integrity checksums
• Registry access

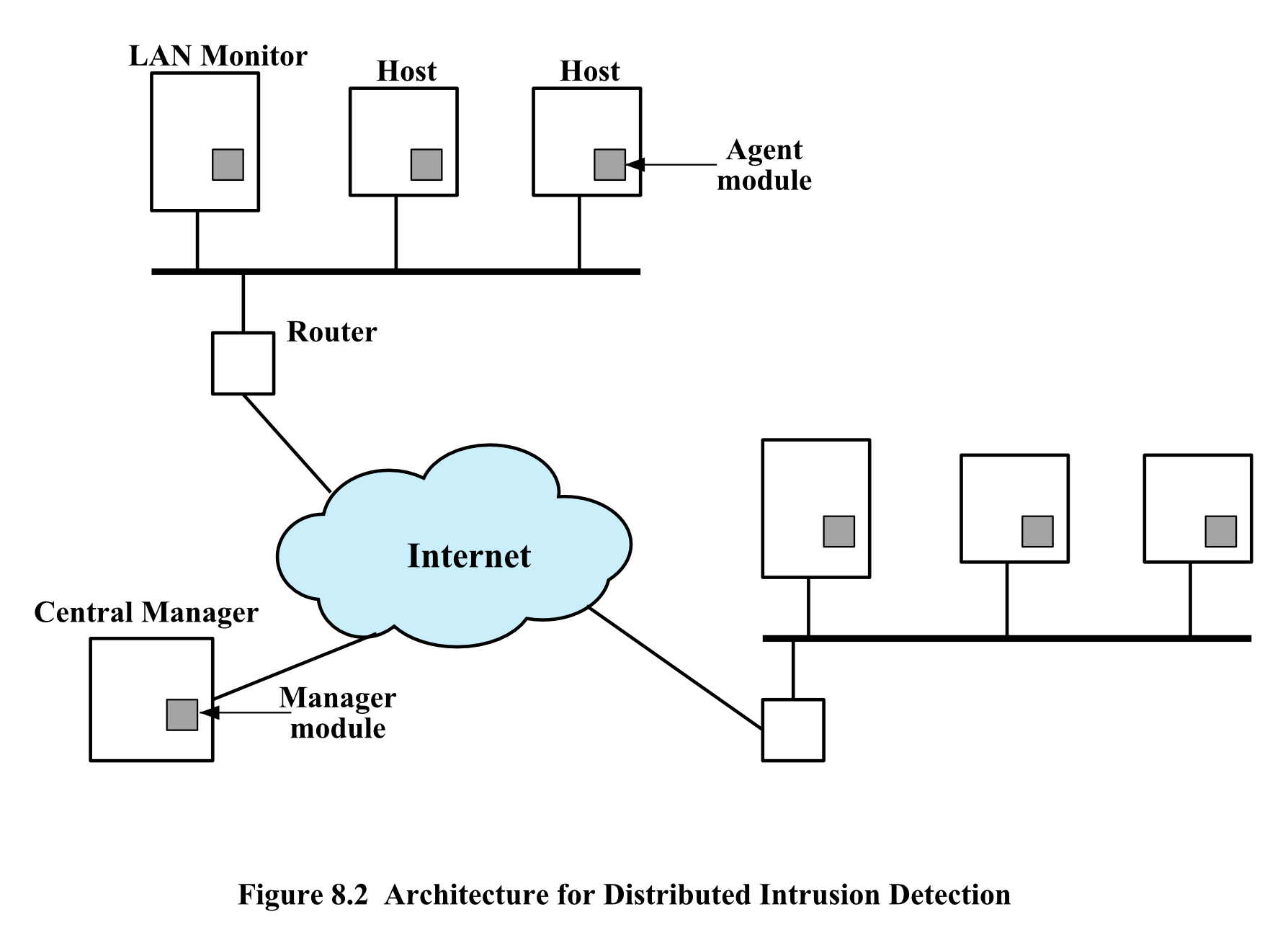

Distributed IDS Architecture

Three modules:

1. Host Agent Module — audit collection background process; collects security-related events from host → transmits to central manager
2. LAN Monitor Agent Module — analyzes LAN traffic → reports to central manager
3. Central Manager Module — receives reports from all agents; processes and correlates to detect intrusion

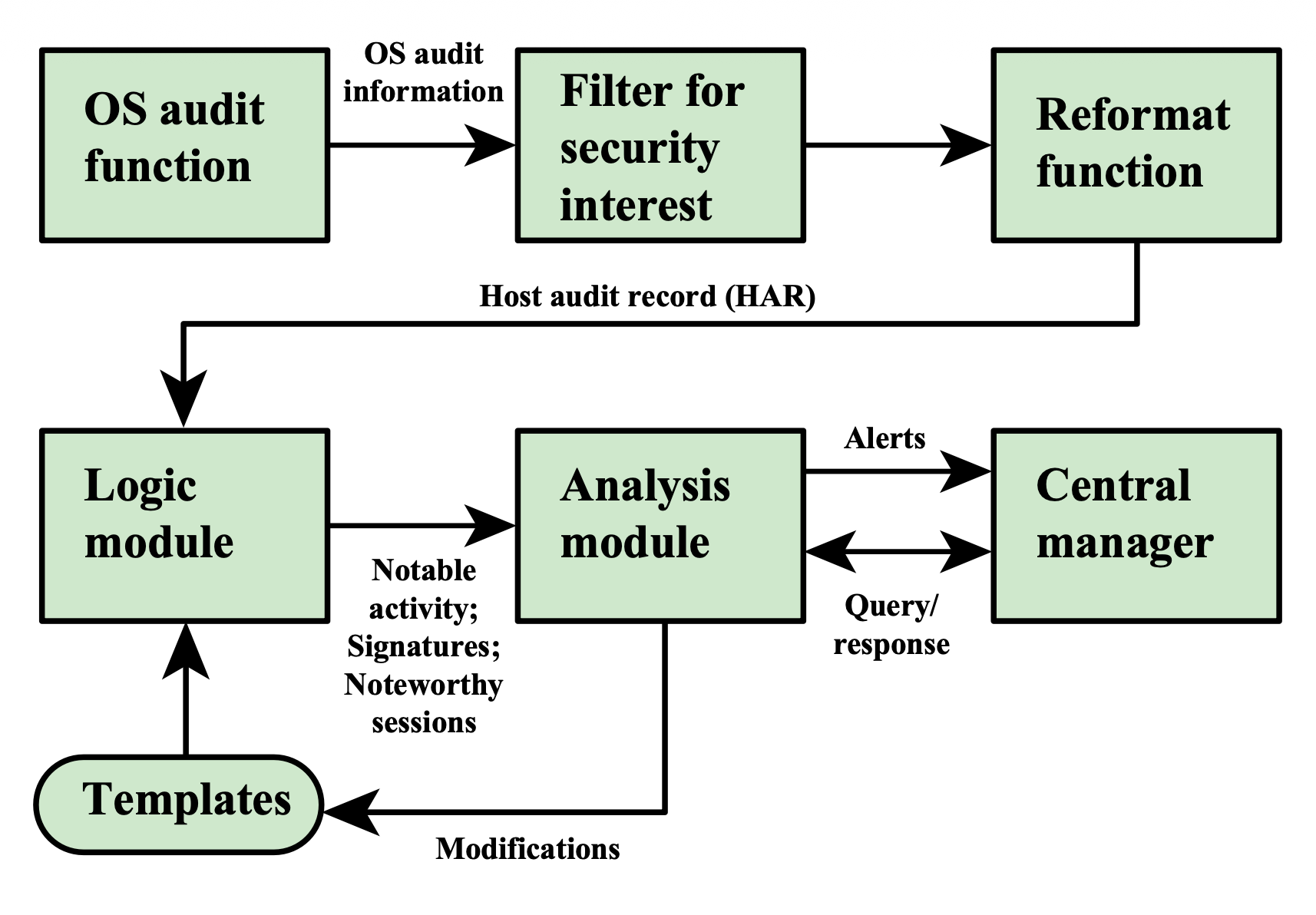

Agent Architecture Flow

OS Audit Function
      ↓
Filter for Security Interest
      ↓
Reformat Function → Host Audit Record (HAR)
      ↓
Logic Module ←→ Templates (modified by analysis)
      ↓
Analysis Module ←→ Central Manager
      ↓ (Alerts sent to Central Manager)

Network-Based IDS (NIDS)

• Monitors traffic at selected network points
• Examines traffic packet by packet in real or near real time
• May examine network, transport, and/or application layer protocols
• Components:
  • Number of sensors
  • One or more NIDS management servers
  • One or more management consoles (human interface)
• Analysis may occur at the sensor, management server, or both

NIDS Sensor Modes

Inline Sensor

• Inserted directly into the network path — all traffic must pass through
• Can be combined with firewall or LAN switch
• Advantage: no additional hardware needed; just software
• Primary motivation: can block attacks in real-time

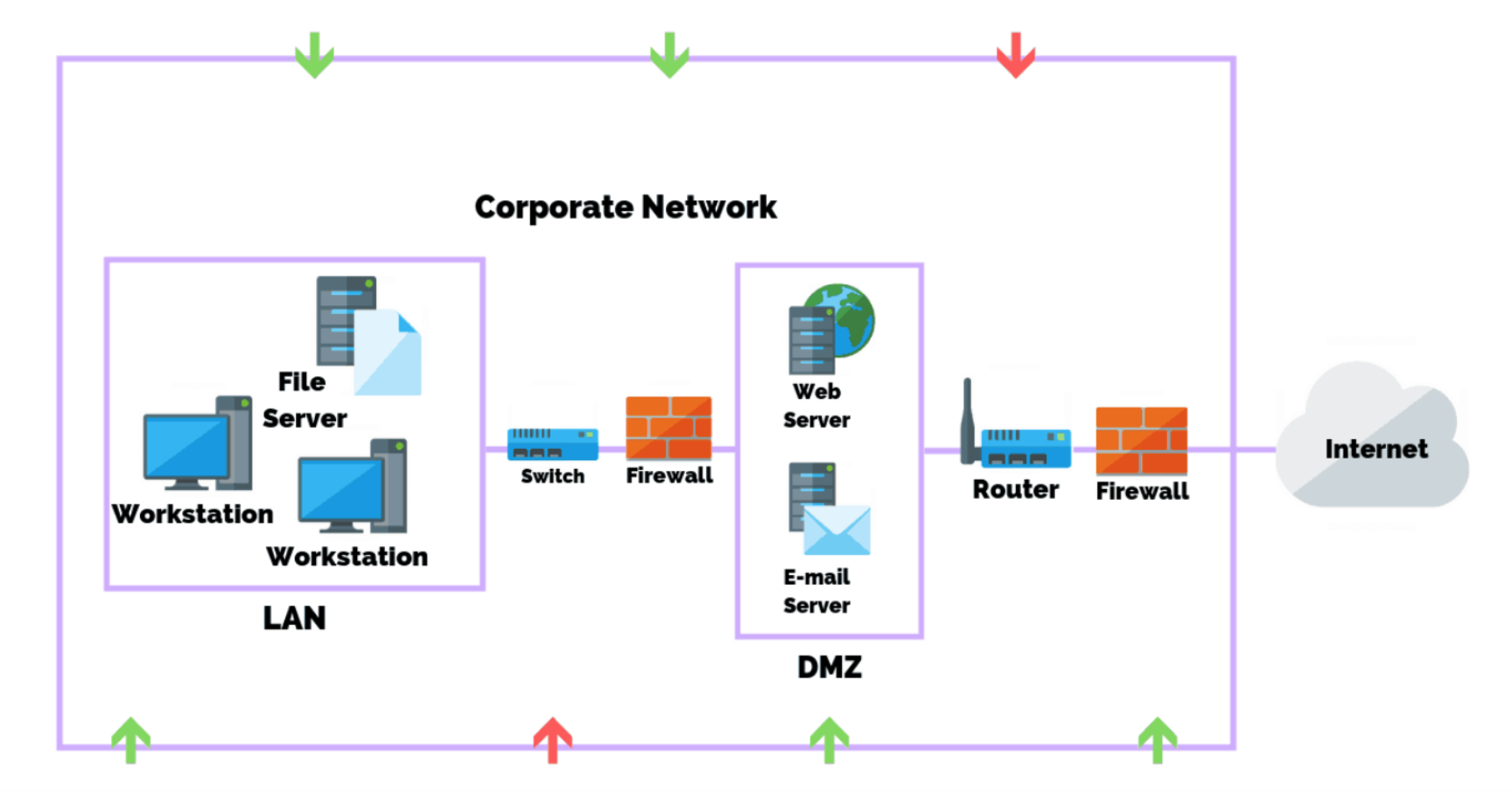

• Placement: between firewall ↔ internal network, DMZ ↔ LAN, Internet ↔ gateway router

Block ระหว่างทางมาเลย
Acts like a “smart firewall” with deep packet inspection

• DPI (deep packet inspection) คืออะไรล่ะ
• ปกติแล้วเวลา Packet เข้ามา ผ่าน Firewall เนี่ย มันจะตรวจแค่ Header → อันนี้อาจจะพังได้ เพราะ Payload อาจจะถูกปลอมแปลง หรือมี Malicious code อยู่
• แต่ถ้า Firewall + DPI มันจะเช็คตัว Payload ด้วย!
• ถ้าอยากจะปลอมแปลง ไม่ให้ DPI อ่าน Payload หรือเช็คได้ ก็ต้อง Encrypt ตัว Payload นะ

• Pros: Real-time blocking, useful for zero-trust environments
• Cons: Can interrupt traffic if it fails; adds latency; requires careful tuning

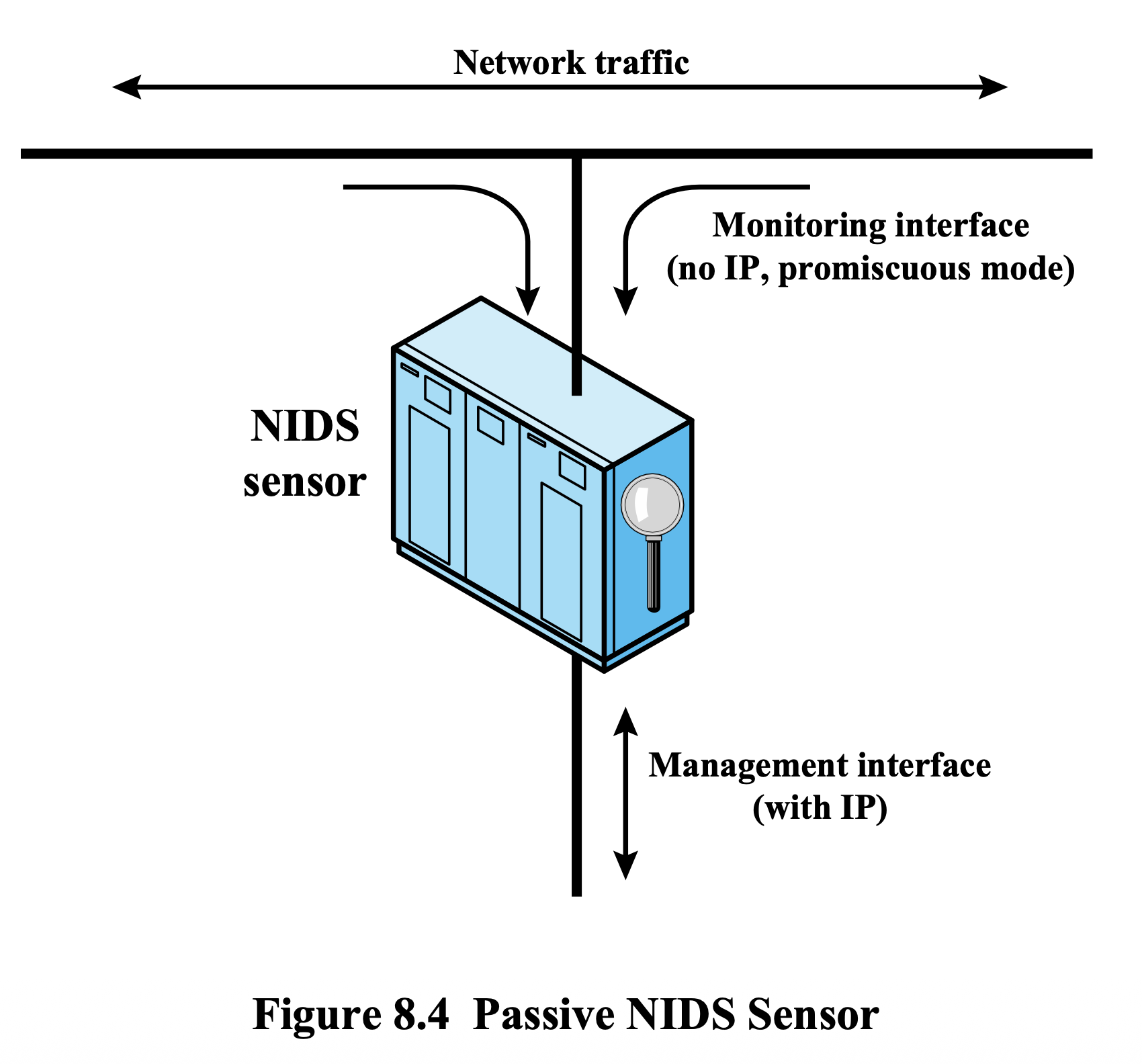

Passive Sensor

• Monitors a copy of traffic — actual traffic does not pass through the device
• Connected to a SPAN port (port mirroring) or network tap
  • Network tap = hardware used to sniff the network
• More efficient from a traffic flow perspective (no extra packet delay)

เอาทั้ง Network ที่ capture แล้วมาดู มา analyze
Just detect and send alert, แต่ inline sensor นี้มัน block ได้เลยนะ

• Pros: No traffic interruption risk, easy to deploy, safe for critical systems
• Cons: Cannot block attacks (detection only), may miss packets under heavy traffic

Inline = ยาม ที่ยืนกั้นประตู ห้ามไม่ให้ผ่าน | Passive = กล้อง CCTV ที่แค่ดูและบันทึก

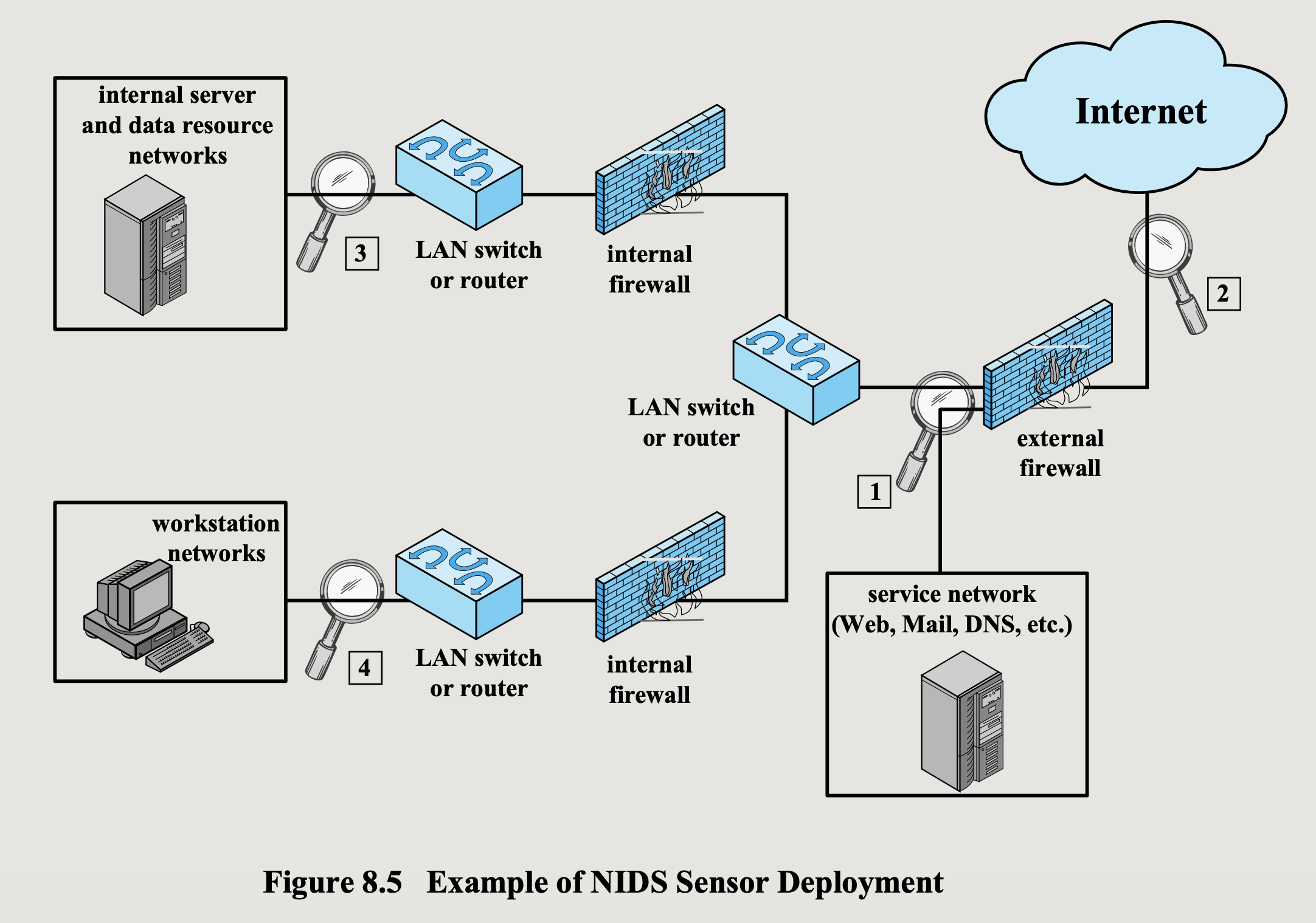

NIDS Sensor Deployment Positions

Internet
   ↓
External Firewall
   ↓ ← Sensor [2] (between Internet and external firewall)
LAN Switch/Router ← Sensor [1] (between external FW and internal network)
   ├── Service Network (Web, Mail, DNS)
   ├── Internal Server/Data ← Sensor [3]
   └── Workstation Networks ← Sensor [4]

Intrusion Detection Techniques

• reconnaissance = data gathering (การลาดตระเวน)
  • เวลาเราทำ Penetration test ก็ต้องทำอันนี้ก่อนนั่นแหละ

Logging of Alerts (NIDS)

Typical information logged by a NIDS sensor:

• Timestamp
• Connection or session ID
• Event or alert type
• Rating (severity)
• Network, transport, and application layer protocols
• Source and destination IP addresses
• Source and destination TCP/UDP ports, or ICMP types/codes
• Number of bytes transmitted
• Decoded payload data (application requests and responses)
• State-related information

IETF Intrusion Detection Working Group

Purpose: Define data formats and exchange procedures for sharing IDS information

RFCs issued in 2007:

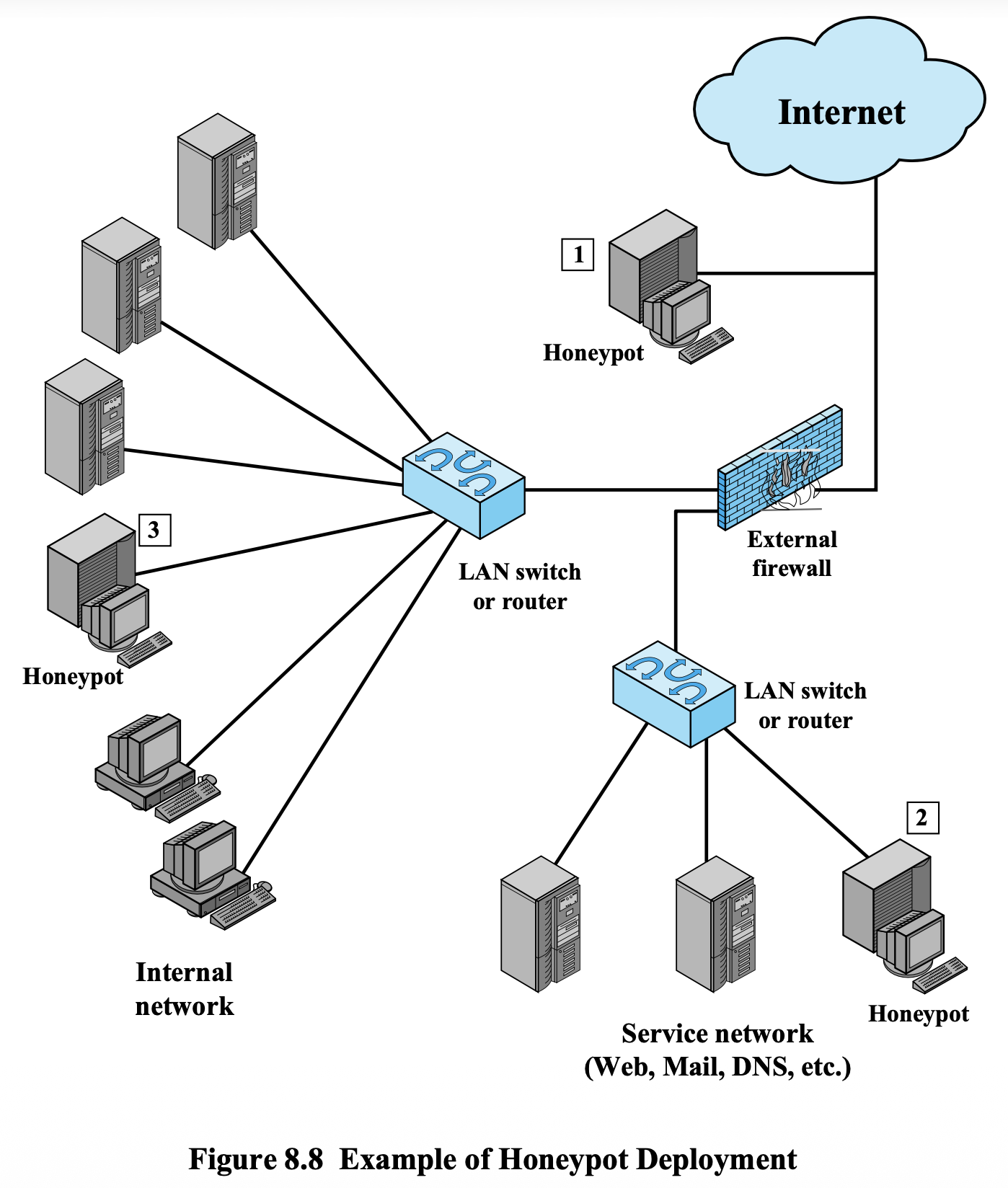

Honeypots

• Decoy systems designed to:
  • Lure attackers away from critical systems
  • Collect information about attacker activity
  • Keep attacker engaged long enough for administrators to respond
• Filled with fabricated information that legitimate users wouldn't access
• Have no production value → any incoming communication = likely probe/scan/attack
• Outbound communication from honeypot → system likely compromised

เหมือนกับดักที่วางเหยื่อไว้ ให้โจรสนใจและเสียเวลาอยู่กับของปลอม ขณะที่เราตามจับตัวได้

Honeypot Classifications

Honeypot Deployment Positions

1. Position 1 — Before external firewall (faces internet directly)
2. Position 2 — In service network (DMZ area)
3. Position 3 — In internal network (detects insider threats)

SNORT

• Open source, highly configurable, portable HIDS or NIDS
• Known as a "lightweight IDS":
  • Easily deployed on most nodes (host, server, router)
  • Efficient — uses small amount of memory and processor time
  • Easily configured by system administrators

SNORT Architecture

Packet → Decoder → Detection Engine → Log
                                    → Alert

SNORT Components

SNORT Rule Format

[Action] [Protocol] [Src IP] [Src Port] [Direction] [Dst IP] [Dst Port] ([Options])

Rule Header Fields

• Action — what to do when rule matches
• Protocol — tcp, udp, icmp, ip
• Source IP / Port
• Direction — -> (one-way) or <> (bidirectional)
• Destination IP / Port

SNORT Rule Actions

Rule Options Categories

Key Rule Option Examples

meta-data:

• msg — message to send when packet triggers the rule
• reference — link to external attack ID system
• classtype — type of attack the packet attempted

payload:

• content — case-sensitive search for specific content (text/binary) in payload
• depth — how far into packet to search for the pattern
• offset — where to start searching within the packet
• nocase — ignore case when matching content

non-payload:

• ttl — check IP time-to-live (detect traceroute attempts)
• id — check IP ID field (value 31337 popular with some hackers)
• dsize — test payload size (useful for detecting buffer overflows)
• flags — test TCP flags for specified settings
• seq — look for specific TCP sequence number
• icmp-id — check for specific ICMP ID (detect covert channel programs like stacheldraht DDoS)

post-detection:

• logto — log matching packets to specified filename
• session — extract user data from TCP sessions (telnet, rlogin, ftp, web sessions)

IDS Rule Breakdown Example (auditd)

-a always,exit -F arch=b64 -S execve -F exe=/usr/sbin/tcpdump -k sniffing

Summary
