Today's Outline

• Part I: Data Dictionary
• Part II: Introduction to SQL
• Part III: DDL and DML Commands and Syntax
  • Working with Database
  • Working with Table
• Part IV: MySQL Workbench

Part I: Data Dictionary

Relational Diagram (Tinycollege Schema)

Data Dictionary Definition

In database system, a Data Dictionary is a collection of names, definitions, and attributes about data elements that are being used

Data Dictionary for Tinycollege Database

Key Indicators

• PK = Primary Key
• FK = Foreign Key

Data Dictionary Table

Commonly Used Data Types

• CHAR = Fixed character length data
• NCHAR = Fixed character length data supporting Unicode text
• VARCHAR = Variable character length
• NVARCHAR = Variable character length supporting Unicode text
• INT = Integer number
• DECIMAL(P,S) = Number with precision P digits and S decimal point
• DATE / DATETIME = Date / Date and Time
• BIT = 1, 0 or NULL (suitable for true/false data)

1. Numercic Data
   • int
   • decimla
2. String data
   • char
   • varchar
   • nchar
   • nvarchar

• Static แค่ char → reserve space → when not used, you’ll lose/waste???

• Dynamic พวก varchar ไรงี้ → ใช้เท่าที่ใช้จริง ๆ ไม่ lose ตรงที่ไม่ใช้

  • AKE 3 bytes
  • ABCD 4 bytes

• nchar → “Unicode static

• nvarchar → univode dynamic

• ไอ่พวก unicode เอาไว้เก็บพวก international language

  • เวลาใช้จริงมันจะ reserve x2 – AKE ก็เป็น 6 bytes (แทนที่จะ 3 bytes)

#FinalExam เดี๋ยวจะมีข้อมูล Chinese มาให้ แล้วให้ออกแบบ CREATE TABLE command

Part II: Introduction to SQL

Structured Query Language (SQL)

• Pronounced as "S-Q-L" or "sequel"
• SQL is a standard language for querying and manipulating data in database

Main SQL Operations

1. Manipulate DB and Schema (DDL)
2. Insert / Update / Delete Data (DML)
3. Retrieve Data (DQL)

Popular Database Systems Supporting SQL

• PostgreSQL
• MariaDB
• MySQL
• Microsoft SQL Server
• Oracle Database
• Amazon RDS
• Amazon Redshift

Part III: SQL Categories

Two Main Categories of SQL

1. Data Definition Language (DDL)
   • Define relational schema
   • Create/Alter/Delete structure of tables
   • หลังจากทำ 8 steps แล้ว
2. Data Manipulation Language (DML)
   • Query one or more tables
   • Insert/Delete/Modify data in tables

Relational Schema Notation

• The schema of a table is the table name and its attributes
• A primary key (PK) is an attribute whose values are unique and cannot be NULL
• Primary keys are usually underlined in the schema

Examples:

Department (dnumber, dname, location)
Department (dnumber, dname, location)  [with dnumber underlined]

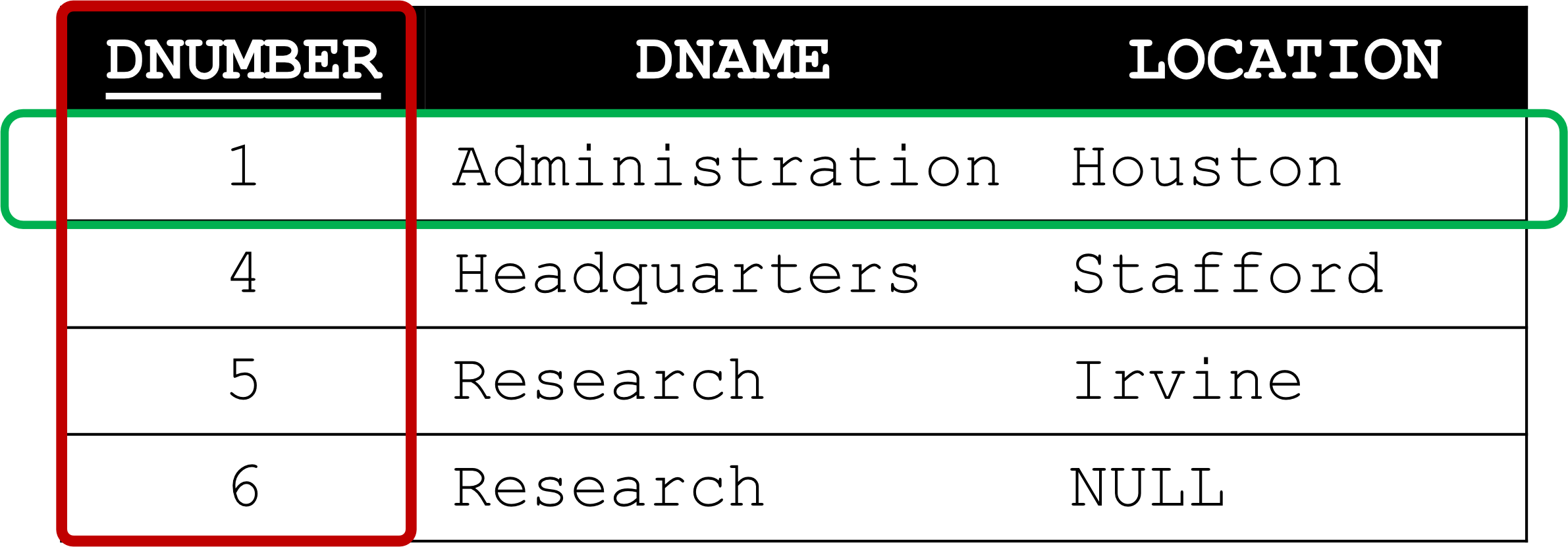

Table Components in Relational Database

• Relation or Table = A set of tuples
• Tuple (or row or record) = A single entry in the table having the attributes specified by the schema
• Attribute (or column) = A typed data entry presented in each tuple in the relation

Example DEPARTMENT table:

Common SQL Data Types (MySQL)

DDL: Data Definition Language

DDL Overview

Defining database objects, such as databases, tables, indexes, views, stored procedures.

Main DDL Commands:

• CREATE - to create a new database object
• ALTER - to modify an existing database object
• DROP - to delete an entire database object

Working with Databases

Create a Database

Syntax:

CREATE DATABASE [IF NOT EXISTS] databasename;

Example:

CREATE DATABASE IF NOT EXISTS tinycompany;

• พอเรา Execute command นี้แล้ว DBMS ส่วนใหญ่จะสร้าง

  • tinycompany.dat - Maintain raw data
  • tinycompany.log - (Transaction) ทุกอย่างที่เรา apply เข้า database นี้ จะถูก Log ไว้หมด
    • All SQL commands will store in .log, mostly used for Recovery Process

• Table มี 2 แบบ

  1. Based Table/ Physical Table → In HD
     • Permanent Data (Forever)
       CREATE TABLE
  2. Virtual Table/ In Memory Table → In Memory
     CREATE VIEW - This will be faster!!

Show All Available Databases

Syntax:

SHOW DATABASES;  -- Do not forget 's' at the end

Use or Set the Current Working Database

Syntax:

USE databasename;

Example:

USE tinycompany;

Drop (Delete) a Database Permanently

Syntax:

DROP DATABASE [IF EXISTS] databasename;

Example:

DROP DATABASE IF EXISTS tinycompany;

Working with Tables

Main Operations with Tables

• Create a table with primary keys
• Create a table with foreign keys
• Modify an existing table
• Drop a table

Create a Table / Schema

Basic Syntax

CREATE TABLE [IF NOT EXISTS] tablename (
    attrname1 datatype(size) [constraintname],
    attrname2 datatype(size) [constraintname],
    attrnameN datatype(size) [constraintname],
    [PRIMARY KEY (attrPK1 [, attrPK2])]
    [CONSTRAINT constraintname]
);

Best Practices:

• Use one line per column (attribute) definition
• Use spaces or tabs to line up attribute characteristics and constraints

Table Constraints

SQL constraints are used to specify rules for the data in a table. Used when CREATE or ALTER (modify) table.

Main Constraints:

• NOT NULL - a column cannot store NULL value
• UNIQUE - each row for a column must have a unique value
• PRIMARY KEY - a column or more columns have a unique identity and cannot be NULL value (combines NOT NULL and UNIQUE constraints)

Create Table Examples

Example 1: Create a Department Table (Option 1)

CREATE TABLE department(
    dnumber INT PRIMARY KEY,
    dname VARCHAR(20) NOT NULL,
    location VARCHAR(100)
);

Example 2: Create a Department Table (Option 2)

CREATE TABLE department(
    dnumber INT UNIQUE NOT NULL,
    dname VARCHAR(20) NOT NULL,
    location VARCHAR(100),
    PRIMARY KEY (dnumber)
);

Example 3: Create a Department Table (Option 3) - With Named Constraint

CREATE TABLE department(
    dnumber INT,
    dname VARCHAR(20) NOT NULL,
    location VARCHAR(100),
    CONSTRAINT PK_Dept PRIMARY KEY (dnumber)
);

Note: Option 3 uses a named constraint PK_Dept for the primary key

#FinalExam (Mock exam) ทำเหมือนใน Class มี Business rules มาให้ แล้วให้วาด ER ก่อน แล้วค่อย SQL Command create table

Create a Table with Foreign Keys

Understanding Foreign Keys

Foreign Key Relationships:

• Primary Key (PK) enforces Entity Integrity
• Foreign Key (FK) enforces Referential Integrity

Example Relationship:

DEPARTMENT                    PROJECT
┌──────────────────────┐     ┌──────────────────────┐
│ DNUMBER (PK)         │◄────│ PNUMBER (PK)         │
│ DNAME                │     │ PNAME                │
│ LOCATION             │     │ DEPT_NO (FK)         │
└──────────────────────┘     └──────────────────────┘

Sample Data:

DEPARTMENT:

PROJECT:

Example: Create a Project Table with Foreign Key

CREATE TABLE project(
    pnumber INT PRIMARY KEY,
    pname VARCHAR(50) NOT NULL,
    dept_no INT,
    CONSTRAINT FK_DeptProj FOREIGN KEY (dept_no)
        REFERENCES department(dnumber)
);

• Important Question: Can we create the project table before the department table?
  • Answer: NO! The referenced table must exist first.

Sequence for Relational Schema Creation

Creation Order (following FK dependencies)

1. DEPARTMENT (no FK dependencies)
   ↓
2. EMPLOYEE (FK to DEPARTMENT)
   ↓
3. PROJECT (FK to DEPARTMENT)
   ↓
4. ASSIGNMENT (FK to EMPLOYEE and PROJECT)

• อาจารย์เฉลย DEPT, PROJ, EMP, ASS

Rule: Always create tables WITHOUT foreign keys first, then create tables WITH foreign keys that reference them.

#FinalExam ให้ตารางแบบนี้มา แล้วถามว่าตรง Create อะไรเป็นอันแรก

Modify an Existing Table

ALTER TABLE Operations

Syntax:

ALTER TABLE [table_name]
ADD | MODIFY | DROP ...

Available Modifications:

• Add a new column / constraint
• Modify a column / constraint
• Drop a column / constraint
• Modify primary key
• Modify foreign key
• Add/Drop CHECK constraint
• Add/Drop DEFAULT constraint

ALTER TABLE Examples

Add New Columns

ALTER TABLE project
ADD signdate DATE NOT NULL,
ADD pstatus CHAR(1) NOT NULL;

Check Table Schema

-- DESCRIBE: Check the table schema
DESCRIBE employee;

Modify Columns

-- Change varchar to char (fixed length)
ALTER TABLE employee
MODIFY ssn CHAR(9) NOT NULL,
MODIFY sex CHAR(1) NOT NULL;

DESCRIBE employee;

Drop a Column

Syntax and Restrictions

ALTER TABLE project
DROP signdate;

Important Note: RDBMS will allow you to drop columns if they are NOT referenced by other tables/columns

Example of Error:

-- dnumber is PK and FK in the project table
ALTER TABLE department
DROP dnumber;

Error Message:

Error Code: 1829. Cannot drop column 'dnumber': needed in a foreign key
constraint 'FK_DeptProj' of table 'project'

Modify Primary and Foreign Keys

Remove and Add Primary Key

-- Remove a current primary key
ALTER TABLE employee
DROP PRIMARY KEY;

-- Create a new composite primary key
ALTER TABLE employee
ADD PRIMARY KEY (fname, lname);

Modify Foreign Key

-- Remove FK
ALTER TABLE employee
DROP CONSTRAINT FK_EmpDept;

-- Add FK back
ALTER TABLE employee
ADD CONSTRAINT FK_EmpDept FOREIGN KEY (dept_no)
    REFERENCES department(dnumber);

Add Constraints

Add CHECK Constraint (for data validation)

-- Check if sex has value 'M' or 'F'
ALTER TABLE employee
ADD CONSTRAINT CHK_Gender CHECK (sex IN ('M', 'F'));

Add DEFAULT Constraint (for setting default value)

-- Set default location to 'Bangkok'
ALTER TABLE department
ALTER location SET DEFAULT 'Bangkok';

Drop (Delete) a Table / Schema

Syntax

DROP TABLE [IF EXISTS] tablename;

Important Restrictions

• Remove the existing table permanently from the database
• The table can be dropped ONLY if it is NOT referenced by other tables
• RDBMS generates a foreign key integrity violation error message if the table is dropped

Example Error:

DROP TABLE IF EXISTS department;

Error Message:

Error Code: 3730. Cannot drop table 'department' referenced by a foreign
key constraint 'FK_DeptProj' on table 'project'. 0.015 sec

Sequence for Relational Schema Deletion

Deletion Order (reverse of creation order)

• ตรงข้ามเด้อออ จากข้างบน

4. ASSIGNMENT (has FK to EMPLOYEE and PROJECT) - Delete FIRST
   ↑
5. PROJECT (has FK to DEPARTMENT)
   ↑
6. EMPLOYEE (has FK to DEPARTMENT)
   ↑
7. DEPARTMENT (no FK dependencies) - Delete LAST

Rule: Always delete tables WITH foreign keys first, then delete tables that are referenced by foreign keys.

DML: Data Manipulation Language

DML Overview

Commands used to retrieve and manipulate data in a relational database.

Main DML Commands:

• INSERT - Used to create a record
• UPDATE - Used to change records
• DELETE - Used to delete records
• SELECT - Used to retrieve data (Data Query Language)

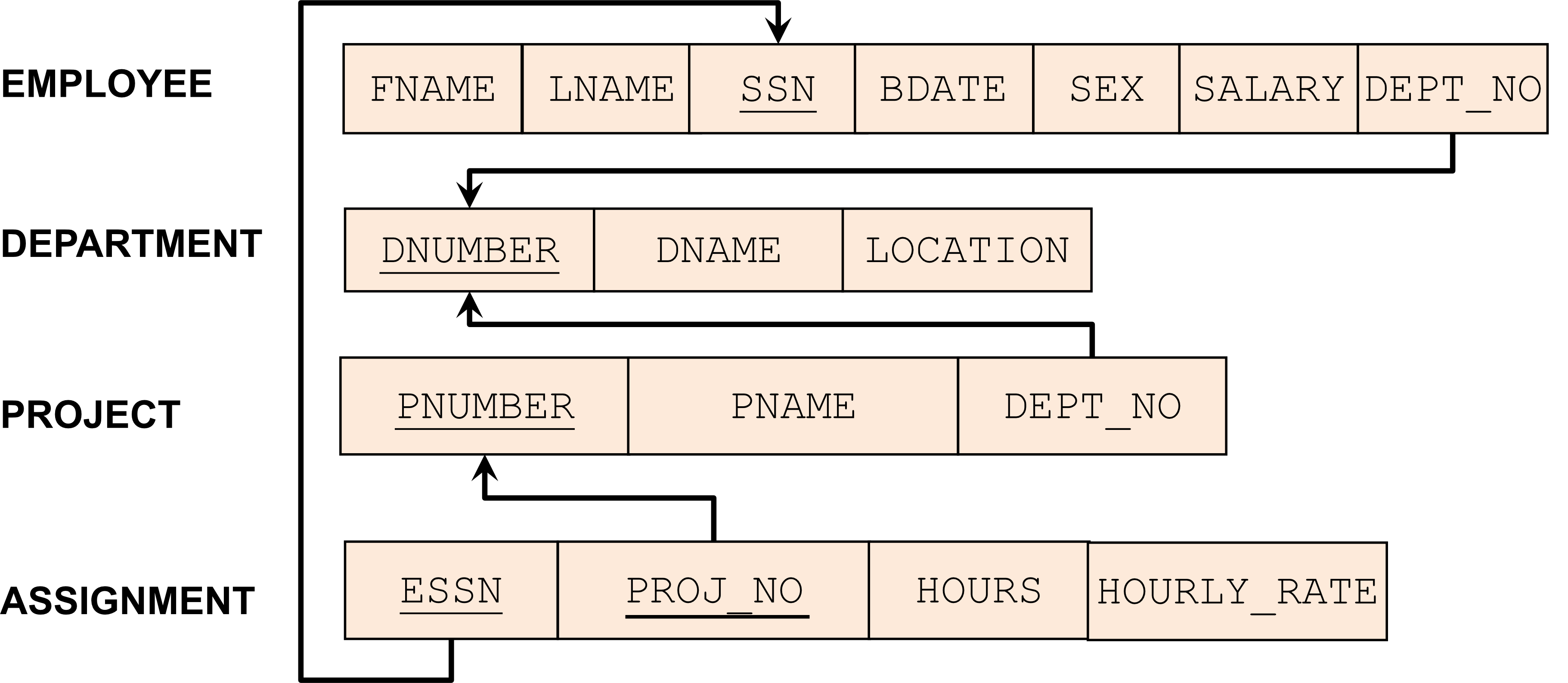

Back to Our Tinycompany Database

Empty Tables After DDL

All tables are created by DDL. Next, let's fill in the data!

DEPARTMENT

EMPLOYEE

PROJECT

ASSIGNMENT

INSERT a New Tuple

Basic Syntax

INSERT INTO tablename(Column1, Column2, ..., ColumnN)
VALUES (value1, value2, ..., valueN);

Example 1: Insert into Department

INSERT INTO department (dnumber, dname, location)
VALUES (7, "IT", "2Fl. 2B01");

Shorter Version (without column names):

INSERT INTO department
VALUES (7, "IT", "2Fl. 2B01");

Note: You can ignore the list of column names, but your data must align with the columns

INSERT - Partial Records

Insert Part of Records into a Table

INSERT INTO employee(ssn, fname, lname, bdate, sex)
VALUES ("110033445", "Peter", "Parker", "1985-05-04", "M");

Result:

• Specified columns get the provided values
• Other columns (salary, dept_no) get NULL if no default value is set

Important: If there is no default value, NULL will be assigned to columns not included in the INSERT statement.

INSERT a Batch of Tuples

Insert Multiple Rows at Once

INSERT INTO department
VALUES (1, "Accounting", "2A101 Fl.1"),
       (2, "Human Resources", "2A104 Fl.1"),
       (3, "Research and Development", "2B401 Fl.4"),
       (4, "Information Technology", "2A404 Fl.4"),
       (5, "Public Relations", "2B201 Fl.2"),
       (6, "Administration", "2B301 Fl.3"),
       (7, "Academic Services", "2B302 Fl.3");

Resulting Table:

Fill-in Order for Tinycompany Database

Question: Which order of tables should we fill in? Why?

Answer: Follow the foreign key dependencies!

Correct Order:

1. DEPARTMENT (no FK dependencies) - Fill FIRST
2. EMPLOYEE (FK to DEPARTMENT) - Fill SECOND
3. PROJECT (FK to DEPARTMENT) - Fill THIRD
4. ASSIGNMENT (FK to EMPLOYEE and PROJECT) - Fill LAST

Reason: You cannot insert a foreign key value that doesn't exist in the referenced table (referential integrity).

Tinycompany Database After INSERT

Sample Data

DEPARTMENT

EMPLOYEE

PROJECT

ASSIGNMENT

UPDATE an Existing Tuple

Basic Syntax

UPDATE tablename
SET columnname=expression[, columnname=expression]
[WHERE conditionlist];

Example 1: Update dept_no in Project Table

UPDATE project
SET dept_no=2
WHERE pnumber=2;

Before:

After:

Important: Use the primary key as a condition to uniquely identify the row to be updated

Example 2: Update Peter's Salary and Dept_no

Before:

Option 1: Using Name (works if name is unique)

UPDATE employee
SET salary=1800.5, dept_no=3
WHERE fname="Peter" AND lname="Parker";

Option 2: Using Primary Key (safer)

UPDATE employee
SET salary=1800.5, dept_no=3
WHERE ssn="110033445";  -- Use PK

After:

Note: We can use the name condition as long as we have only one Peter Parker.

UPDATE Without WHERE Clause

⚠️ Danger: UPDATE Without WHERE

#FinalExam ถ้าถามว่า Developer forgot the WHERE clause, imagine you’re DBA, what should we do? → Recovery

Question: What will happen if the UPDATE command is used WITHOUT the WHERE condition?

Example:

UPDATE department
SET dname="Gaming";

Before:

After:

Result: ALL rows are updated! 🚨

Tinycompany Database After UPDATE

Updated Data

DEPARTMENT

EMPLOYEE

PROJECT

ASSIGNMENT

DELETE an Existing Tuple

Basic Syntax

DELETE FROM tablename [WHERE conditionlist];

Examples

Example 1: Delete Specific Record

DELETE FROM assignment
WHERE essn="103849237" AND proj_no=1;

Example 2: Delete Records with NULL Values

DELETE FROM department
WHERE location IS NULL;

DELETE Without WHERE Clause

⚠️ Danger: DELETE Without WHERE

Question: What will happen if the DELETE command is used WITHOUT the WHERE condition?

Example:

DELETE FROM department;

Result: ALL rows in the table are deleted! 🚨

Important: Always use a WHERE clause with DELETE unless you intentionally want to delete all records.

Tinycompany Database After DELETE

Updated Data (After Deleting Assignment Record)

DEPARTMENT

EMPLOYEE

PROJECT

ASSIGNMENT

Note: The row with ESSN=103849237 and PROJ_NO=1 has been deleted.

Summary

DDL (Data Definition Language)

• CREATE DATABASE/TABLE - Create new database objects
• ALTER TABLE - Modify existing table structure
• DROP DATABASE/TABLE - Delete database objects permanently
• Key Constraints: PRIMARY KEY, FOREIGN KEY, UNIQUE, NOT NULL, CHECK, DEFAULT

DML (Data Manipulation Language)

• INSERT - Add new records
• UPDATE - Modify existing records
• DELETE - Remove records
• ⚠️ Always use WHERE clause with UPDATE and DELETE to avoid affecting all rows

Important Principles

1. Foreign Key Dependencies: Create/fill parent tables before child tables
2. Deletion Order: Reverse of creation order (delete child tables first)
3. Referential Integrity: Cannot delete/modify records that are referenced by foreign keys
4. Entity Integrity: Primary keys must be unique and NOT NULL

Best Practices

Schema Design

• Always use meaningful names for tables and columns
• Document your schema with a data dictionary
• Use appropriate data types and sizes
• Define all necessary constraints

Data Manipulation

• Always test UPDATE and DELETE commands with a SELECT first
• Use transactions for multiple related changes
• Use primary keys in WHERE clauses when updating specific records
• Be cautious with NULL values

Safety Tips

• ⚠️ Never use UPDATE or DELETE without WHERE clause unless intentional
• Always check foreign key dependencies before dropping tables
• Use IF EXISTS/IF NOT EXISTS clauses to prevent errors
• Back up data before major modifications
