Chapter 9 - NoSQL and Big Data Processing

History: How We Got Here

The Early Days of Databases

• Relational Databases were the mainstay of business applications
  • แล้วทำไม Relational Database ยังคงเป็น Mainstay อยู่ → ก็เพราะว่ามี ACID Properties
• Web-based applications caused sudden traffic spikes
• Especially true for public-facing e-Commerce sites
• Developers began to front RDBMS with memcache or integrate other caching mechanisms (e.g., Ehcache)

Think of RDBMS as a single, well-organized filing cabinet. It works great for a small office, but when the entire city needs to file documents simultaneously, it becomes a bottleneck.

Scaling Up RDBMS

The Core Problem

• Issues with scaling when the dataset becomes too big
• RDBMS were not designed to be distributed
• Solution: Look at multi-node database solutions
  • Known as "scaling out" or horizontal scaling
• Two main approaches:
  • Master-Slave
  • Sharding

Scaling RDBMS: Master/Slave

• All writes go to the master
• All reads performed against replicated slave databases
• Problem: Critical reads may be incorrect — writes may not have been propagated down yet
• Problem: Large datasets pose issues, as the master must duplicate data to all slaves

Like a newspaper: the editor (master) writes the stories, and printing machines (slaves) copy them. But if the presses haven't caught up yet, readers get yesterday's news.

Scaling RDBMS: Sharding

• Also called Partitioning
• Scales well for both reads and writes
• Not transparent — the application needs to be partition-aware
• Cannot have relationships/JOINs across partitions
• Loss of referential integrity across shards

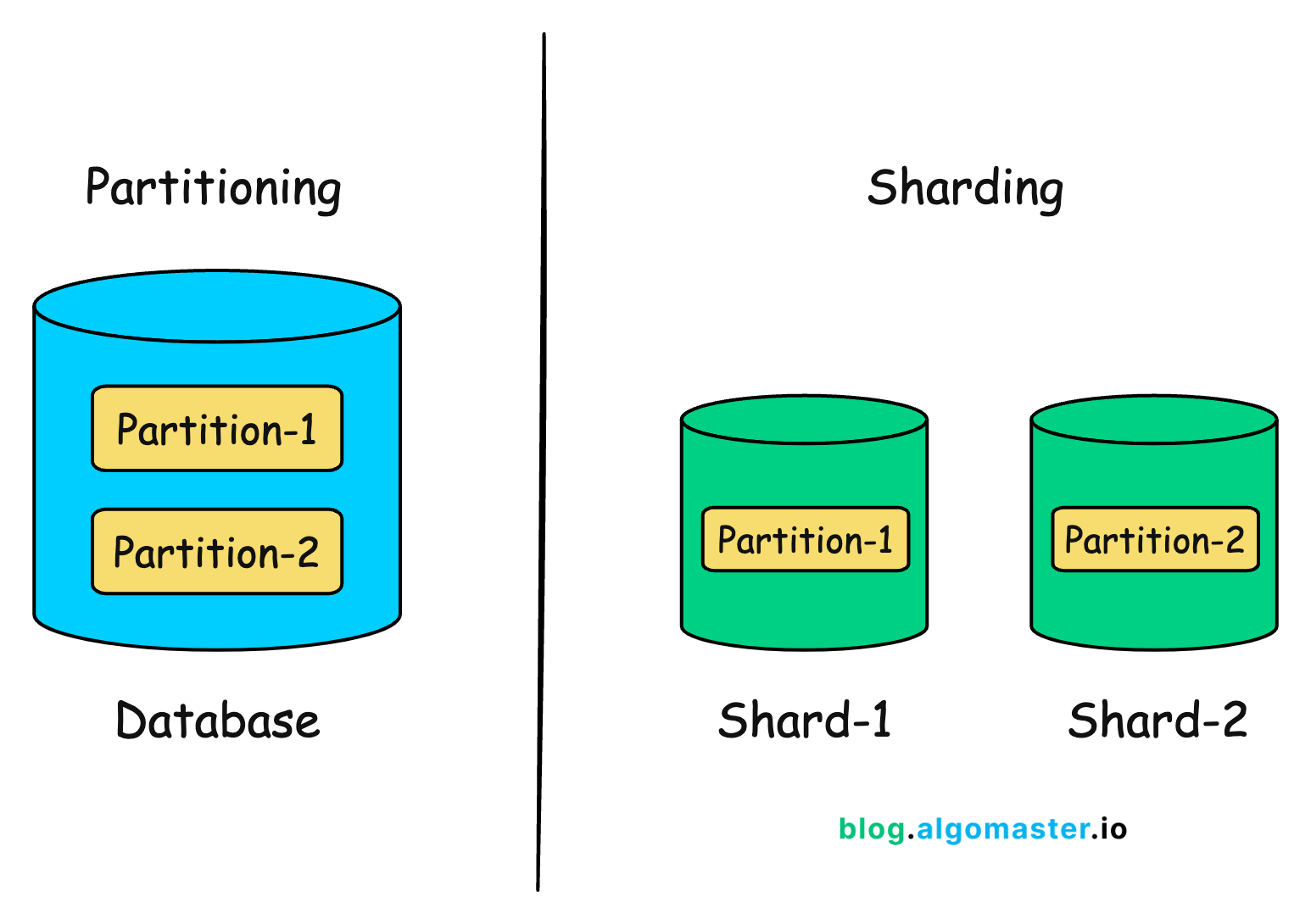

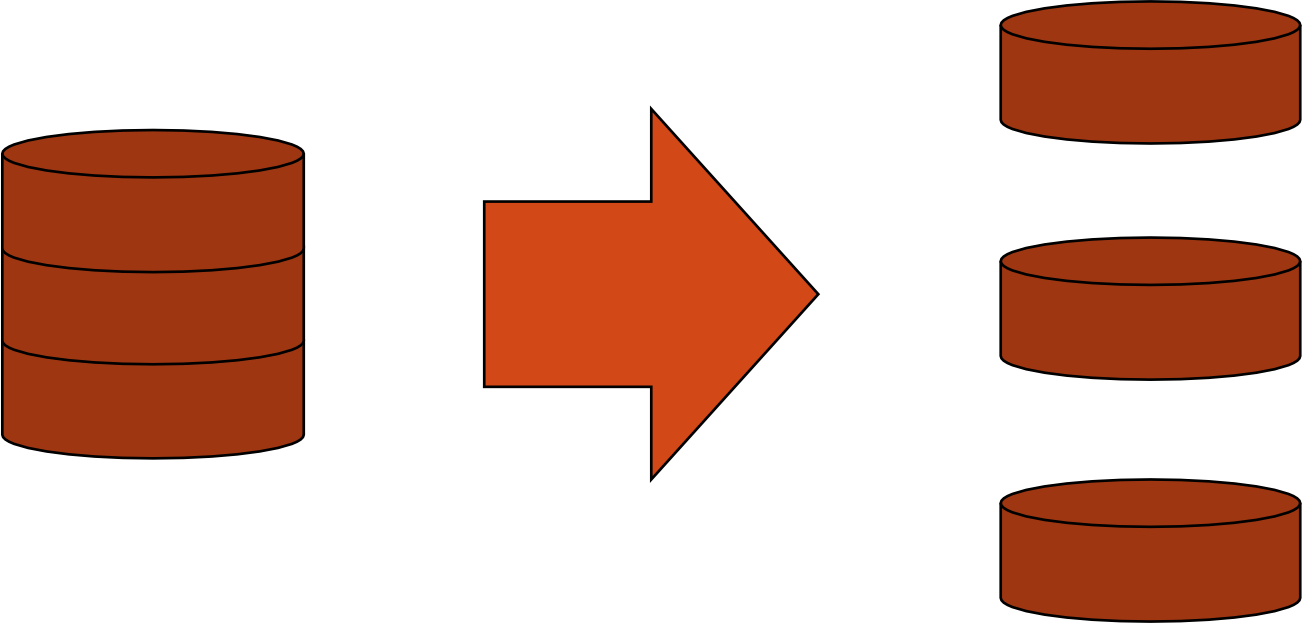

What Is Sharding?

• A type of database partitioning that separates very large databases into smaller, faster, more manageable parts called data shards
• The word shard means a small part of a whole
• A mechanism of horizontal scaling
• Distributes datasets (tables/data) over multiple servers/databases
• Each shard is independent
• All shards together constitute one logical database

Like splitting a big dictionary into volumes A-M and N-Z — each volume is independent, but together they cover the whole alphabet.

Sharding Techniques

• Vertical Partitioning — Tables related to a specific feature sit on their own server. May have to rebalance/reshard if tables outgrow the server.

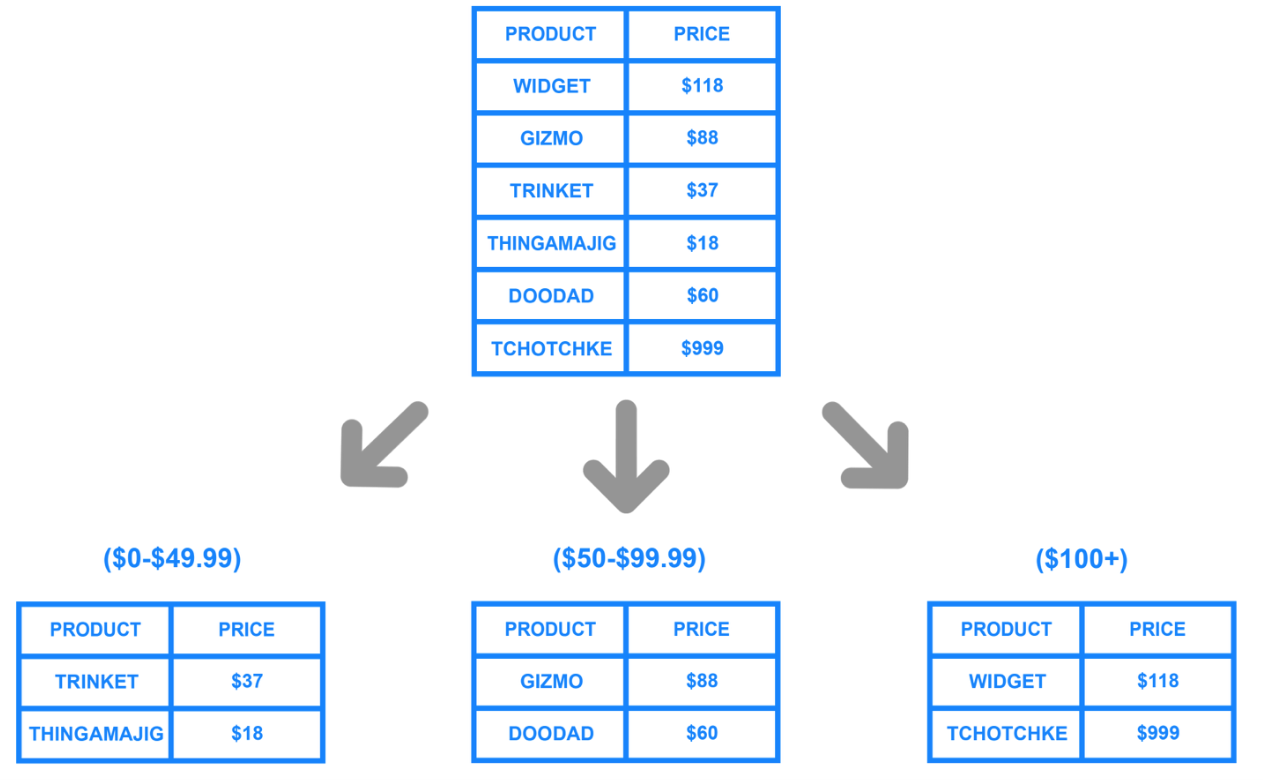

• Range-Based Partitioning — When a single table cannot fit on one server, split it based on a critical value range (e.g., price ranges: $0–$49.99, $50–$99.99, $100+).

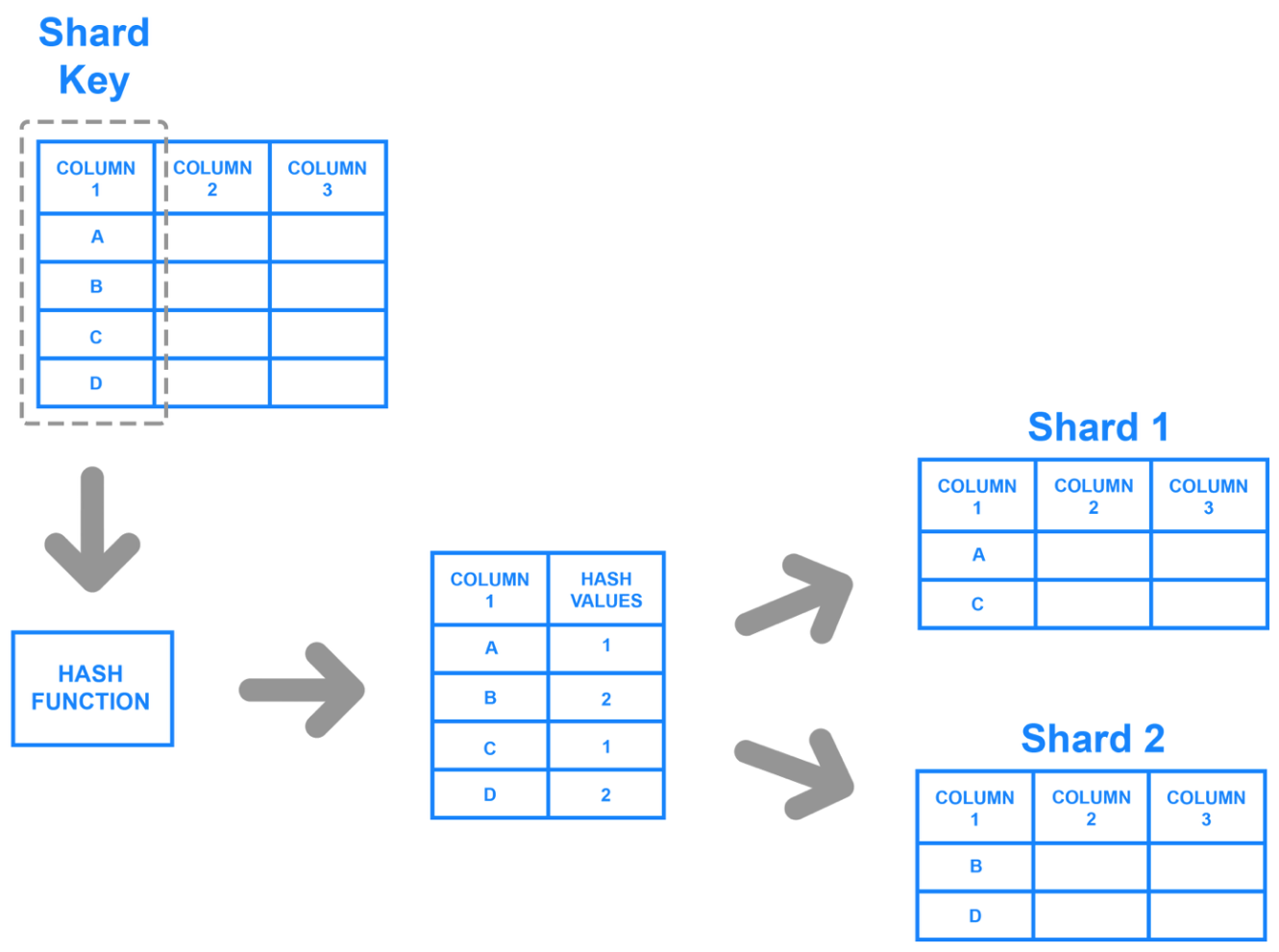

• Key/Hash-Based Partitioning — Use a key value in a hash function and use the result to determine which server to route to.

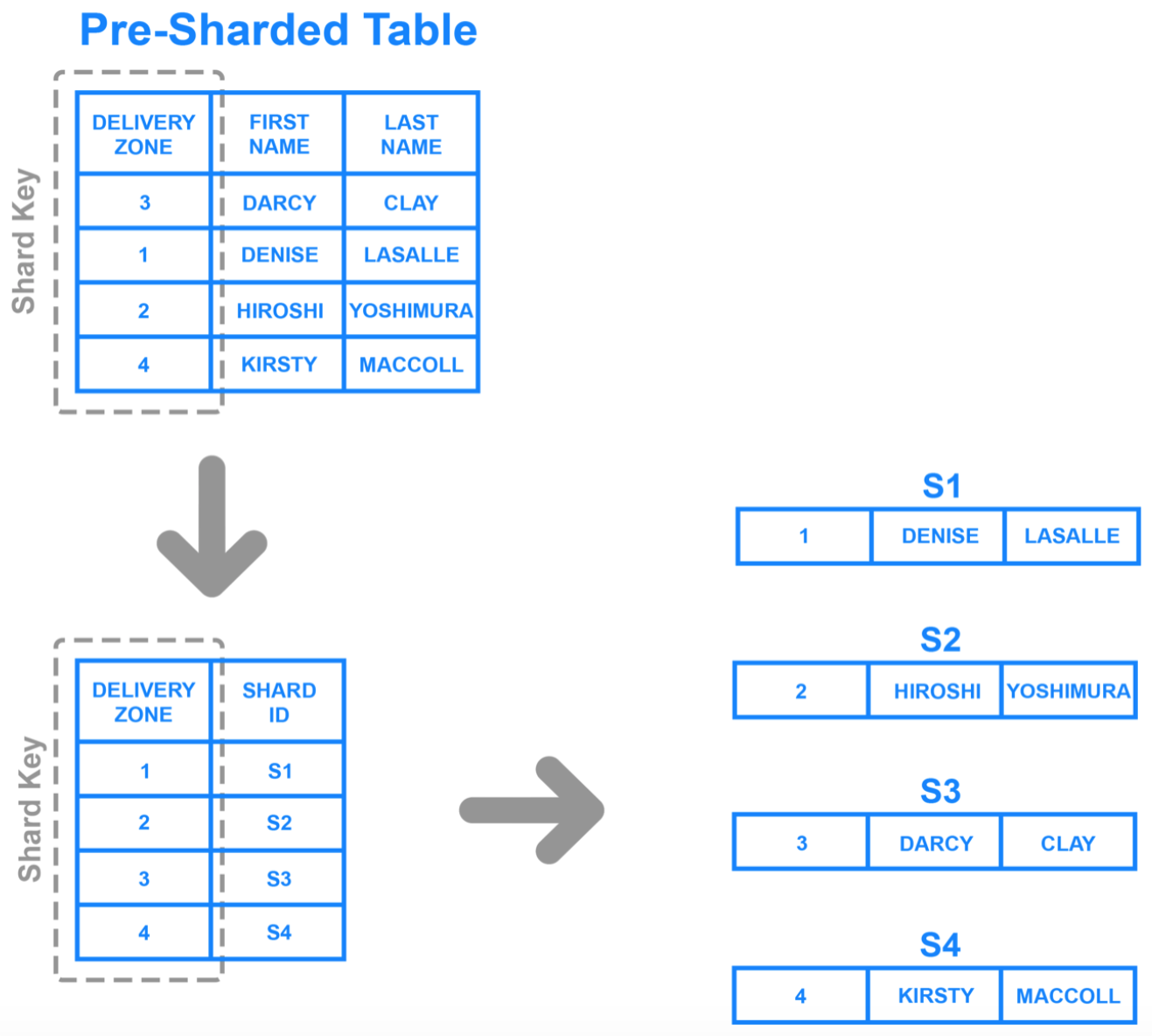

• Directory-Based Partitioning — Have a lookup service with knowledge of the partitioning scheme. Allows adding servers or changing the partition scheme without changing the application.

Other Ways to Scale RDBMS

• Multi-Master Replication
  • INSERT only (no UPDATES/DELETES)
    • Otherwise compromise consistency
  • No JOINs → reduces query time
  • Involves de-normalizing data

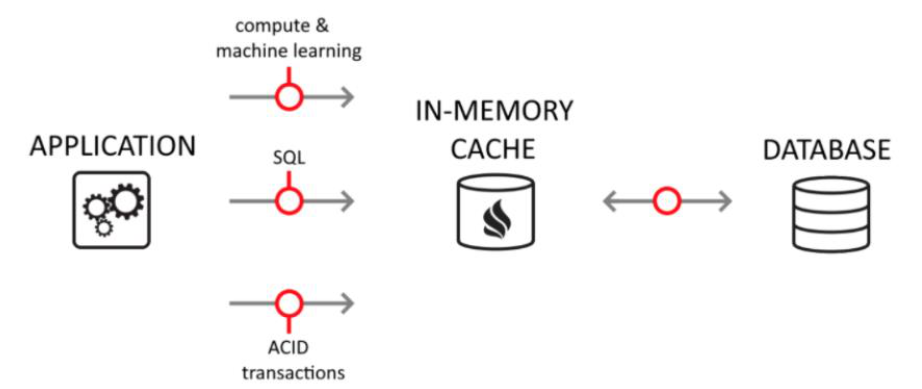

• In-Memory Databases
  • Designed to enable minimal response times
  • Eliminates the need to access disk

What Is NoSQL?

• Stands for "Not Only SQL"
• A class of non-relational data storage systems
• Usually do not require a fixed table schema nor use the concept of joins
• All NoSQL offerings relax one or more ACID properties (see: CAP Theorem)

NoSQL is like a flexible notebook instead of a rigid spreadsheet — you can add any kind of information without pre-defining the format.

Why NoSQL?

• RDBMS cannot be the "be-all/end-all" for data storage
• Just as there are different programming languages for different jobs, we need other data storage tools in the toolbox
• A NoSQL solution is increasingly acceptable in production environments
• Comparison: like accepting Ruby/Rails or Groovy/Grails over traditional Java/J2EE

Ruby is a scripting language based on C (uses a Ruby interpreter). Groovy is based on Java (uses JVM). Rails is a web framework for Ruby. Grails is a web framework for Groovy.

How Did We Get Here?

• Explosion of social media (Facebook, Twitter) with massive data needs
• Rise of cloud-based solutions such as Amazon S3 (Simple Storage Solution)
• Shift to dynamically-typed data with frequent schema changes (analogous to moving from static to dynamic typing in programming)
• Growth of the open-source community

Dynamo and BigTable — The Seeds of NoSQL

• Three major papers seeded the NoSQL movement:

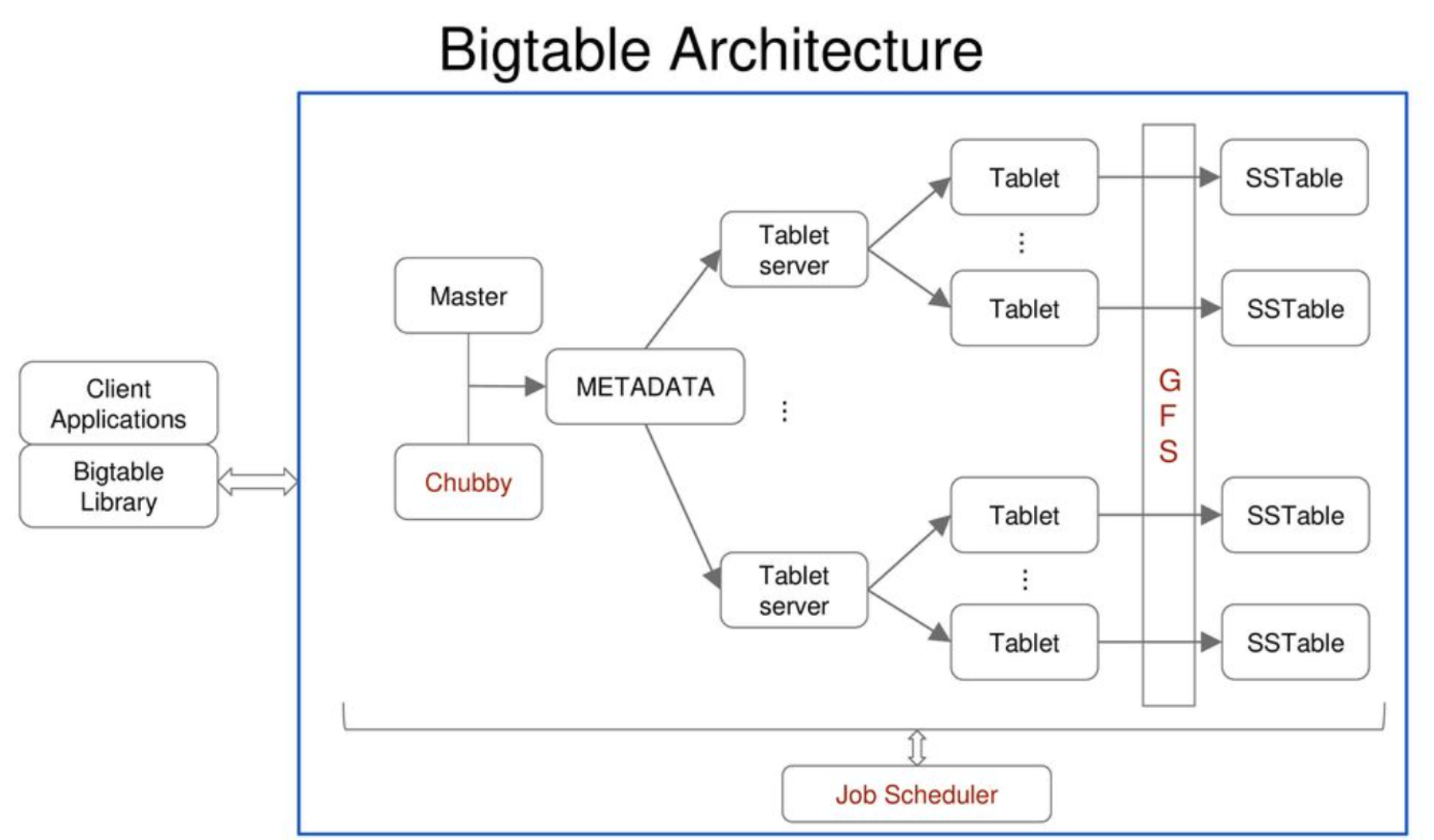

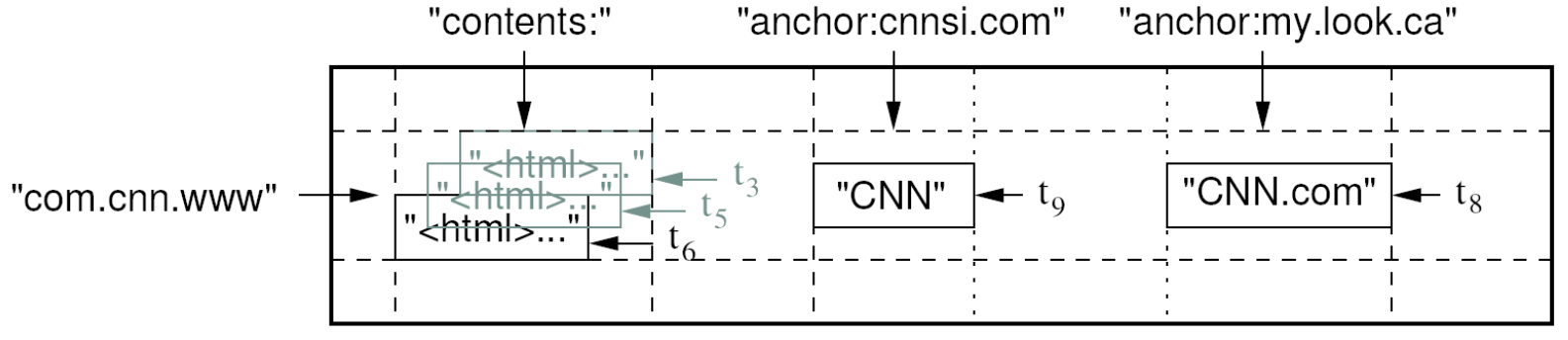

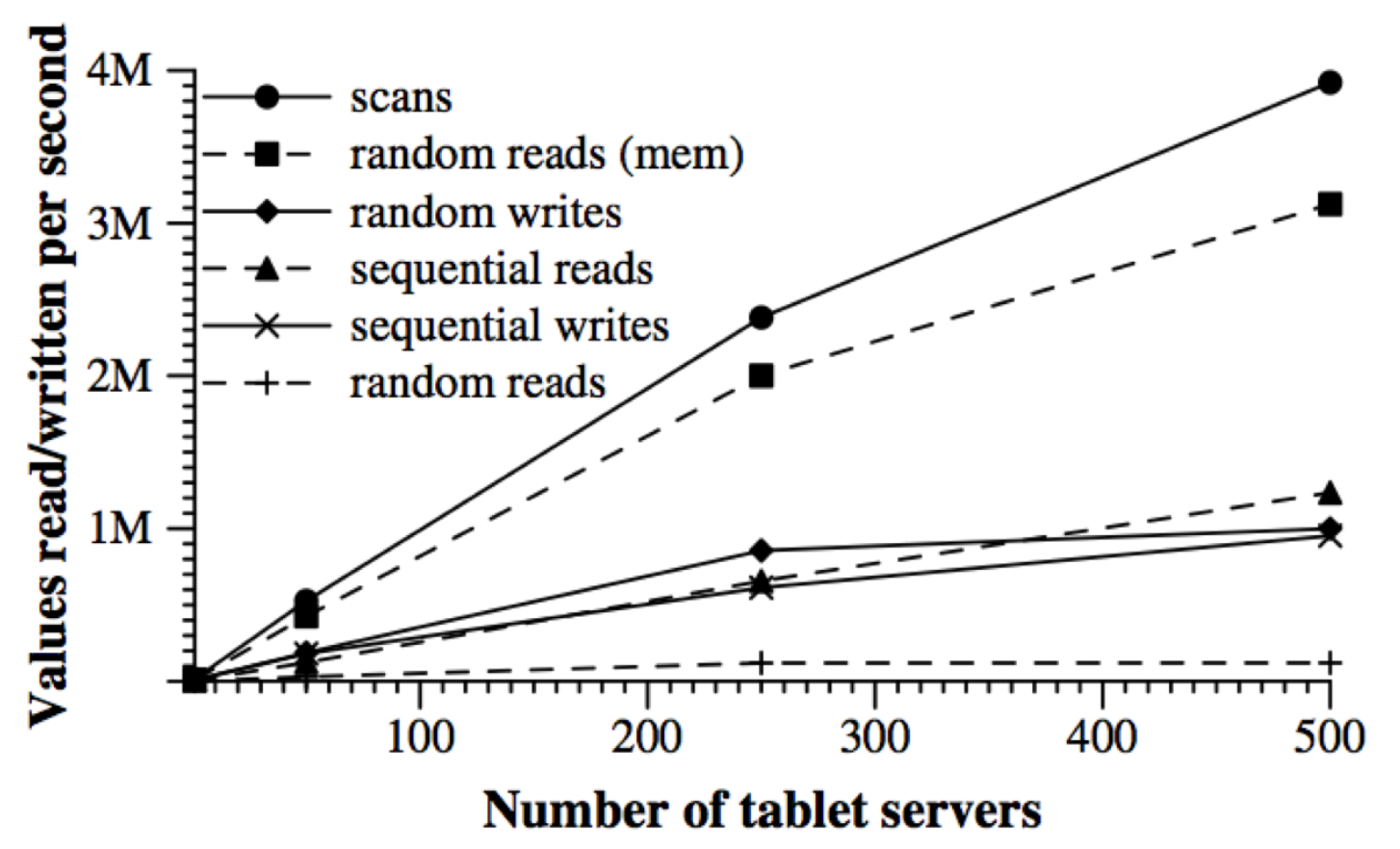

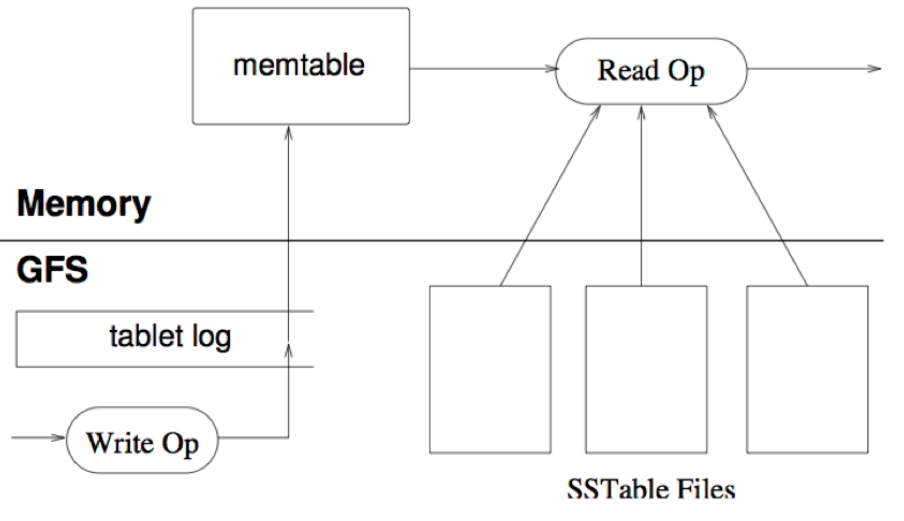

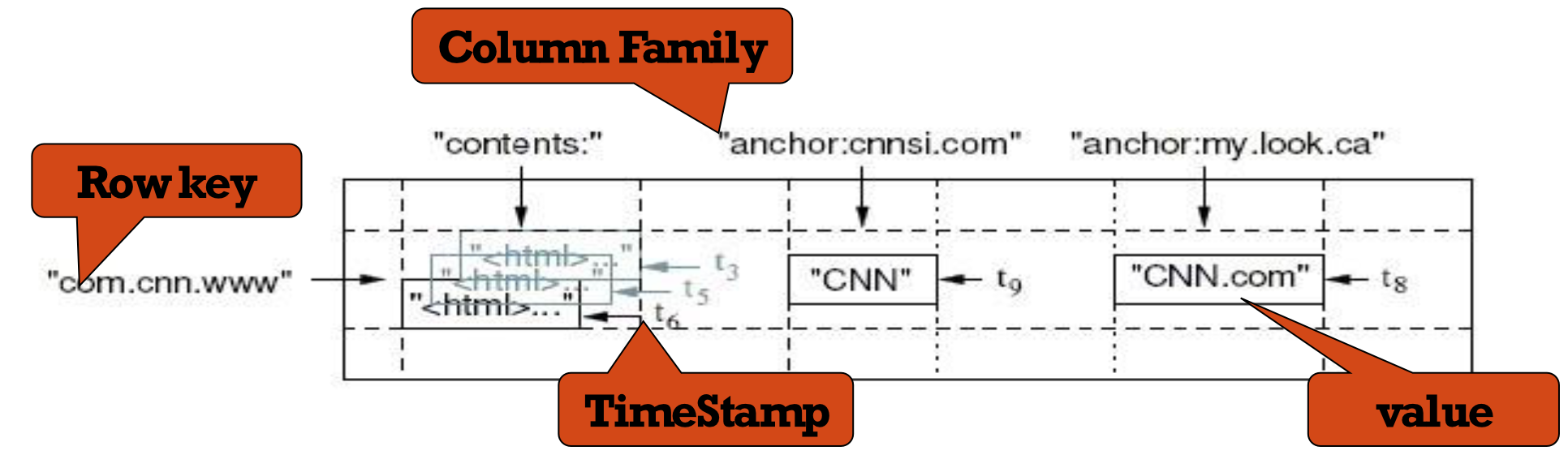

  1. BigTable — Google
  2. Dynamo — Amazon
  3. Gossip Protocol — for discovery and error detection

Dynamo Key Ideas

• Distributed key-value data store
• Eventual consistency (Store first → consistency checking later)
• Introduced the CAP Theorem (discussed below)

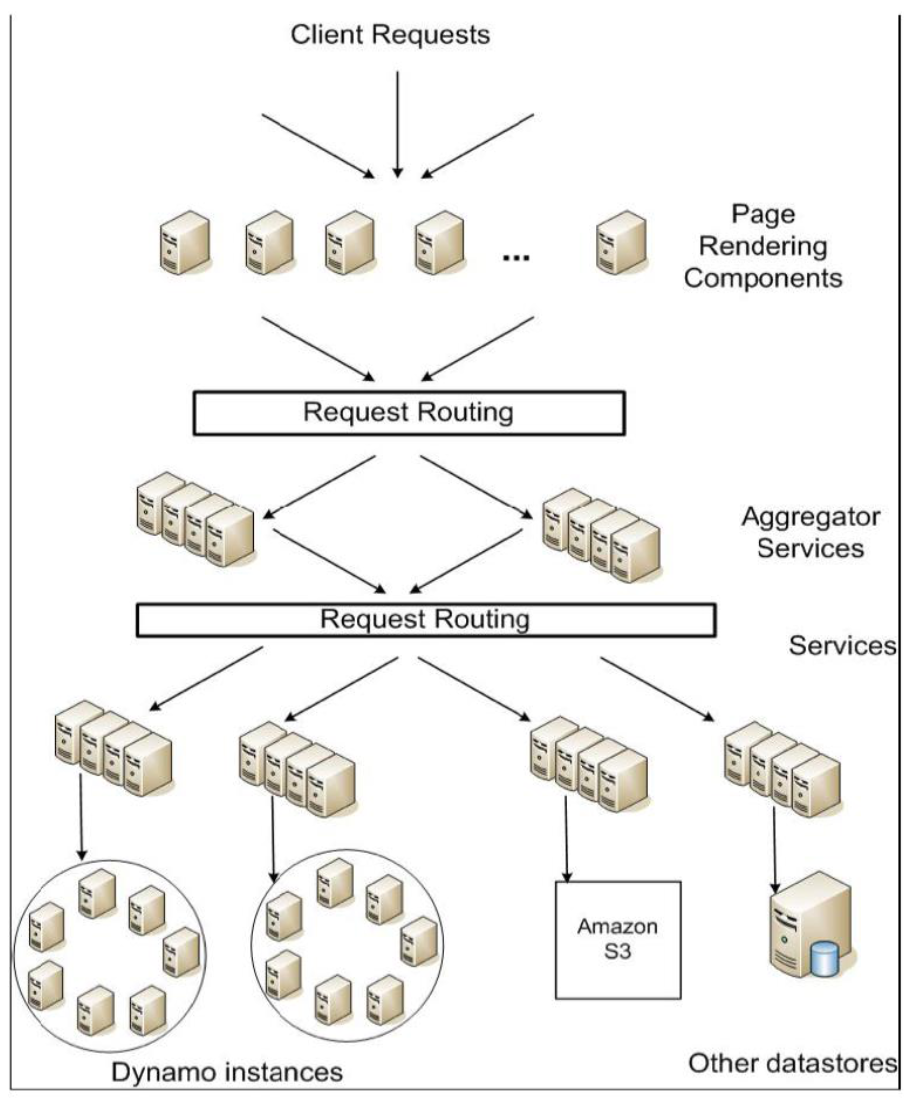

Amazon Dynamo Architecture

Amazon Dynamo

• Platform for Amazon's e-commerce services: shopping cart, best seller list, product catalog, promotional items, etc.
• A highly available, distributed key-value storage system
• Exposes only put() and get() interfaces
• Aims to provide "always on" guarantee at the cost of some consistency

Design Consideration (Dynamo)

• Incremental scalability — scale out one node at a time
• Minimal management overhead
• Symmetry — no master/slave nodes (decentralized control)
• Decentralized control — centralized approach leads to outages
• Heterogeneity — exploit the capabilities of different nodes

NoSQL Movement: What Is It All About?

• NoSQL is a term for a movement in database design away from traditional relational models
• With the emergence of big data and cloud computing, traditional databases and schema-driven design are too constraining

Reasons for NoSQL Databases

• Schema-less data storage
• Quick data storage and traversal
• Easier to program
• Better performance
• Easily distributed

Three Popular NoSQL Designs

1. Key/Value Store

2. Document Database
3. Graph Database

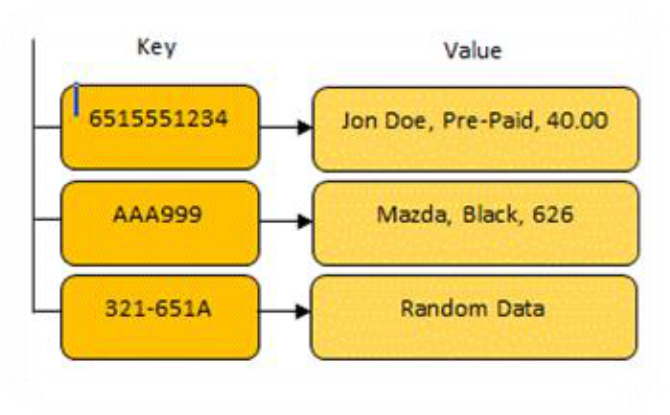

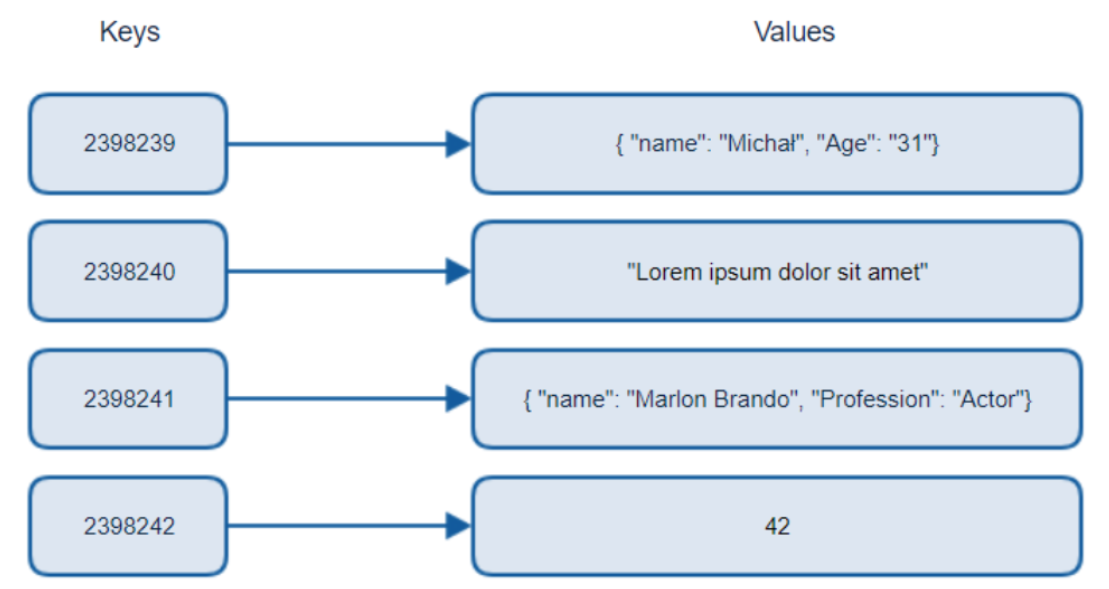

Key/Value Store

• Values are associated with and looked up by a key
• Keys can be associated with more than one value
• Data stored in the native data type of the programming language

Like a dictionary or hashmap — you look up a word (key) and get its definition (value).

Document Database

• Stores information in documents such as JSON or XML
• Document format implies the relationship between data points
• Most documents create hierarchies of data within themselves

Rows vs. Documents

• Relational DBs store data as rows in a table
• Document DBs store data as JSON documents

Columns vs. Properties

• Relational rows have columns (fixed)
• Documents have properties (flexible — any document can have different properties)

Example: Relational vs. Document

{
  "id": "1",
  "name": "John Smith",
  "isActive": true,
  "dob": "1964-30-08"
}

Document 2:

{
  "id": "2",
  "fullName": "Sarah Jones",
  "isActive": false,
  "dob": "2002-02-18"
}

Document 3:

{
  "id": "3",
  "fullName": { "first": "Adam", "last": "Stark" },
  "isActive": true,
  "dob": "2015-04-19"
}

Notice that Document 2 uses fullName instead of name, and Document 3 nests the name — this flexibility is impossible in relational tables.

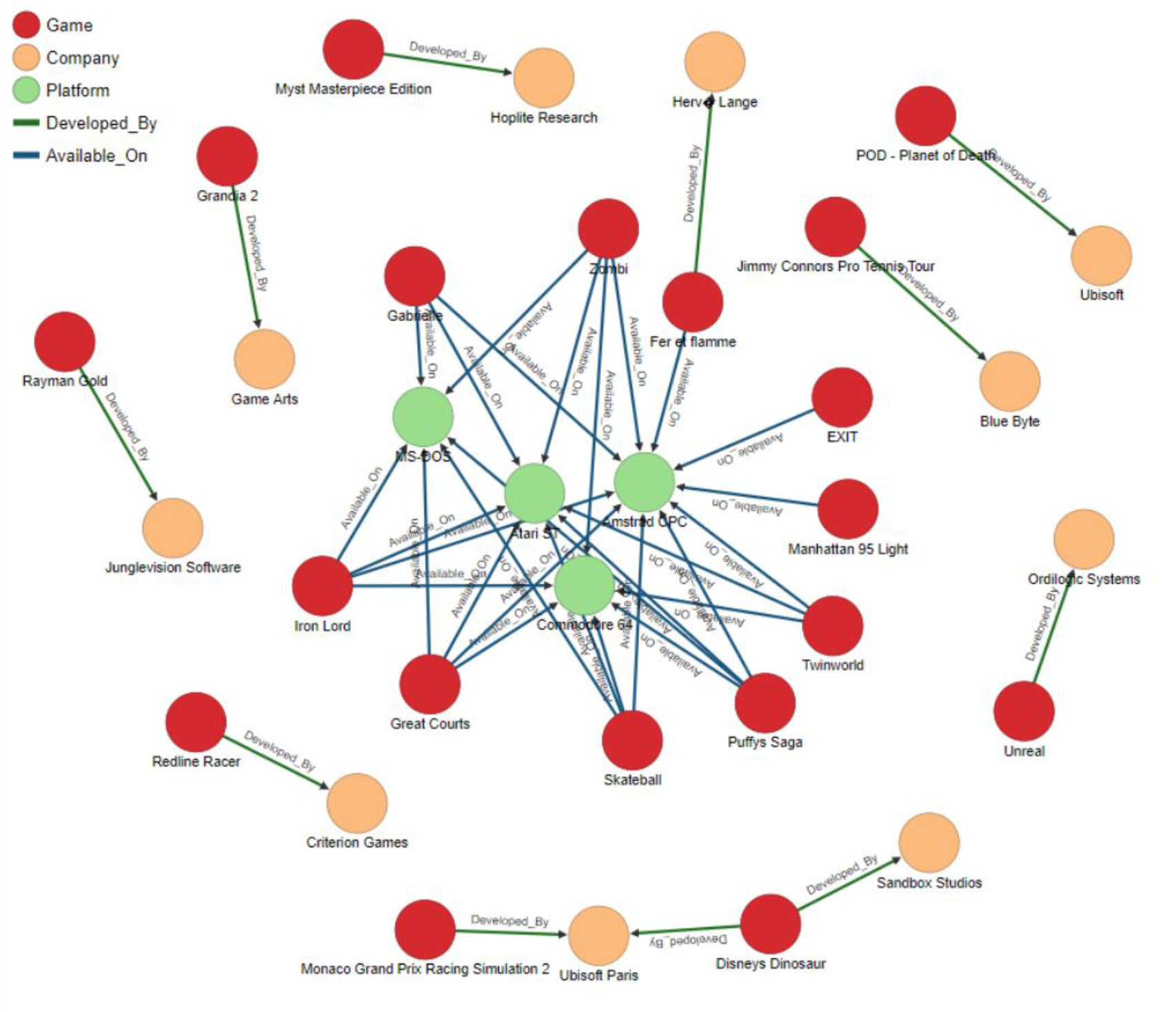

Graph Database

• Stores all information in nodes (vertices) and edges
• Graph traversal is how you "query" the database
• Relationship information is stored in the edges

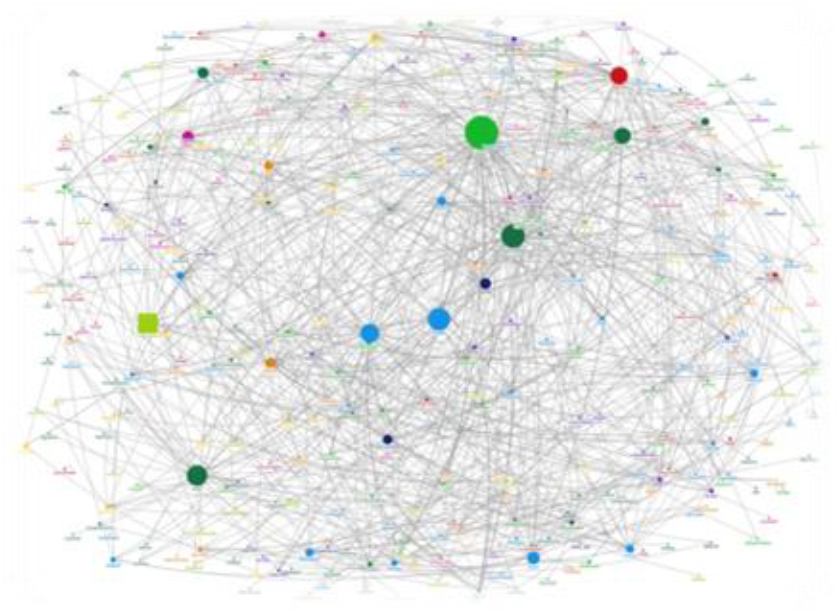

Why Graph DBs Are Powerful for Investigations

• Easy to query and navigate using the Cypher query language and visualization tools, even for non-developers
• Very fast at analyzing connected data — useful in critical situations (e.g., ongoing terrorist attacks)
• Help users discover the "unknowns"

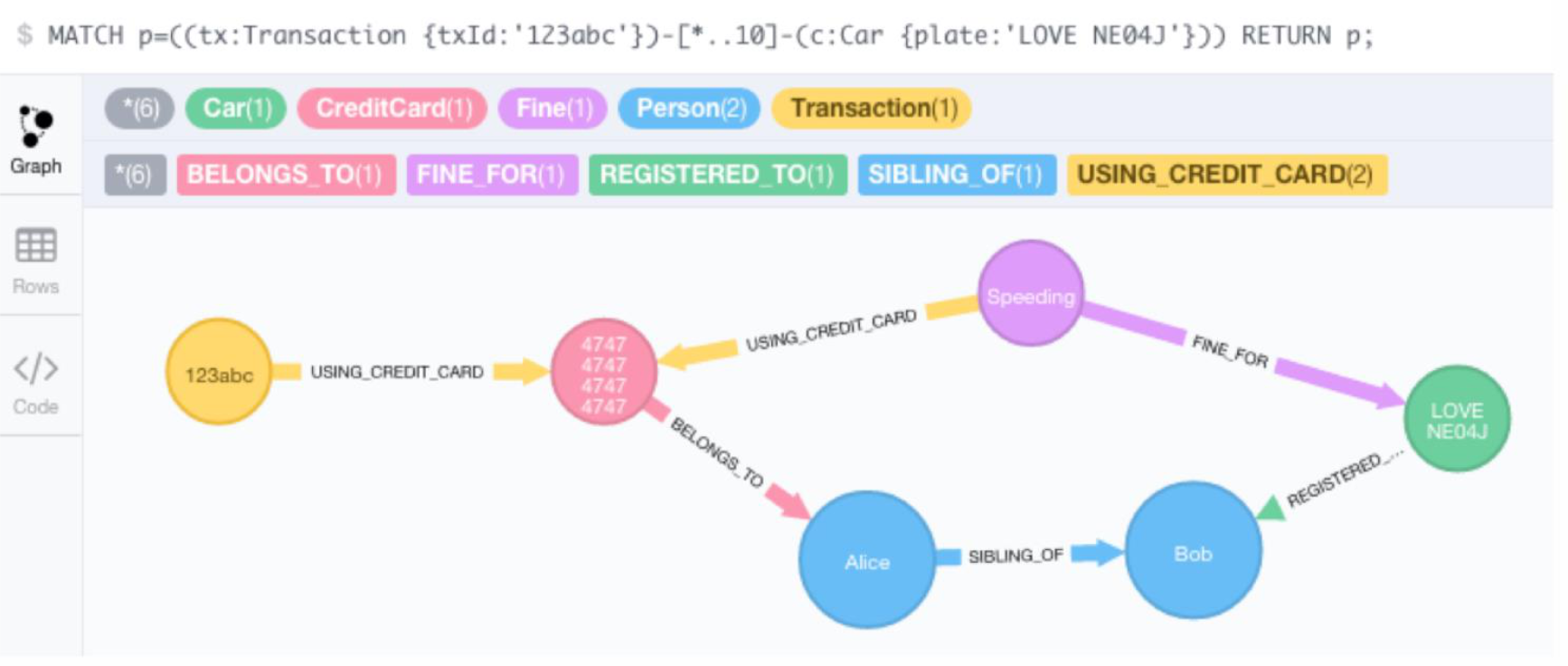

Example Cypher query:

MATCH p=((tx:Transaction {txId:'123abc'})-[*..10]-(c:Car {plate: "LOVE NE04"})) RETURN p;

Like a social network map — instead of asking "who knows John?", you draw lines between people and follow the connections directly.

Two advantages

1. Relationship between nodes
2. Query Performance

อย่าลืมเพิ่ม Uncovering and investigating illegal …

OrientDB

• A combined graph database and document database
• Uses JSON documents to store information in nodes and edges of the graph
• Uses an HTTP REST API to access/edit the database
• Runs on the Java Virtual Machine (JVM) — works on almost any machine
• Has APIs written in C/C++, Ruby, PHP, and Java
• Because of HTTP, easily distributed across multiple machines

Neo4j (GraphBase)

• A graph is a collection of nodes (things) and edges (relationships) that connect pairs of nodes
• Attach properties (key-value pairs) on both nodes and relationships
• Relationships connect two nodes — both nodes and relationships can hold an arbitrary number of key-value pairs
• A graph database can be thought of as a key-value store with full relationship support
• Website: http://neo4j.org/

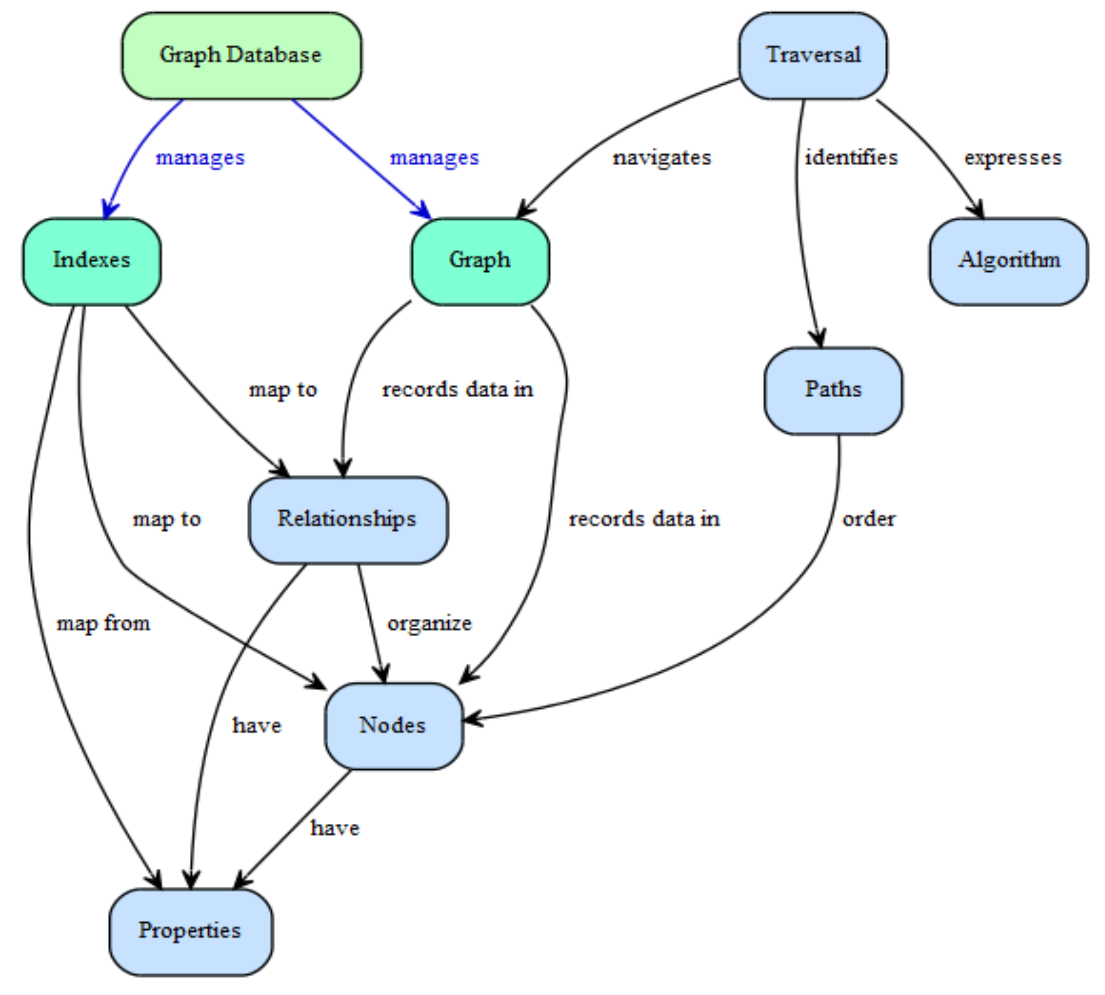

2.1.1 — A Graph Contains Nodes and Relationships

"A Graph — records data in — Nodes — which have — Properties"

• The simplest graph is a single Node with named values (Properties)
• A node could start with one property and grow to millions
• At some point, distribute data into multiple nodes organized with explicit Relationships

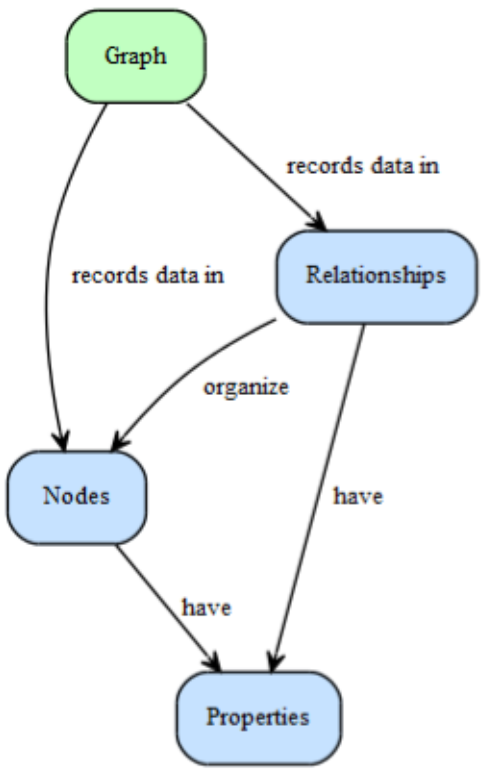

2.1.2 — Relationships Organize the Graph

"Nodes — are organized by Relationships — which also have — Properties"

• Relationships organize nodes into arbitrary structures: lists, trees, maps, compound entities, or complex networks

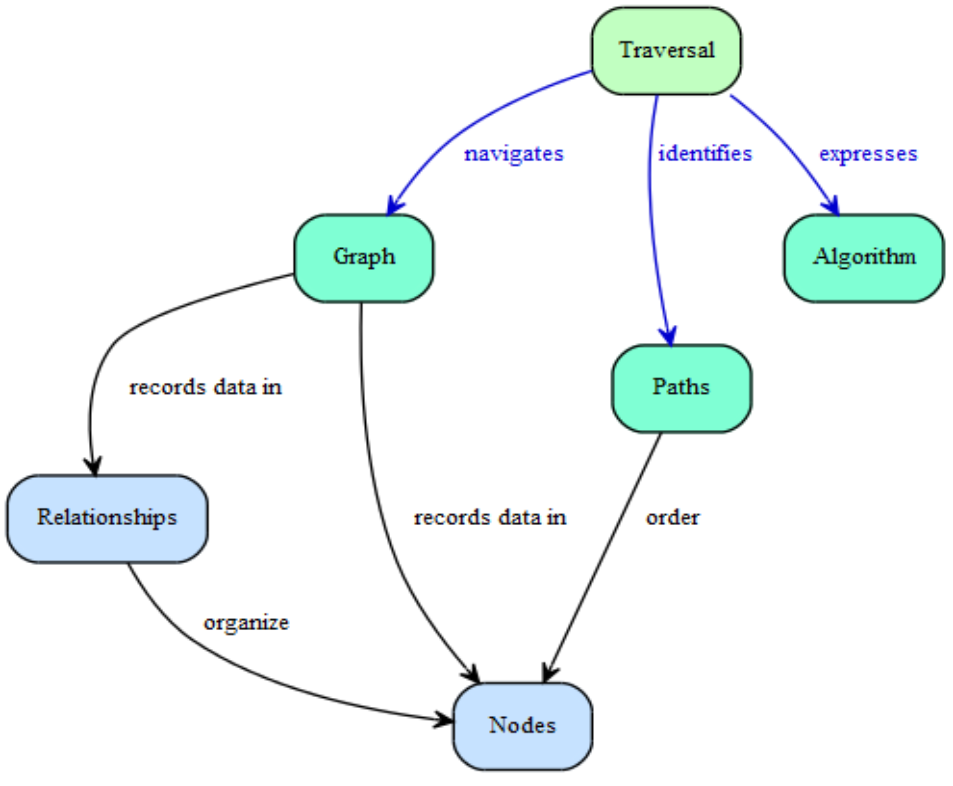

2.1.3 — Query a Graph with a Traversal

"A Traversal — navigates — a Graph; it — identifies — Paths — which order — Nodes"

• A traversal queries a graph by navigating from starting nodes to related nodes according to an algorithm
• Example questions: "What music do my friends like that I don't own yet?" or "If this power supply goes down, what web services are affected?"

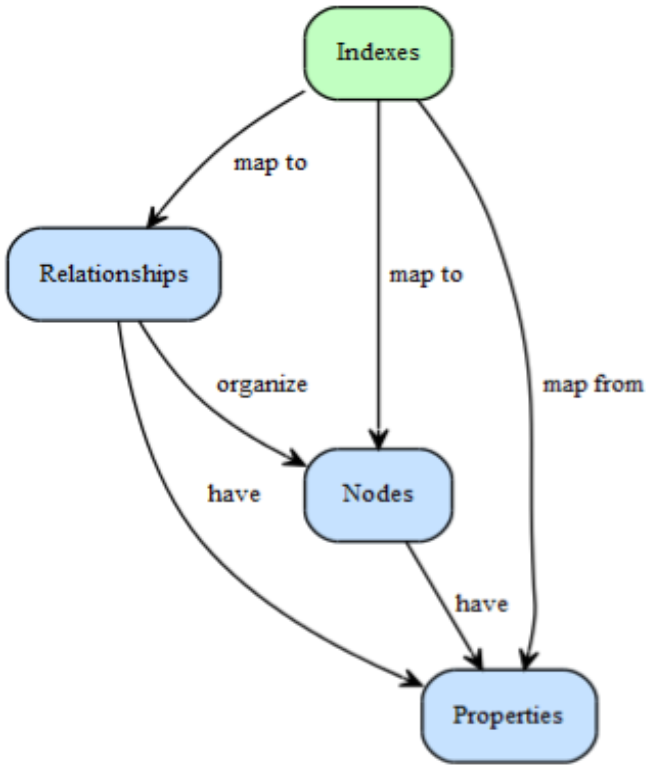

2.1.4 — Indexes Look Up Nodes or Relationships

"An Index — maps from — Properties — to either — Nodes or Relationships"

• Use an index to find specific nodes/relationships by property, rather than traversing the entire graph
• Example: "Find the account for username 'master-of-graphs'"

2.1.5 — Neo4j Is a Graph Database

"A Graph Database — manages a — Graph and — also manages related — Indexes"

• Commercially supported, open-source graph database
• Designed and built to be a reliable database optimized for graph structures

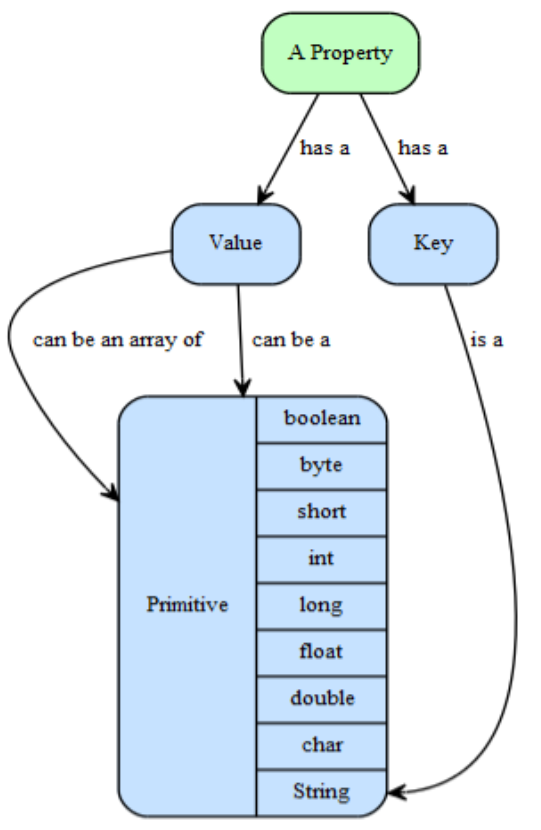

Neo4j Properties

• Properties are key-value pairs where the key is a string
• Values can be a primitive or an array of one primitive type (e.g., String, int, int[])
• null is NOT a valid property value — model nulls by the absence of a key

Neo4j Features

• Dual license: open source and commercial
• Well-suited for: tagging, metadata annotations, social networks, wikis, and other network-shaped or hierarchical data
• Intuitive graph-oriented model: flexible networks of nodes, relationships, and properties instead of rigid tables
• Performance: ~1000x improvement over relational DBs for graph queries
• Disk-based, native storage manager optimized for graph structures
• Massive scalability: handles billions of nodes/relationships/properties on a single machine; can shard across multiple
• Fully transactional (like a real database)
• Traverses depths of 1000 levels and beyond at millisecond speed

Distributed Databases

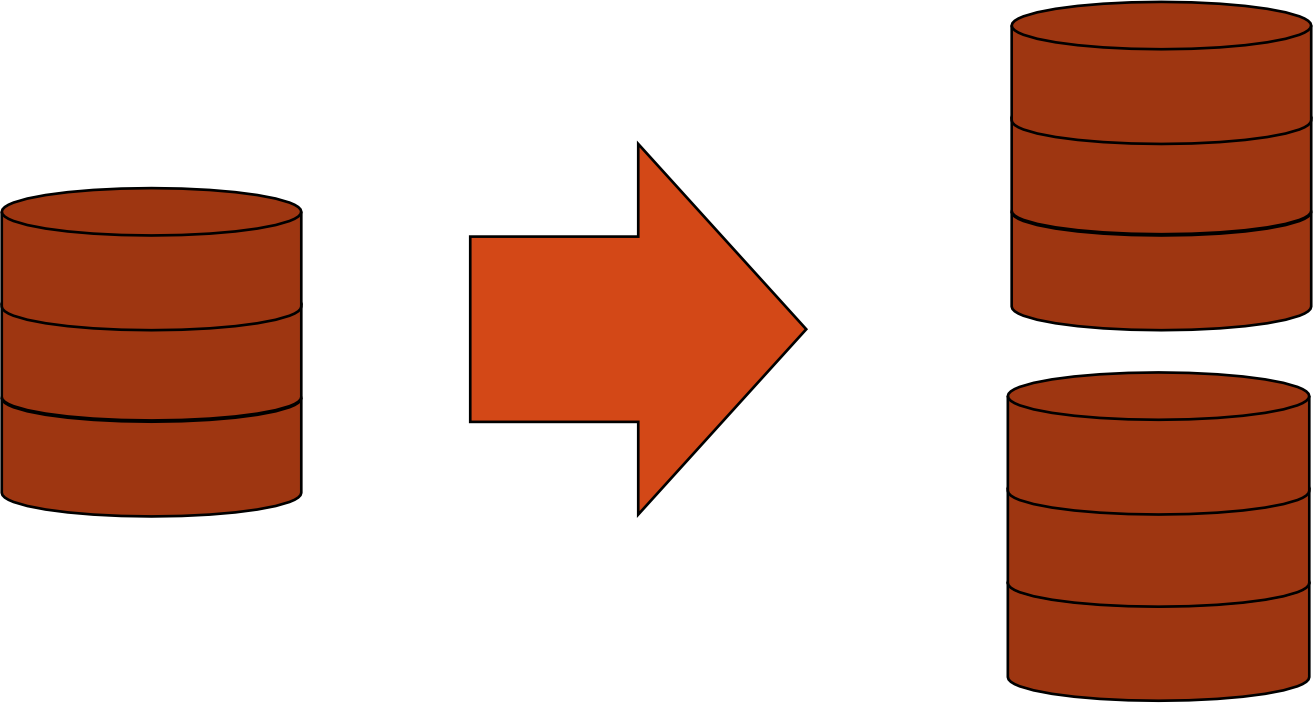

• As databases grow larger, it becomes necessary to expand hardware “SCALE UP”
• Distributed databases use multiple cheaper computers working together rather than one large machine “SCALE OUT”

Replication

• Copies the entire database across all nodes in the distributed system
• Optimized for fast reads and high data reliability

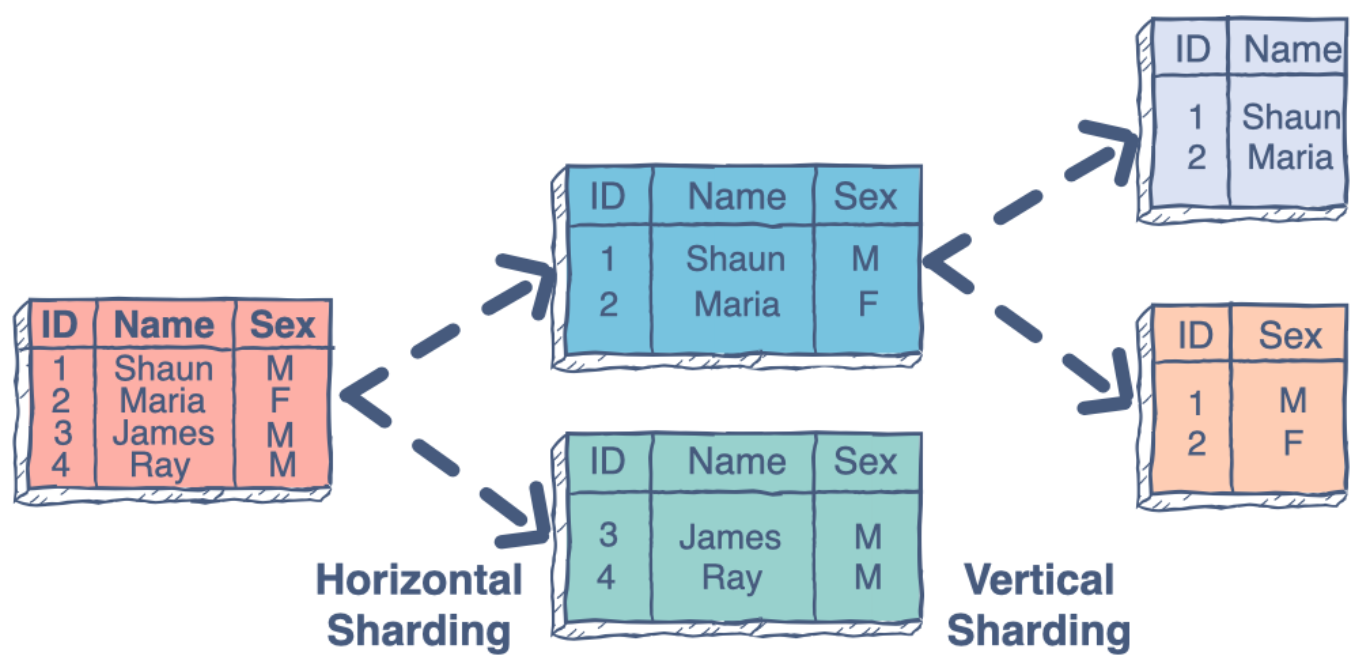

Sharding (in distributed context)

• Divides data inside the database and partitions pieces to different nodes
• Can be sharded horizontally (by rows) or vertically (by columns)

Pros/Cons Comparison

NoSQL Distributed Databases

• Nearly all NoSQL systems natively support distributed database designs
• This native distributed support is a key part of what makes NoSQL so appealing

In Summary (NoSQL Overview)

• NoSQL is a movement away from relational databases
• NoSQL databases allow programmers to easily traverse and manipulate data
• Databases like OrientDB are freely available and open source
• Distributed databases take full advantage of clusters of less expensive hardware

The Perfect Storm

• Large datasets + acceptance of alternatives + dynamically-typed data = the NoSQL perfect storm
• This is not a backlash/rebellion against RDBMS
• SQL is a rich query language that current NoSQL offerings cannot rival

CAP Theorem

Three Properties of a Distributed System

1. Consistency (C): Write a value, then read it — you get the same value back. In a partitioned system, there are windows where this is not guaranteed.
2. Availability (A): The system may not always be able to read or write. A system may refuse writes to keep itself consistent.
3. Partition Tolerance (P): Divide nodes into small groups — they can see some groups but not all (network partition).

Key Rule: You can have at most two of these three properties for any shared-data system.

$\boxed{\text{CAP: You can only guarantee 2 out of 3 — C, A, or P}}$

• To scale out, you must partition (P) → you must choose between C and A
• In most cases, you choose Availability over Consistency (but not always!)

Like a group project: you can have work done consistently (everyone has the same version), available (everyone can always access it), or partition-tolerant (the project continues even if some members are unreachable) — but never all three perfectly at once.

CAP Theorem: Practical Examples

• Shopping cart (checkout): Choose high availability — always honor "add to cart" requests because it's revenue-producing. Errors are hidden from the customer and sorted out later.
• Order submission: Choose consistency — multiple services (credit card processing, shipping, reporting) simultaneously access the data, so consistency is critical.

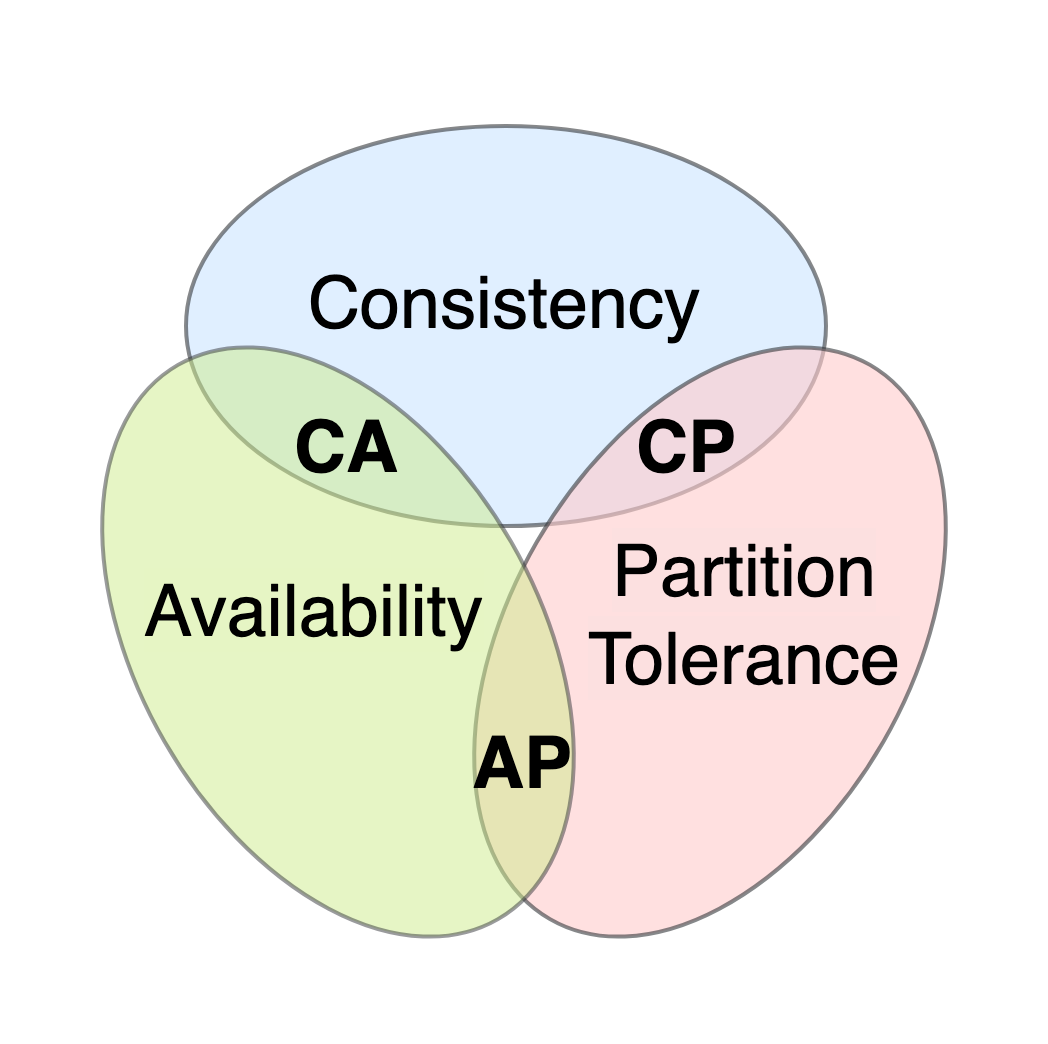

CAP Diagram Summary

Consistency

Two Kinds of Consistency

ACID Transactions

A DBMS supports ACID transactions, processes that are:

• Atomic: Either the whole process is done, or none of it is
• Consistent: Database constraints are preserved
• Isolated: It appears to the user as if only one process executes at a time
• Durable: Effects of a process are not lost if the system crashes

Atomicity

• A real-world event either happens or does not happen
  • A student either registers for a course, or does not register
• The system must ensure the transaction runs to completion, or has no effect at all
• Not true of ordinary programs — a crash could leave files partially updated

Commit and Abort

• If a transaction successfully completes → it commits
  • System ensures all changes are saved
• If a transaction does not complete → it aborts
  • System rolls back (undoes) all changes made by that transaction

Database Consistency

• Enterprise/Business Rules limit allowable real-world events
  • e.g., A student cannot register if current registrants = maximum allowed
• Allowable database states are restricted:

$\boxed{cur_{reg} \leq max_{reg}}$

• These limitations are called static integrity constraints — assertions that must be satisfied by all database states (state invariants)

State Invariants

• Database might store the same information in different ways (but same meaning)
  • e.g., $cur_{reg} = |\text{list\_of\_registered\_students}|$
• Database is consistent if all static integrity constraints are satisfied

Transaction Consistency

• A consistent database state does not necessarily model the actual state of the enterprise
• A deposit that increments balance by the wrong amount still satisfies $balance \geq 0$ but doesn't maintain the correct enterprise state
• A consistent transaction both:
  1. Maintains database consistency
  2. Maintains correspondence between database state and enterprise state
• Specification of deposit transaction:

$\boxed{balance' = balance + amt_deposit}$
(where $balance'$ is the next value of balance)

Techniques for Transaction Consistency

• Two-Phase Locking (Shrinking phase + Lock phase)
• Timestamp Ordering

Isolation

• Serial Execution: transactions execute in sequence — one starts only after the previous one completes
• Each transaction's execution is isolated from all others
• If the initial state and all transactions are consistent → final state will be correct (100%)
• Problem: Serial execution is inadequate from a performance perspective

Concurrent Execution (Better Performance)

• A computer has multiple resources capable of executing independently (CPUs, I/O devices)
• A transaction typically uses only one resource at a time
• Concurrently executing transactions yield interleaved schedules

T1:  op1,1  op1,2  ...  commit
T2:  op2,1  op2,2  ...

DBMS sees: op1,1 → op2,1 → op2,2 → op1,2 → ...  (interleaved)

Durability

• The system must ensure that once a transaction commits, its effect is not lost despite subsequent failures
• Not true of ordinary programs — a media failure after termination could restore the file system to a prior state
• Managed by the recovery manager (checkpoint technique + data restoration)

Implementing Durability

• Database stored redundantly on mass storage devices to protect against media failure
• Storage device architecture affects tolerance for different failure types
• Related to Availability:
  • Non-stop DBMS: mirrored disks
  • Recovery-based DBMS: log files, data backup, checkpoints

Consistency Model

• A consistency model determines rules for visibility and apparent order of updates
• Example scenario:
  • Row X is replicated on nodes M and N
  • Client A writes row X to node N
  • Some time $t$ elapses
  • Client B reads row X from node M
  • Does client B see Client A's write?
• Consistency is a continuum with tradeoffs — usually traded off against Availability
• For NoSQL: the answer is "maybe"
• CAP Theorem: Strict consistency cannot be achieved simultaneously with availability and partition-tolerance

Eventual Consistency

• When no updates occur for a long period, eventually all updates will propagate through the system and all nodes will be consistent
• For a given accepted update and a given node: eventually either the update reaches the node or the node is removed from service
• Known as BASE (as opposed to ACID)

Like a Wikipedia edit — after you save a change, it may take time for it to appear across all server regions. Eventually, everyone sees the same version.

BASE

$\boxed{BASE = \text{Basically Available} + \text{Soft State} + \text{Eventual Consistency}}$

• Basically Available: The system seems to work all the time
• Soft State: Doesn't have to be consistent all the time
• Eventually Consistent: Becomes consistent at some later point in time

Availability

• Traditionally: availability = server/process available five 9's ($99.999\%$)
• For large node systems: at almost any point in time, there's a good chance a node is down or there's a network disruption
• Goal: build a system that is resilient in the face of network disruption

CAP Theorem Summary

$\boxed{\text{Theorem: You can have at most 2 of 3: Consistency, Availability, Partition Tolerance}}$

• C + A: Works only when no partitions — not realistic for large-scale distributed systems
• C + P: HBase, BigTable — strongly consistent but may sacrifice availability
• A + P: Cassandra, DynamoDB — highly available but eventually consistent

What Kinds of NoSQL?

Key/Value ("The Big Hash Table")

• Amazon S3 (Dynamo)
• Voldemort
• Scalaris
• Memcached — in-memory key/value store
• Redis

Schema-less (Column/Document/Graph)

• Cassandra — column-based
• CouchDB — document-based
• MongoDB — document-based
• Neo4J — graph-based
• HBase — column-based

Key/Value: Pros and Cons

Pros

• Very fast
• Very scalable
• Simple model
• Able to distribute horizontally

Cons

• Many data structures (objects) can't be easily modeled as key-value pairs

Schema-less: Pros and Cons

Pros

• Richer data model than key/value
• Eventual consistency
• Many are distributed
• Excellent performance and scalability

Cons

• Typically no ACID transactions or JOINs

Common Advantages of NoSQL

• Cheap and easy to implement (open source)
• Data replicated to multiple nodes — identical and fault-tolerant
• Data can be partitioned
• Down nodes easily replaced
• No single point of failure
• Easy to distribute
• No schema required
• Can scale up and down
• Relaxed data consistency requirement (CAP tradeoff)

What Are You Giving Up? (NoSQL Trade-offs)

• JOIN operations
• GROUP BY
• ORDER BY
• ACID transactions
• SQL — a powerful, expressive query language
• Easy integration with other SQL-supporting applications

BigTable and HBase (C+P)

Category: Consistency + Partition Tolerance (C+P in CAP)

BigTable Data Model

$\boxed{(row:string,\ column:string,\ time:int64) \rightarrow \text{uninterpreted byte array}}$

• A table in BigTable is a sparse, distributed, persistent, multidimensional sorted map
• Map indexed by: row key, column key, and a timestamp
• Supports lookups, inserts, deletes
• Only single-row transactions

Table: webtable

• Row key = webpage URL
• Column = all pages linking to it

Think of it like an enormous, multi-layered spreadsheet where rows are web pages, and columns store different attributes — all indexed by time so you can see historical versions.

What Is Anchor (Anchor Text)?

In HTML, an anchor is a hyperlink created using the <a> tag.

Example 1:

<a href="http://www.cnn.com">CNN</a>

<a href="http://www.cnn.com">CNN</a>
<a href="http://www.cnn.com">CNN.com</a>

Internal Storage Representation

BigTable/HBase actually stores data as:

$\boxed{(RowKey,\ ColumnFamily:Column,\ Timestamp) \rightarrow Value}$

Why BigTable's Model Is Powerful

• Designed at Google for web indexing
• Row key = webpage; Column = all pages linking to it
• A webpage might have millions of incoming links — impossible in a relational table
• This is why Big Data systems like the Hadoop ecosystem rely on it

RDBMS vs. Column Family Model

Rows and Columns in BigTable

• Rows maintained in sorted lexicographic order (alphabetical)
• Applications can exploit this for efficient row scans
• Row ranges dynamically partitioned into tablets
• Columns grouped into column families
  • Column key = family:qualifier
  • Column families provide locality hints
  • Unbounded number of columns allowed

BigTable Building Blocks

1. GFS — Google File System (distributed storage)
2. Chubby — distributed coordination service
3. SSTable — Sorted Strings Table (data storage format)

Chubby

• A distributed coordination service
• Goal: Allow client applications to synchronize and manage dynamic configuration state
• Intuition: Only some parts of an app need consensus → Highly available view service
  • Master election in a distributed file system (e.g., GFS)
  • Metadata for sharded services

Chubby's Role in BigTable

• Ensures there is only one active master
• Stores the bootstrap location of BigTable data
• Used to discover tablet servers
• Stores BigTable schema information
• Stores access control lists

Chubby is like a traffic controller — it makes sure only one car (master) is controlling an intersection at a time, and everyone knows where to look for directions.

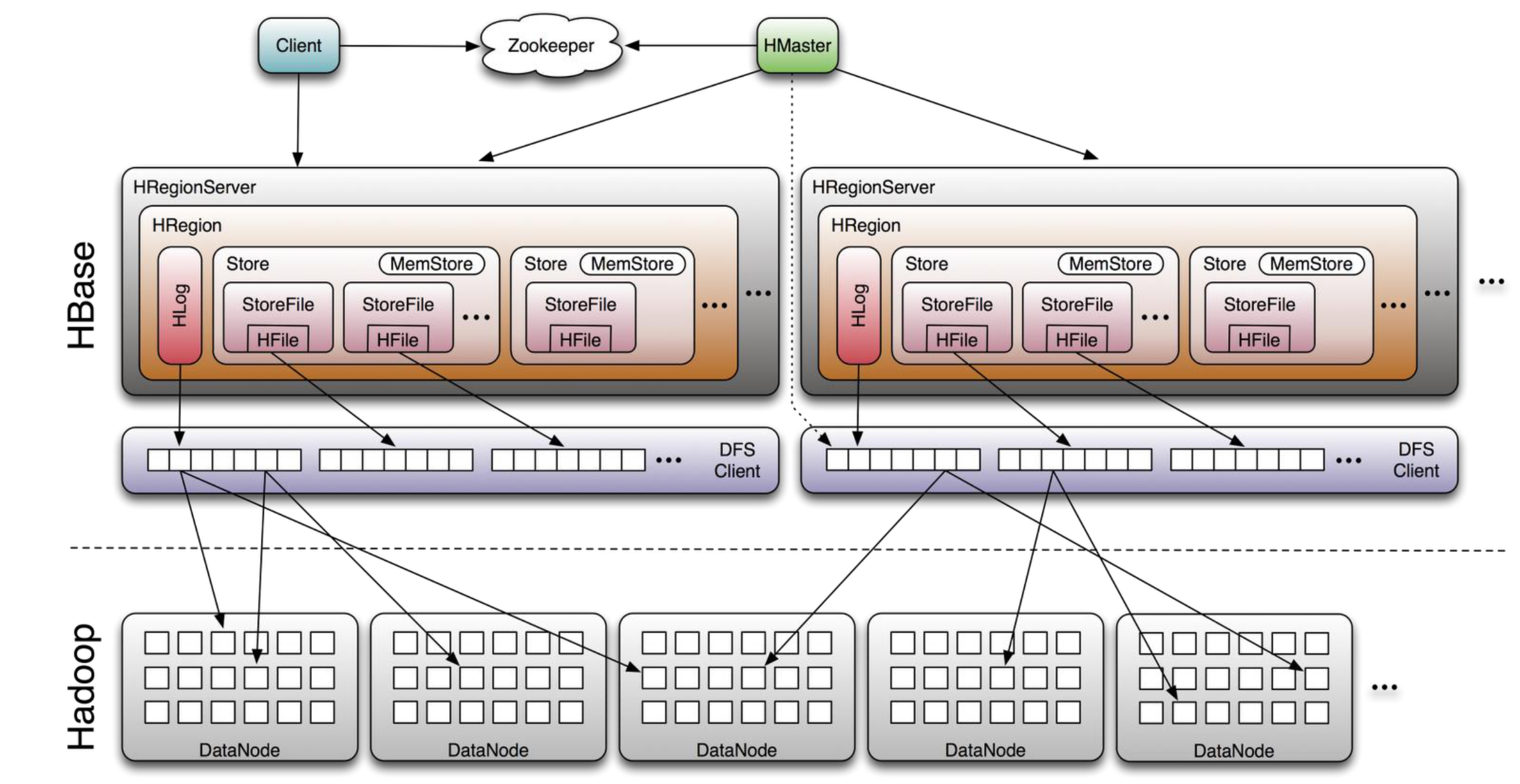

Bigtable Architecture

SSTable (Sorted Strings Table)

• A file of key/value string pairs, sorted by keys
• Basic building block of BigTable
• Persistent, ordered, immutable map from keys to values
• Stored in GFS
• Sequence of blocks on disk plus an index for block lookup
• Can be completely mapped into memory

Supported Operations

• Look up value associated with key
• Iterate key/value pairs within a key range

Storage Structure

[ 64K block | 64K block | 64K block | ... | Index ]

SSTable Details

• File format to store BigTable data durably
• Stored as a series of 64KB blocks, with a block index at the end
• Index is loaded into memory when SSTable is opened
• Lookup in a single seek: find block in memory index → seek to block on disk

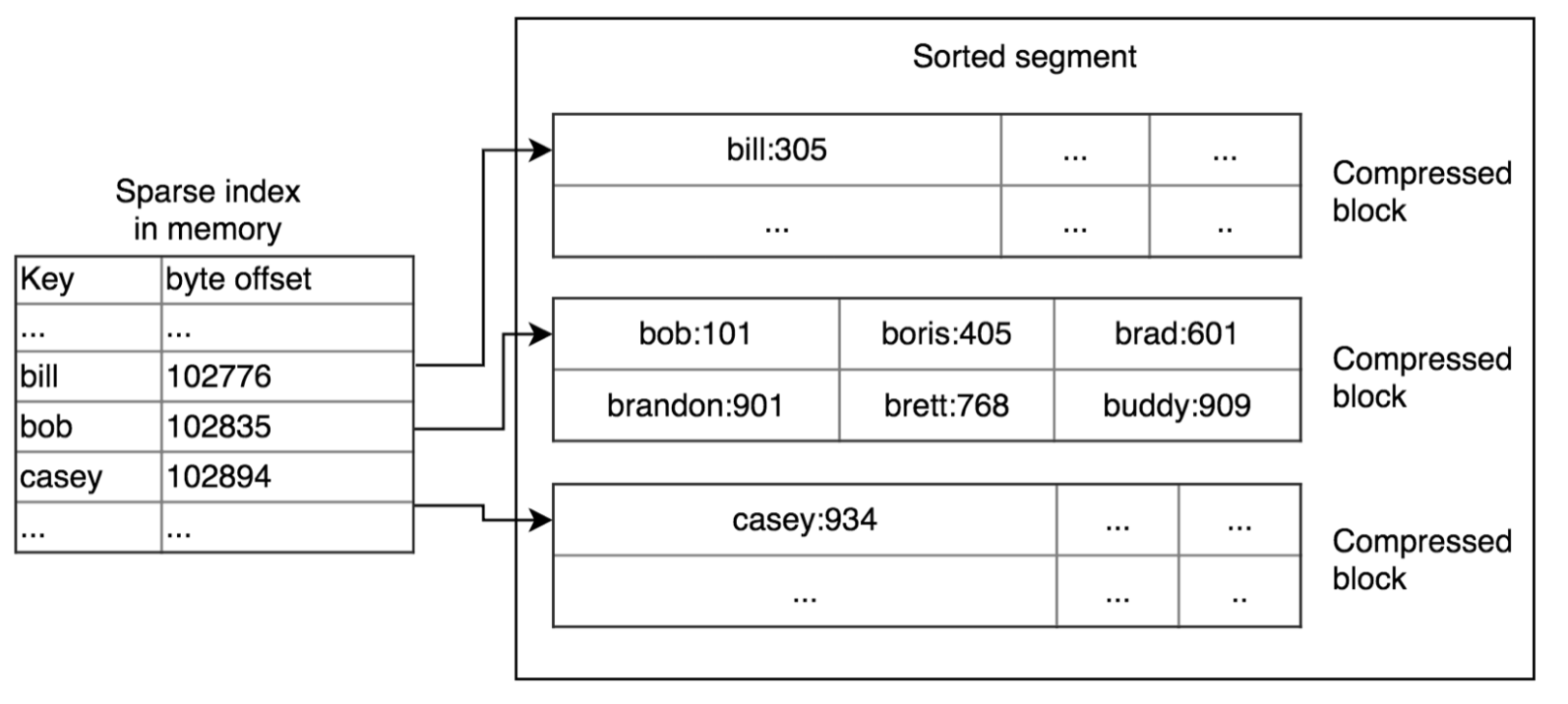

SSTable Diagram

When to Use an SSTable?

Two common usages:

1. As input and/or output of a MapReduce job (e.g., part of a processing pipeline)
2. As a lookup table for an application server that needs many random access lookups

Advantages and Disadvantages of SSTable

Tablet

• A dynamically partitioned range of rows
• Built from multiple SSTables
• The unit of distribution and load balancing

A tablet is like one drawer in a filing cabinet. The entire cabinet is the table; each drawer (tablet) holds a sorted range of files (SSTables).

Table

• Multiple tablets make up the table
• SSTables can be shared between tablets

BigTable Component Hierarchy

$\boxed{SSTable \rightarrow Tablet \rightarrow Table}$

$\text{BigTable} = GFS + Chubby + SSTables$

• Consistency → Chubby
• Partition Tolerance → SSTables

Architecture

Three Components

1. Client library
2. Single master server
3. Tablet servers

BigTable Master

• Assigns tablets to tablet servers
• Detects addition and expiration of tablet servers
• Balances tablet server load
• Handles garbage collection
• Handles schema changes

BigTable Tablet Servers

• Each tablet server manages a set of tablets
  • Typically 10 to 1,000 tablets per server
  • Each tablet: 100–200 MB by default
• Handles read and write requests to the tablets
• Splits tablets that have grown too large

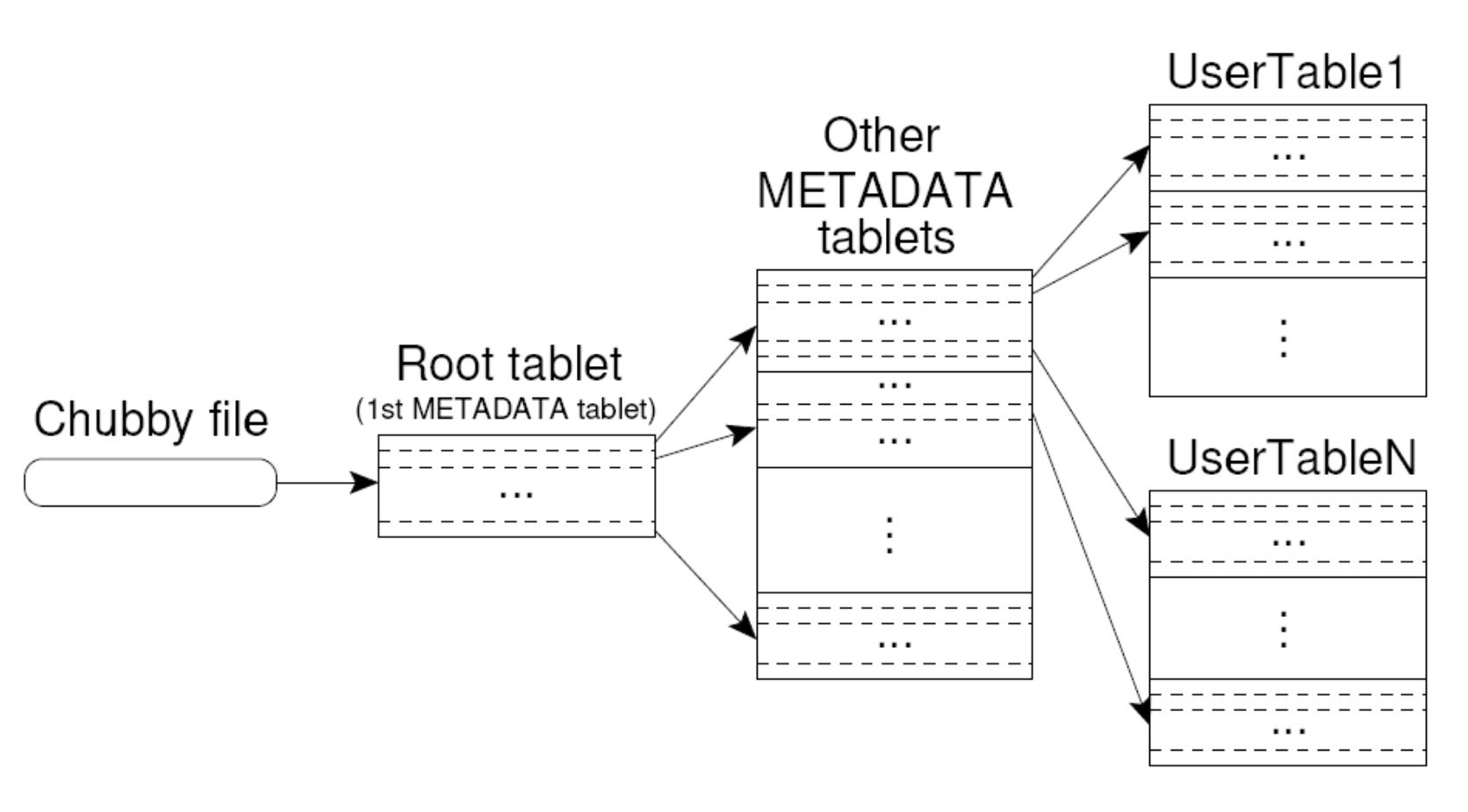

Tablet Location

Three-level hierarchy for tablet location — Chubby → Root Tablet (METADATA table) → METADATA Tablets → User Tablets

• Upon discovery, clients cache tablet locations

Tablet Assignment

Master Keeps Track Of:

• Set of live tablet servers
• Assignment of tablets to tablet servers
• Unassigned tablets

Rules

• Each tablet assigned to one tablet server at a time
• Tablet server maintains an exclusive lock on a file in Chubby
• Master monitors tablet servers and handles assignment

Changes to Tablet Structure

• Table creation/deletion — master initiated
• Tablet merging — master initiated
• Tablet splitting — tablet server initiated

Tablet cannot by shared by a tablet server while SSTable can be shared by multiple tablets: TRUE

Tablet Server Internals

Image: Tablet server internals — Write Op → WAL (commit log) + memtable (memory) → GFS SSTable files; Read Op → merged view of SSTables + memtable

How a Tablet Server Works

• Manages 10–1,000 tablets
• Handles read/write requests for assigned tablets
• Splits tablets when they get too big
• Durable state stored in GFS
  • GFS provides atomic append and fast sequential reads/writes

Writes

Usually asked in the #FinalExam

• Updates committed to a commit log (WAL — Write Ahead Log) storing REDO records
• Recently committed writes cached in memory in a memtable
• Older writes stored in a series of SSTables in GFS

Reads

• Executed on a merged view of SSTables + memtable
• Both are lexicographically stored → merge is efficient

Redo Log Files (WAL)

• WAL = Write Ahead Log (redo log files)
• Concept: We do NOT need to flush data pages to disk on every transaction commit
• Data is written into log files (redo log files) first, then flushed/written to disk later

What Happens on a Crash?

• Any changes not yet applied to data pages/disk → redone from log records (redo log files) → roll-forward recovery
• Changes made by uncommitted transactions → removed from data pages → roll-backward recovery (UNDO → Checkpoints)

REDO is preferred for data recovery !!!!! ไปเปรียบเทียบมาต่างกับ UNDO อย่างไรนะ

Compactions

• Minor Compaction
  • Converts the memtable into an SSTable
  • Reduces memory usage and log traffic on restart
• Merging Compaction
  • Reads contents of a few SSTables + memtable → writes out a new SSTable
  • Reduces the number of SSTables
• Major Compaction
  • Merging compaction that results in only one SSTable
  • No deletion records — only live data remains

Compaction is like cleaning up your desk: minor compaction tidies one pile, merging compaction consolidates several piles, major compaction leaves you with just one clean pile.

Performance Benchmark

Image: Performance graph — 1000-byte read/write benchmark across number of tablet servers, showing scan, random read/write, sequential read/write performance

Key Observations

• Scans: batch multiple reads into a single RPC → most efficient sequential access (ให้ high throughput ไง)
• Random reads (disk): worst performance — each request involves a 64KB SSTable block read from GFS to tablet server
• Random reads (mem): much faster as data is served from memtable
• Random writes ≈ sequential writes: both result in appends to a log

BigTable Applications

• Data source and data sink for MapReduce jobs
• Google's Web Crawl
• Google Earth
• Google Analytics

Lessons Learned (from BigTable)

• Fault tolerance is hard
• Don't add functionality before understanding its use
• Single-row transactions appear to be sufficient
• Keep it simple!

HBase: Introduction

HBase is an open-source, distributed, column-oriented database built on top of HDFS — based on BigTable!

HBase Is...

• A distributed data store that can scale horizontally to 1,000s of commodity servers and petabytes of indexed storage
• Designed to operate on top of Hadoop Distributed File System (HDFS) or Kosmos File System (KFS / Cloudstore)
• Provides: scalability, fault tolerance, and high availability

HBase Benefits

• Distributed storage
• Table-like data structure (multi-dimensional map)
• High scalability
• High availability
• High performance

HBase Backdrop (Timeline)

Started by Chad Walters and Jim Kellerman

Why BigTable?

• RDBMS performance is good for transaction processing but for very large-scale analytic processing, solutions are commercial, expensive, and specialized
• Very large-scale analytic processing requires:
  • Big queries — typically range or table scans
  • Big databases (100s of TB)
• MapReduce on BigTable (with optionally Cascading on top for relational algebras) may be a cost-effective solution
• Sharding is NOT a solution for scaling open-source RDBMS platforms:
  • Application-specific
  • Labor-intensive (re)partitioning

Why HBase?

• HBase is a BigTable clone
• It is open source
• Has a good community and promise for the future
• Developed on top of and has good integration with Hadoop — if you're already using Hadoop, HBase is a natural fit
• Has a Cascading connector

Why HBase (Consistency)?

• HBase is strongly consistent
• Each row is hosted by a single region server at a time
• Uses row locks + multiversion concurrency control (MVCC) to provide consistency within a row
• During failover: new regionserver does not accept writes until the previous one is blocked out
• Replication handled at the HDFS layer — no edit acknowledged to client until flushed to 3 HDFS replicas

HBase Benefits Over RDBMS

HBase Data Model

$\boxed{(Row,\ Family:Column,\ Timestamp) \rightarrow Value}$

• Tables are sorted by Row
• Table schema only defines column families
  • Each family consists of any number of columns
  • Each column consists of any number of versions
• Columns only exist when inserted — NULLs are free (sparse)
• Columns within a family are sorted and stored together
• Everything except table names are byte[]

Row key → [Column Family : [Column : [Timestamp → Value]]]

It's like a filing system where folders (column families) can contain any number of files (columns), and each file can have multiple dated versions.

HBase Members

Master

• Responsible for monitoring region servers
• Load balancing for regions
• Redirects clients to the correct region servers

RegionServer (Slaves)

• Serves requests (Write/Read/Scan) of clients
• Sends HeartBeat to Master
• Throughput and Region numbers are scalable by adding region servers

HBase Architecture

Image: HBase Architecture — HRegionServer components, HDFS integration, ZooKeeper coordination

Connecting to HBase

Java Client

get(byte[] row, byte[] column, long timestamp, int versions);

Non-Java Clients

• Thrift server hosting HBase client instance
  • Sample clients: Ruby, C++, Java (via Thrift)
• REST server hosts HBase client

MapReduce Integration

• TableInput/OutputFormat for MapReduce
• HBase as MapReduce source or sink

HBase Shell

• JRuby IRB with a "DSL" to add get, scan, and admin commands

./bin/hbase shell YOUR_SCRIPT
